N90774001 Hexagon Head Bolt (Combi)
- N90774001This pageNot stocked
Jun 2011 - N90774002Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

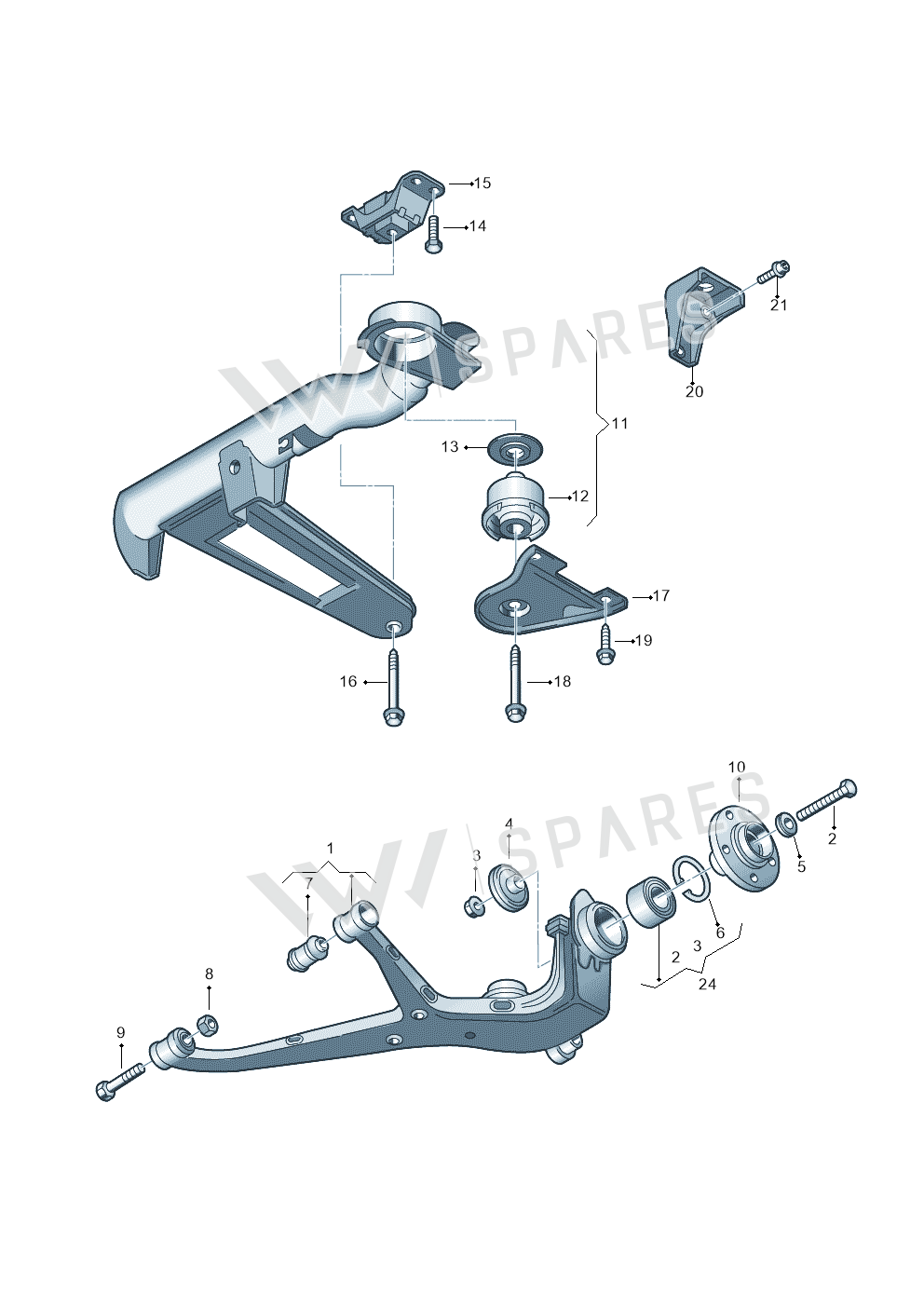

7 vehiclesHexagon Head Bolt (combi) — locate Hexagon Head Bolt (Combi) in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Axle GuideLeft7M3501075
- 1Axle GuideRight7M3501076
- 1Axle GuideLeft7M3501075B
- 1Axle GuideRight7M3501076D
- 2Bolt N90625101
- 2Bolt N10171402
- 3Collar Nut N10256602
- 4Springwash WHT001910
- 5Washer 701501283
- 6Ring N0123501
- 7Rubber Bush 7M0501541A
- 7Rubber Bush 7M0501541
- 8Part N10140904
- 9Bolt N10306402
- 10Wheel Hub 7M0501655D
- 11Carrier 7M3505093
- 11Carrier 7M0505093
- 12Bearing 7M0505222C
- 12Bearing 7M0505222B
- 13Cover 7M0501311
- 14Bolt N10200602
- 15Bracket 7M0505221E
- 15Bracket 7M0505221C
- 16Bolt N90637801
- 17BraceRight7M0599142E
- 17BraceLeft7M0599141D
- 18Bolt N10328801
- 19Bolt N10319401
- 20Bracket Mt 7M0599333D
- 21Screw N90755602
- 24Wheel Bear 7M3498625
- 24Wheel Bear 7M3598625
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| SHARAN/4MOTION | 2005- | 16 | 1 | 1X1 | |
| ALHAMBRA/4MOTION | 2005- | 16 | 1 | ||
| SHARAN/4MOTION | 2002-2005 | 16 | 1 | 1X1 | |
| ALHAMBRA/4MOTION | 2002-2005 | 16 | 1 | ||
| SHARAN/4MOTION | 2000-2002 | 16 | 1 | 1X1 | |
| ALHAMBRA/4MOTION | 2000-2002 | 16 | 1 | ||
| SHARAN/SYNCRO | 1995-2000 | 13 | 1 | SYNCRO |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Head Bolt (Combi) is fitted on: SHARAN/4MOTION 2005-; ALHAMBRA/4MOTION 2005-; SHARAN/4MOTION 2002-2005; ALHAMBRA/4MOTION 2002-2005; SHARAN/4MOTION 2000-2002; ALHAMBRA/4MOTION 2000-2002; SHARAN/SYNCRO 1995-2000.
