N90817002 Hexagon Socket Head Panel Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

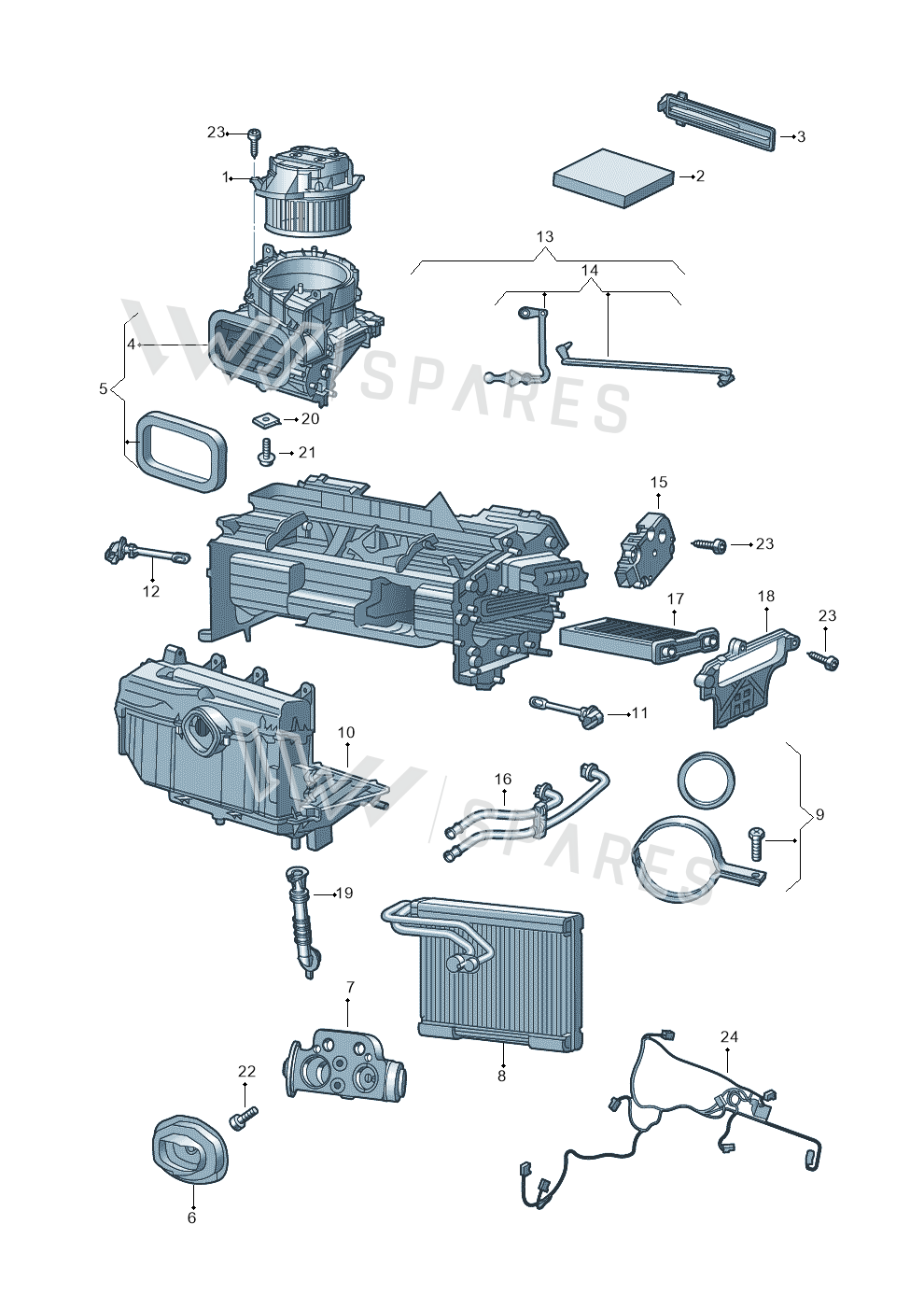

21 vehiclesHexagon Socket Head Panel Bolt — locate Hexagon Socket Head Panel Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Engine 4S2820021
- 1Engine 4S1820021
- 2Dust Filt 4S0819439
- 3Cover 4S0819422
- 4Int Duct 4S2820153
- 4Int Duct 4S1820153
- 5Seal 4S0819229
- 6Seal 4S0820061
- 7Expans Val 4S0816679
- 7Expans Val 4S0820679
- 8Evaporator 4S0820102A
- 8Evaporator 4S0820102
- 9Repair Kit 4S0898102
- 10Housing 4S2820024
- 10Housing 4S1820024
- 11Temperature Sensor 4S0907543A
- 12Temperature Sensor 4S0907543
- 13Housing 4S0820356
- 14Lever 4S0898333
- 15Servomotor 4H0820511E
- 16Pipe 4S2898037
- 16Pipe 4S1898037
- 17Heat Exch 4S0819031
- 18Cover 4S0819422A
- 19Pipe 4S0260113
- 20Part N90356205
- 21Screw N10473402
- 22Repair Kit 4S0898919
- 23Parts Set 4S0898919A
Vehicle fitment table21
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi R8 Spyder | 2015-2024 | 21 | 4 | ||
| Fabia Jingrui | 2008-2014 | 7 | 7 | ||
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 8 | 4 | AQN | MT0 |
| Jetta Wagon 02 | 2001-2002 | 8 | 4 | AQN | MT0 |
| ALHAMBRA/4MOTION | 2000-2002 | 6 | 8 | ||
| POLO | 1999-2001 | 3 | 5 | ||
| TRANSPORTER SYNCRO | 1996-2003 | 12, 14 | 4 | AXL |
Other markets (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| New Passat | 2011-2019 | 5 | X | ||
| Tiguan | 2009-2019 | 5 | 4 | ||
| POLO JIN QIN "CN"06> | 2006- | 7 | X | ||
| POLO JIN QV "CN"06> | 2006- | 7 | X | ||
| POLO CLASSIC "ZA"05> | 2005- | 8 | X | ||
| AUDI A6L "CN"05> | 2005- | 5 | 4 | ||
| AUDI A4 "CN."06> | 2005- | 21, 26, 1 | 1 | ||
| TOURAN (SVW) "CN"04> | 2004- | 5, 24, 30, 17 | 4 | BJZ,CGZA | D3R |
| SANTANA 3000 "CN"04> | 2004- | 4 | 6 | ||
| POLO CLASSIC "CN"03>06 | 2003-2006 | 7 | X | ||
| POLO CLASSIC (AUS) "CN"03>06 | 2003-2006 | 7 | X | ||
| POLO CLASSIC "ZA"03>05 | 2003-2005 | 7, 8 | X | ||
| POLO "CN"02>06 | 2002-2006 | 7 | X | ||
| SANTANA 2000 "CN"96>04 | 1996-2004 | 7 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Socket Head Panel Bolt is fitted on: Audi R8 Spyder 2015-2024; Fabia Jingrui 2008-2014; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; ALHAMBRA/4MOTION 2000-2002; POLO 1999-2001; TRANSPORTER SYNCRO 1996-2003; New Passat 2011-2019; Tiguan 2009-2019; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; POLO CLASSIC "ZA"05> 2005-; AUDI A6L "CN"05> 2005-; AUDI A4 "CN."06> 2005-; TOURAN (SVW) "CN"04> 2004-; SANTANA 3000 "CN"04> 2004-; POLO CLASSIC "CN"03>06 2003-2006; POLO CLASSIC (AUS) "CN"03>06 2003-2006; POLO CLASSIC "ZA"03>05 2003-2005; POLO "CN"02>06 2002-2006; SANTANA 2000 "CN"96>04 1996-2004.
