N90824901 Hexagon Socket Head Panel Bolt
- N90824901This pageNot stocked
Mar 2009 - N90824902Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

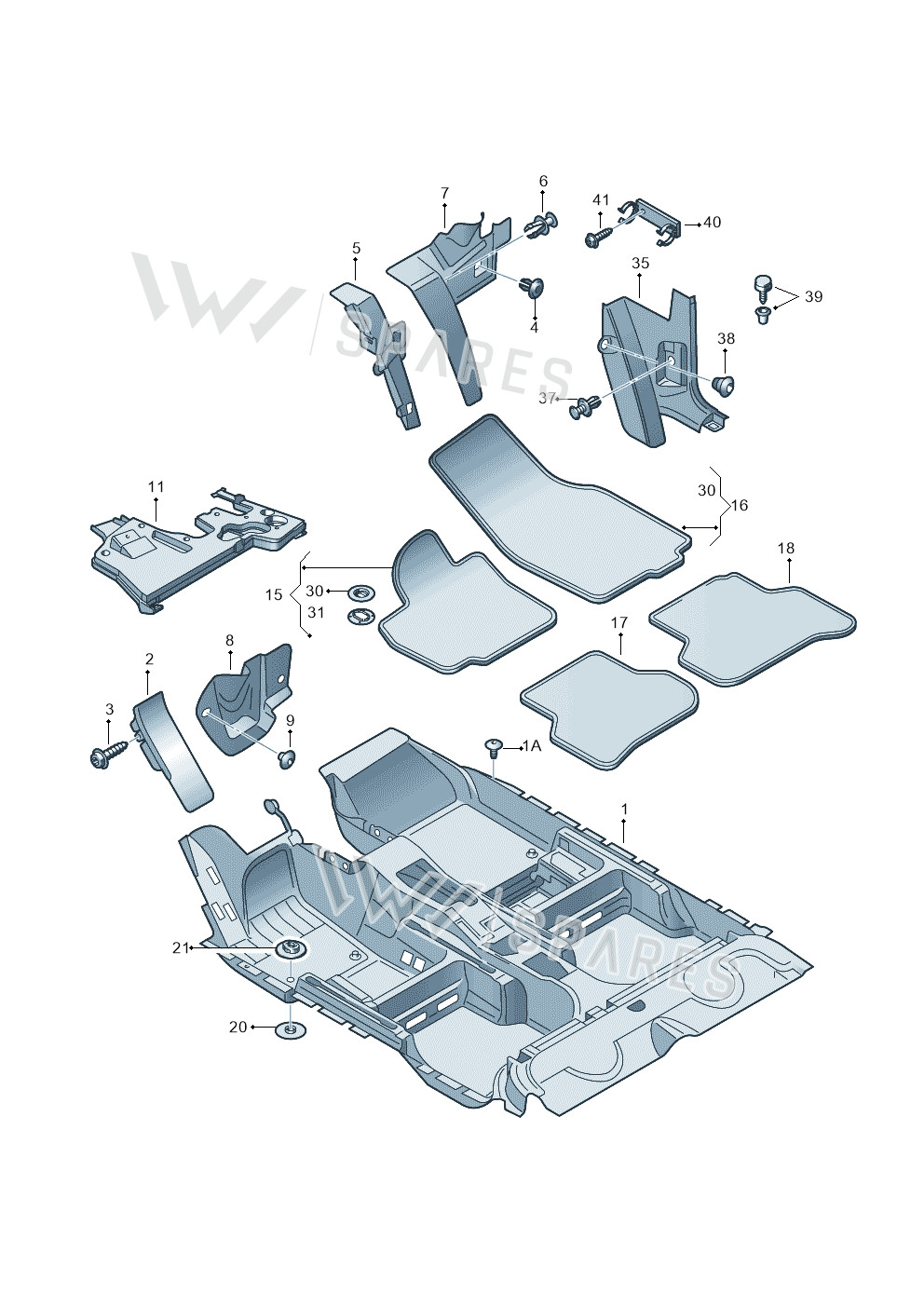

6 vehiclesHexagon Socket Head Panel Bolt — locate Hexagon Socket Head Panel Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly46
- 1Flooring 5M2863367D
- 1Flooring 5M2863367G
- 1Flooring 5M1863367G
- 1Flooring 5M1863367K
- 1ABungs 443863988
- 2Support 5M2864777A
- 2Cover 1K1864777B
- 3Bolt N90698606
- 3Collar Nut N90757901
- 4Press Stud N90861801
- 5Holder 5M2864767A
- 6Clip 701867299
- 7Cover 5M1863129
- 11Cover 5M2863081
- 11Cover 5M1863081B
- 15Floor MatLeft5M1864435A
- 15Floor MatLeft5M1864435B
- 15Floor MatLeft5M1864435D
- 15Floor MatLeft5M2864435
- 15Floor MatLeft5M2864435A
- 15Floor MatLeft5M2864435B
- 15Floor MatLeft5M1864435
- 16Floor MatRight5M1864436A
- 16Floor MatRight5M1864436B
- 16Floor MatRight5M2864436
- 16Floor MatRight5M2864436A
- 16Floor MatRight5M2864436B
- 16Floor MatRight5M1864436
- 17Floor MatLeft5M0864451A
- 18Floor MatRight5M0864452A
- 20Bracket 3D0864107A
- 20Bracket 8E0864227
- 21Part 8E0864229
- 21Bracket 3D0864199A
- 30Part 3C0864521
- 30Fixing Set 3D0898501B
- 31Bracket 3C0864523
- 35TrimRight5M1863484A
- 35TrimLeft5M2863483A
- 35TrimRight5M2863484A
- 35TrimLeft5M1863483A
- 36Grommet 3B0867334
- 37Clip 1C0867207
- 39Clip 3B0867333
- 40Bracket 1H0863253
- 41Screw N90824902
Vehicle fitment table6
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| GOLF PLUS 05> | 2005- | 41 | 2 | "J.." | |
| Audi A4/S4/Av./qu. | 2001-2004 | 36 | 1 | 9ZH | |
| AUDI A3/S3/QUATTRO | 2000-2003 | 16 | 2 | ||
| AUDI A3/S3/QUATTRO | 1996-2000 | 16 | 2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| BORA (FAW) | 2001-2006 | 16 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 1J0 platform | 16 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Socket Head Panel Bolt is fitted on: GOLF PLUS 05> 2005-; Audi A4/S4/Av./qu. 2001-2004; AUDI A3/S3/QUATTRO 2000-2003; AUDI A3/S3/QUATTRO 1996-2000; BORA (FAW) 2001-2006; 1J0 platform.
