N90838101 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 25 g
- Shipping size (L × W × H)
- 3.2 × 1.8 × 1.8 cm
- Customs (HS) code
- 73181639

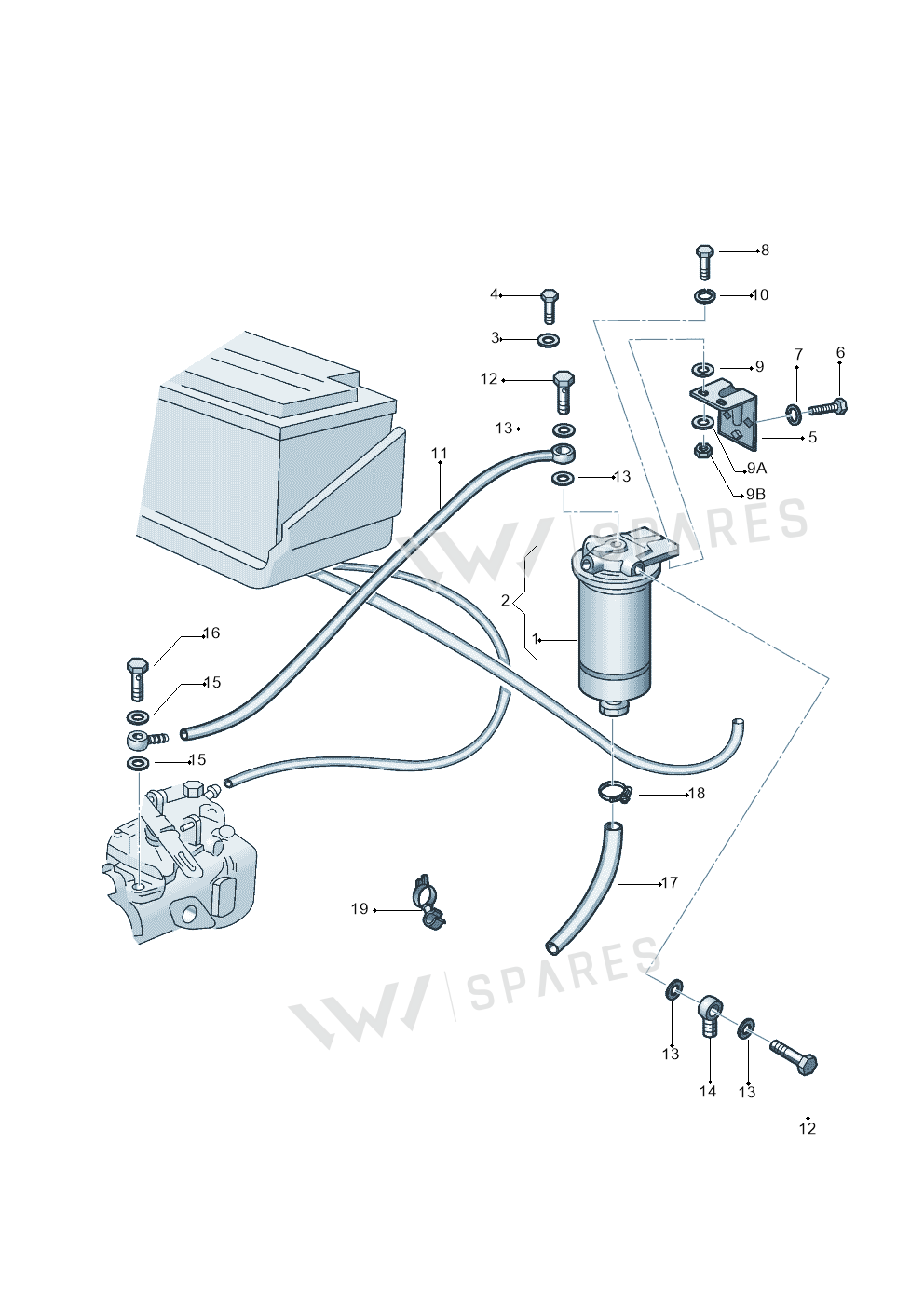

Parts diagram & fitment
9 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly23
- 1Filter 068127177B
- 2Filter 6N0127401C
- 2Filter 0681274011
- 3Seal Ring 0681274052
- 4Screw 0681274071
- 5Bracket 377127985RB
- 5Bracket 377127985
- 6Bolt N01023812
- 7Washer N0120092
- 9Washer N0115272
- 9AWasher N0115471
- 9BUt Hexagon Nut Self-locking Hexagon Nut N02300212
- 9BPart N0110068
- 10Lock Ring N0120401
- 11Hose 377201177AJ
- 12Screw 0681303151
- 13Seal Plate 305422951B
- 14Connection N0158201
- 15Seal Ring N0138122
- 16Screw N0210712
- 17Hose 376127437
- 18Clamp 376129465
- 19Clip 547971847AM
Vehicle fitment table9
Other markets (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| GOL 2P/4P M.06> | 2005- | 8, 9 | 2 | |
| SAVEIRO M.06> | 2005- | 8, 9 | 2 | |
| PARATI M.06> | 2005- | 8, 9 | 2 | |
| GOL 2P/4P | 2002-2006 | 8, 9 | 2 | |
| SAVEIRO | 2002-2006 | 8, 9 | 2 | |
| PARATI 4P | 2002-2006 | 8, 9 | 2 | |
| NOVA PARATI | 1995-2002 | 8, 9 | 2 | 221 |
| NOVO GOL/SAVEIRO | 1994-2002 | 8, 9 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 325 platform | 49, 31 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: GOL 2P/4P M.06> 2005-; SAVEIRO M.06> 2005-; PARATI M.06> 2005-; GOL 2P/4P 2002-2006; SAVEIRO 2002-2006; PARATI 4P 2002-2006; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 325 platform.
