N90858102 Hex Collared Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 64 g
- Shipping size (L × W × H)
- 2.2 × 2.2 × 14.4 cm
- Country of origin
- Germany
- Customs (HS) code
- 73181588

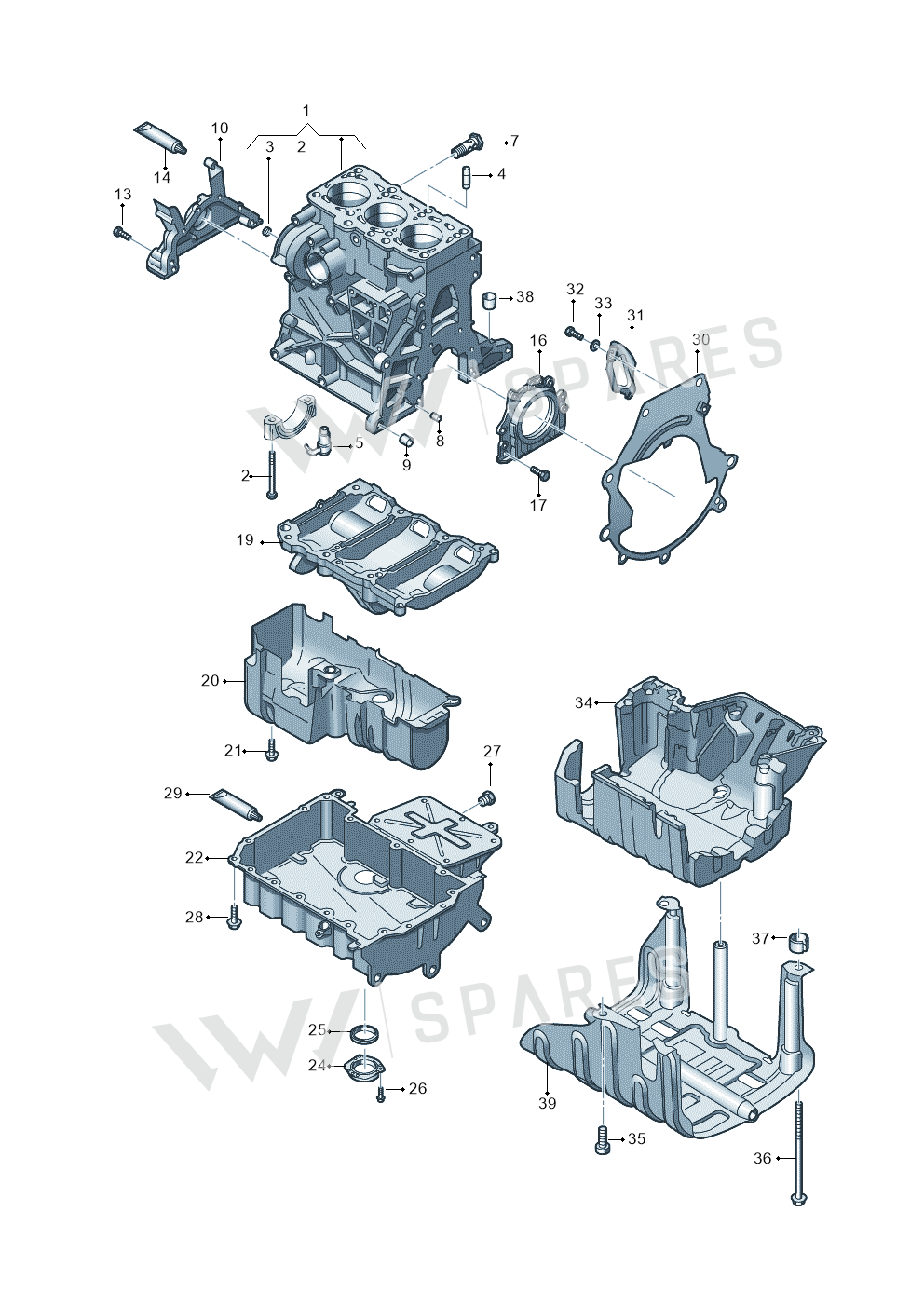

Parts diagram & fitment
5 vehiclesHex Collared Bolt — locate Hex Collared Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly28
- 1Part 03P103011A
- 2Bolt N90130001
- 3Cover N01190710
- 4Sleeve 028103039A
- 5Vent 038103157B
- 8Part N0432072
- 9Sleeve 022103139B
- 10Flange 03P103151
- 13Bolt N90945002
- 14Seal D176501A1
- 16Flange 03P103171
- 20Cover 03P103669D
- 21Bolt N90438805
- 22Part 03P103602A
- 24Cover 03G103707
- 25Seal Ring 038103196
- 26Screw N91065201
- 27Bolt N90813202
- 28Bolt N90735604
- 30Cover 03P103645
- 31Cover 038103648G
- 32Bolt N01020812
- 33Washer N01152427
- 34Cover 03P103660A
- 35Screw N10717701
- 37Sleeve 191018951
- 38Wooden Wed 03P103863
- 39Cover 03P103667
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Polo | 2009-2014 | 36 | 2 | D28 |
| Jetta/Wagon | 2002-2006 | 25 | 2 | |
| TOLEDO/LEON/LEON-4 | 2001-2006 | 25 | 2 | |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 25 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf BR/US | 1999-2001 | 25 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hex Collared Bolt is fitted on: Polo 2009-2014; Jetta/Wagon 2002-2006; TOLEDO/LEON/LEON-4 2001-2006; OCTAVIA/COMBI/4X4 1996-2000; Golf BR/US 1999-2001.
