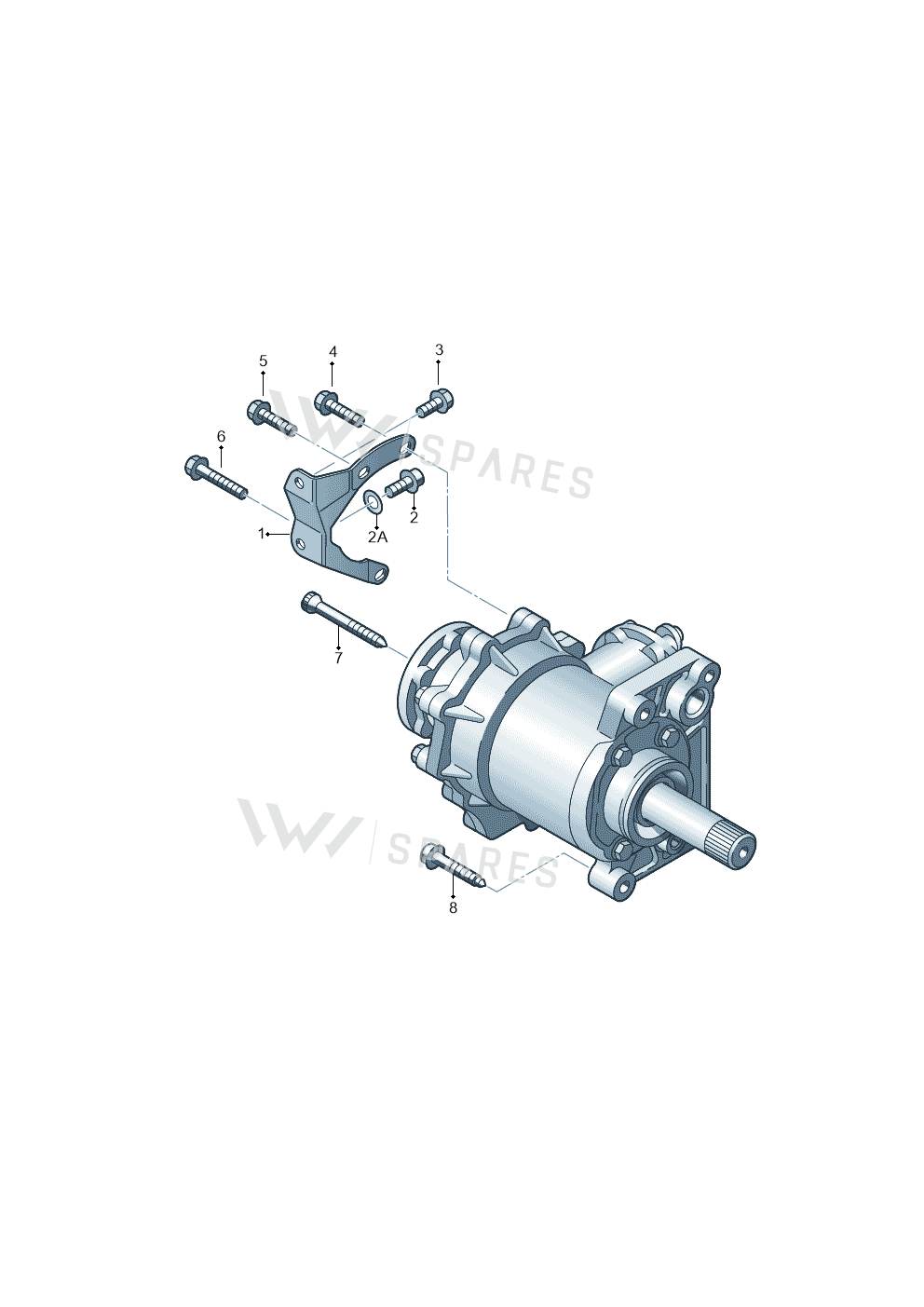

Hexagon Socket Head Bolt With Shoulder exploded parts diagram — GOLF · 2003-2005, position 2
Exploded view
GOLF · 2003-2005 · position 2Full diagram ↓
N90956201

N90956201 Hexagon Socket Head Bolt With Shoulder

£0.93
£0.77 excl. VAT
Supersession road5 numbers since 2000
  1. 02M409053BNot stocked
    Sep 2000
  2. 02M409053ENot stocked
    Oct 2001
  3. N90956201This pageNot stocked
    Oct 2005
  4. N91105301Superseded
    Jun 2010
  5. N91000002Current number
Current part numberN91000002What the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

10 vehicles

Hexagon Socket Head Bolt With Shoulder — locate Hexagon Socket Head Bolt With Shoulder in the official exploded view and explore the surrounding assembly.

Parts in this assembly9
Vehicle fitment table10

Europe (8)

VehicleYearsPos.QtyRemarkPR
GOLF2003-200521FUQ,FWZG0L
ALHAMBRA/4MOTION2002-200522
GOLF/VAR./4MOT. A4 022001-200222FEM,FEK,FEL,
Jetta Wagon 022001-200222FEK,FEM,FEL,
Jetta Wagon2001-200122DRP,EEJ
AUDI A3/S3/QUATTRO2000-200322FHB,FHA,FEK,
Golf1998-200022FEM,FEK,FELG0L
AUDI A3/S3/QUATTRO1996-200022FHA,FHB,FHC

Other markets (1)

VehicleYearsPos.QtyRemarkPR
SANTANA 3000 "CN"04>2004-7, 54D4N

Platform / generic diagrams (1)

VehicleYearsPos.QtyRemarkPR
1J0 platform2

Diagrams & fitment data powered by oemdiagrams.com

Hexagon Socket Head Bolt With Shoulder is fitted on: GOLF 2003-2005; ALHAMBRA/4MOTION 2002-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; Jetta Wagon 2001-2001; AUDI A3/S3/QUATTRO 2000-2003; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; SANTANA 3000 "CN"04> 2004-; 1J0 platform.
