N90971901 Double Stud With Hexagon Drive
- N90971901This pageNot stocked
Aug 2008 - N91044801Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SKODA is typically 3–8 business days before dispatch.
Handling time for Skoda: 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

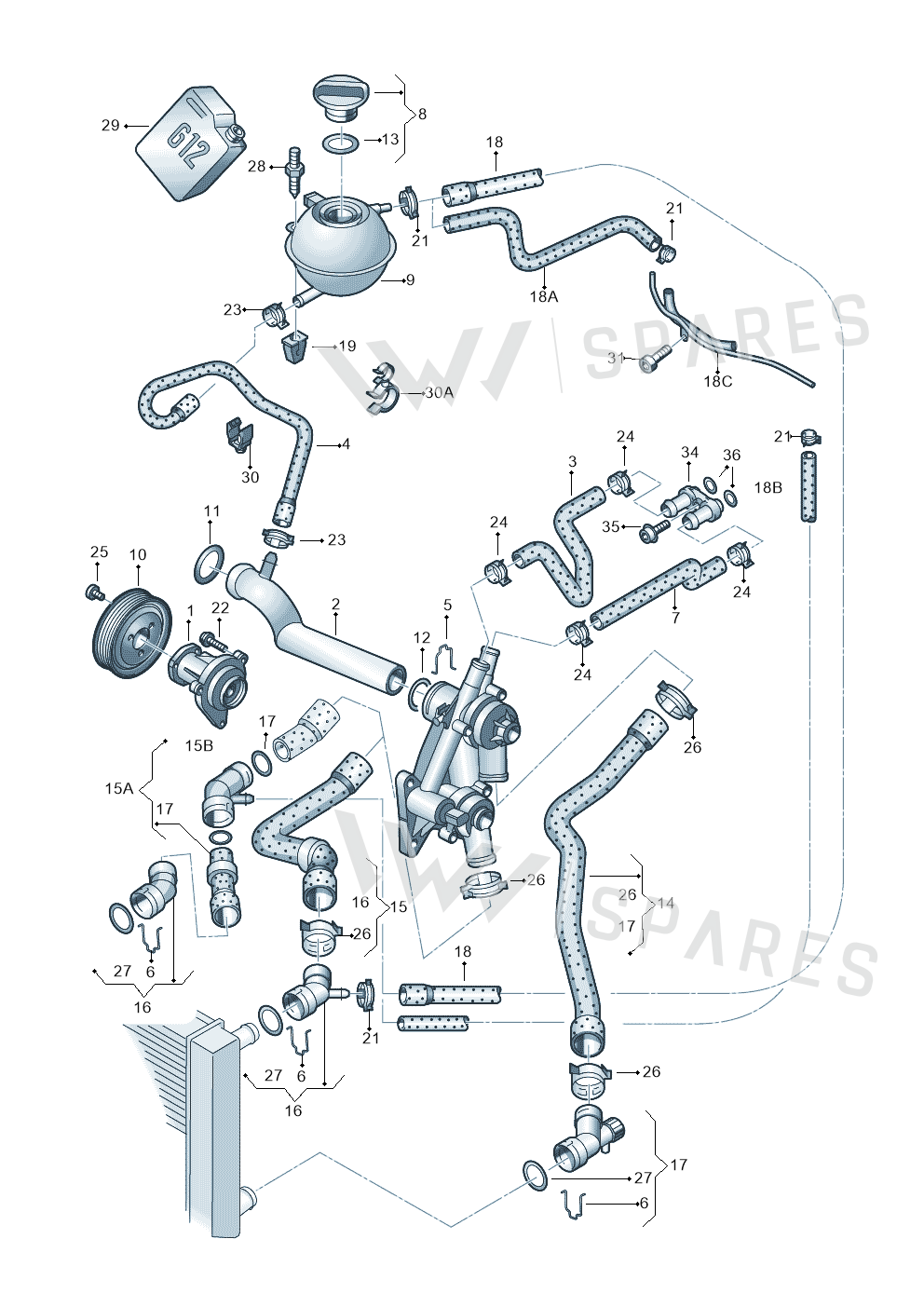

15 vehiclesDouble Stud With Hexagon Drive — locate Double Stud With Hexagon Drive in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly38
- 1Water Pump 03D121005X
- 1Water Pump 03D121005
- 2Water Pipe 03D121065B
- 3Hose 6Y0122157B
- 4Hose 6Y0121109J
- 5Spring 03C121142
- 6Spring 1J0121142
- 7Hose 6Y0122073B
- 8Cover 3B0121321
- 9Container 6Q0121407B
- 10Pulley 03D121028B
- 11Seal Ring 032121665A
- 12Seal Ring 03C121666
- 13Seal Ring 1H0121687A
- 14Part 6Y0121086F
- 15Part 6Y0121049H
- 17Coupl Piece 6Q0122291F
- 18AHose 6Y0121107G
- 18BHose 6Y0121108K
- 18CPipe 03D103211C
- 19Part 811807577C
- 21Clamp N90686701
- 22Screw N90339603
- 23Clamp N90686902
- 24Clamp N90687001
- 25Screw N90544203
- 26Clamp N90687201
- 27Seal Ring N90765301
- 28Bolt N90847201
- 29Cool Add G012A8FM8
- 29Cool Add G012A8FM1
- 30Bracket 6Q0121120E
- 31Bolt N10473401
- 32Collar Nut N01508210
- 32Collar Nut N01508213
- 34Water Pipe 6Q0121065N
- 35Screw N01472614
- 36Seal Ring N90890501
Vehicle fitment table15
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Fabia Ambiente | 2009-2013 | 33 | 1 | ||
| Audi RS4 qu. 07> | 2006- | 49 | 1 | ||
| ROOMSTER 06> | 2006- | 33 | 1 | ||
| IBIZA 06> | 2005- | 33 | 1 | T70 | |
| CORDOBA 06> | 2005- | 33 | 1 | T70 | |
| FABIA/COMBI 05> | 2004- | 33 | 1 | ||
| Touareg | 2003-2005 | 20 | 1 | PR:G0R+M35, | |
| CORDOBA/SE241 | 2002-2005 | 33 | 1 | MA5 | |
| IBIZA | 2001-2005 | 33 | 1 | G0C | |
| Audi A4/S4/Av./qu. | 2001-2004 | 49, 7, 42 | 1 | ||
| Audi A6/Wagon/quattro | 2001-2004 | 4, 42 | 1 | G0Z | |
| FABIA/COMBI | 1999-2004 | 33 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 49, 42 | 1 | ||
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 7, 42 | 1 | G0Z |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 7L6 platform | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Double Stud With Hexagon Drive is fitted on: Fabia Ambiente 2009-2013; Audi RS4 qu. 07> 2006-; ROOMSTER 06> 2006-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FABIA/COMBI 05> 2004-; Touareg 2003-2005; CORDOBA/SE241 2002-2005; IBIZA 2001-2005; Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; FABIA/COMBI 1999-2004; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005; 7L6 platform.
