N91004801 Double Stud With Hexagon Drive
- N91004801This pageNot stocked
Apr 2007 - N91004802Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

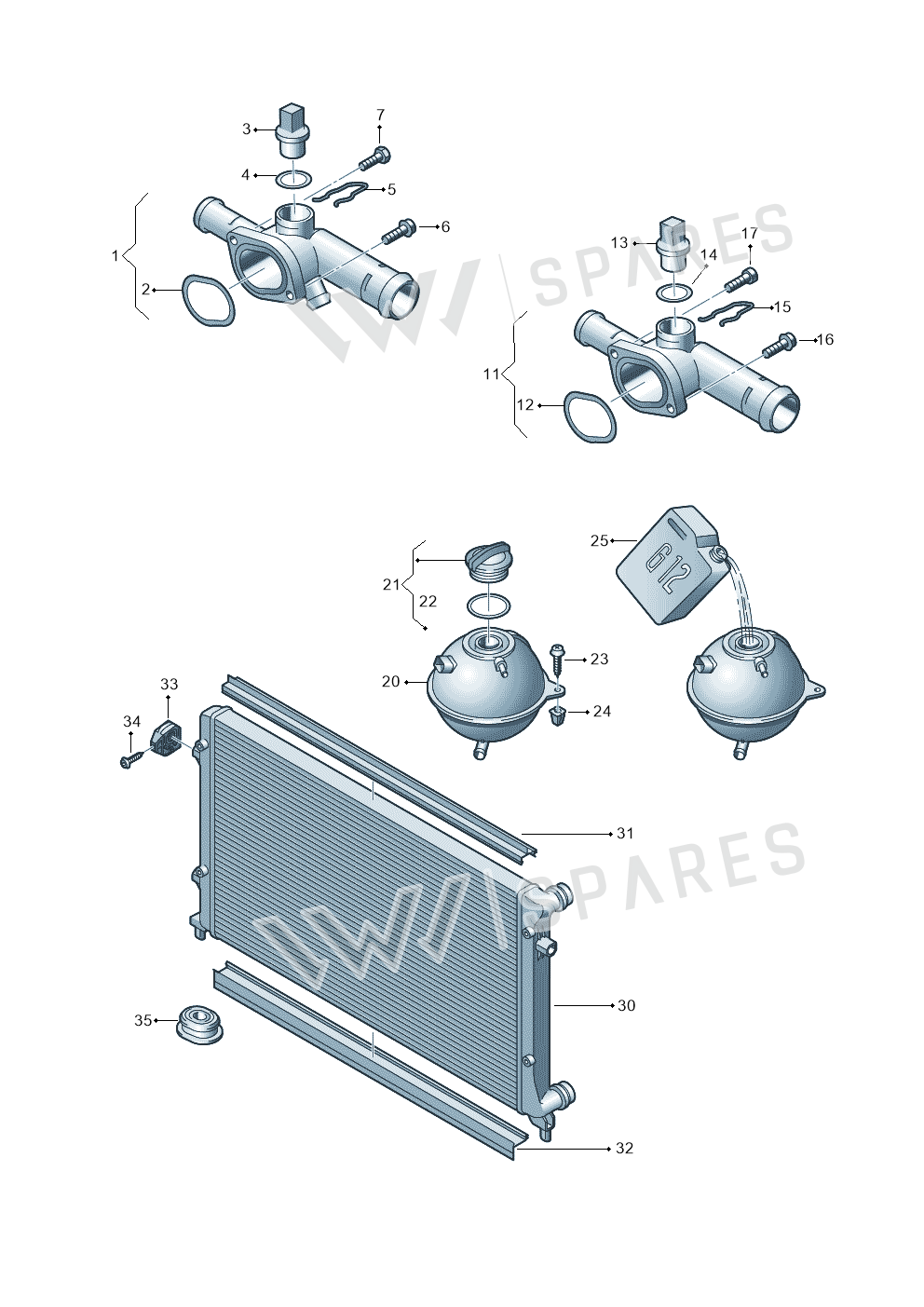

15 vehiclesDouble Stud With Hexagon Drive — locate Double Stud With Hexagon Drive in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Flange 06A121132R
- 1Flange 038121132D
- 2Seal Ring 037121688
- 3Sender 06A919501A
- 4Seal Ring N90316801
- 5Spring 032121142
- 6Screw N90500605
- 6Bolt N90280904
- 7Bolt N10414502
- 11Flange 03G121132B
- 11Flange 06A121132AG
- 11Flange 038121132G
- 12Seal 038121688D
- 16Bolt N91004802
- 20Tank 1K0121407A
- 21Cover 3B0121321
- 22Seal Ring 1H0121687A
- 23Screw N90846602
- 24Part 811807577C
- 25Coolant G013A8JM8
- 25Coolant G013A8JM9
- 25Coolant G013A8JM1
- 30Radiator 1K0121251AB
- 30Radiator 1K0121251AK
- 30Radiator 1K0121251BL
- 30Part 1K0121251BR
- 30Radiator 1K0121251DM
- 30Part 1K0121253AA
- 31Seal 1K0121345
- 31Seal 1K0121345A
- 31Seal 1K0121345P
- 31Seal 1K0121345C
- 32Seal 1K0121345H
- 32Seal 1K0121345G
- 33Bracket 1K0121367G
- 33Bracket Mt 1K0121367M
- 33Bracket Mt 1K0121367N
- 34Bolt N90808201
- 35Bush 1K0121367F
Vehicle fitment table15
Europe (12)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| ALTEA 07> | 2006- | 16, 12 | 1 | BMN | D0M |
| GOLF PLUS 05> | 2005- | 16 | 1 | BKD,AZV,BEE | DA3,D3X,MS9 |
| JETTA 06> | 2005- | 16, 12 | 1 | D0M,TN0 | |
| LEON 06> | 2005- | 16, 12 | 1 | BMN | D0M |
| Passat/4Motion | 2005-2007 | 16 | 1 | BMA,BKP,BVE, | DA1,DA5,D0J,D0M,D3X,MS9,TB3,TQ0 |
| TOURAN | 2005-2006 | 12, 16 | 1 | BKD,AZV | D3X,MS9 |
| TOLEDO 05> | 2004- | 16, 12 | 1 | BMN | D0M |
| ALTEA | 2004-2006 | 16, 12 | 1 | BMN | D0M |
| Audi A8/S8/qu. lang | 2003-2007 | 11 | 1 | T41 | |
| Touareg | 2003-2005 | 30 | 1 | D1T,G0L,G0R | |
| TOURAN | 2003-2005 | 12 | 1 | AZV,BKD | D3X,MS9 |
| GOLF | 2003-2005 | 12 | 1 | BKD,AZV | D3X,MS9 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 11 | 1 | D3X,T9G | |
| Golf/Rabbit | 2005-2007 | 16, 12 | 1 | BMN | D0M |
| MARINE-MOTOR 02> | 2002- | 33 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Double Stud With Hexagon Drive is fitted on: ALTEA 07> 2006-; GOLF PLUS 05> 2005-; JETTA 06> 2005-; LEON 06> 2005-; Passat/4Motion 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; ALTEA 2004-2006; Audi A8/S8/qu. lang 2003-2007; Touareg 2003-2005; TOURAN 2003-2005; GOLF 2003-2005; Jetta "USA"05> 2005-; Golf/Rabbit 2005-2007; MARINE-MOTOR 02> 2002-.
