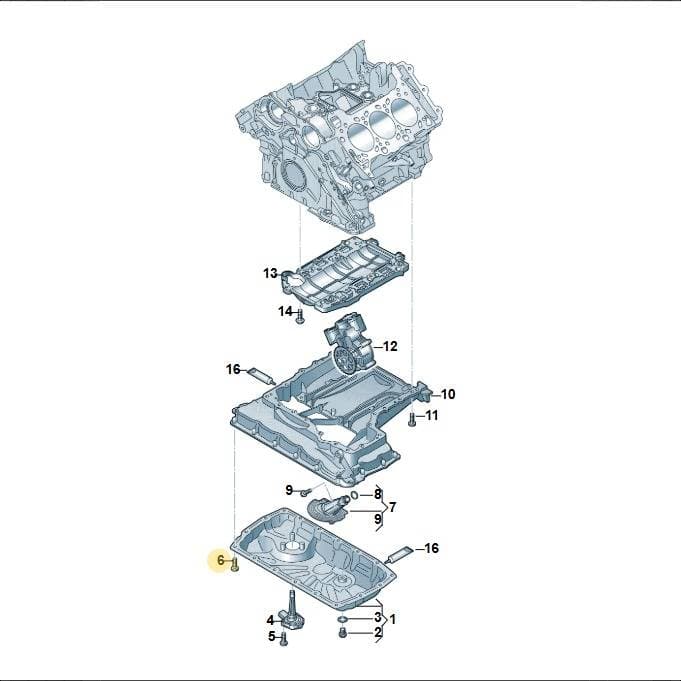

Number 6 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hex Socket Head Collared Bolt, part number N91168702. This specialized bolt is utilized in the engine oil pan assembly to provide secure attachment for structural components. It features a hexagonal socket head for installation in tight clearances and an integrated collar that ensures precise alignment and even load distribution. With a length of 23mm, it is engineered to meet factory specifications for clamping force. Genuine OEM bolts are essential for maintaining the integrity of engine seals and preventing leaks caused by fastener failure or incorrect torque retention.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.3 × 1.3 × 1.3 cm
- Shipping weight
- 0 kg
Parts diagram & fitment
20 vehiclesHex Socket Head Collared Bolt — locate N91168702 Volkswagen Hex Socket Head Collared Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(39)
- 1Crankcase 06M103011ES
- 2Bolt WHT007693
- 3Screw WHT007932
- 4Screw WHT005804
- 5Seal Ring N0138272
- 6Sleeve 022103139B
- 7Sleeve 058103139
- 8Part 055105277
- 9Sensor 06M905377
- 10Screw N10688601
- 11Sleeve 077115143B
- 12Part 059109426T
- 13Bungs 07L109291
- 14Bolt N91180601
- 15Shaft 06M103303G
- 16Bearing 06M103869F
- 17Bearing 06M103869D
- 18Ax Bearing 06M103323K
- 19Seal 06M103147E
- 20Cover 06M103407G
- 21Gear 06M103293BA
- 22Bolt 06M103448
- 23Weight 06M103332J
- 24Bolt N10768201
- 25Vent 06M103158R
- 26Flange 06M103153J
- 27Screw N91096901
- 28Seal Ring 06M103121F
- 29Seal 06M103051B
- 30Flange 06M103173P
- 31Bolt N10413405
- 32Seal 06E103051J
- 33Sender 057906433B
- 35Sleeve 012301153H
- 36Screw WHT008883
- 38Screw N10448506
- 39Cover 06E103565B
- 41Seal DCN176501Z1
- 42Sleeve 06M115143G
Diagrams & fitment data powered by oemdiagrams.com
N91168702 Volkswagen Hex Socket Head Collared Bolt | Genuine OEM is fitted on: Audi A7 2021-; Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi A6 L 2.0 2018-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Panamera 4 Hybrid 2016-2020; Cayenne Diesel V6 2017-2023; Macan R4 TFSI 2018-; Panamera 4 Hybrid 2020-2023; Cayenne Hybrid Coupe 2023-; Panamera 2023-; touareg 2017-2023.
