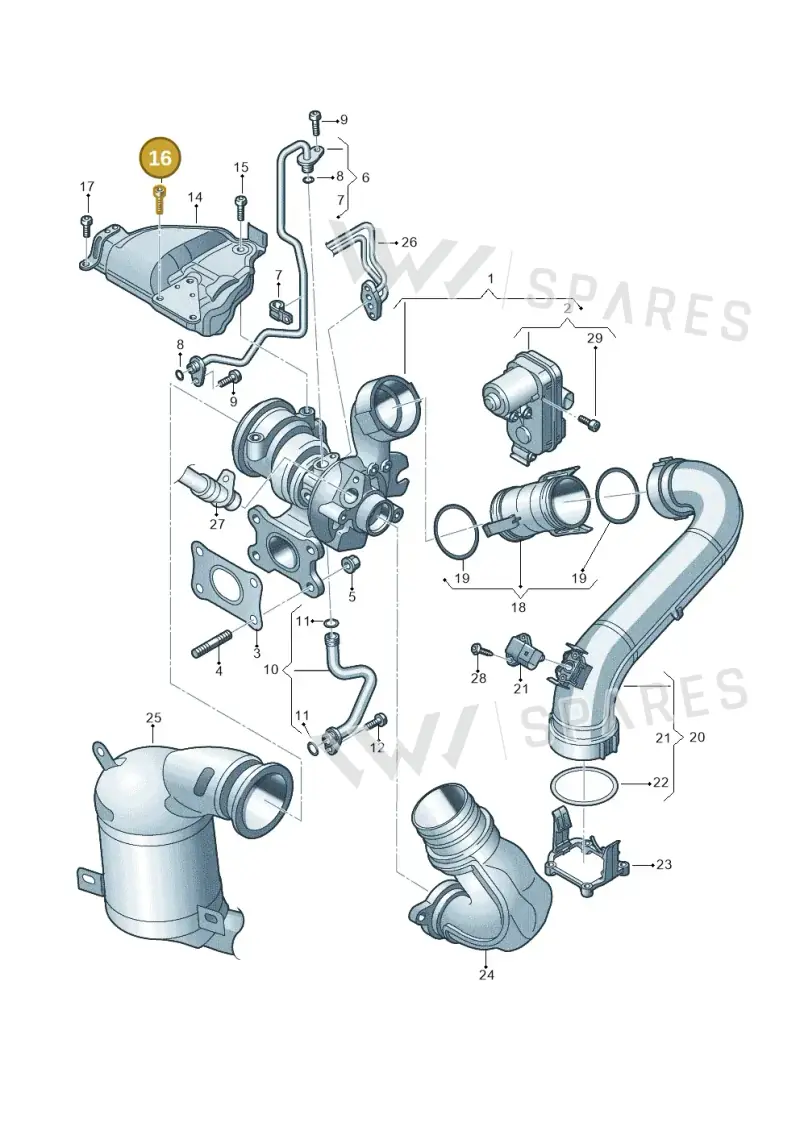

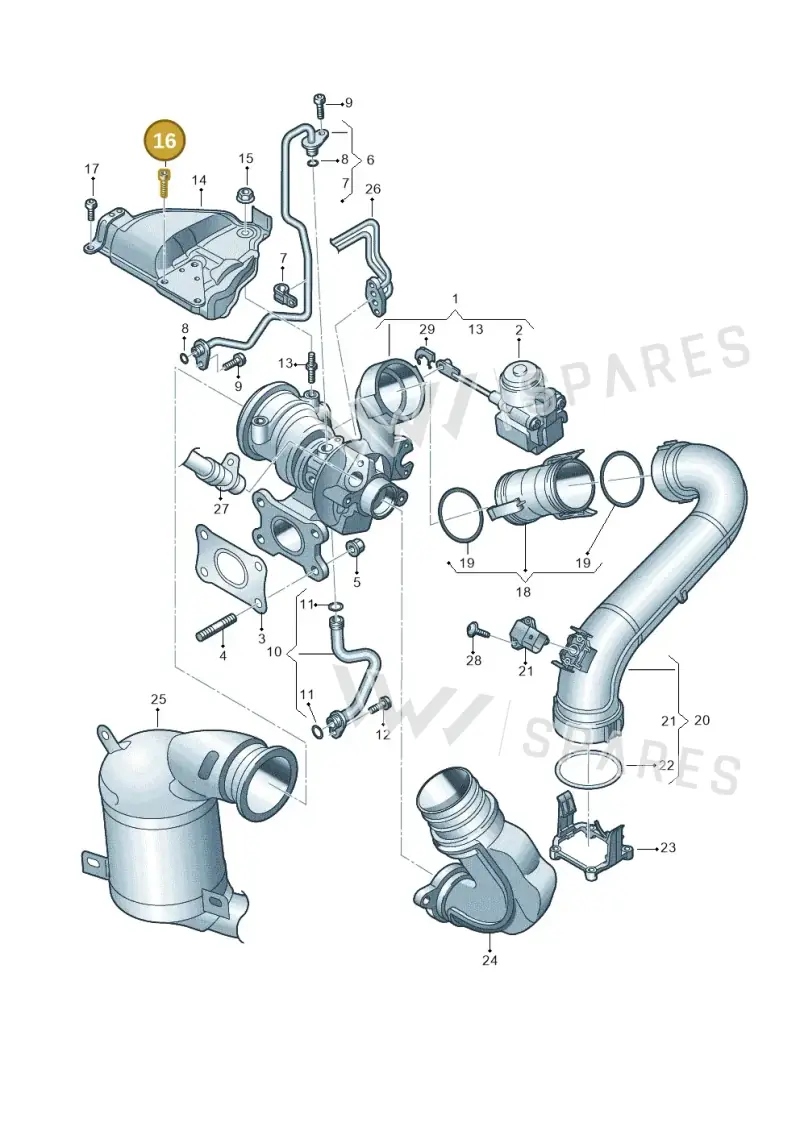

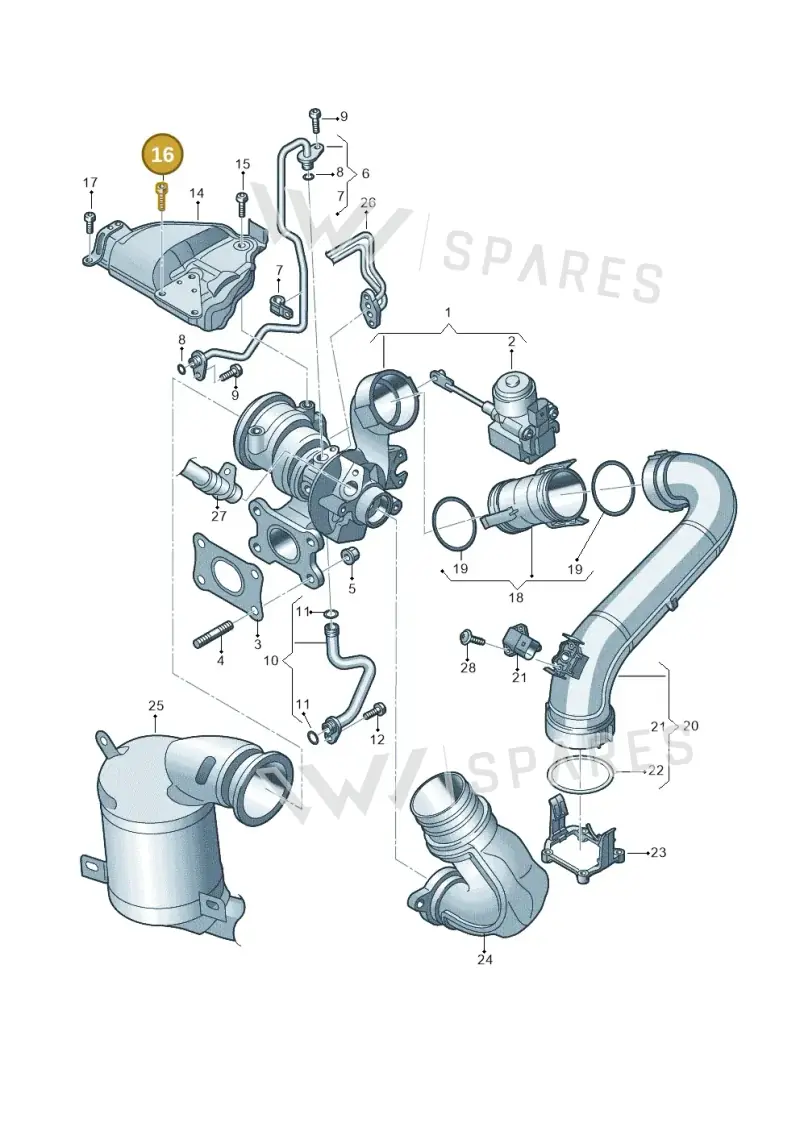

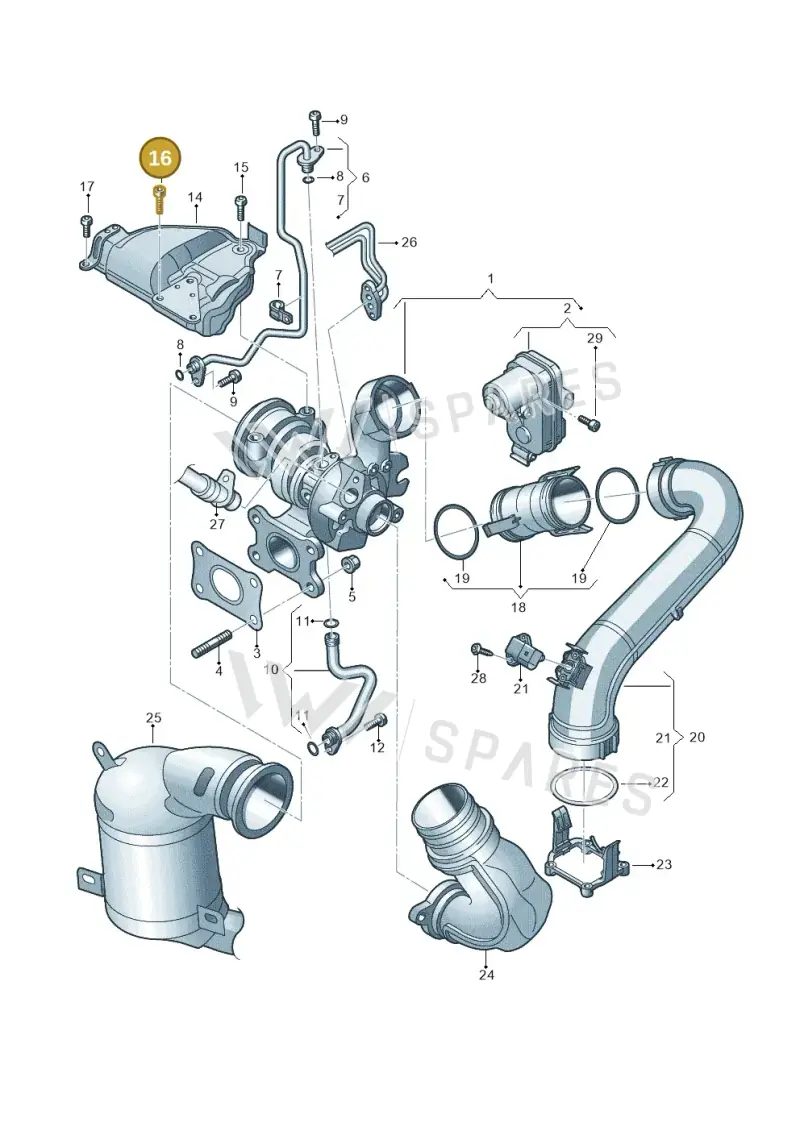

Number 16 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen socket head bolt, part number N91187801. This fastener is used for the secure mounting of components within the turbocharger and intake assembly. It is located at position 16 in the provided diagram. The bolt features an internal hexagonal socket drive and a cylindrical head. Genuine OEM hardware is essential for these high-heat applications to ensure correct torque retention and to prevent loosening caused by thermal expansion and engine vibration.
Catalogue entry: SCREW M8X20 ×3.
Fitted with: 04E253041F PLATE, N10653201 BOLT.
Technical details
- Category
- Intake & Turbo
- Country of origin
- Switzerland
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.7 × 1.2 × 1.2 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M8x20 mm
- Thread
- M6x12 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
89 vehiclesScrew — locate N91187801 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly25
- 1Turbo 04E145721S
- 2Repair Kit 04E198725D
- 3Seal 04E253039D
- 4Bolt N91200201
- 5Collar Nut WHT000001N
- 6Pipe 04E145140AE
- 6Pipe 04E145140Q
- 6Pipe 04E145140E
- 7Clamp 04E145807
- 8Seal Ring WHT006990
- 9Bolt N10405604
- 10Oil Line 04E145735AC
- 10Oil Line 04E145735C
- 10Oil Line 04E145735R
- 11Seal Ring WHT005363
- 14Plate 04E253041F
- 17Bolt N10451408
- 18Bracket 04E145875F
- 19Seal WHT001386
- 20Pipe 04E145673M
- 21Sensor 03G906051M
- 21Sensor 03G906051E
- 22Seal Ring WHT003247
- 28Screw N10507201
- 29Clip 04E145220
