Target · Diagram
Find this reference above

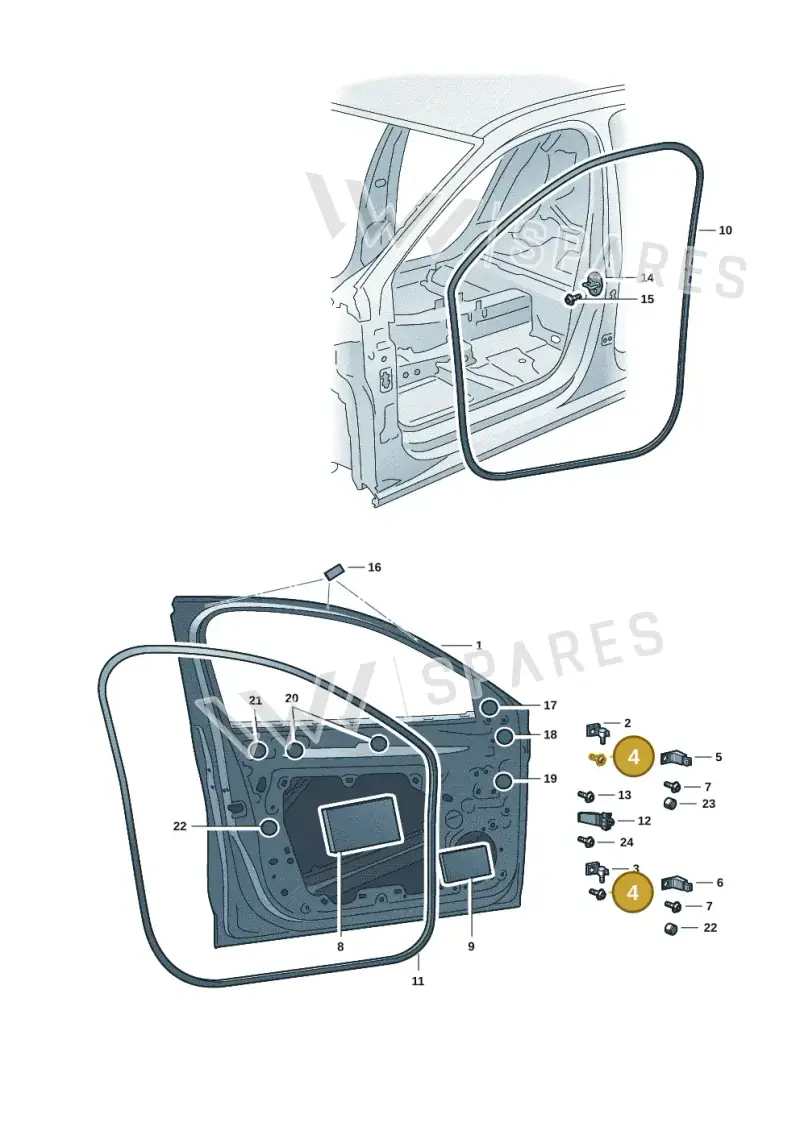

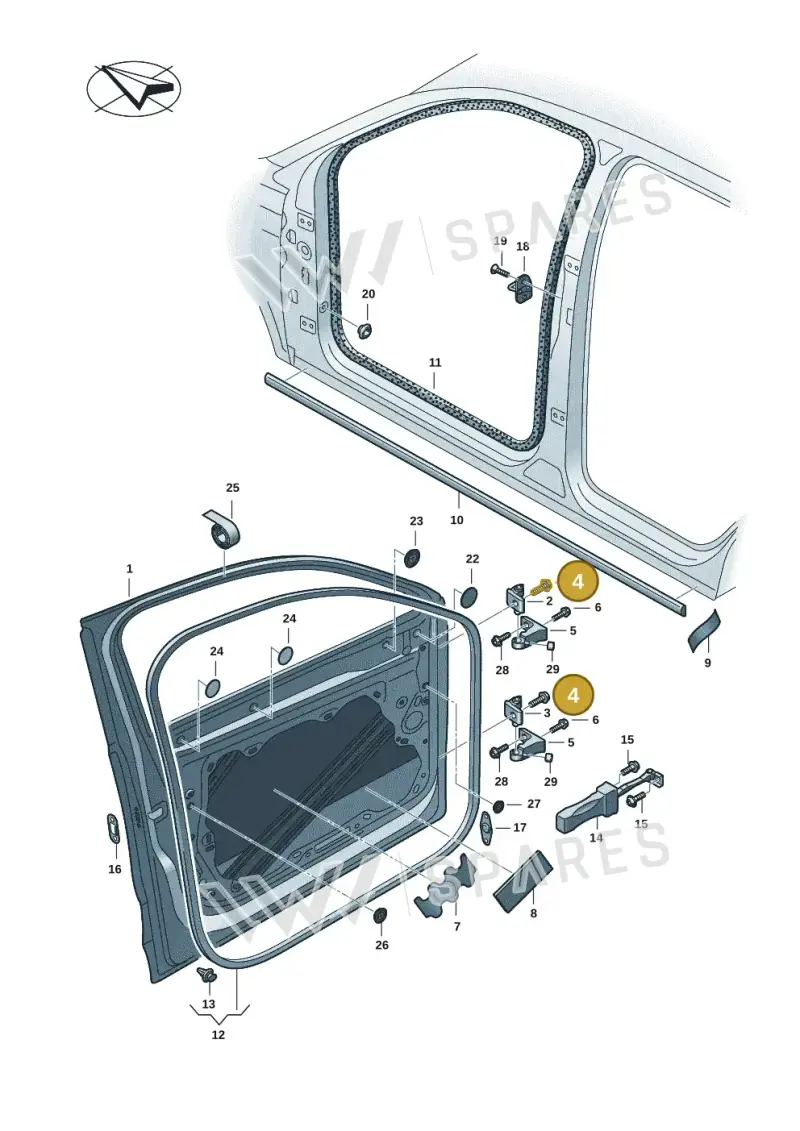

Number 4 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number N91247701. This bolt has a recessed socket head and an inner multipoint drive, used for securing various body and cooling system components. It is indicated as item 4 in the diagram. The bolt measures 36mm in length. Genuine OEM socket head bolts are manufactured to exact standards for secure and reliable component mounting.
Catalogue entry: SCREW M10X28 ×2.
Fitted with: 2K7831055M DOOR, 2K7837981A FOIL, 2K7837119A SEAL, 2K7837119A5AP BLACK, N91203203 BOLT, N0200251 BUNGS, 2K0810903 BUNGS, N10138801 COVER, N10618501 rivetted cap nut, D437S40A2 TAPE.
Technical details
- Category
- Doors & Windows
- Customs (HS) code
- 73181595
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 3.6 × 2.1 × 2.1 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M10x28 mm
- Thread
- M10x25 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
67 vehiclesScrew — locate N91247701 Volkswagen Socket Head Bolt | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly25
- 1DoorRight3J0831052
- 1DoorLeft3J0831051
- 2HingeRight8X4833408A
- 2HingeLeft8X4833407A
- 3HingeRight8X4833406A
- 3HingeLeft8X4833405A
- 5HingeLeft8V5833403C
- 6HingeRight8V5833404C
- 7Screw N91257201
- 9Insulation 6X0863886
- 10Door Seal 3J0867911A
- 11Door SealRight3J0837702
- 11Door SealLeft3J0837701
- 12Door Catch 3J0837203
- 13Bolt N10833601
- 14Striker 4M0837033B
- 15Screw N91277801
- 17Bungs 1H0877294
- 18Tape AKL437D50
- 19Bungs 1K0899182
- 20Grommet 191971908
- 21Tape D437S40A2
- 22Bungs WHT010069
- 23Part 8T0837947
- 24Bolt N91278801
Vehicle fitment table67
