Target · Diagram
Find this reference above

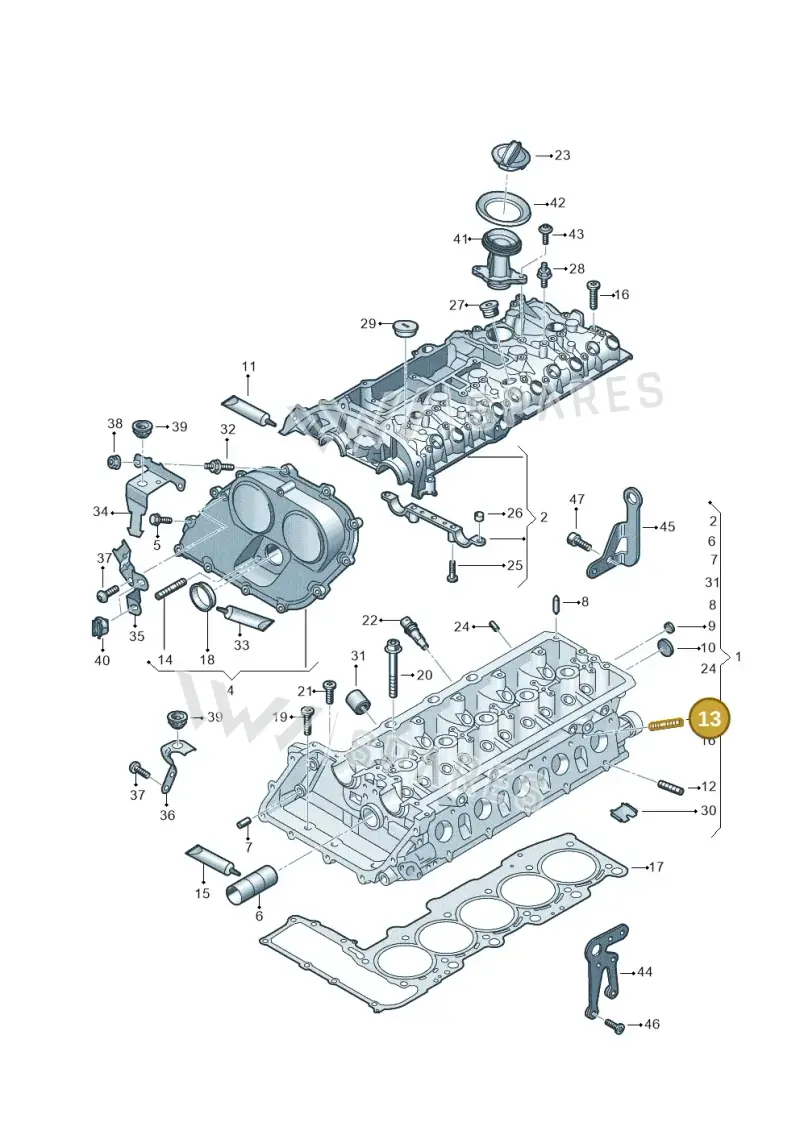

Number 13 marks the part’s position in this exploded view (SEAT CUPRA Formentor (2020-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Threaded Pin, part number N91250701. Fits SEAT CUPRA Formentor (2020), Audi A3 Sportback (2019-2025), Audi RS Q3 Sportback (2019-2024), Audi TT RS (2016-2023), Audi RS3 Limousine (2017-2020). Shown as position 13 in the engine diagram 596103040.
Catalogue entry: BOLT M8AX65 ×6.
Technical details
- Category
- Engine
- Diagram sheet
- SEAT 596103040, position 13
- ETKA group
- 1 / 03 (103)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
5 vehiclesThreaded Pin — locate N91250701 Volkswagen Threaded Pin in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 1Cover 06Q103925N
- 1Cover 07K103925H
- 1Hose 04E103474BB
- 1Hose 04E103474K
- 1Cover 06Q103925
- 1Cover 06Q103925G
- 1Cylinder Head 07K103064C
- 1Cylinder Head 07K103064D
- 1Cover 07K103925G
- 2Bolt N10124308
- 2Part WHT005404
- 2Part WHT005593
- 3Pipe 06K103213AE
- 3Part 06Q103213A
- 4Cover 07K109283R
- 4Seal Ring WHT008582
- 5Bolt N10653301
- 5Seal Ring WHT008587
- 6Connection 07K103499A
- 6Bungs 7P5145863
- 7Part WHT000041
- 8Part 06D103251
- 9Bolt N90281802
- 10Cover WHT008983
- 11Seal D176501A1
- 12Bolt 06F103397
- 14Bolt N0443954
- 15Part D154108A2
- 16Bolt N91127602
- 17Seal 07K103383AF
- 18Seal 07K109345
- 19Screw N10554005
- 20Bolt WHT007848D
- 21Bolt N91071701
- 22Sensor 06E919501C
- 22Sensor 06E919501D
- 23Cover 06K103485D
- 24Part N0131994
- 26Sleeve 059103139B
- 27Bolt N91116001
- 28Stud N91250601
- 29Bungs 06H115418P
- 30Partition 06L103411C
- 31Tappets 06L109311
- 32Bolt N91148001
- 35Bracket 07K133163Q
- 36Retainer 07K133163H
- 37Bolt N10405604
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Formentor TSI CUPRA | 2020- | 13 | 6 |
| Audi RSQ3 Sportback | 2019-2024 | 13 | 6 |
| Audi A3 Sportback | 2019-2021 | 13 | 6 |
| Audi RS3 Limousine | 2017-2020 | 13 | 6 |
| Audi TTRS Coupe | 2016-2023 | 13 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
N91250701 Volkswagen Threaded Pin is fitted on: Formentor TSI CUPRA 2020-; Audi RSQ3 Sportback 2019-2024; Audi A3 Sportback 2019-2021; Audi RS3 Limousine 2017-2020; Audi TTRS Coupe 2016-2023.
