NF826226AA Sleeve
- NF826226AAThis pageNot stocked
Feb 2018 - 5Z0807279Discontinued
Jun 2026
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

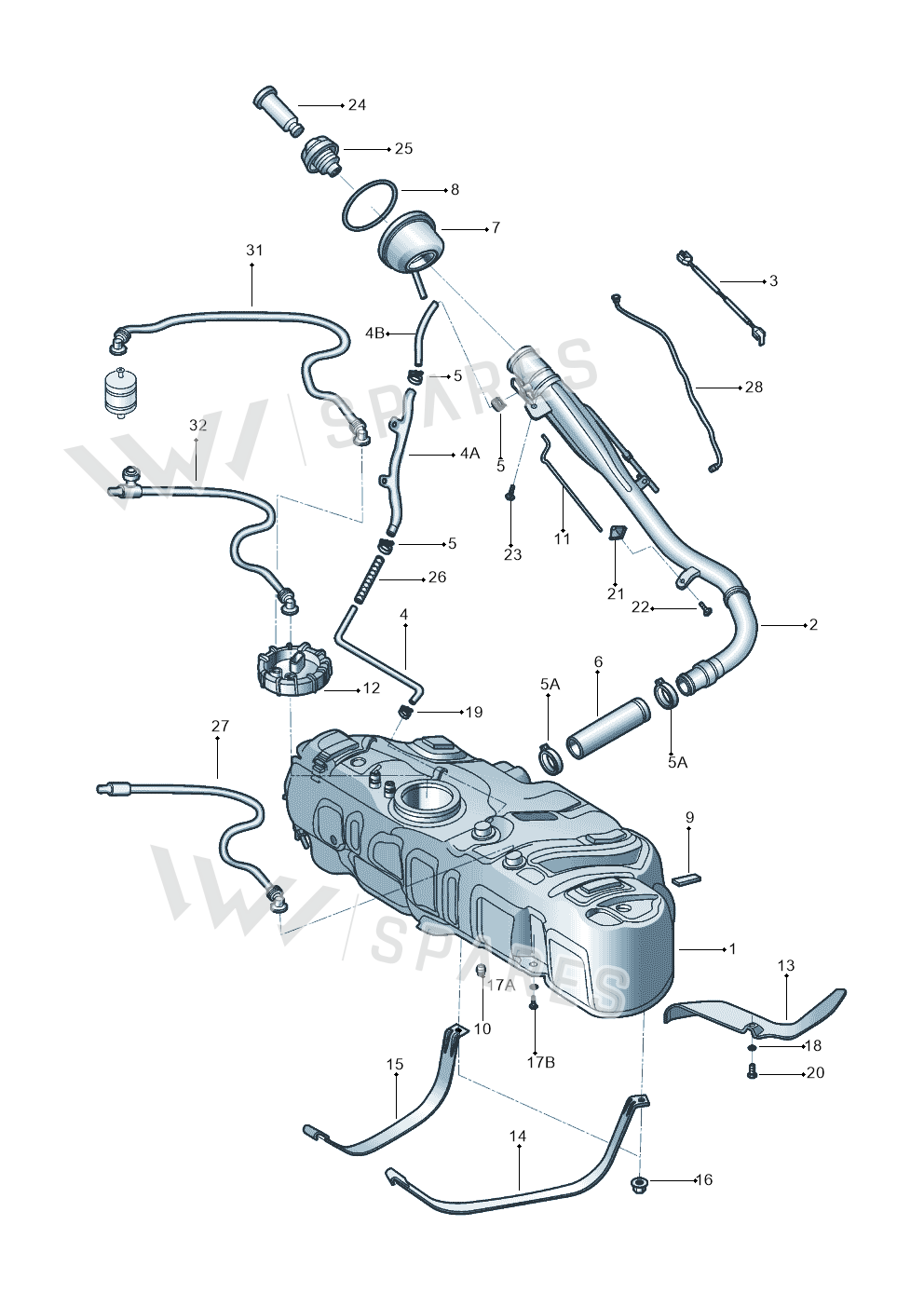

12 vehiclesSleeve — locate Sleeve in the official exploded view and explore the surrounding assembly.
Parts in this assembly40
- 1Part 5U0201075F
- 2Pipe 5U0201129A
- 2Pipe 5U0201129B
- 2Pipe 5U0201129C
- 3Line 5Z0201142B
- 4Pipe 5U0201163B
- 4APipe 5U0201147
- 4BPipe 5U0201163C
- 5Clamp 2376119872
- 5AClip 377201193A
- 6Hose 5U0201153A
- 7Part 5U0201253A
- 8Ring 5U0201255
- 9Wedge 377201295A
- 9Wedge 5U0201295
- 9Wedge 5U0201295A
- 9Wedge 5U0201295C
- 9Wedge 5U0201295G
- 9Wedge 5U0201295B
- 10Buffer 376201297
- 11Pipe 5U0201341
- 12Part 5U0201254
- 12Part 321201375A
- 13Part 5U0201307B
- 13Shield Plt 5U0201307A
- 14Strap 5U0201651C
- 15Strap 5U0201651B
- 16Part ZBA201689
- 17AWasher 5Z0201693
- 17BScrew N90814001
- 18Screw N0139684
- 21Screw NF700092DF
- 23Bolt N91079901
- 24Part 107201594B
- 25Ap Cap Filler Cap Without Lock Cylin- Der For 1H0201553
- 26Hose ZBC201183
- 27Pipe 5U0201931G
- 30Pipe 5W0201995G
- 31Fuel Line 5U0201293A
- 32Fuel Line 5U0201294A
Vehicle fitment table14
Other markets (9)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Voyage | 2011- | 21 | 1 |
| parati | 2010- | 52 | 1 |
| GOL 2P/4P M.06> | 2005- | 52 | 1 |
| GOL "CN"03> | 2003- | 52 | 1 |
| GOL 2P/4P | 2002-2006 | 52 | 1 |
| PARATI 4P | 2002-2006 | 52 | 1 |
| GOL SPECIAL 2P | 2002-2005 | 52 | 1 |
| NOVA PARATI | 1995-2002 | 47, 55, 52 | 1 |
| NOVO GOL/SAVEIRO | 1994-2002 | 47, 55, 52, 24 | 1 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 5U0 platform | 22 | 1 | |
| 377 platform | 52 | 1 | |
| 377 platform | 47, 52, 32 | 1 |
Listed without a diagram position (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| saveiro | 2011-2013 | 1 | |
| saveiro | 2009- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Sleeve is fitted on: Voyage 2011-; parati 2010-; GOL 2P/4P M.06> 2005-; GOL "CN"03> 2003-; GOL 2P/4P 2002-2006; PARATI 4P 2002-2006; GOL SPECIAL 2P 2002-2005; NOVA PARATI 1995-2002; NOVO GOL/SAVEIRO 1994-2002; 5U0 platform; 377 platform.
