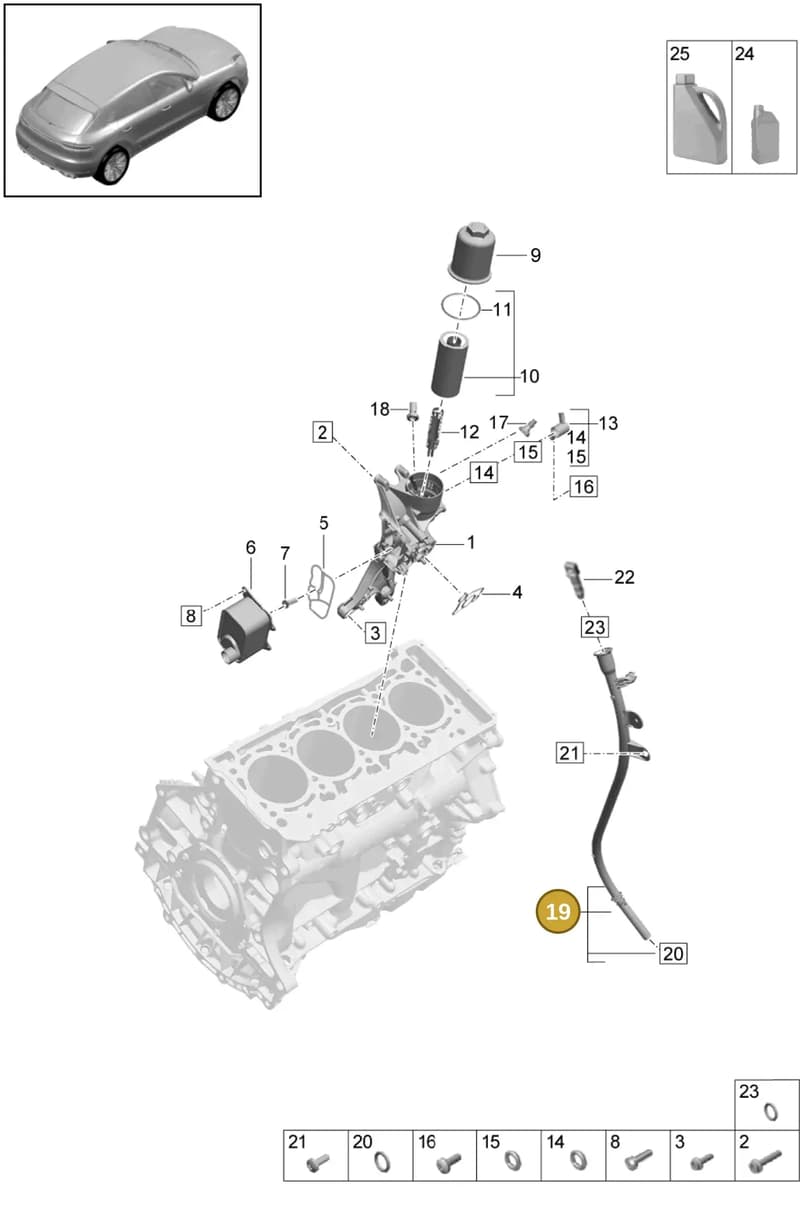

Number 19 marks the part’s position in this exploded view (Porsche Macan (2018-2022)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

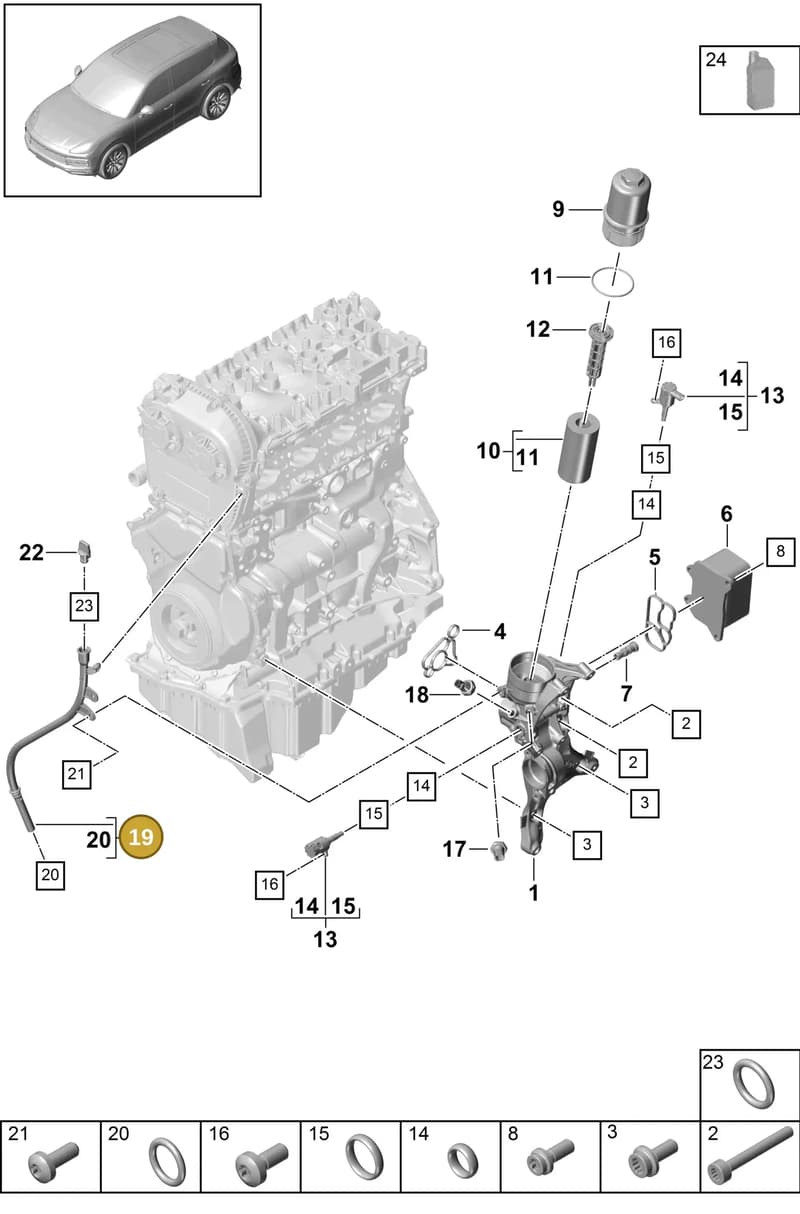

Genuine OEM Porsche Guide Tube, part number PAC115610. Fits Porsche Cayenne (2017-2023), Porsche Macan (2013-2022). Shown as position 19 in the engine diagram P5110401.
Catalogue entry: TUBE; OIL DIPSTI.
Fitted with: 95811561010 TUBE, N10451409 BOLT, 95811541830 Bungs, WHT002784 SEAL. RING.
Technical details
- Category
- Engine
- Diagram sheet
- Porsche p52104110, position 19
- ETKA group
- 1 / 04 (104)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesGuide Tube — locate PAC115610 Porsche Guide Tube in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Oil Sump 95810360300
- 2Screw N10766301
- 3Bolt N91211201
- 4Valve 95811524320
- 4Valve 95811524310
- 5Seal Ring N91056801
- 6Screw N91173601
- 7Insert 95810313800
- 8Part 95810324500
- 9Seal Ring N0282222
- 10Screw N91168701
- 11Oil Sump 95810360000
- 12Part 95810380100
- 13Gasket 95810364910
- 13Gasket 95810364911
- 13Gasket 95810364900
- 14Bolt N10700201
- 14Bolt N10839701
- 14Part N91071701
- 15Sender 95890766010
- 15Sender 95890766000
- 16Collar Nut N01508210
- 16Collar Nut PAF015082
- 18Sealant 00004330039
- 18Part 00004320749
- 19Tube 95811561010
- 19Tube 95811561000
- 20Seal Ring WHT003463
- 21Bungs 95811541830
- 22Seal Ring WHT002784
- 23Bolt N10451409
- 24PartLeft95811510501
- 24PartRight95811510502
- 24Part 95811510510
- 24Part 95811510520
- 24Part 95811510530
- 24Part 95811510531
- 24Part PAB115105
- 24Part PAB115105A
- 24Part 95811510500
- 26Chain 95811522500
- 27Intake Man 95811525100
- 29Bolt N10750001
- 30Bolt N91164901
- 31Bolt N10736001
- 32Adapter 95810320600
- 35Tensioner 95810950710
- 35Tensioner 95810950700
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Macan R4 TFSI | 2018- | 19 | |
| Cayenne Diesel V6 | 2017-2023 | 19 | |
| Macan GTS | 2013-2018 | 19 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
PAC115610 Porsche Guide Tube is fitted on: Macan R4 TFSI 2018-; Cayenne Diesel V6 2017-2023; Macan GTS 2013-2018.
