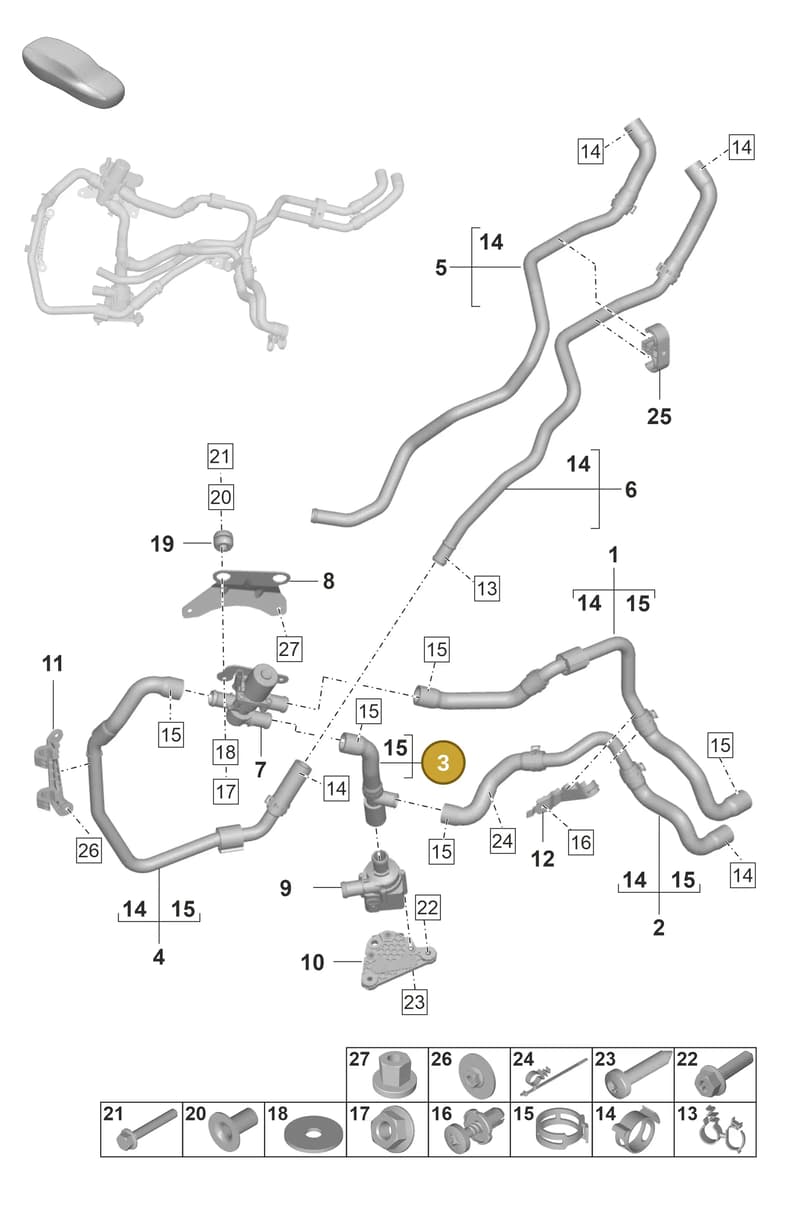

Number 3 marks the part’s position in this exploded view (Porsche Panamera (2023-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Porsche Heating Hose, part number PAE819452. Fits Porsche Panamera (2023-2025), Porsche Panamera (2016-2020). Shown as position 3 in the body diagram P5881320.
Catalogue entry: HOSE.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Porsche p58813200, position 3
- ETKA group
- 8 / 13 (813)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesHeating Hose — locate PAE819452 Porsche Heating Hose in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Hose 9A781933420
- 2Hose 9A781555500
- 2Hose 9A781555501
- 3Part 971819375D
- 4Hose 9A781945200
- 5Part 971819314K
- 5Hose 9A781931410
- 6Part 971815553B
- 6Line 971819284B
- 7Valve 9A790645710
- 8Retainer 9A781913400
- 9Water Pump 9A712160110
- 10Bracket 9A781959510
- 10Bracket 9A781959511
- 11Clip 95557205503
- 12Bracket 971819565C
- 13Bracket 971819259A
- 14Clamp 99951265609
- 15Clamp 99951265809
- 16Washer N90563602
- 17Buffer 4D0614177A
- 18Bolt N10655401
- 18Bolt N10717601
- 19Bolt N91108701
- 20Bolt N91096701
- 21Screw WHT002306
- 22Collar Nut N01508210
- 23Bush 4D0614173B
- 24Cable Tie N10478201
- 25Spring Rivet 4F0857784
- 26Part N90631303
- 27Sensor 95510612501
- 28Seal Ring N90316801
- 29Spring 95510614300
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Panamera | 2023- | 4 | 1 |
| Panamera 4 Hybrid | 2016-2020 | 4 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
PAE819452 Porsche Heating Hose is fitted on: Panamera 2023-; Panamera 4 Hybrid 2016-2020.
