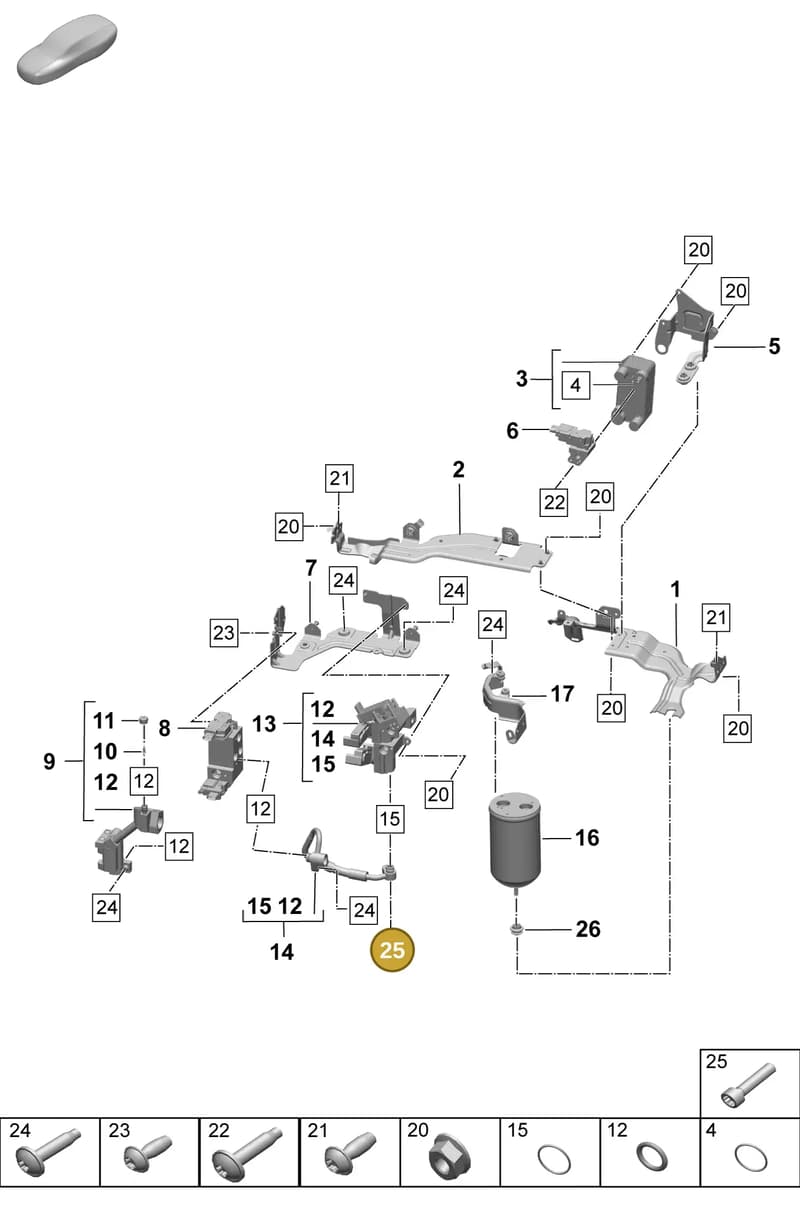

Number 25 marks the part’s position in the exploded view (Porsche Macan (2024-2024)).
Product overview
Genuine OEM Porsche Hexagon Socket Head Bolt, part number PAF106209. Fits Porsche Macan (2024-2024). Shown as position 25 in the body diagram P6181442.
Catalogue entry: SCREW M6X30.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Porsche p61814420, position 25
- ETKA group
- 8 / 14 (814)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x30 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleHexagon Socket Head Bolt — locate PAF106209 Porsche Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly23
- 1Bracket PAD820195
- 2Bracket PAD820195A
- 3Heat Exch PAC816112
- 4Seal Ring PAB260749
- 5Bracket PAC816765
- 6Expans Val 958816590
- 7Bracket PAD820196A
- 8Valve Block PAD816102
- 9Valve Block PAD816102B
- 10Insert PAD820855
- 11Cover 9A781658100
- 12Seal Ring 9A757374903
- 13Valve Block PAD816101
- 14Line PAD816730
- 15O Ring 95557374902
- 16Drier 95C816582A
- 17Bracket 95C816594A
- 20Collar Nut PAF015082
- 21Screw PAF010213
- 22Bolt N10438202
- 23Bolt N10653201
- 24Bolt N10632102
- 26Element 958614177
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Macan 4 | 2024- | 25 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
PAF106209 Porsche Hexagon Socket Head Bolt is fitted on: Macan 4 2024-.
