WHT000325 Hexagon Bolt
- WHT000325This pageNot stocked
Sep 2020 - WHT000325ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

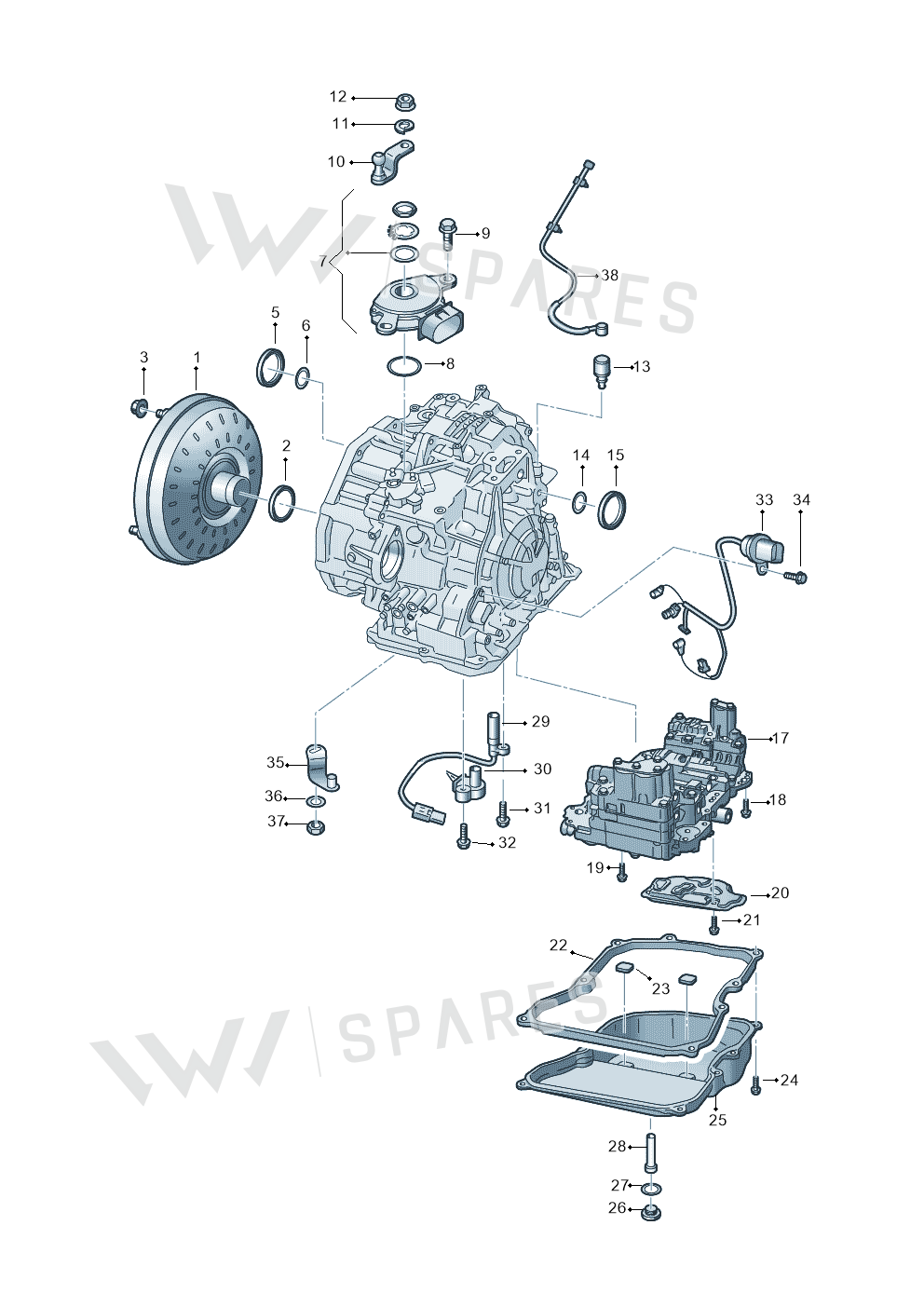

7 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly37
- 1Converter 09P323571M
- 1Converter 09P323571N
- 2Seal Washer 09P321243
- 3Part N10169201
- 5Seal Washer 09P321243D
- 5Seal Washer 09P321243A
- 5Seal Washer 09P321243B
- 5Seal Washer 09P321243C
- 6Seal 09P301193A
- 7Switch 09G919823
- 8Seal Washer 09D321199
- 10Lever 09P321171
- 11Washer WHT000304
- 12Part N01100840
- 13Adapter 09G301469A
- 17Valve Body 09P325039
- 18Bolt WHT000307
- 19Bolt WHT008567
- 20Strainer 09P325429
- 21Screw WHT001866
- 22Seal 09P321370
- 23Magnet 09P321368
- 24Bolt WHT000309
- 25Oil Sump 09P321361
- 26Screw WHT000310A
- 27Seal Ring 09D321181B
- 28Oil Pipe 09P321363
- 29Sender 09G927321D
- 30Sender 0C8927321
- 31Bolt WHT000308
- 32Bolt WHT008568
- 33Loom 09P927363
- 34Bolt WHT008576
- 35Lever 09P321175
- 36Plate 09G321381
- 37Part WHT001425
- 38Pipe 09P301472D
Vehicle fitment table8
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q3 quattro | 2018-2019 | 9 | 2 | |
| Tiguan 2.0 4Motion | 2017-2024 | 9 | 2 | |
| Audi Q7 07> | 2006- | 4 | 1 | G0R |
| Cayenne | 2002-2006 | 2 | 2 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| C-Trek 1.5 | 2016- | 6 | 1 | |
| bora | 2015- | 6 | 1 | |
| Sagitar | 2014-2019 | 6 | 2 |
Listed without a diagram position (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Jetta "USA"05> | 2005- | 2 | G1A |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Audi Q3 quattro 2018-2019; Tiguan 2.0 4Motion 2017-2024; Audi Q7 07> 2006-; Cayenne 2002-2006; C-Trek 1.5 2016-; bora 2015-; Sagitar 2014-2019.
