United States
Target · Diagram
Find this reference above

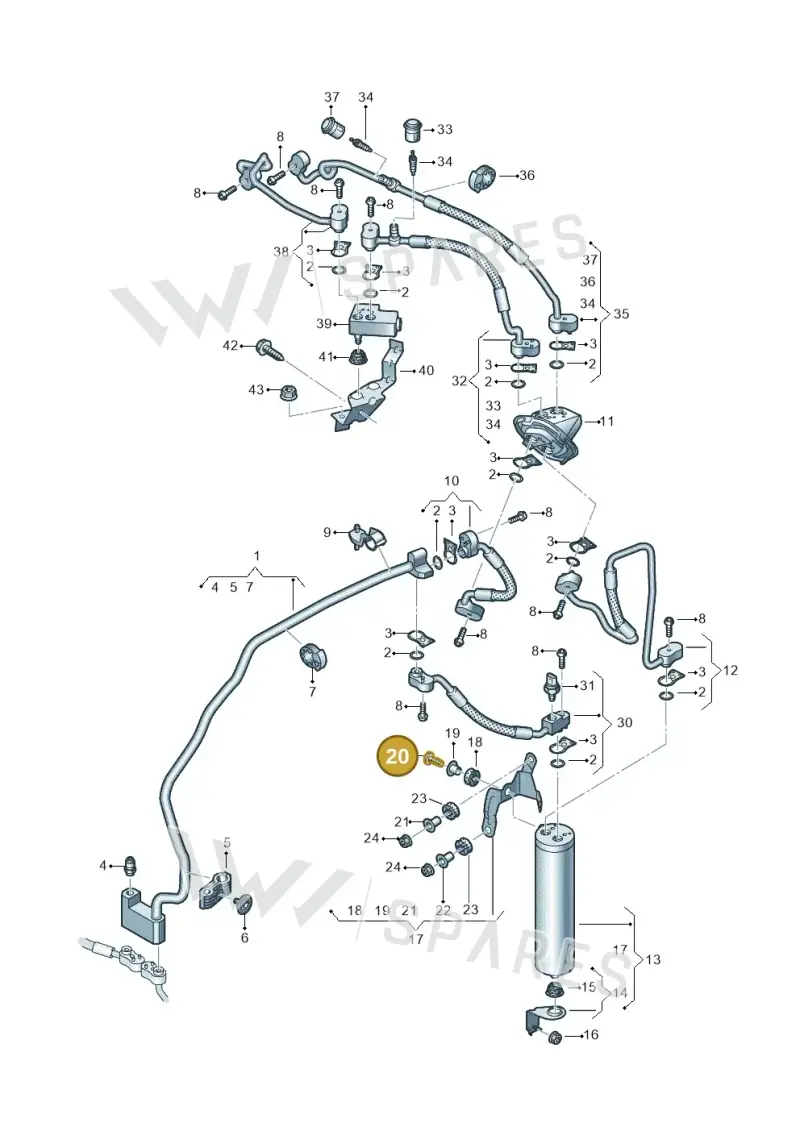

Number 20 marks the part’s position in this exploded view (Audi A8 (2017-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Flat Round Head Bolt, part number WHT000439A. Fits Audi A8 (2017-2025), Audi Q3 (2014-2019), Audi RS Q3 (2013-2018). Shown as position 20 in the fuel, exhaust and cooling diagram 838260050.
Catalogue entry: SCREW M8X25 ×2.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Audi 838260050, position 20
- ETKA group
- 2 / 60 (260)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M8x25 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
8 vehiclesFlat Round Head Bolt — locate WHT000439A Volkswagen Flat Round Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly35
- 1Pipe 4N0816587A
- 2Seal Plate 4N0959895A
- 3Ret Washer 4N0959895B
- 4Valve 4N0816220
- 5Bracket 8W0260759A
- 6Part 8D0201441
- 8Socket WHT008030
- 9Bracket 4N0816087D
- 10Line 4N0816534
- 11Basicplate 4N0816589
- 12Line 4N0816535A
- 13Drier 4N0816583H
- 14Bracket 4N0816595E
- 16Collar Nut N10205802
- 17Bracket 4N0816572G
- 18Grommet N10551301
- 21Spacer 6N0129734
- 23Grommet 4F0129669F
- 24Collar Nut N01508210
- 30Line 4N0816536
- 31Sensor 4N0959126G
- 32LineRight4N2816541
- 32LineLeft4N1816541
- 33Part 4N0816564
- 34Insert 4N0816561
- 35LineRight4N2816531
- 35LineLeft4N1816531
- 36Ring N10762301
- 37Part 4N0816563
- 38LineRight4N2816542
- 38LineLeft4N1816542
- 39Expans Val 4N0816590
- 40BracketRight4N2816571
- 40BracketLeft4N1816571B
- 42Bolt N91151201
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A8L | 2017-2022 | 20 | 2 | ||

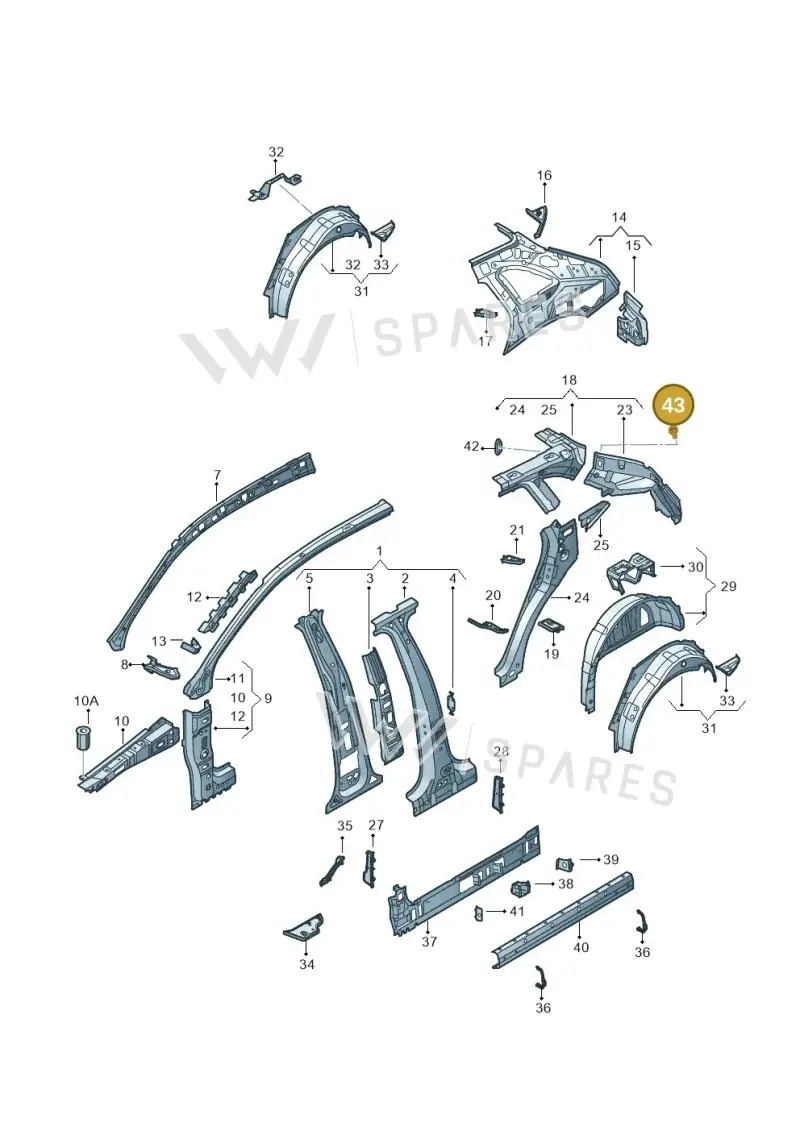

| Audi Q3 1.4 | 2016- | 43, 39 | 2 | ||
| Audi Q3 2.0 TDI | 2014-2019 | 43, 39 | 2 | ||

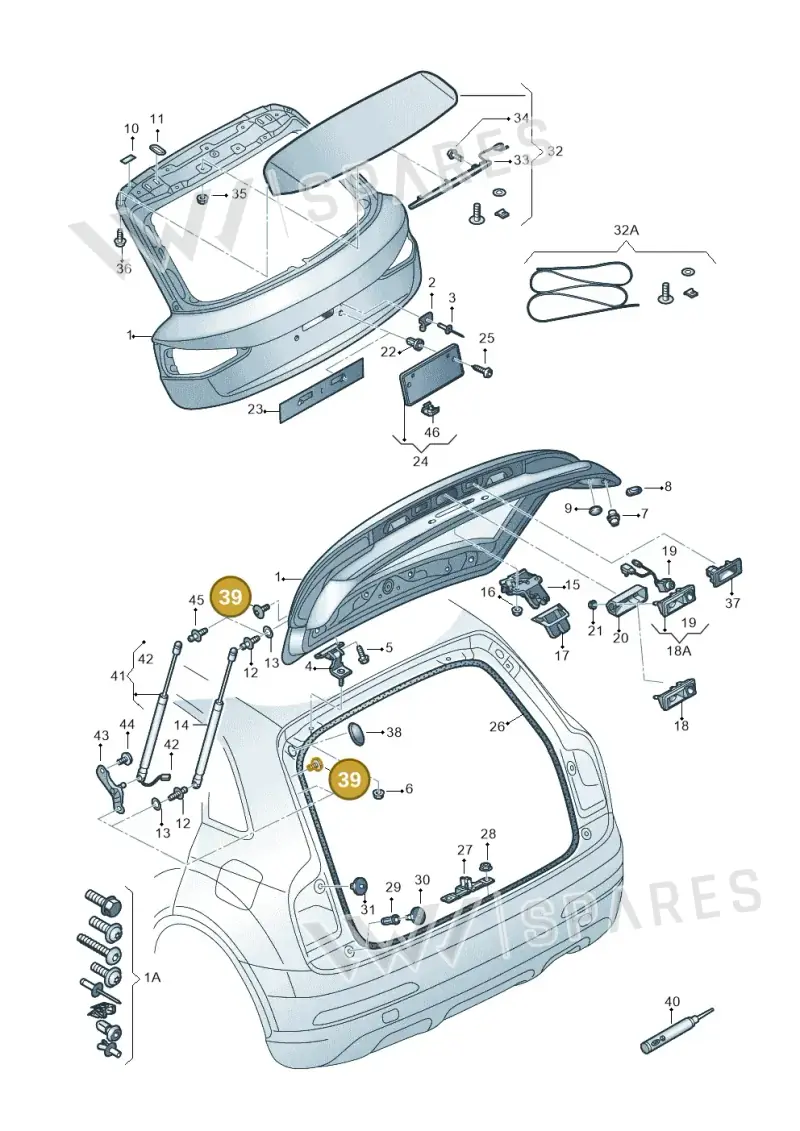

| Audi RSQ3 qu. 2.5 | 2013-2018 | 43, 39 | 2 | PR:4E0,4E2 | 4E0 |

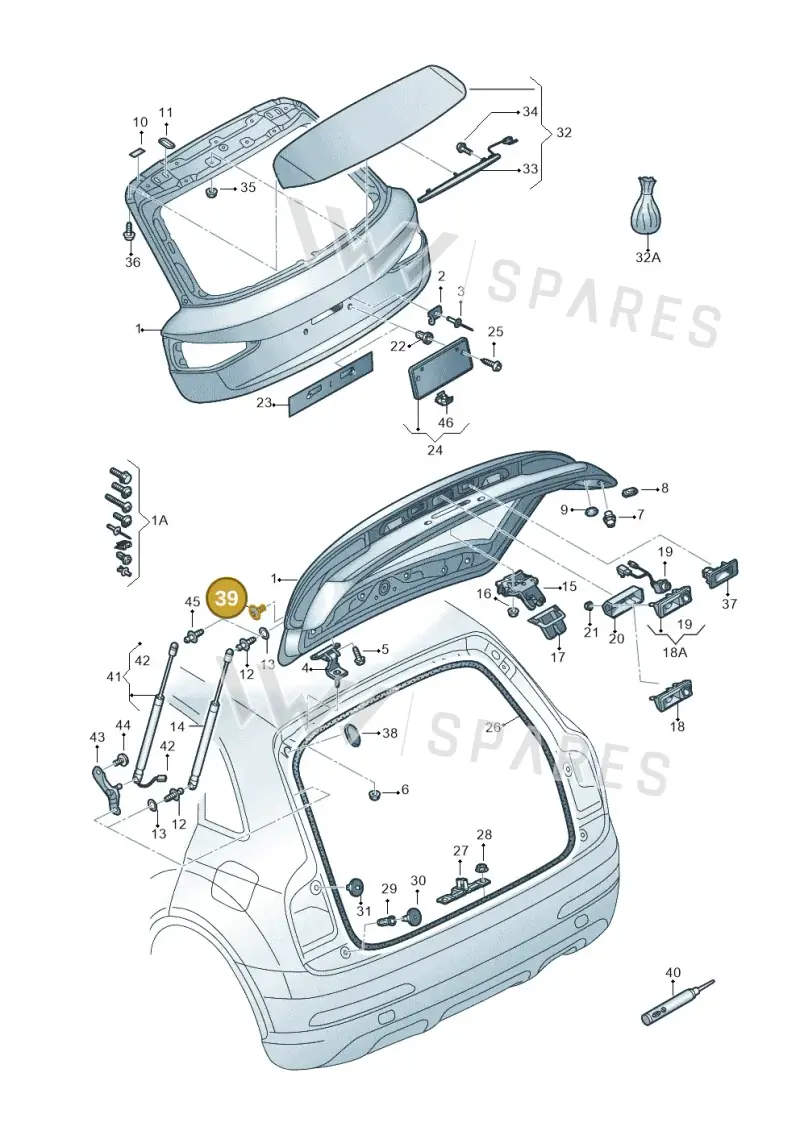

| Audi Q3 1.4 | 2012-2016 | 43, 39 | 2 | ||
| Audi Q3 quattro | 2011-2015 | 43, 39 | 2 | PR:4E0,4E2 | 4E0 |

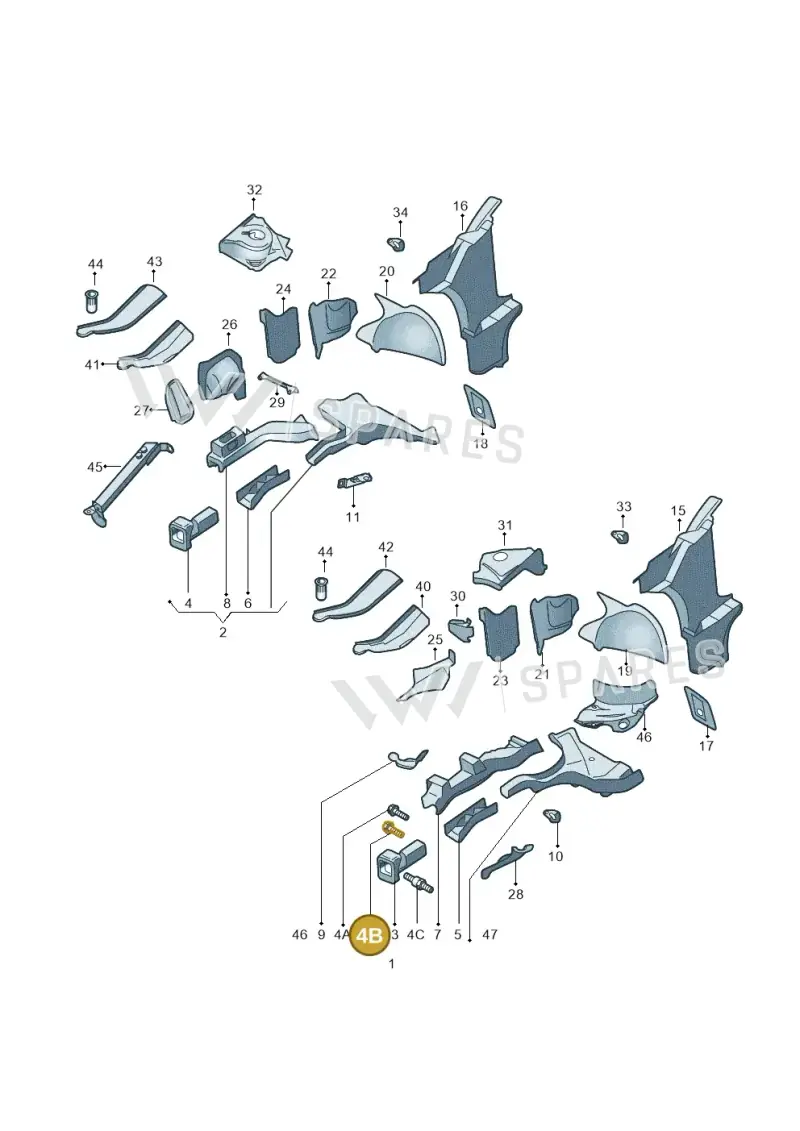

| Audi TTRS Plus Coupe | 2009-2014 | 4B | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|

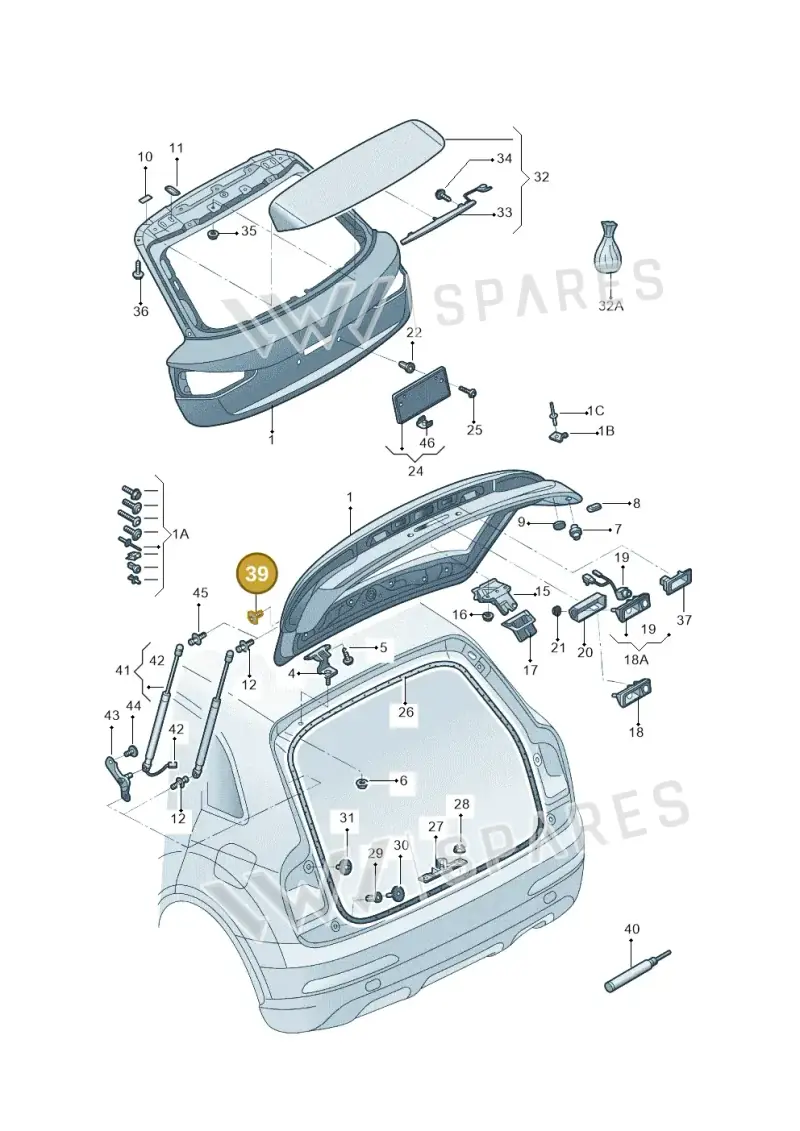

| Audi Q3 quattro 2.0 | 2016-2019 | 43, 39 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
WHT000439A Volkswagen Flat Round Head Bolt is fitted on: Audi A8L 2017-2022; Audi Q3 1.4 2016-; Audi Q3 2.0 TDI 2014-2019; Audi RSQ3 qu. 2.5 2013-2018; Audi Q3 1.4 2012-2016; Audi Q3 quattro 2011-2015; Audi TTRS Plus Coupe 2009-2014; Audi Q3 quattro 2.0 2016-2019.
