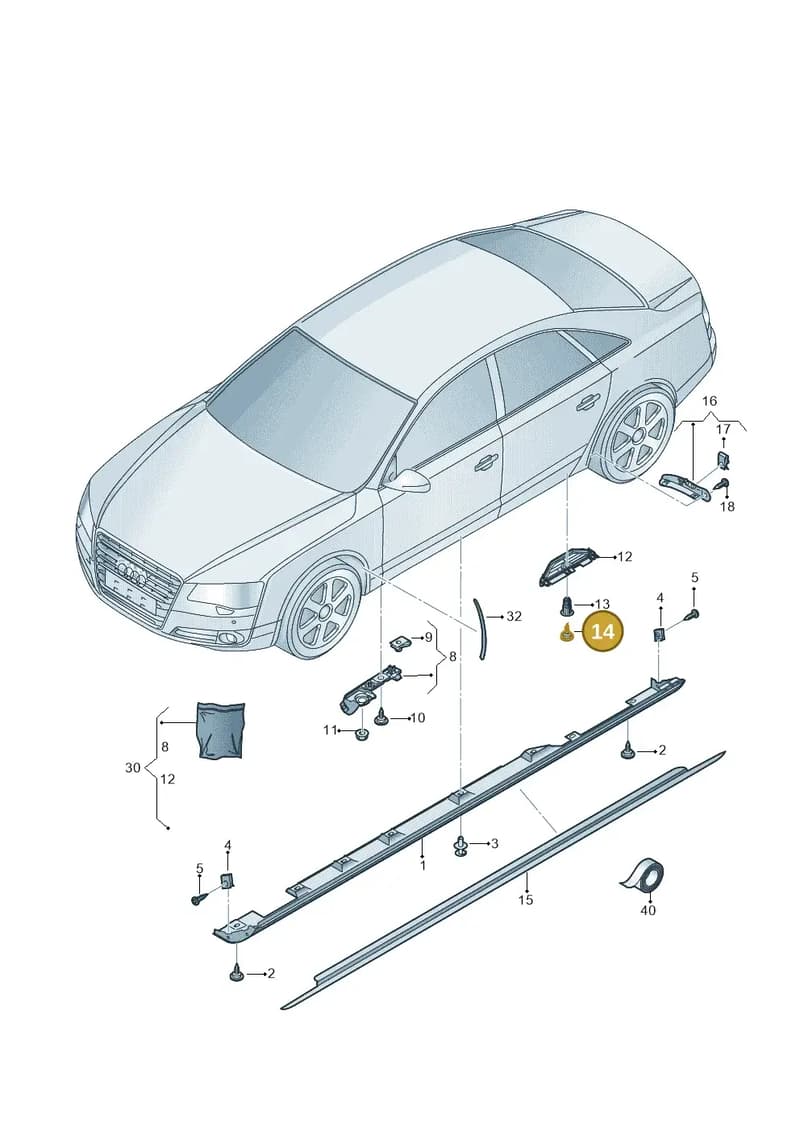

Number 14 marks the part’s position in this exploded view (Audi A8 (2013-2018)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Hexagon Socket Head Locating Bolt, part number WHT000485. Fits Audi A8 (2013-2018). Shown as position 14 in the body diagram 771853200.
Catalogue entry: BOLT 5X16 ×2.
Technical details
- Category
- Body Exterior
- Diagram sheet
- Audi 771853200, position 14
- ETKA group
- 8 / 53 (853)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 5x16
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
23 vehiclesHex Socket Head Locating Bolt — locate WHT000485 Volkswagen Hexagon Socket Head Locating Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly32
- 1Trim 4H0853859E
- 1Trim 4H0853859F
- 1Trim 4H0853860E
- 1Trim 4H0853860F
- 1Trim 4H4853859B
- 1Trim 4H4853859C
- 1Trim 4H4853860B
- 1Trim 4H4853860C
- 1PartRight4H6853856B
- 1PartLeft4H6853855B
- 2Bolt N90788402
- 3Spring Rivet 8E0825267
- 4Part N0154374
- 5Bolt N90775001
- 11Part N91173301
- 12RetainerRight4H0853922C
- 12RetainerLeft4H0853921C
- 13Part N10318001
- 15StripRight4H0853986C
- 15StripLeft4H4853985B
- 15StripRight4H4853986B
- 15StripLeft4H0853985C
- 16SpoilerRight4H0854816B
- 16SpoilerLeft4H0854815B
- 17Part N10433701
- 30Fixing Set 4H0898855D
- 30Fixing Set 4H4898855B
- 30Fixing Set 4H4898855C
- 30Fixing Set 4H0898855C
- 32Stone ChipLeft4H0853931
- 32Stone ChipRight4H0853932
- 40Adhes Tape 8V0853046
Vehicle fitment table23
Europe (17)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A8L qu. 3.0 TDI | 2013-2018 | 14 | 2 | ||
| Rapid | 2012-2022 | 16 | 2 | 0Z6 | |
| Audi RS4 Av. qu. 4.2 | 2012-2015 | 25 | 2 | ||
| Audi R8 qu. 5.2 | 2012-2015 | 4 | 32 | ||
| Audi RS5 Cabrio | 2012-2015 | 12 | 4 | ||
| Toledo Reference | 2012-2015 | 16 | X | ||
| Audi TTS Coupe 2.0 | 2010-2014 | 4 | 12 | ||
| Audi TTRS Plus Coupe | 2009-2014 | 4 | 12 | ||
| Audi A8L qu. 3.0 TDI | 2009-2014 | 6 | 2 | K8B | |
| Audi A4 Av. Allroad | 2008-2016 | 16 | 8 | ||
| Exeo ST Reference | 2008-2011 | 16 | 30 | ||
| Audi TT Coupe/Roadster 08> | 2007- | 4 | 12 | ||
| Audi R8 08> | 2007- | 4 | 32 | ||
| Audi RS6 Avant qu.5.0 | 2007-2010 | 2 | 2 | FN1 | |
| Audi RS4 qu. 07> | 2006- | 16 | 30 | K8B | |
| Audi A4/S4/Av./qu. 05> | 2005- | 16 | 30 | K8B | |
| Audi A4/S4/Av./qu. | 2001-2004 | 16 | 30 | K8B |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| C-Trek 1.5 | 2016- | 26 | 4 | ||
| bora | 2015- | 26 | 4 | ||
| Gran Santana | 2015-2019 | 6B | 2 | ||
| Rapid | 2012-2023 | 6B | 2 | ||
| Jetta 1.6 | 2012-2019 | 6B | 2 | ||
| AUDI A4 "CN."06> | 2005- | 16 | 30 |
