WHT002304 Shouldered Bolt
- WHT002304This pageNot stocked
Oct 2011 - 420807739Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Customs (HS) code
- 73181510
Parts diagram & fitment

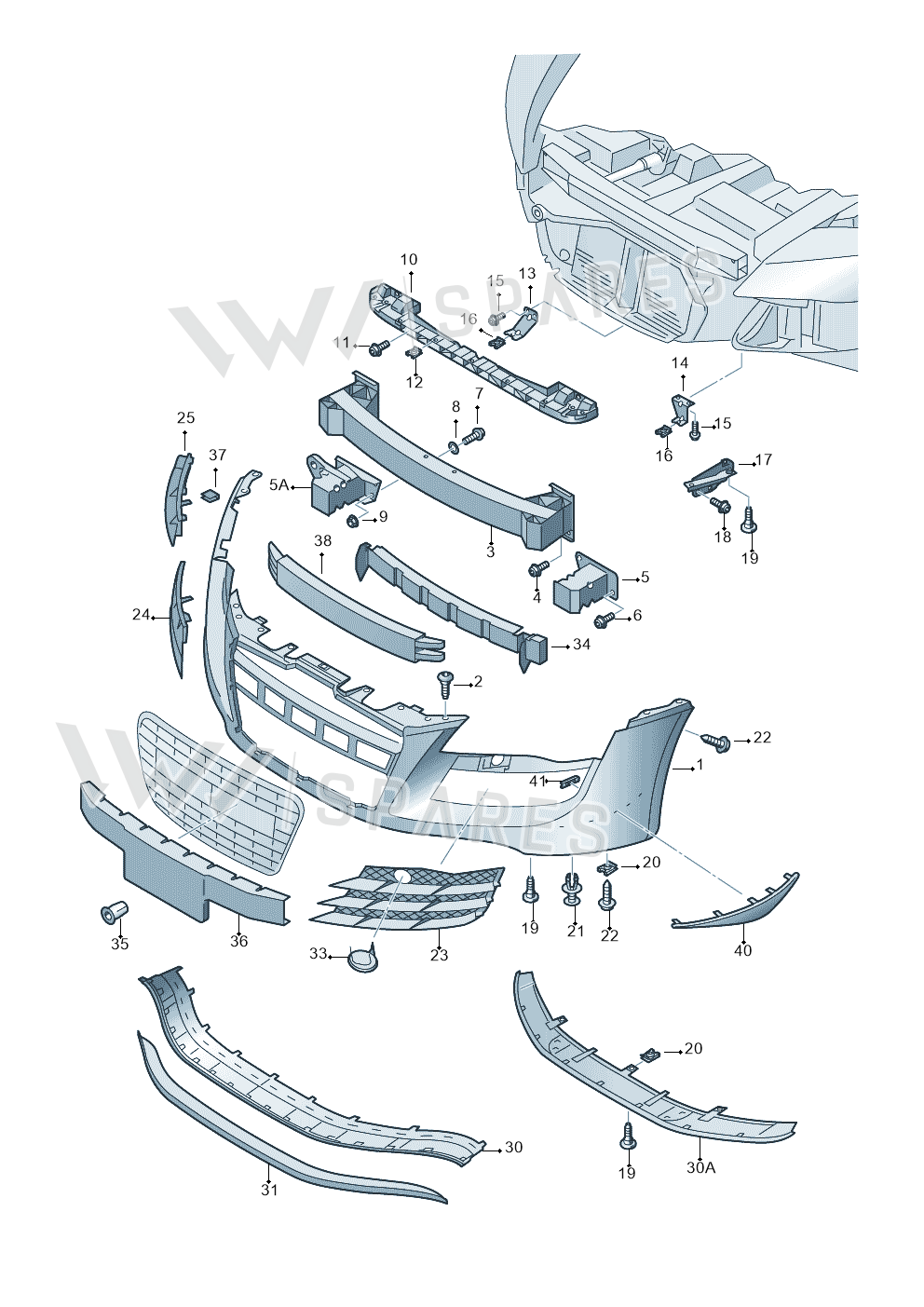

1 vehicleShouldered Bolt — locate Shouldered Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly45
- 1Bumper 420807103
- 1Bumper 420807103A
- 1Bumper 420807103F
- 1Bumper 420807103G
- 1Trim 42B807065
- 1Trim 42B807065A
- 2Bolt 420807739
- 3Holder 420807109B
- 4Screw N91104901
- 5DeformelemLeft420807551
- 5ADeformelemRight420807552
- 7ScrewRightN10613901
- 8WasherRightN90033312
- 9Collar NutRightN10609206
- 10Profile 420807177
- 11Bolt N90900402
- 12Part N90688703
- 13Bracket 420807056
- 14BracketRight420807596A
- 14BracketLeft420807595A
- 15Bolt N10009507
- 17ProfileRight420807184A
- 17ProfileLeft420807183A
- 21Spring Rivet N0385013
- 23GrilleLeft420807679
- 23GrilleLeft420807681
- 24GrilleRight420807680
- 24GrilleRight420807682
- 25CoverRight420807241A
- 25CoverRight420807241
- 30Spoiler 420807061
- 30ASpoiler 42B807100
- 31Spoiler 420807110
- 33CoverLeft420807751A
- 33CoverRight420807752
- 33CoverRight420807752A
- 33CoverLeft420807751
- 34Absorber 420807691A
- 34Absorber 42B807691
- 34Absorber 420807691
- 35Part N90218403
- 37Clip N10491001
- 40SpoilerLeft42B807547
- 40SpoilerRight42B807548
- 41Clip 420807887
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi R8 08> | 2007- | 2, 11 | 7 | 2K1,2K2 |
Diagrams & fitment data powered by oemdiagrams.com
Shouldered Bolt is fitted on: Audi R8 08> 2007-.
