WHT002428 Stud With Hex Hd
- 4A0201699ANot stocked
Apr 2007 - WHT002428This pageDiscontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

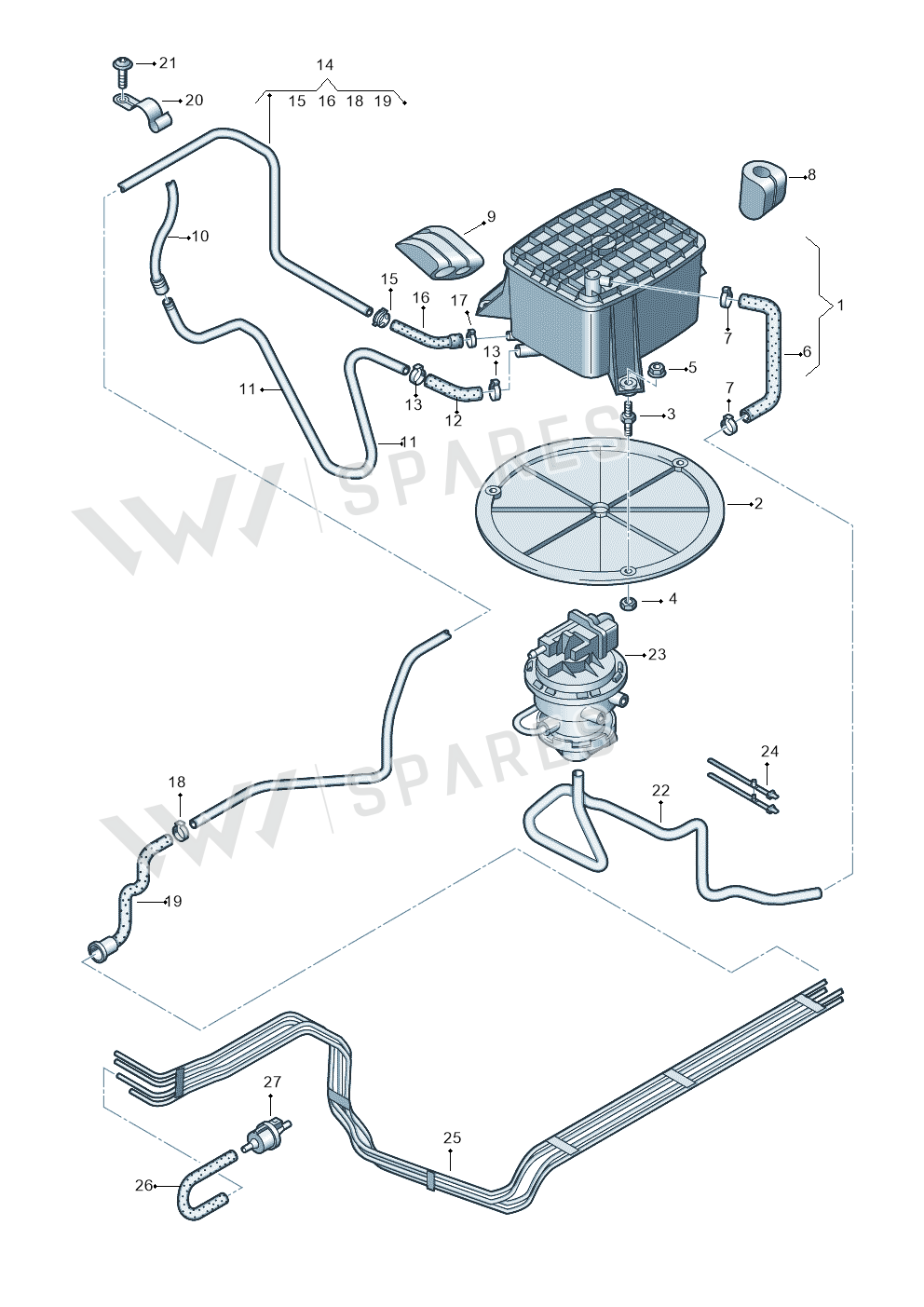

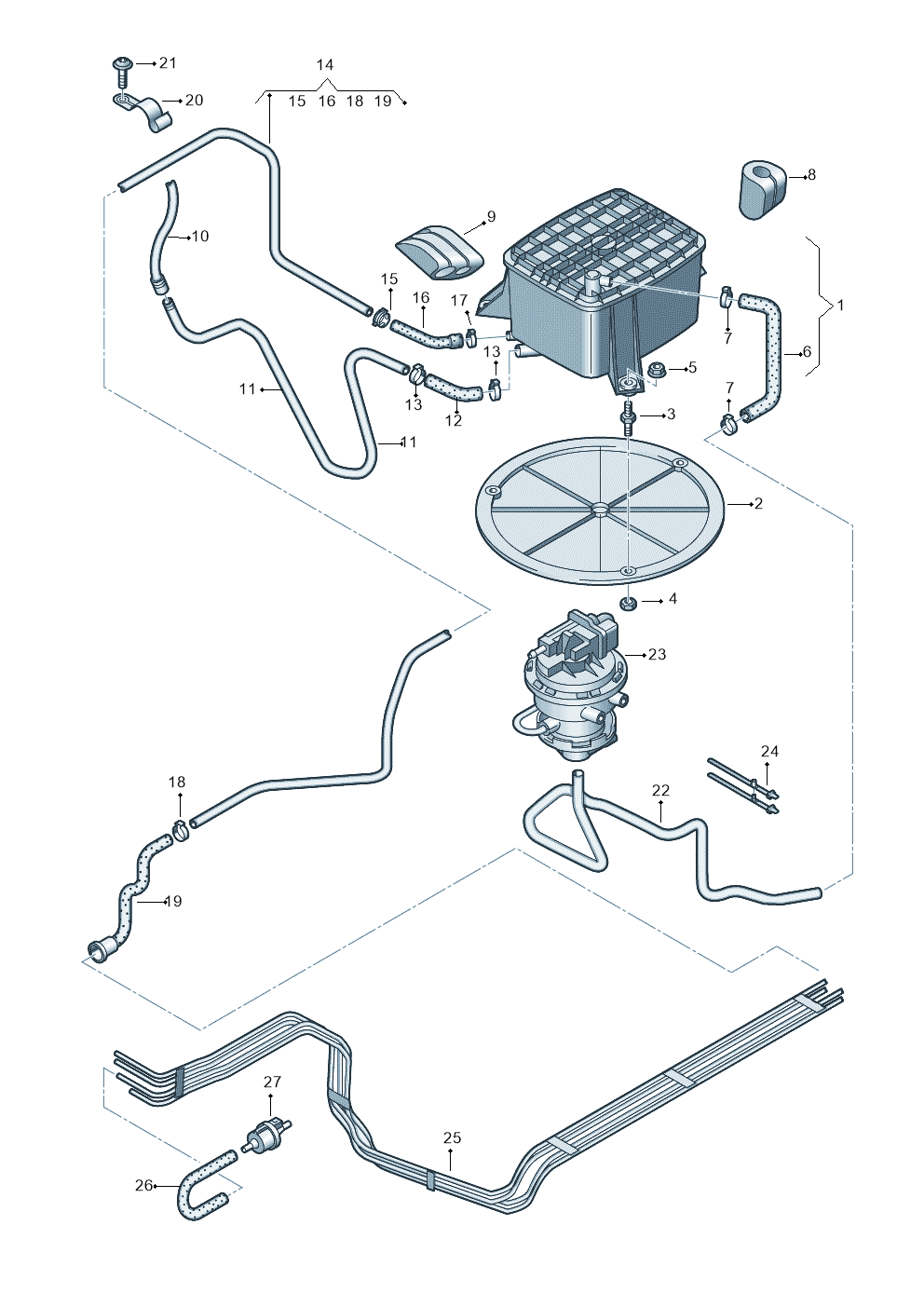

7 vehiclesStud With Hex Hd — locate Stud With Hex Hd in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly22
- 1Container 8D0201801F
- 2Cover 4E0201814
- 4Part N0111214
- 5Part N90132606
- 6Hose 4E0906272AF
- 7Clamp N10202001
- 8Seal 4E0201196
- 9Seal 4E0201196A
- 11Pipe 4E0201083L
- 12Hose 4E0906272T
- 13Clamp N90411901
- 14LineRight4E0201995H
- 15Clamp 4B0422379
- 16Hose 4E0906272AS
- 17Clamp N10197601
- 18Clip N10255501
- 19Hose 4E0906272AB
- 20Bracket 4E0201449M
- 21Bolt N90897401
- 22Pipe 4E0201946E
- 24Binder 4A0820199
- 26Hose 077127519D
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A8/S8/qu. lang 08> | 2007- | 3 | 3 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 2 | 3 | |
| Audi A8/S8/qu. lang | 2003-2007 | 3 | 3 | |
| Audi RS6 qu. | 2003-2004 | 3 | 3 | T09 |
| Audi TT Coupe/Roadster | 2002-2006 | 2 | 3 | T33 |
| PASSAT/4MOTION/W8 | 2002-2005 | 20, 3 | 3 | 7GG |
| Audi A4/S4/Av./qu. | 2001-2004 | 2 | 3 |
Diagrams & fitment data powered by oemdiagrams.com
Stud With Hex Hd is fitted on: Audi A8/S8/qu. lang 08> 2007-; Audi A4/S4/Av./qu. 05> 2005-; Audi A8/S8/qu. lang 2003-2007; Audi RS6 qu. 2003-2004; Audi TT Coupe/Roadster 2002-2006; PASSAT/4MOTION/W8 2002-2005; Audi A4/S4/Av./qu. 2001-2004.
