WHT003697 Sealing Plug
- WHT003697This pageNot stocked
May 2012 - WHT005623ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

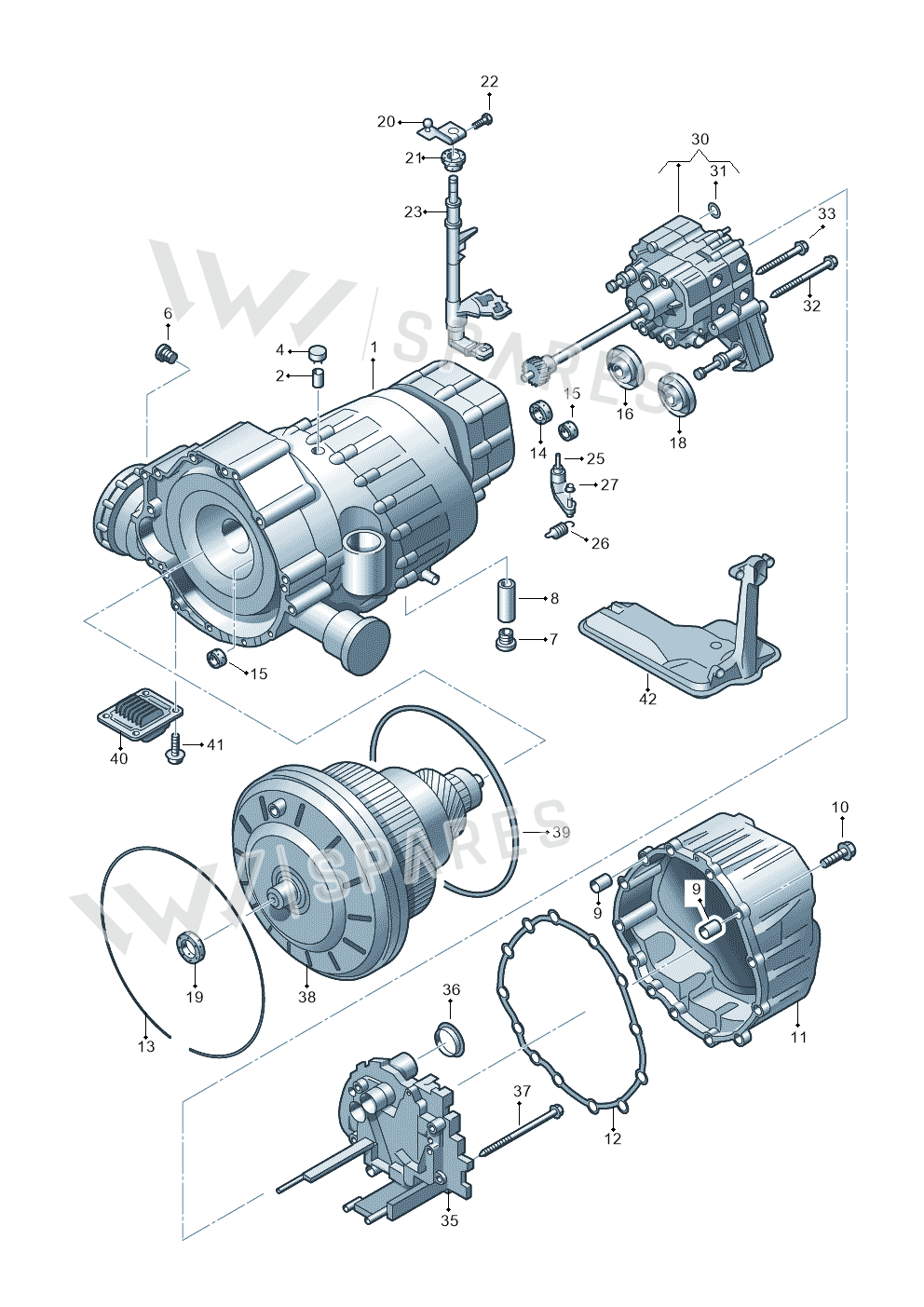

4 vehiclesSealing Plug — locate Sealing Plug in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 2Sleeve 02H409275A
- 4Ap Cap For Venting The Gearbox Cap For Venting 014301485
- 6Screw N10037105
- 7Screw WHT002468
- 8Oil Pipe 0AW301685C
- 8Oil Pipe 0AW301685B
- 9Sleeve 0CK301299
- 10Bolt WHT002459
- 11Cover 0AW301213D
- 12Seal 0AW301475B
- 13Ring 0AW398321
- 14Seal 01J301547H
- 15Seal 0AW301547A
- 16Sens Rotor 0AW331291B
- 19Seal 0AW311113
- 20Lever 0AW321171B
- 21Seal Ring 095321182B
- 22Bolt N90441603
- 25Loc Lever 0AW321218B
- 26Spring 01J321223C
- 27Roller 01J321225
- 30Part 0AW325031S
- 30Part 0AW325031T
- 31Seal Ring 01J325413
- 32Bolt N10455001
- 37Bolt WHT004144
- 38Shaft 0AW323911B
- 38Shaft 0AW323911C
- 38Shaft 0AW323911A
- 39Seal Ring WHT002142A
- 40Cover 0AW301173A
- 42Oil Filter 0AW301519C
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A5 Cabrio 2.0 | 2008-2012 | 6, 17 | 1 | G0Z | |
| Audi A5/S5 Coupe 08> | 2007- | 6 | 1 | LKY, | LTZ |
| AUDI A4 08> | 2007- | 6 | 1 | LKS,L | KT, |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4L 2.0 | 2008-2012 | 6 | 1 | LKS,LKV,MVB |
Diagrams & fitment data powered by oemdiagrams.com
Sealing Plug is fitted on: Audi A5 Cabrio 2.0 2008-2012; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Audi A4L 2.0 2008-2012.
