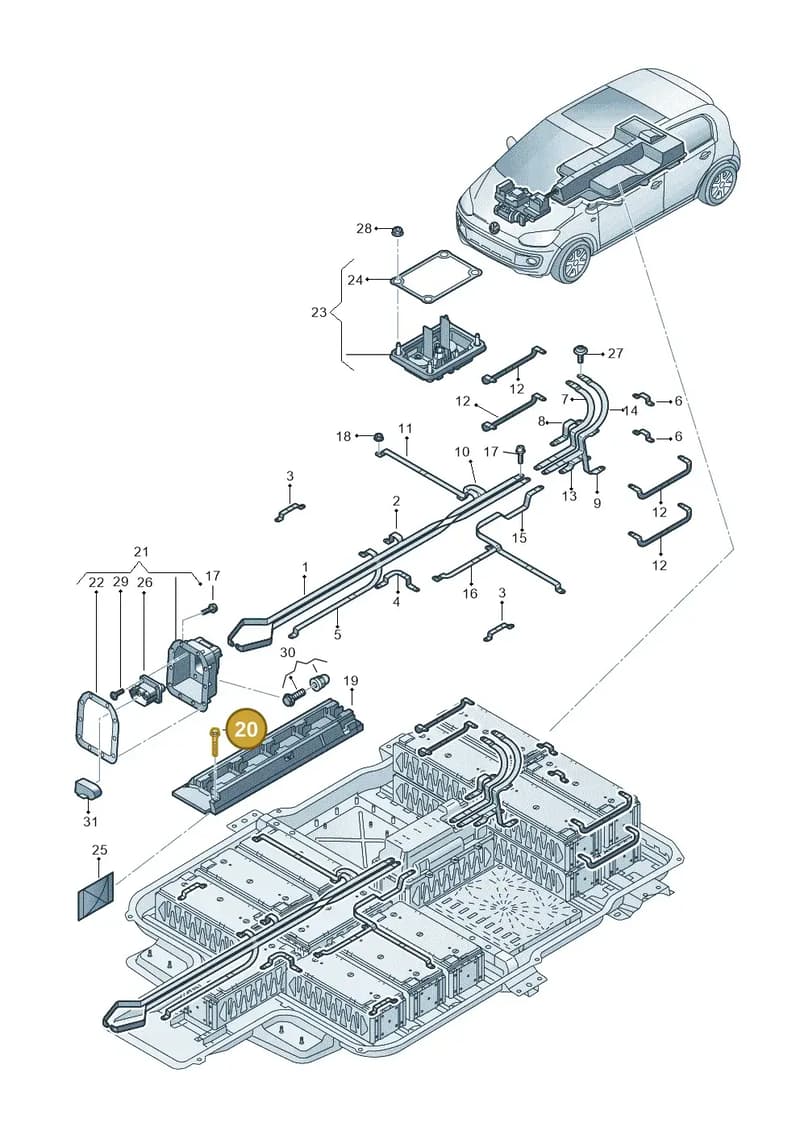

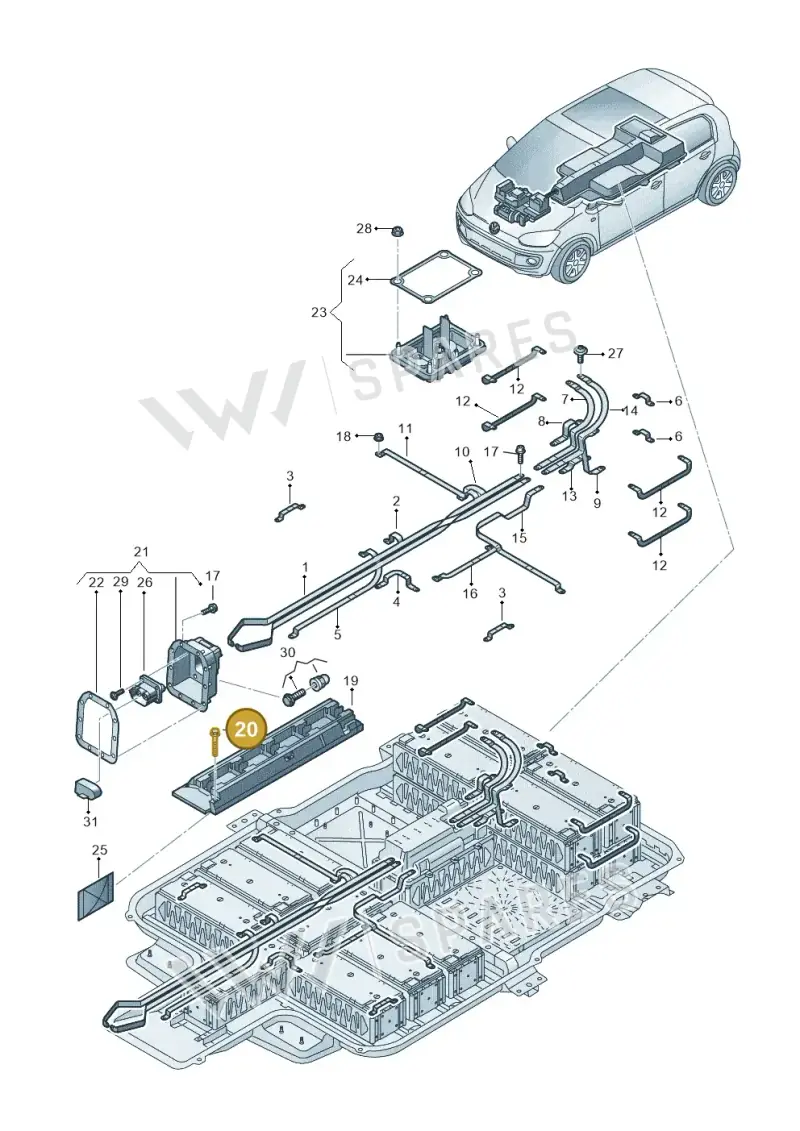

Number 20 marks the part’s position in this exploded view (Volkswagen E-up! (2013-2016)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

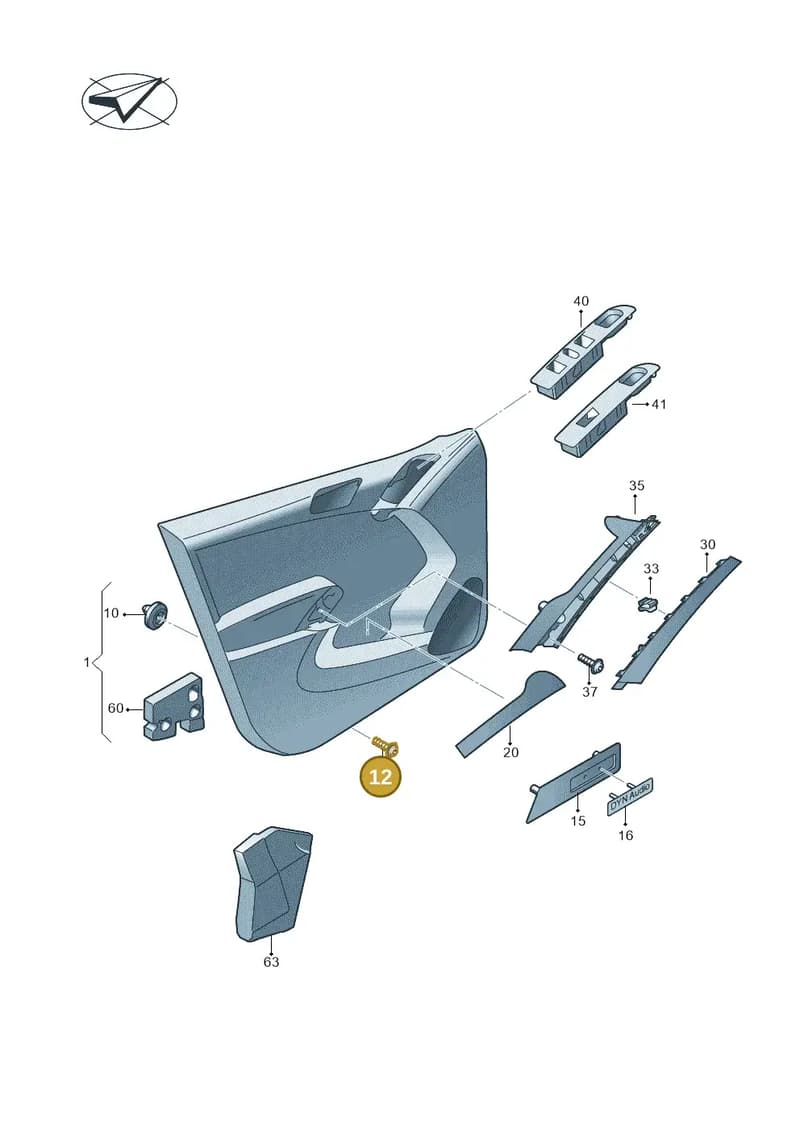

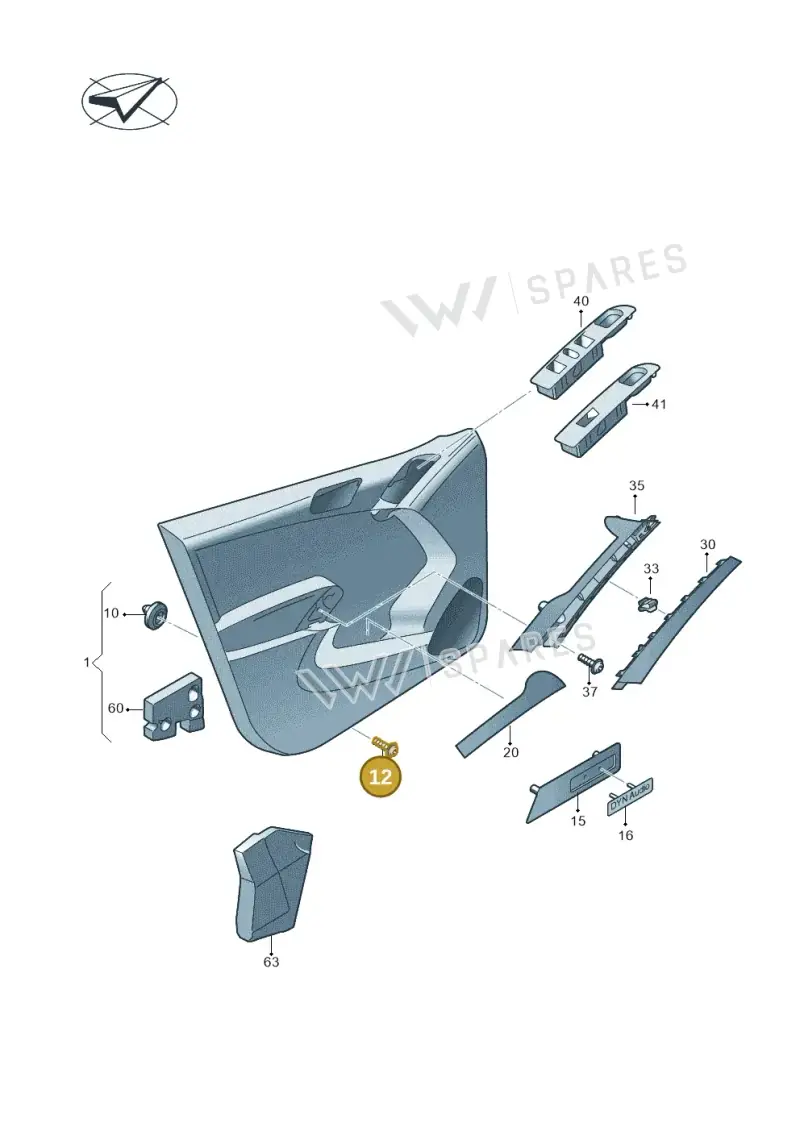

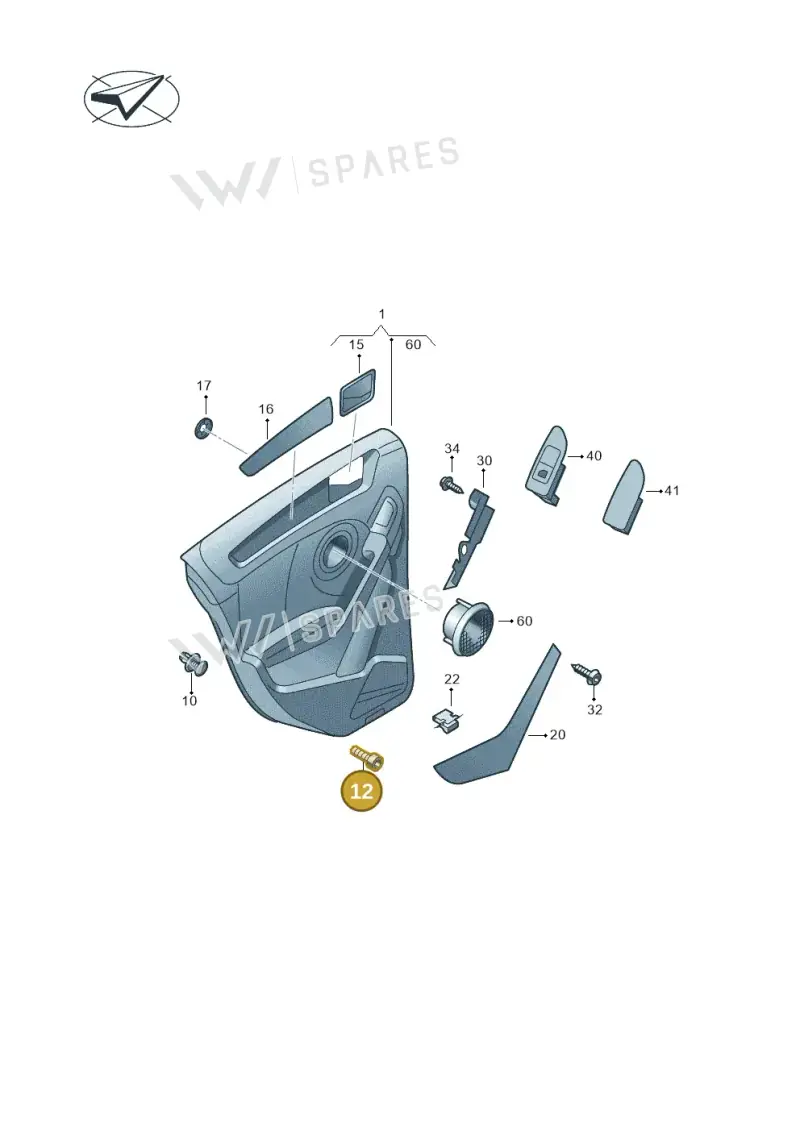

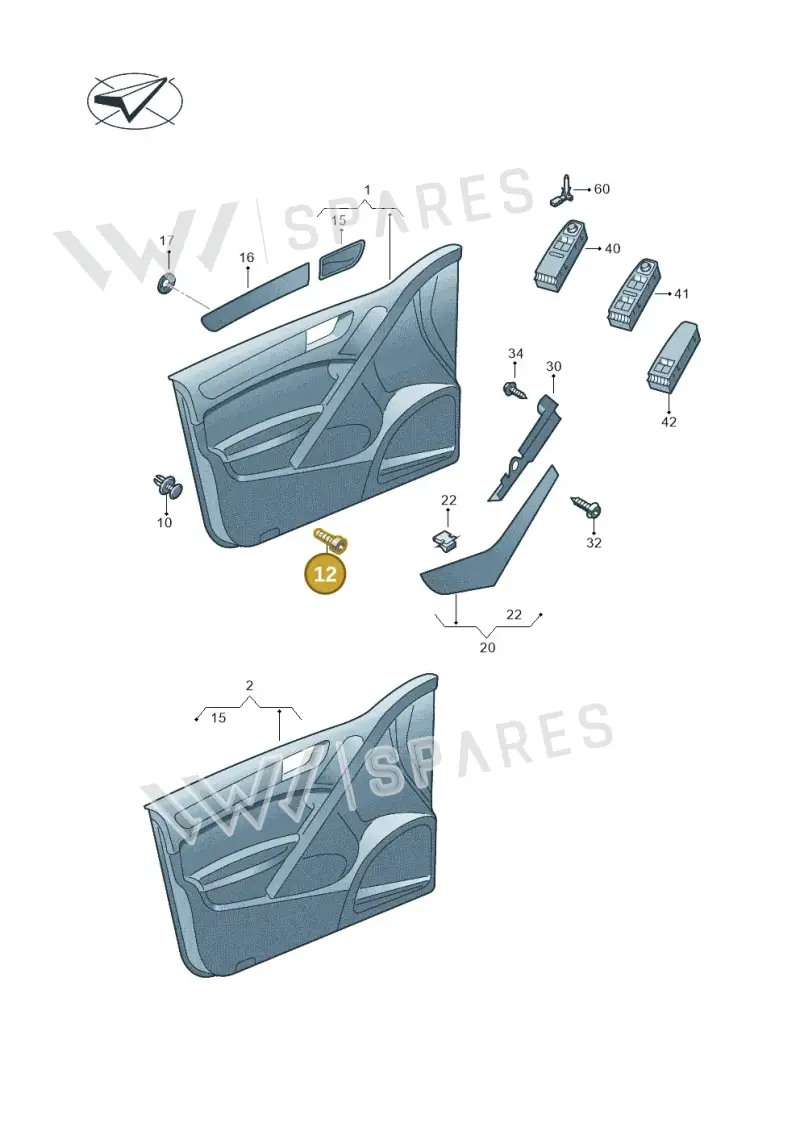

Genuine OEM Volkswagen Locating Bolt, part number WHT005228. Fits Volkswagen Tiguan (2011-2018). Shown as position 12 in the body diagram 634867000. Equipment code: L0L.
Catalogue entry: BOLT M6X12X30 ×4.
Technical details
- Category
- Interior Trim
- Diagram sheet
- Volkswagen 772915700, position 20
- ETKA group
- 8 / 67 (867)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x12x30 mm
Equipment codes
- L0L
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesLocating Bolt — locate WHT005228 Volkswagen Locating Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly30
- 1Connector 12E915159BA
- 2Connector 12E915159BC
- 3Connector 12E915159BD
- 4Connector 12E915159BN
- 5Connector 12E915159BB
- 6Connector 12E915159BM
- 7Connector 12E915159BL
- 8Connector 12E915159BH
- 9Connector 12E915159BJ
- 10Connector 12E915159BQ
- 11Connector 12E915159BF
- 12Connector 12E915159BR
- 13Connector 12E915159BG
- 14Connector 12E915159BK
- 15Connector 12E915159BE
- 16Connector 12E915159BP
- 17Bolt N10335206
- 18Collar Nut N01508210
- 19Cable Duct 12E915801C
- 21Support 12E915699M
- 22Seal 12E915433F
- 23Support 12E915699K
- 24Seal 12E915433H
- 25Repair Kit 12E998076
- 26Part 12E915703A
- 26Part 12E915703E
- 27Screw N10284902
- 28Collar Nut N10017304
- 29Bolt N10430104
- 31Ap Transport Protective Cap Transport 12E971883
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| e-up! | 2013-2016 | 20 | 4 | |

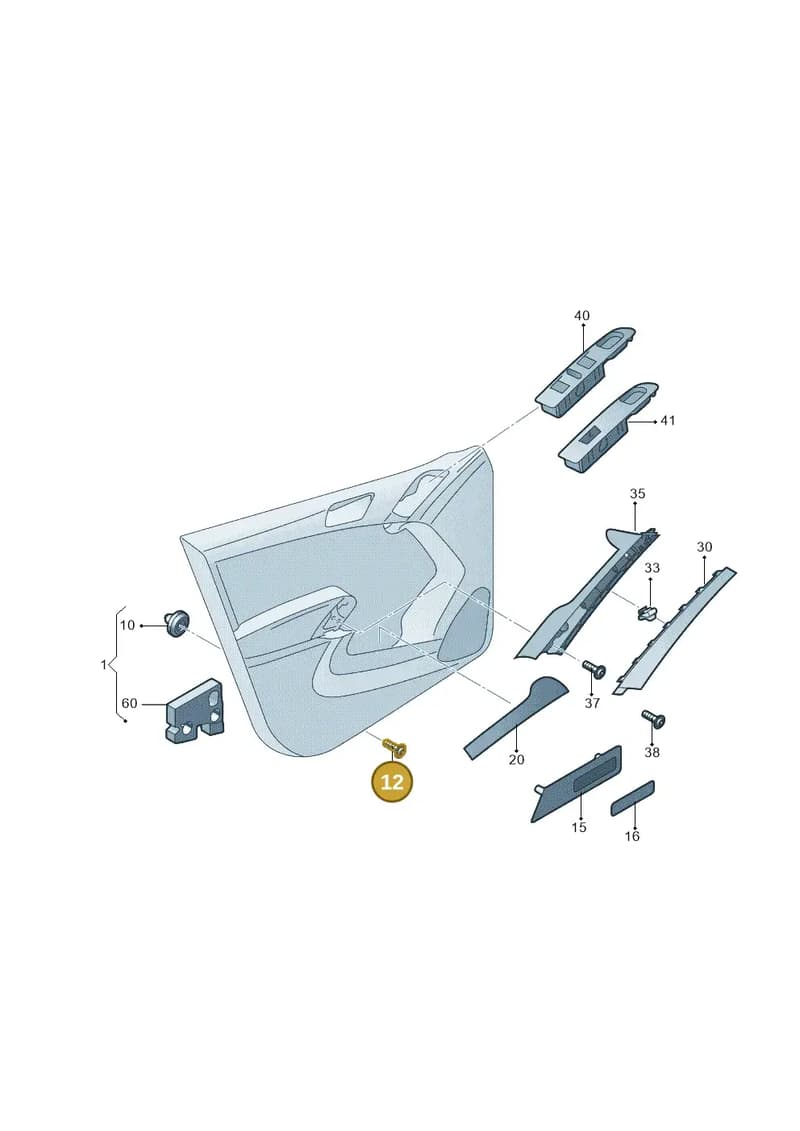

| Tiguan 4Motion | 2011-2018 | 12 | 4 | L0L |

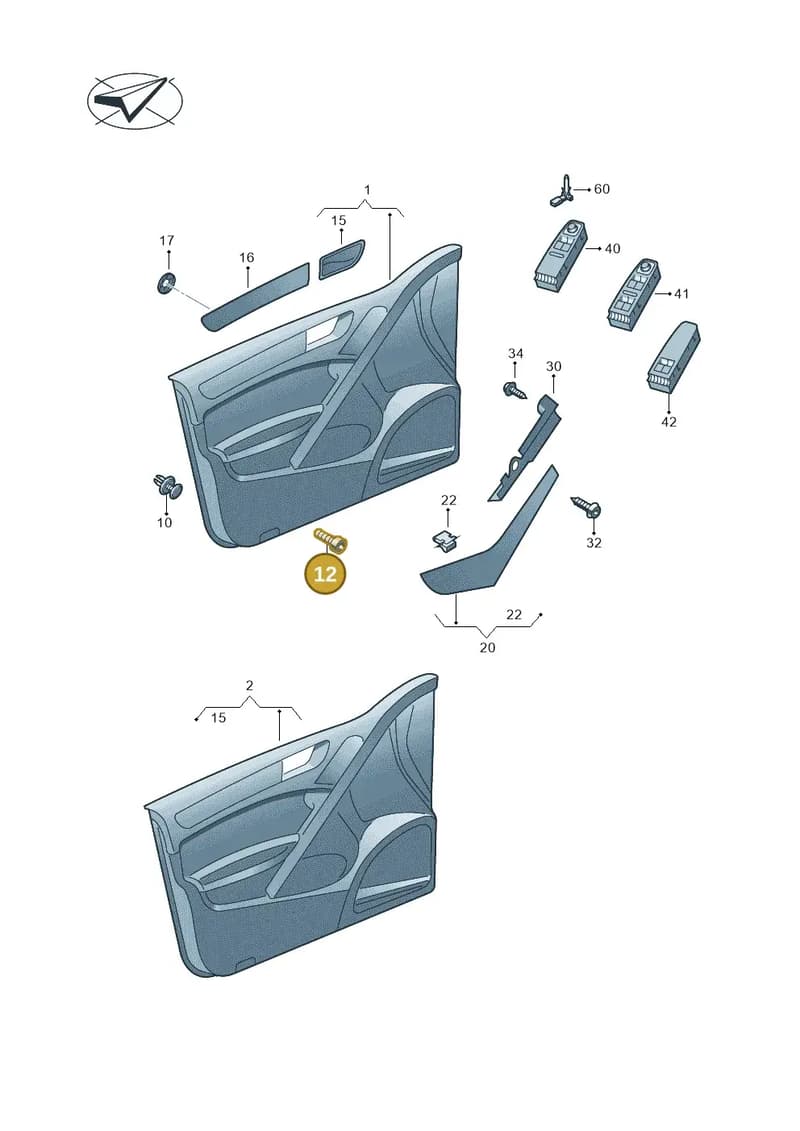

| Golf | 2009-2014 | 12 | 2 | 0A2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|

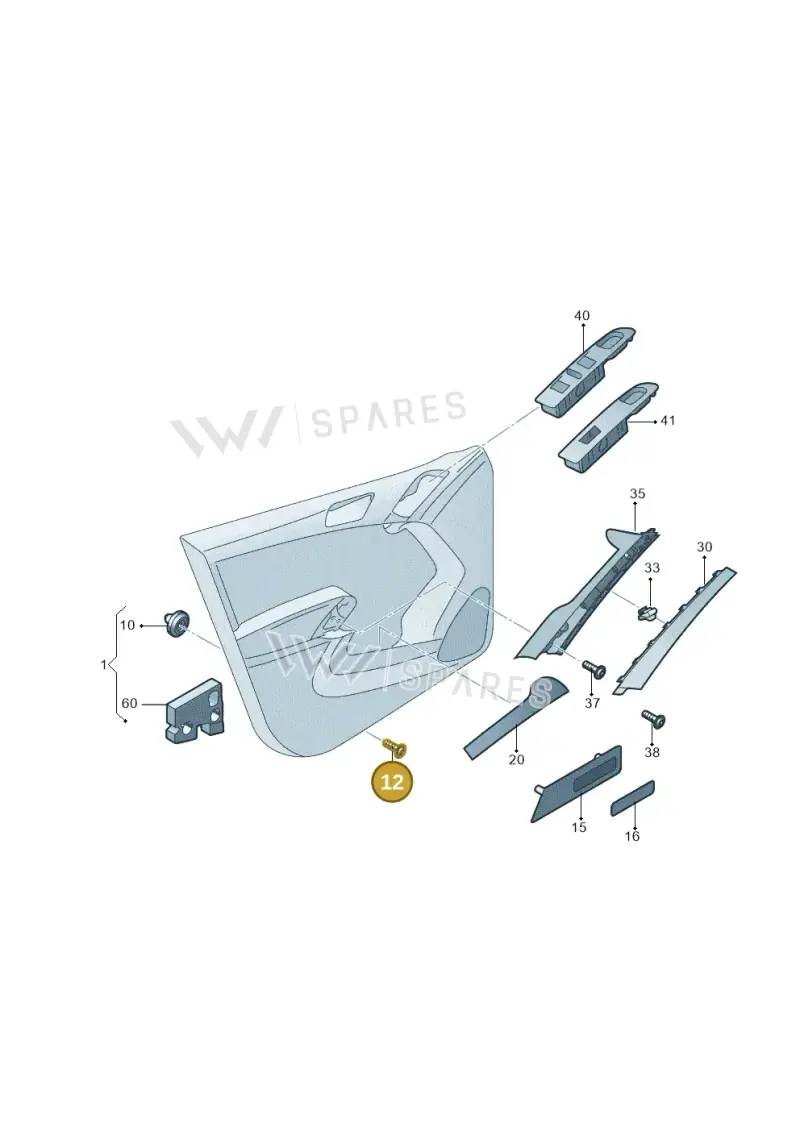

| Tiguan | 2009-2019 | 12 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
WHT005228 Volkswagen Locating Bolt is fitted on: e-up! 2013-2016; Tiguan 4Motion 2011-2018; Golf 2009-2014; Tiguan 2009-2019.
