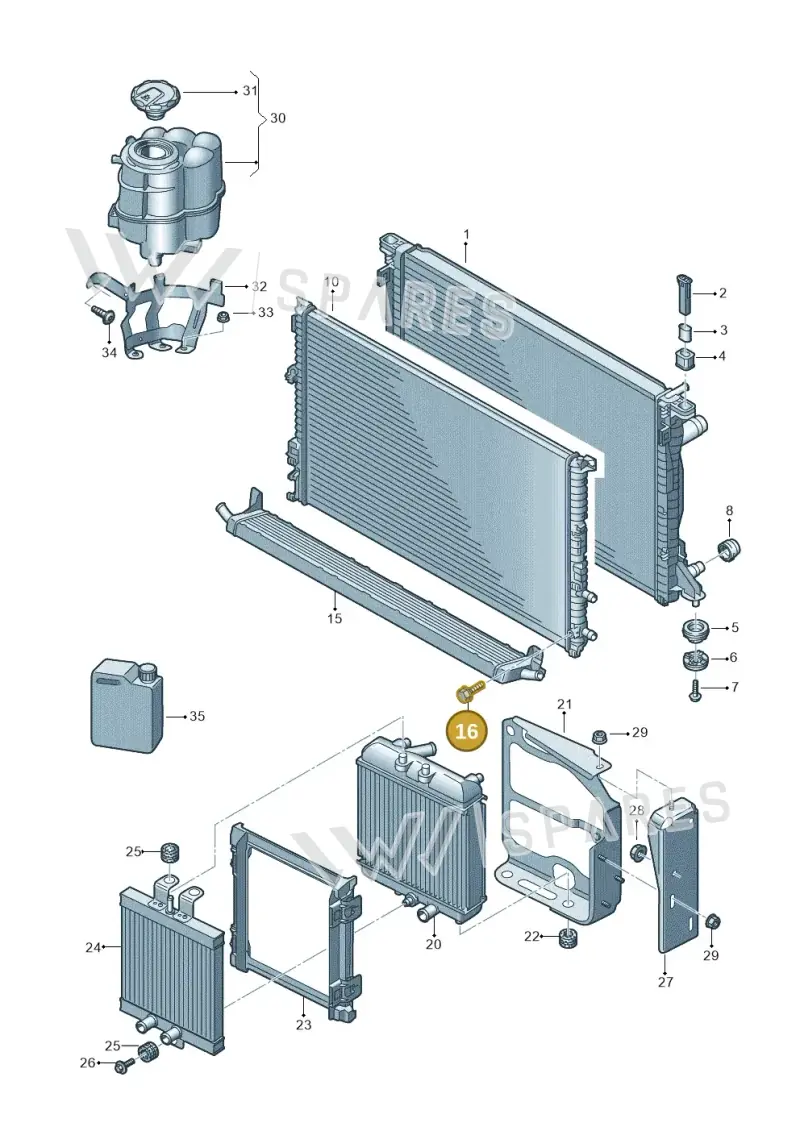

Number 16 marks the part’s position in this exploded view (Audi RS4 Avant (2017-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

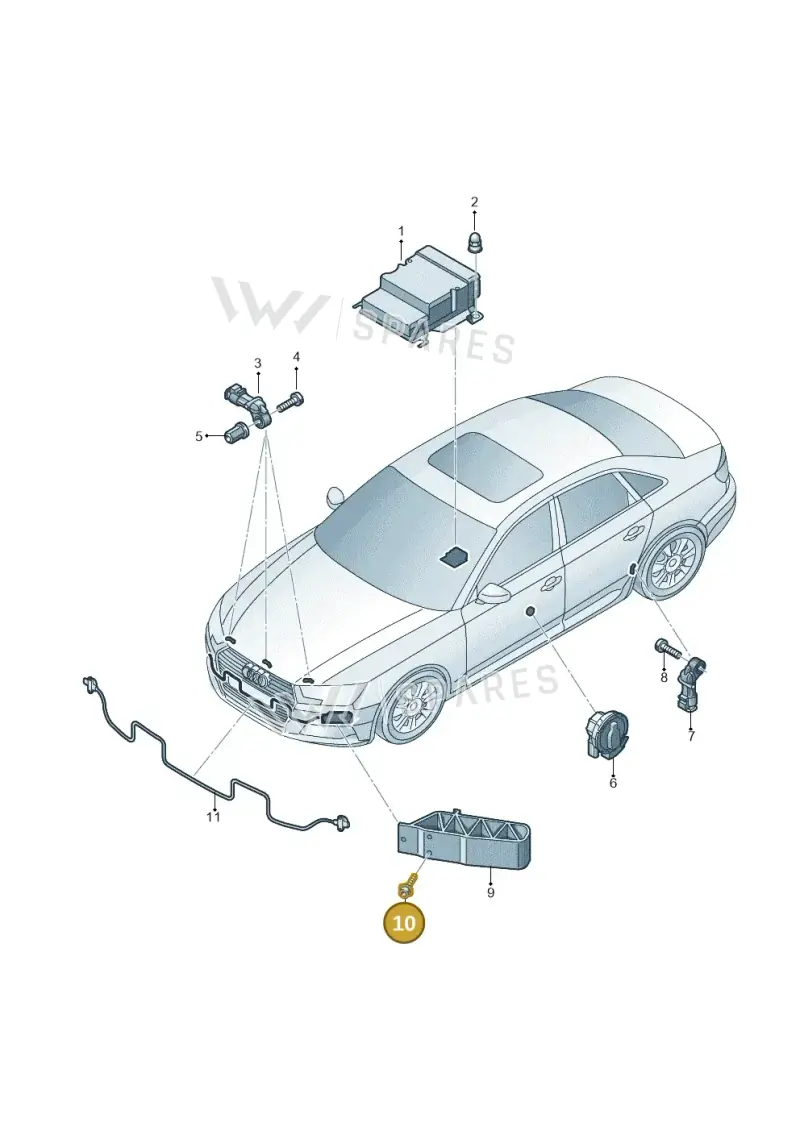

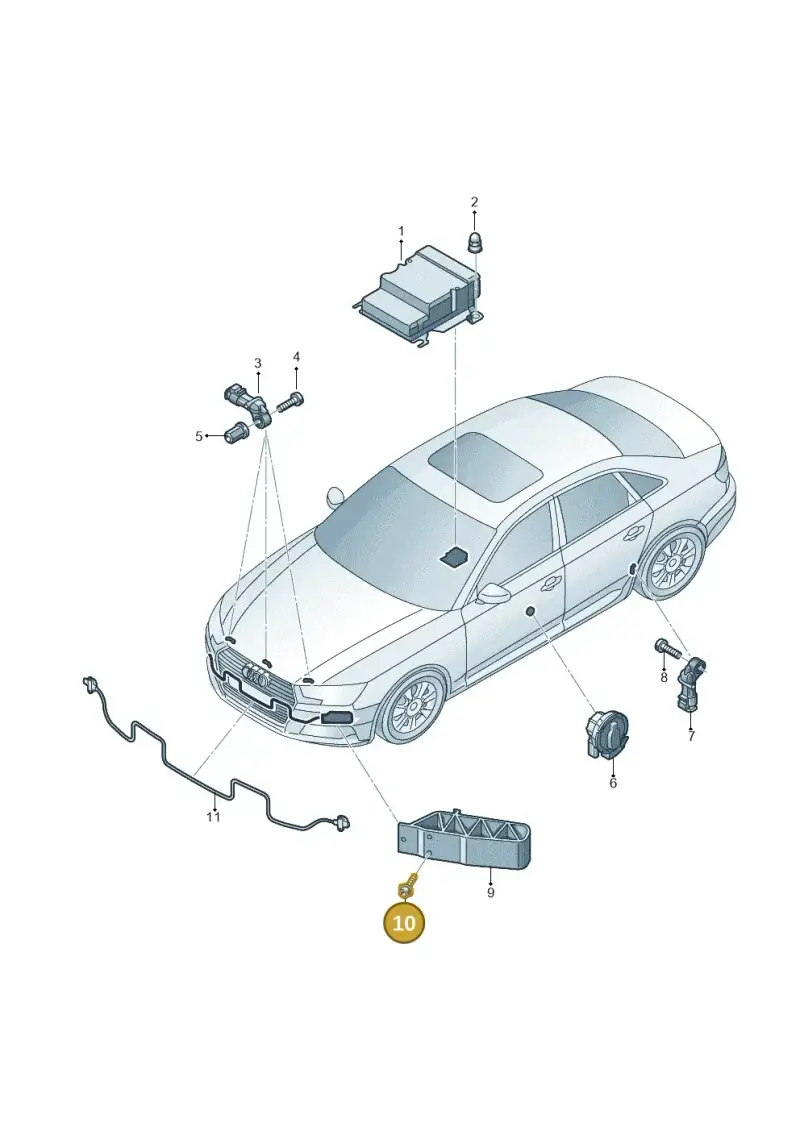

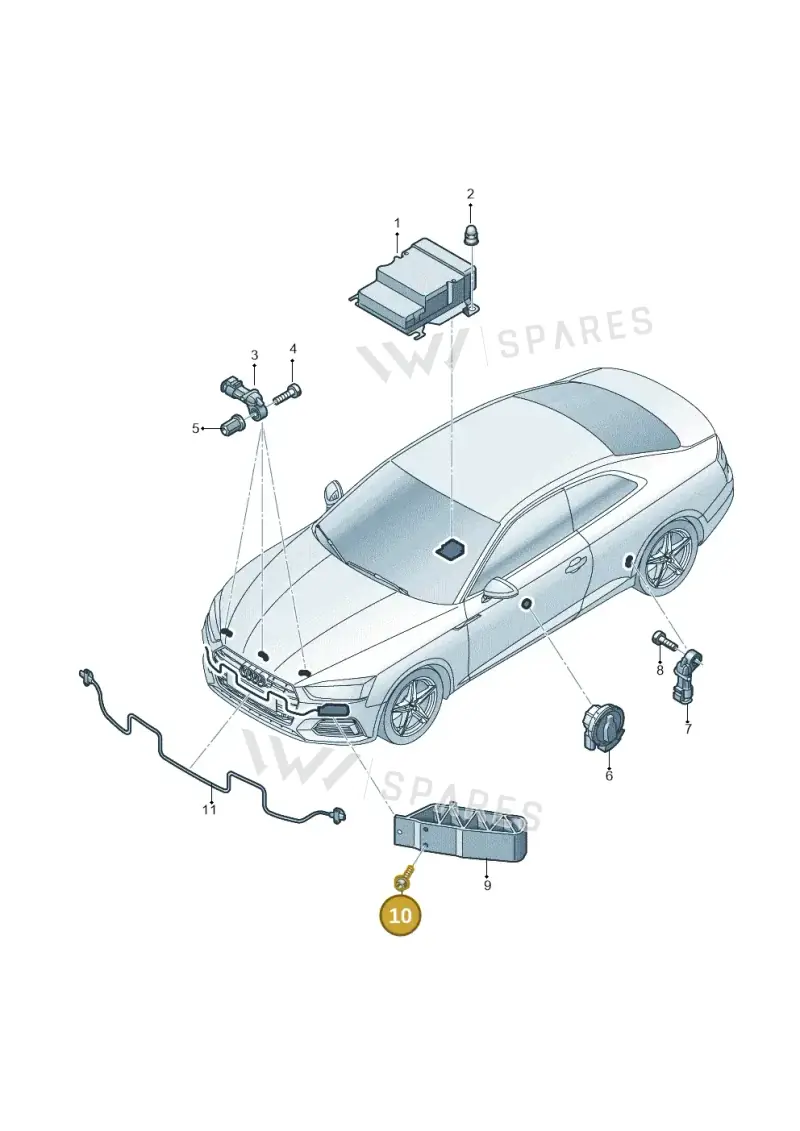

Genuine OEM Volkswagen Bolt, part number WHT005232. Fits Audi RS4 Avant (2017-2025), Audi RS5 Sportback (2017-2025), Audi A5 Cabriolet (2016-2025), Audi A5 Sportback (2016-2025), Audi A4 (2015-2025), Audi A8 (2013-2018). Shown as position 10 in the electrics diagram 849959300. Equipment code: VL1.
Catalogue entry: BOLT 6X18 ×4.
Fitted with: 8W0959193A BRACKET, 8W0959121A SENSOR, 8W0959121C SENSOR, 8W0959121B SENSOR, 8W0959121D SENSOR, 8W0959121F SENSOR, 8W0959121G SENSOR.
Technical details
- Category
- Doors & Windows
- Diagram sheet
- Audi 847121150, position 16
- ETKA group
- 9 / 59 (959)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 6x18
Equipment codes
- VL1
- 2K1
- 2K3
- 2K5
- 2K6
- 2K7
- 5C0
- 6W3
- 6W4
- VL0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
