Product overview

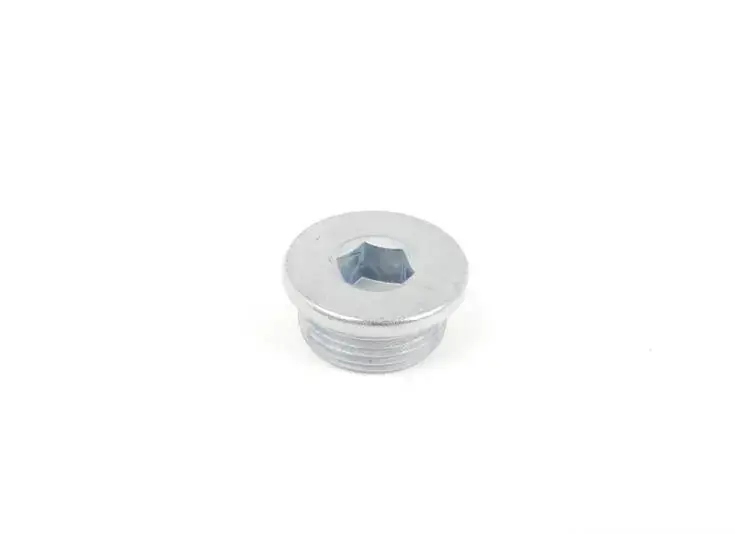

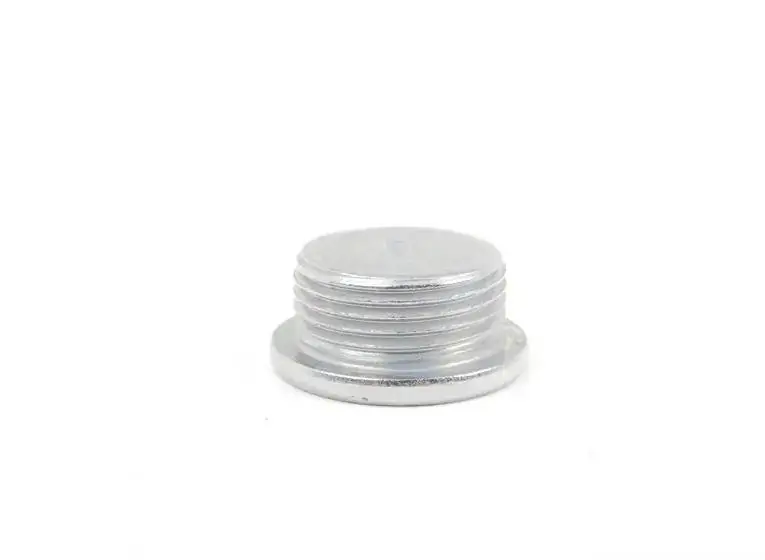

Genuine OEM Audi Transmission Oil Pan Sealing Plug, part number WHT005282. This threaded plug is essential for sealing the transmission oil pan, preventing leaks and maintaining proper fluid levels. It features a hex recess for installation. Choosing genuine OEM ensures the correct thread pitch, material, and sealing properties for reliable, leak-free performance.
Catalogue entry: SCREW M22X1,5.
Fitted with: 4G0927166 MECHATRON., 4G0927166D MECHATRON., 4G0927166C MECHATRON., 4G1927166A MECHATRON., 4G0927166A MECHATRON., 4G0927166K MECHATRON., 4G0927166R MECHATRON., 4G0927166RX MECHATRON., 4G0927166E MECHATRON., 4G0927166F MECHATRON., 4G0927166B MECHATRON., 4G0927166P MECHATRON..
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 73181595
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.7 × 2.7 × 1.2 cm
- Shipping weight
- 0.03 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M22x1.5 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

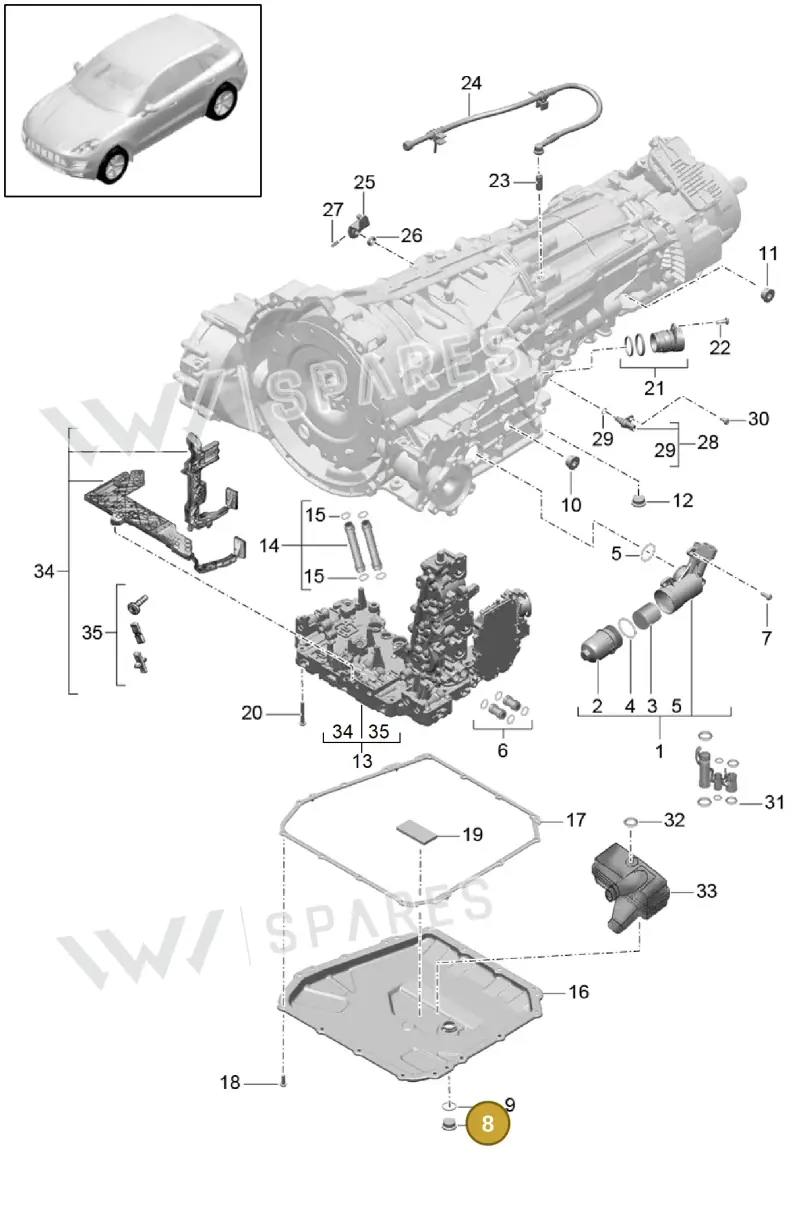

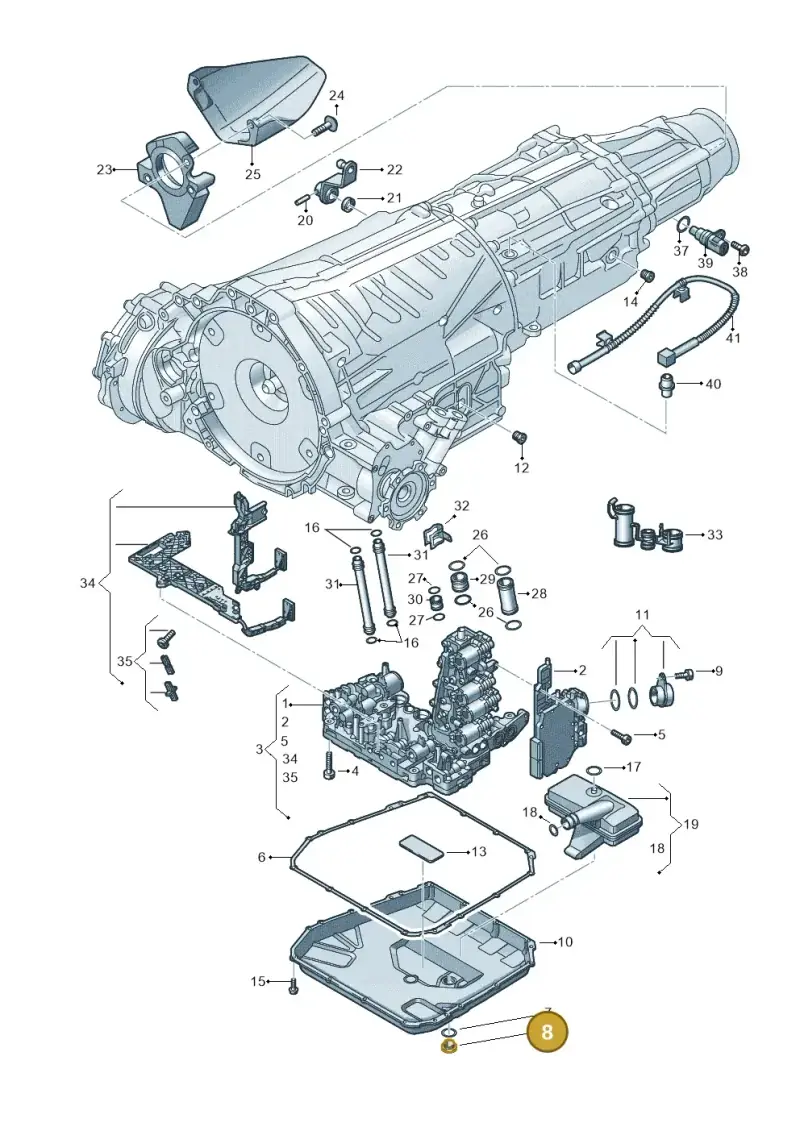

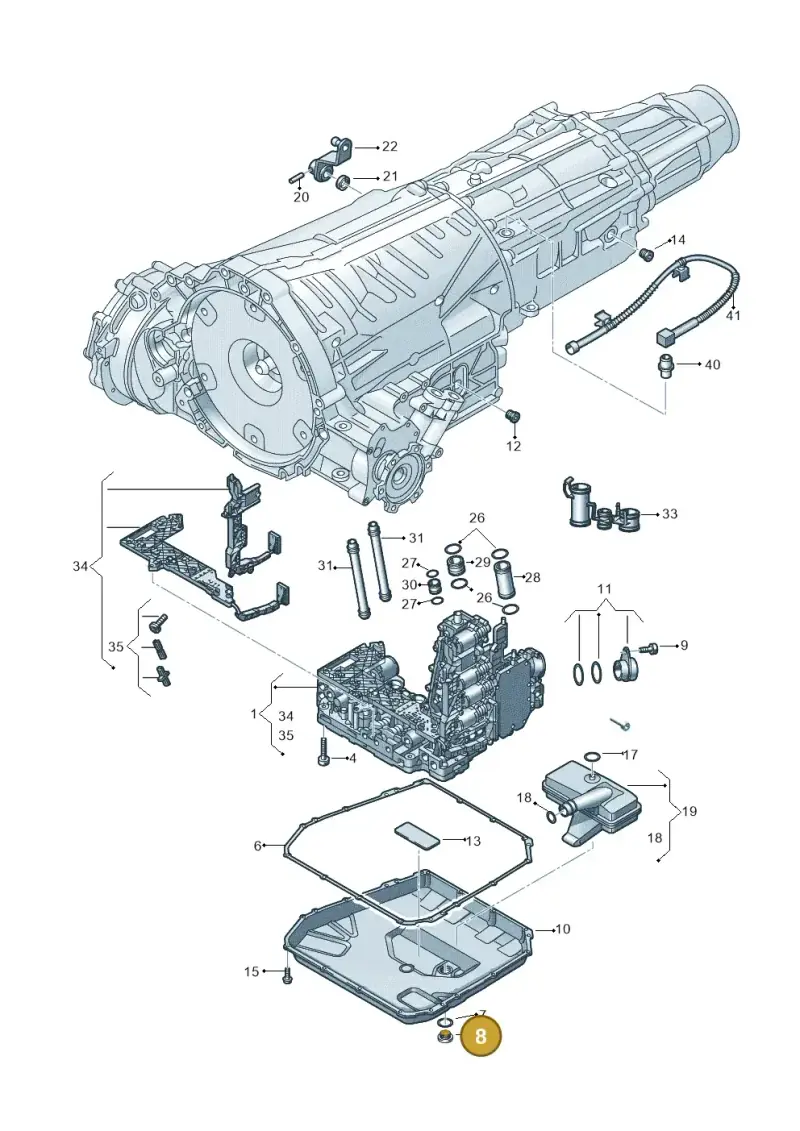

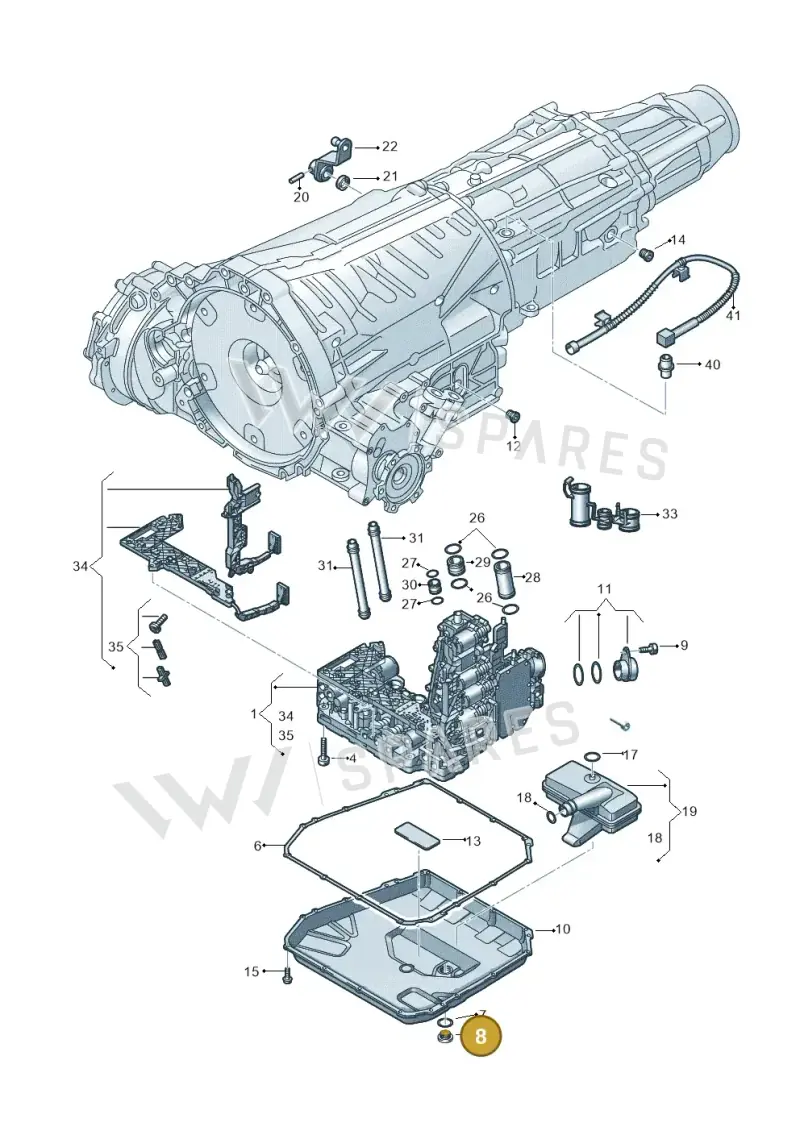

Parts diagram & fitment
20 vehiclesSealing Plug — locate WHT005282 Audi Transmission Oil Pan Sealing Plug | OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 1Cover 9A740917501
- 1Part 0B5325060C
- 1Cover 9A740917500
- 2Cover 0B5325240B
- 2Screw N91208801
- 3Filterelem 0B5325330A
- 3Seal Washer 9A740939900
- 4Flanshaft 9A740934400
- 4Seal Ring WHT005499A
- 5Flanshaft 9A740935500
- 5Seal Ring WHT005379
- 6Oil Pipe 0B5321473
- 6Press Spring 9A740936800
- 7Tappets 9A740937000
- 7Bolt N91096801
- 8Seal Washer 9A740940000
- 9Bearing 9A740929400
- 9Seal Ring N0138275
- 10Ring 9A740929700
- 10Screw WHT003487
- 11Circlip 012409413
- 12Seal Ring 9A700407400
- 13Mechatron 0B5325025AE
- 13Valve Body 9A732502501
- 13Valve Body 9A732502505
- 13Valve Body 9A7325025AX
- 13Valve Body 9A7325025EX
- 13Mechatron 0B5325025AC
- 13Bolt N10607002
- 14Oil Pipe 0B5315100
- 14Oil Pipe 0B5315105TC
- 14Washer 9A740922700
- 15Seal Washer 9A731111300
- 15Seal Ring WHT004647
- 16Oil Sump 0B5321361C
- 16Seal Greas G052128A1
- 17Gasket 9A732137100
- 17Gasket 0B5321371E
- 19Magnet 097321368
- 20Screw N91097302
- 21Part 0B5325571
- 23Sleeve 02H409275A
- 25Lever 0B5321171A
- 26Seal 0B5301457
- 27Part N0433142
- 28Sensor 079919525H
- 29Seal Ring WHT002287E
- 30Bolt N10405604
Vehicle fitment table20
Europe (18)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Macan R4 TFSI | 2018- | 8 | ||
| Audi A7 Sportback | 2014-2018 | 8 | 1 | |
| audi a6 qu. 3.0 tdi | 2014-2018 | 8 | 1 | |
| Macan GTS | 2013-2018 | 8 | ||
| Audi A6 Av. qu. 3.0 | 2012-2018 | 8 | 1 | |
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 8 | 1 | |
| Audi RS4 Av. qu. 4.2 | 2012-2015 | 8 | 1 | G1D |
| Audi RS5 Cabrio | 2012-2015 | 8 | 1 | G1D |
| Audi A5 Sportback | 2011-2017 | 8 | 1 | |
| Audi A5 Cabrio 2.0 | 2011-2017 | 8 | 1 | |
| audi a4 av. 2.0 tdi | 2011-2015 | 8 | 1 | |
| Audi RS5 Coupe | 2010-2015 | 8 | 1 | G1D |
| Audi A7 Sportback | 2010-2015 | 8 | 1 | G1D |
| audi a6 2.0 tdi | 2010-2015 | 8 | 1 | G1D |
| Audi A4 Av. Allroad | 2008-2016 | 8 | 1 | G1D |
| Audi A5 Cabrio 2.0 | 2008-2012 | 8 | 1 | G1D |
| Audi A5/S5 Coupe 08> | 2007- | 8 | 1 | G1D |
| AUDI A4 08> | 2007- | 8 | 1 | G1D |
Other markets (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Phideon | 2016-2023 | 8 | 1 | |
| audi a6 1.8 | 2015-2019 | 8 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
WHT005282 Audi Transmission Oil Pan Sealing Plug | OEM is fitted on: Macan R4 TFSI 2018-; Audi A7 Sportback 2014-2018; audi a6 qu. 3.0 tdi 2014-2018; Macan GTS 2013-2018; Audi A6 Av. qu. 3.0 2012-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi RS4 Av. qu. 4.2 2012-2015; Audi RS5 Cabrio 2012-2015; Audi A5 Sportback 2011-2017; Audi A5 Cabrio 2.0 2011-2017; audi a4 av. 2.0 tdi 2011-2015; Audi RS5 Coupe 2010-2015; Audi A7 Sportback 2010-2015; audi a6 2.0 tdi 2010-2015; Audi A4 Av. Allroad 2008-2016; Audi A5 Cabrio 2.0 2008-2012; Audi A5/S5 Coupe 08> 2007-; AUDI A4 08> 2007-; Phideon 2016-2023; audi a6 1.8 2015-2019.
