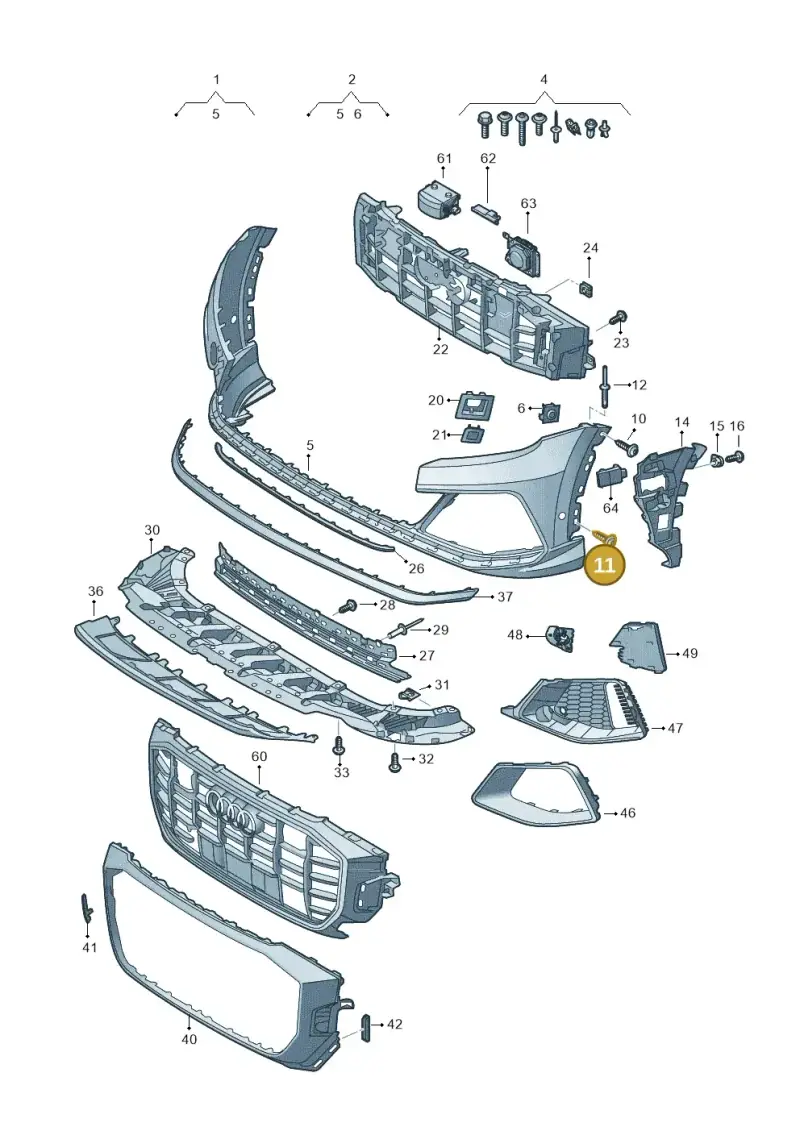

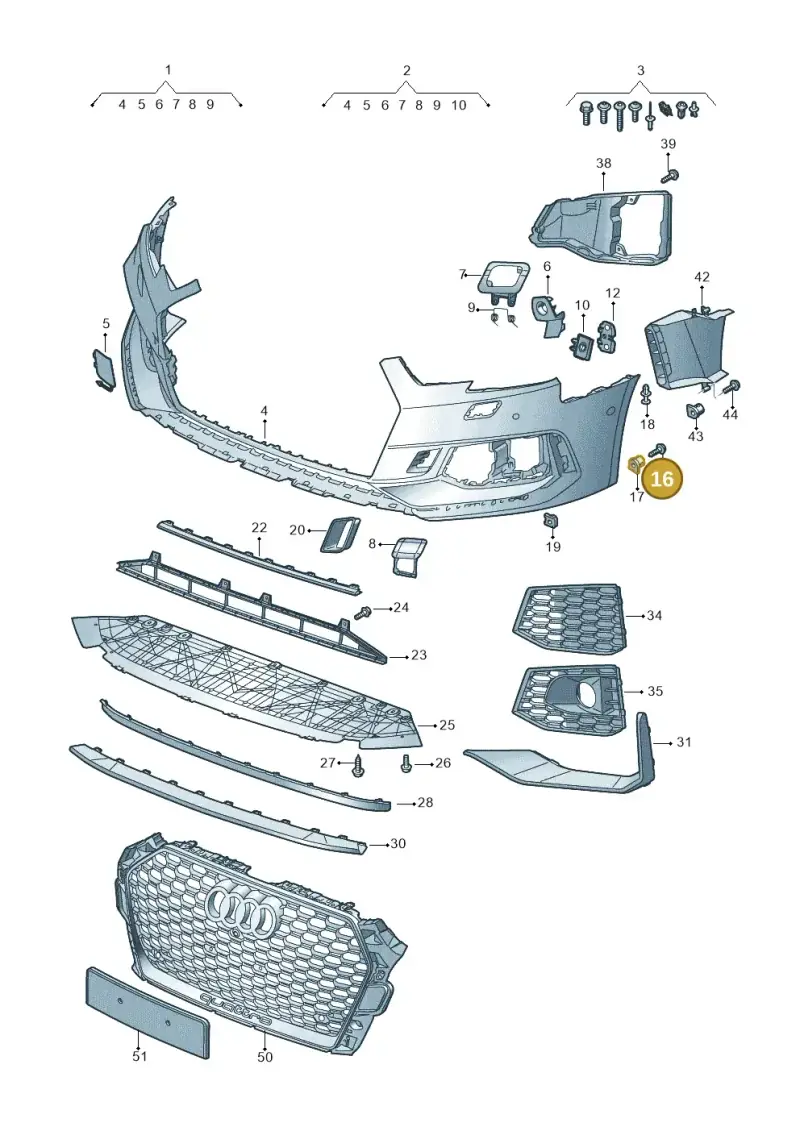

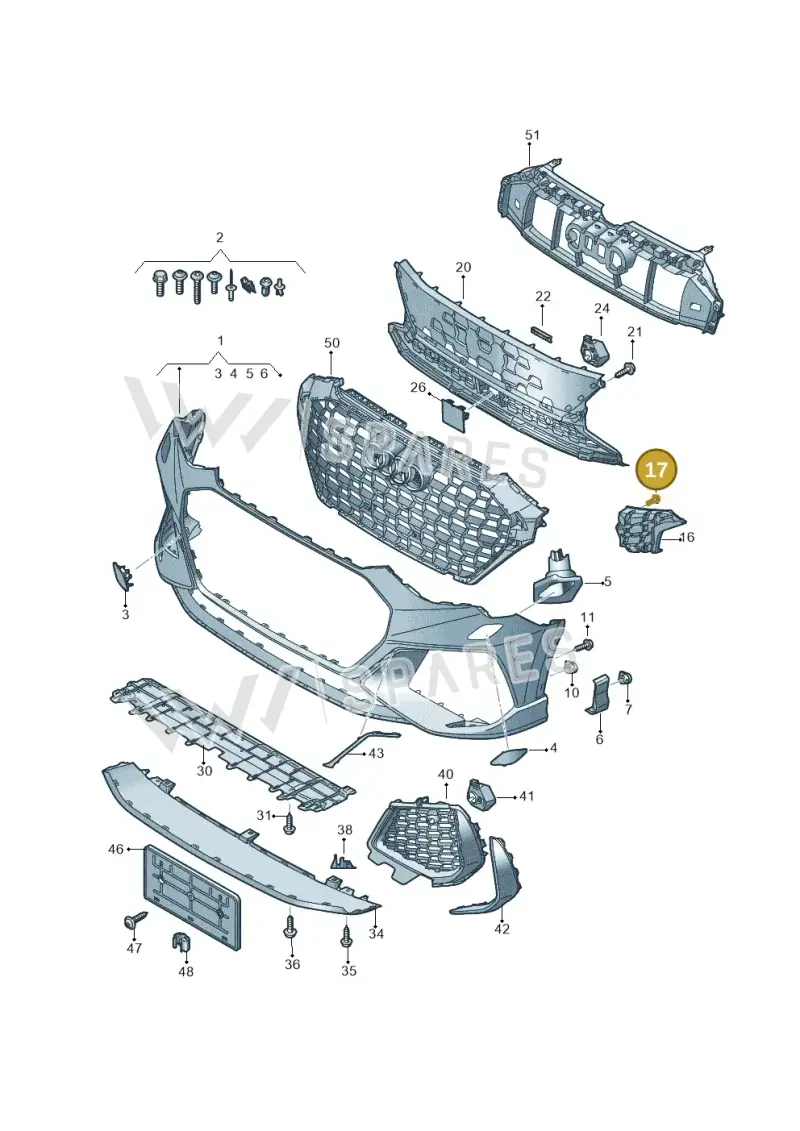

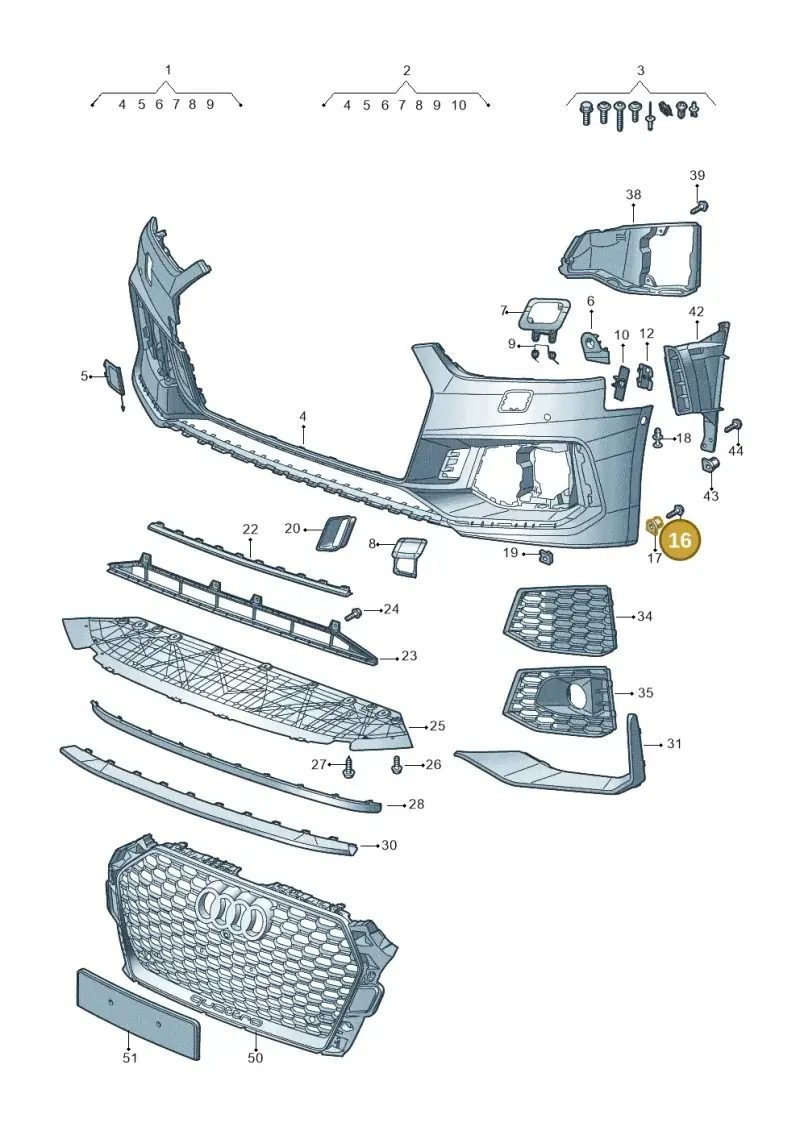

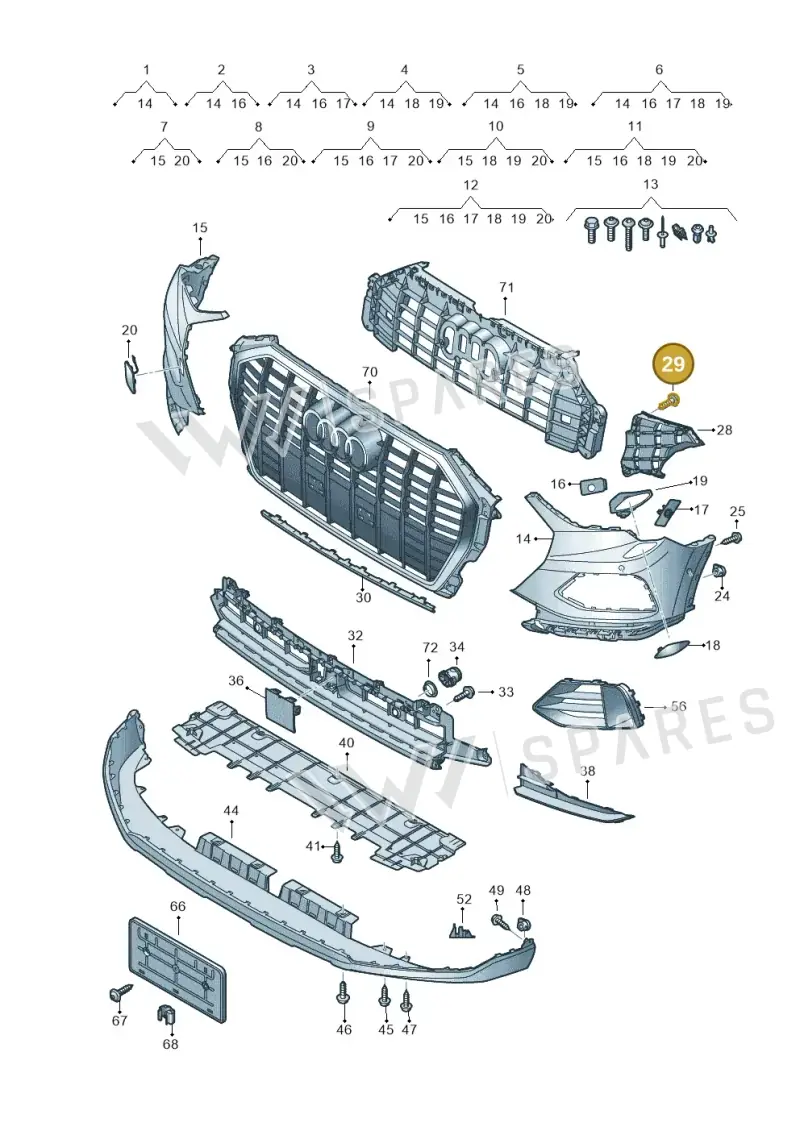

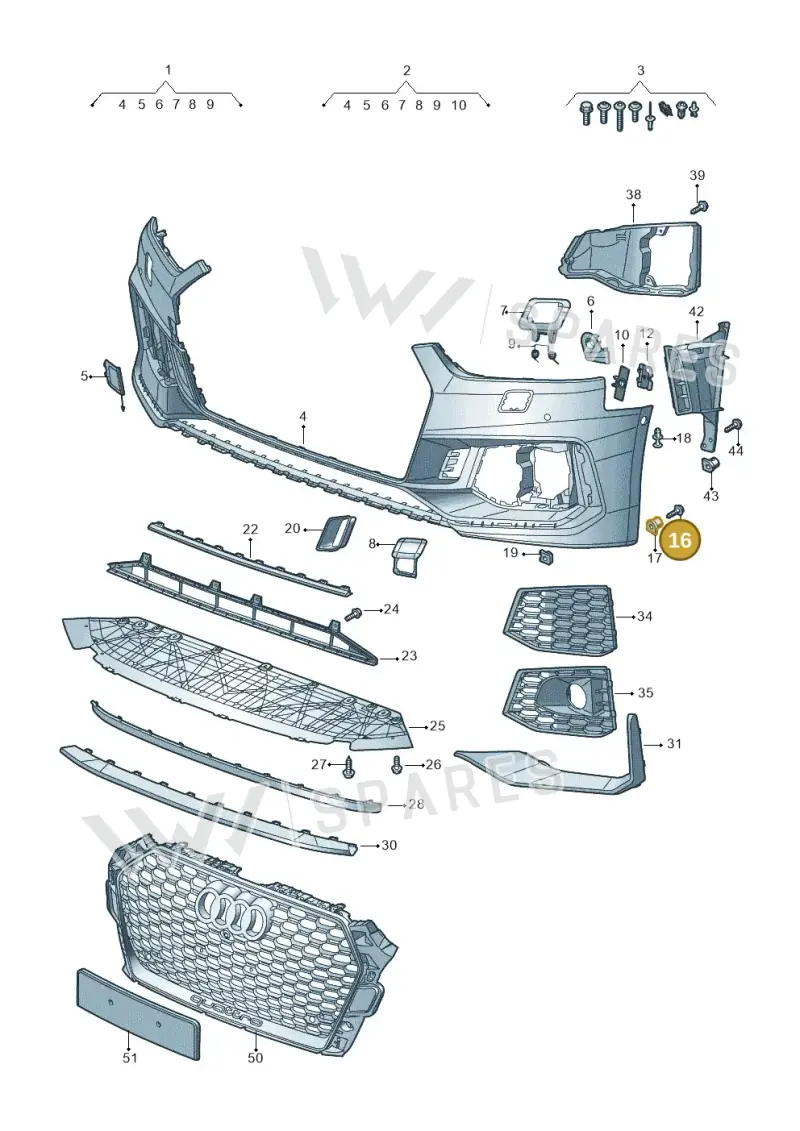

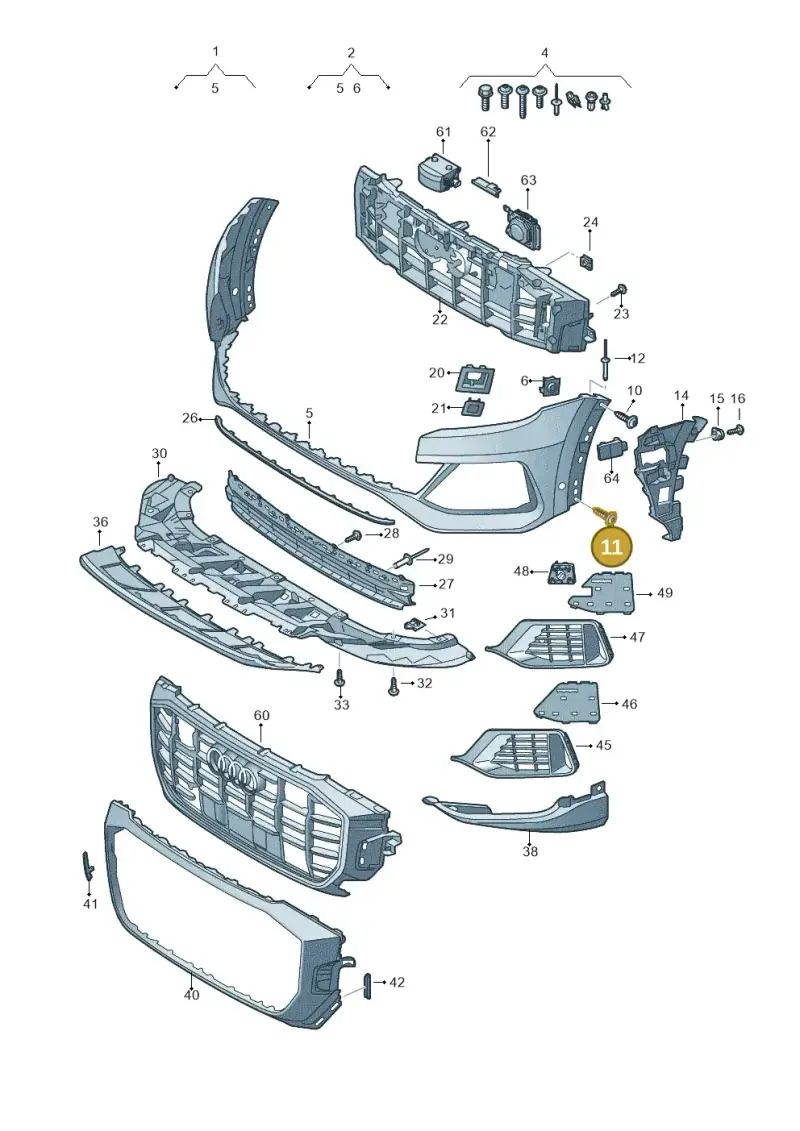

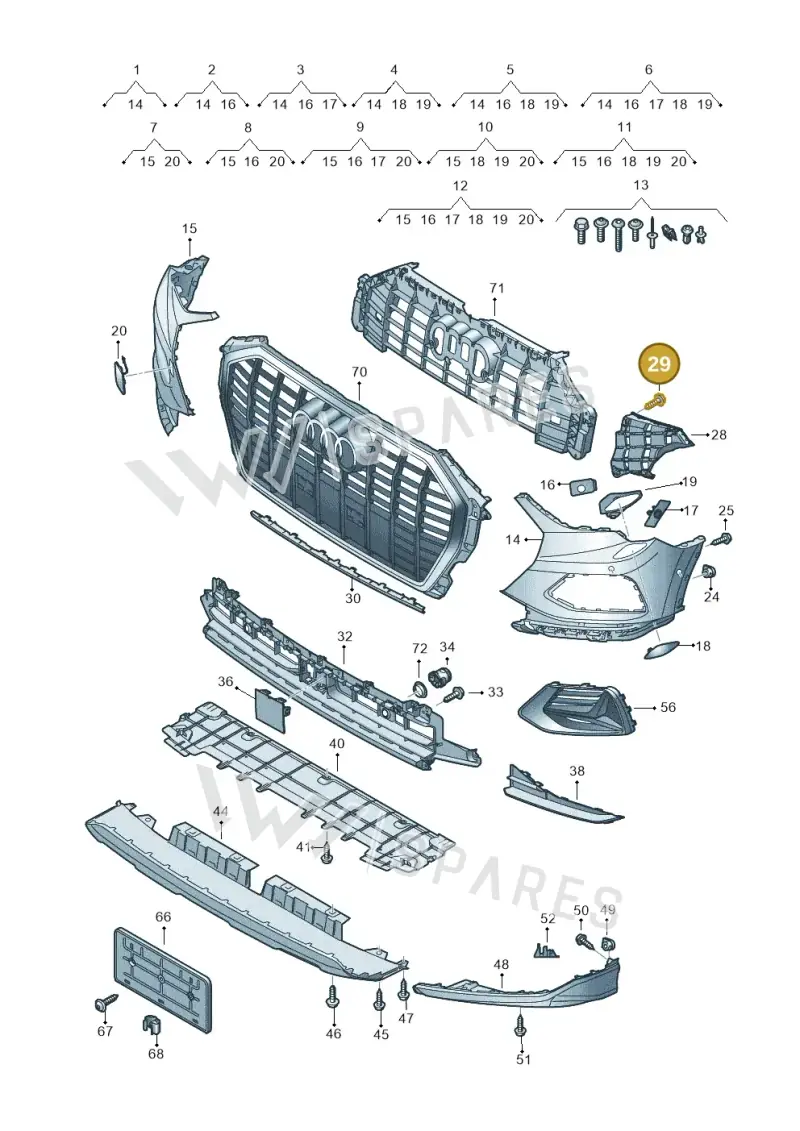

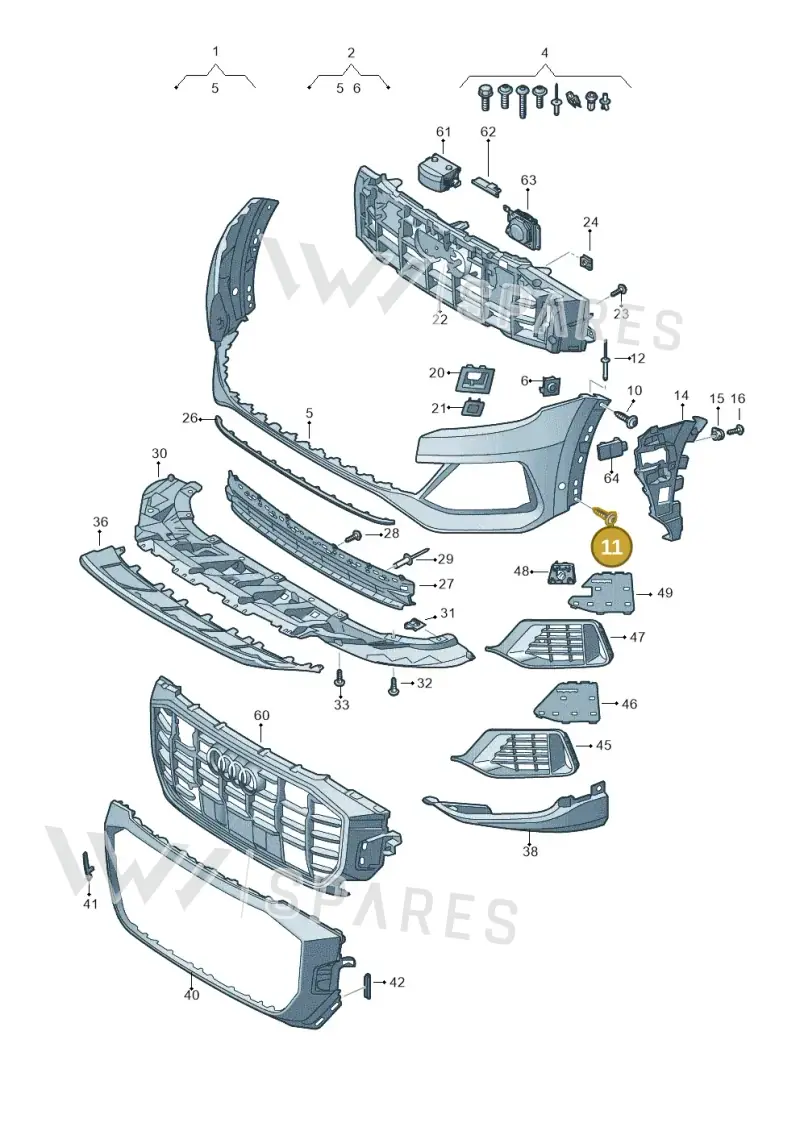

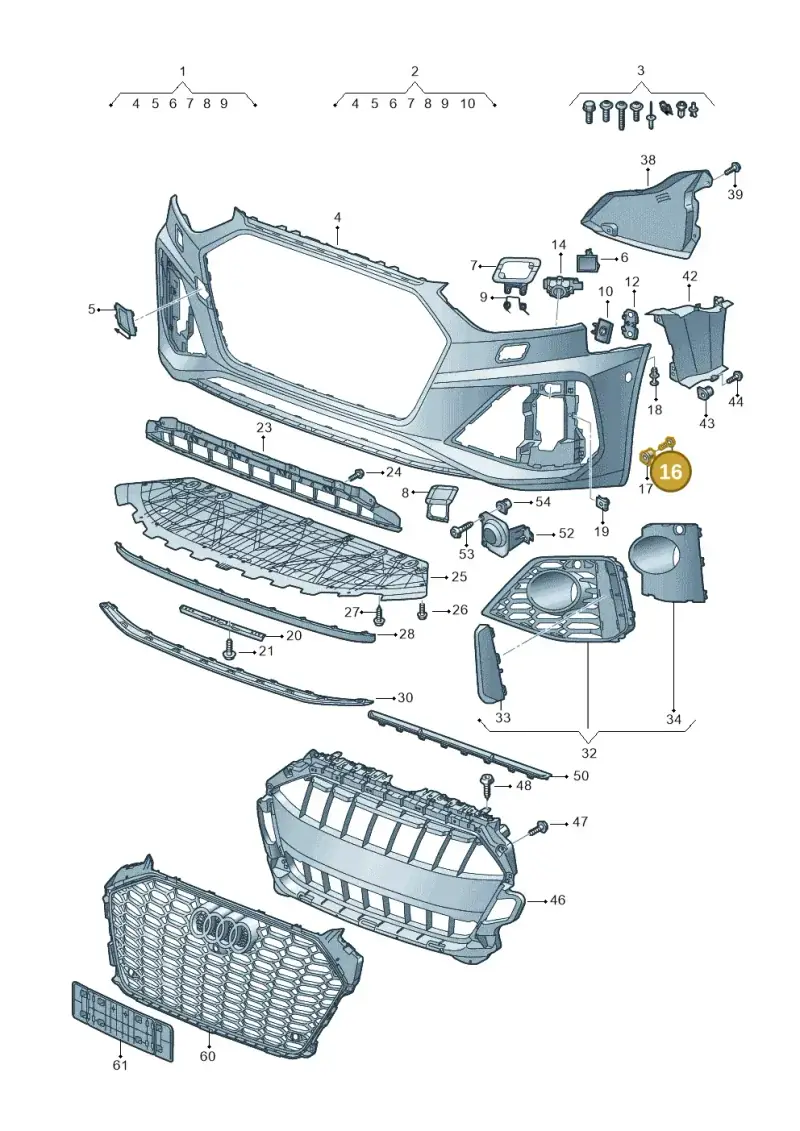

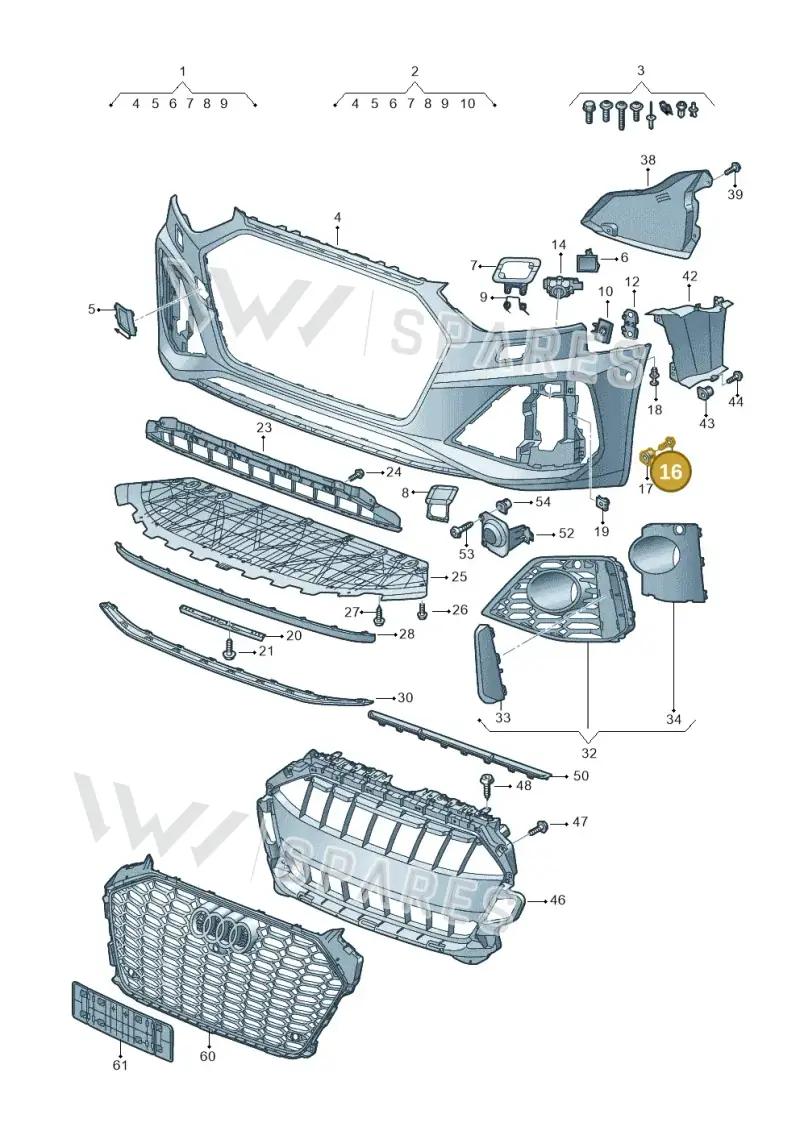

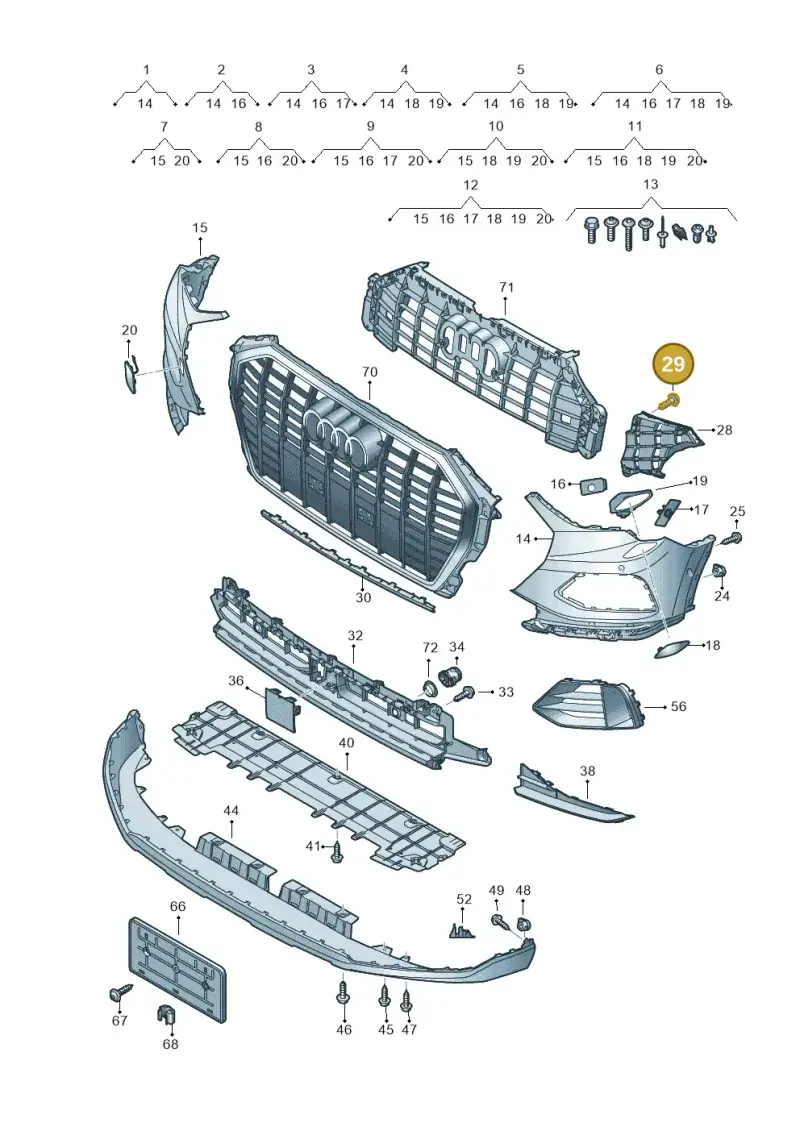

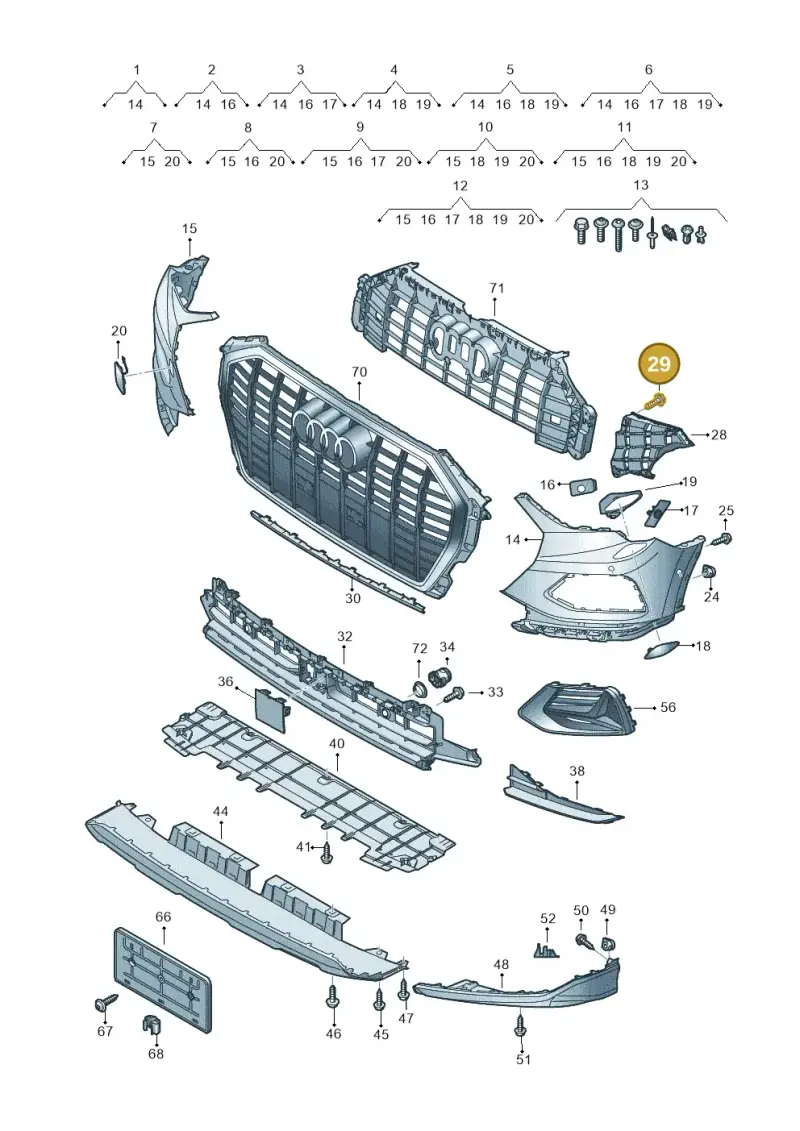

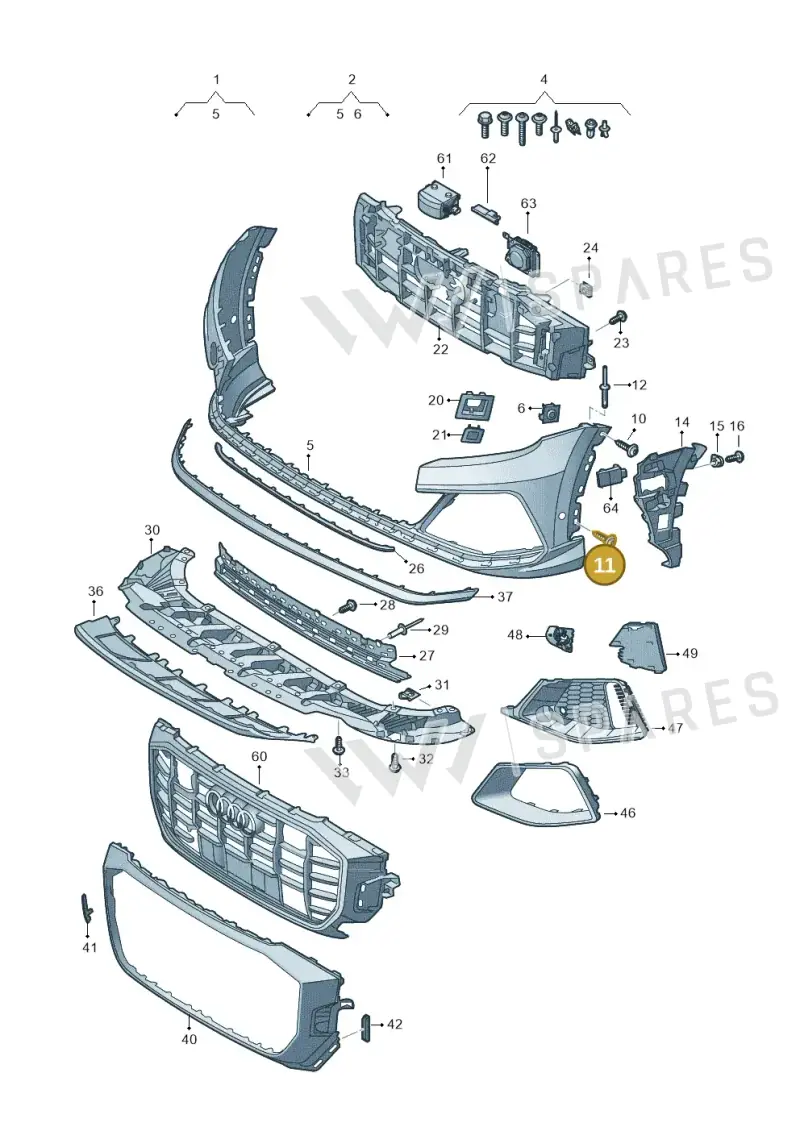

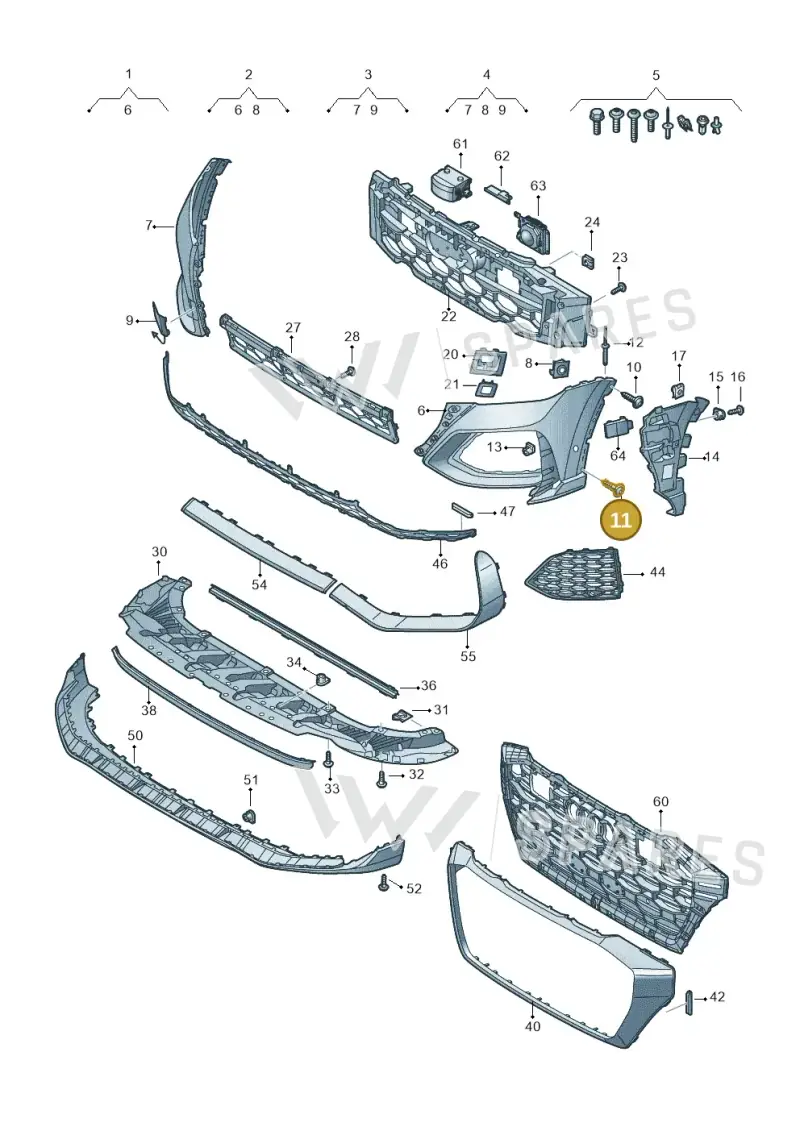

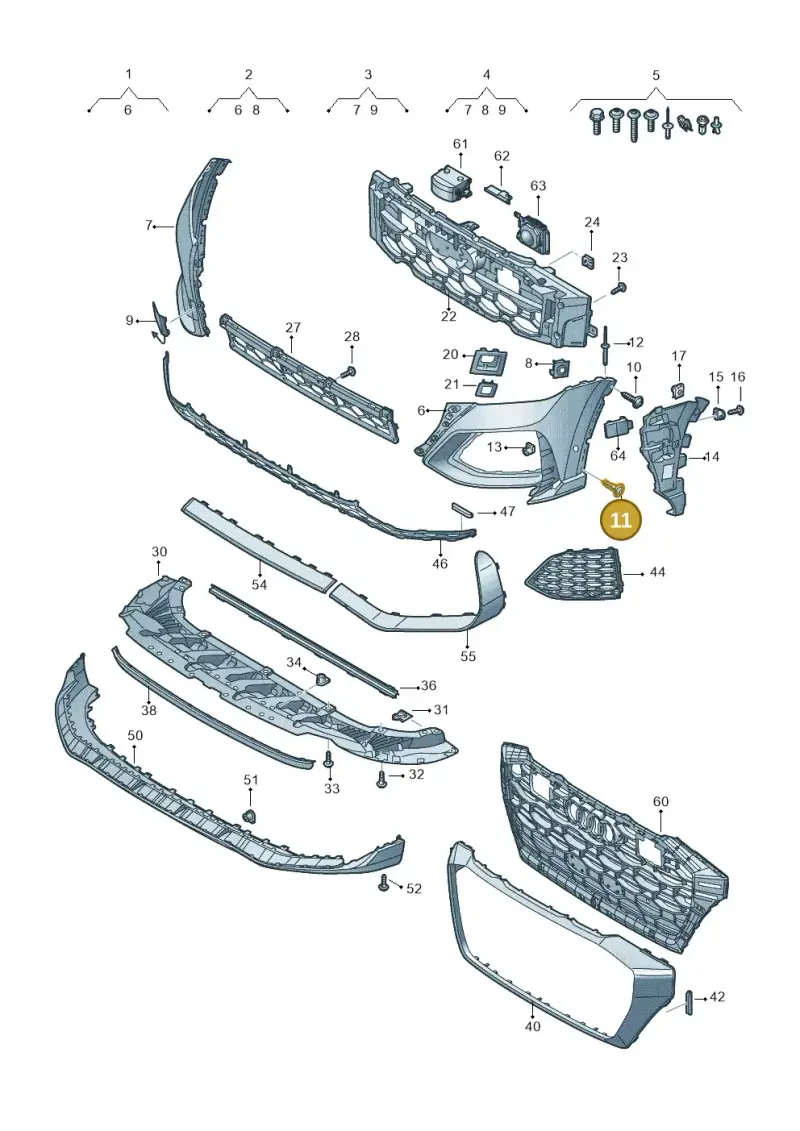

Number 11+16+23+28+32+52 marks the part’s position in this exploded view (Audi RS Q8 (2019-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Shouldered Bolt, part number WHT005764. Fits Audi RS Q8 (2019-2025), Audi Q3 (2018-2025), Audi Q8 (2018-2025), Audi A8 (2017-2025), Audi RS4 Avant (2017-2025), Audi RS5 Sportback (2017-2025) and 8 more. Shown as position 5 in the body diagram 429853030.
Catalogue entry: BOLT TP5X19 ×2.
Fitted with: 4M8853651 GRILLE, 4M8853651MX3 GREY, 4M88536513FZ BLACK, 4M8853651AL GRILLE, 4M8853651ALMX3 GREY, 4M8853651AL3FZ BLACK, 4M8853651ALALZ BLACK, 4M8853651A GRILLE, 4M8853651AMX3 GREY, 4M8853651ARN4 DARK CHROM, 4M8853651A3FZ BLACK, 4M8853651AM GRILLE.
Technical details
- Category
- Body Exterior
- Diagram sheet
- Audi 595807100, position 11
- ETKA group
- 8 / 53 (853)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- KA6
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
33 vehiclesShouldered Bolt — locate WHT005764 Volkswagen Shouldered Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
