Genuine OEM Volkswagen Hexagon Head Bolt, part number WHT009002. This bolt is commonly used in conjunction with other parts for the 8-speed automatic gearbox or engine oil sump. It has a length of 0.022 meters and a width of 0.01 meters. Genuine OEM bolts provide the correct tensile strength and thread pitch, essential for reliable assembly of critical drivetrain components.
Catalogue entry: BOLT M6X1,0X19,8.
Fitted with: 09S927321A SENSOR.
Technical details
- Category
- Transmission & Drivetrain
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.2 × 1 × 1 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x1.0x19.8 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

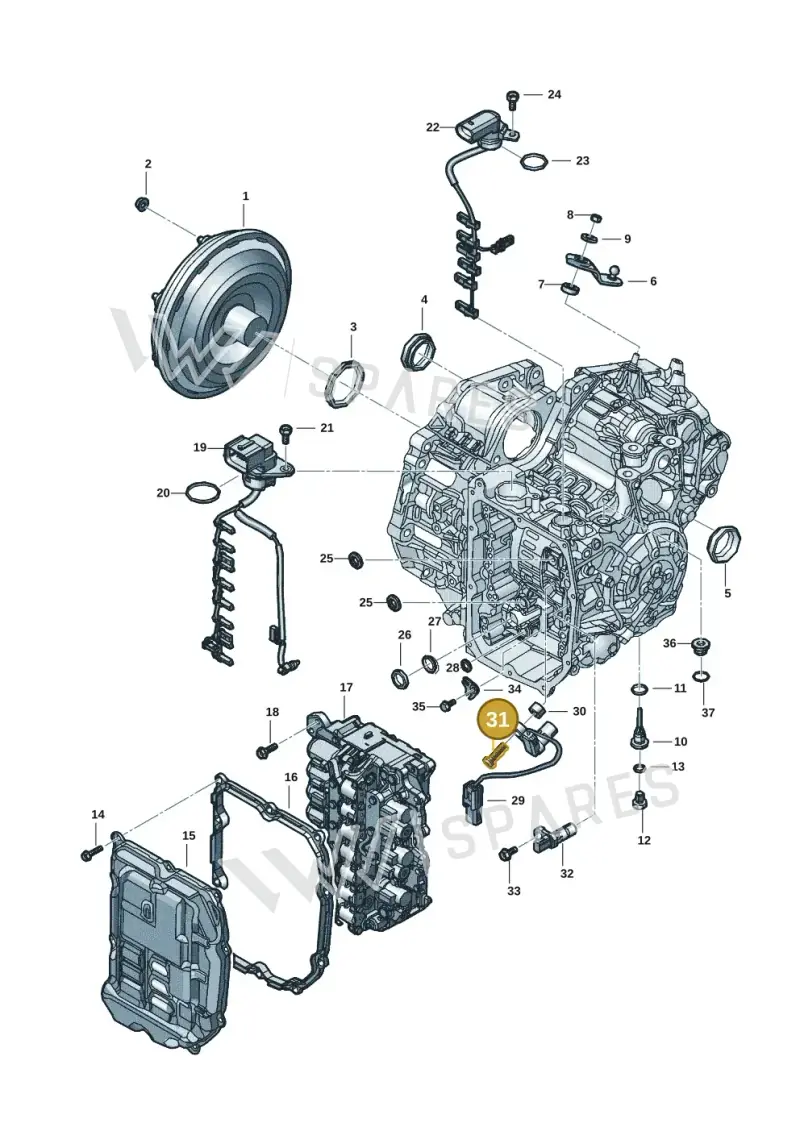

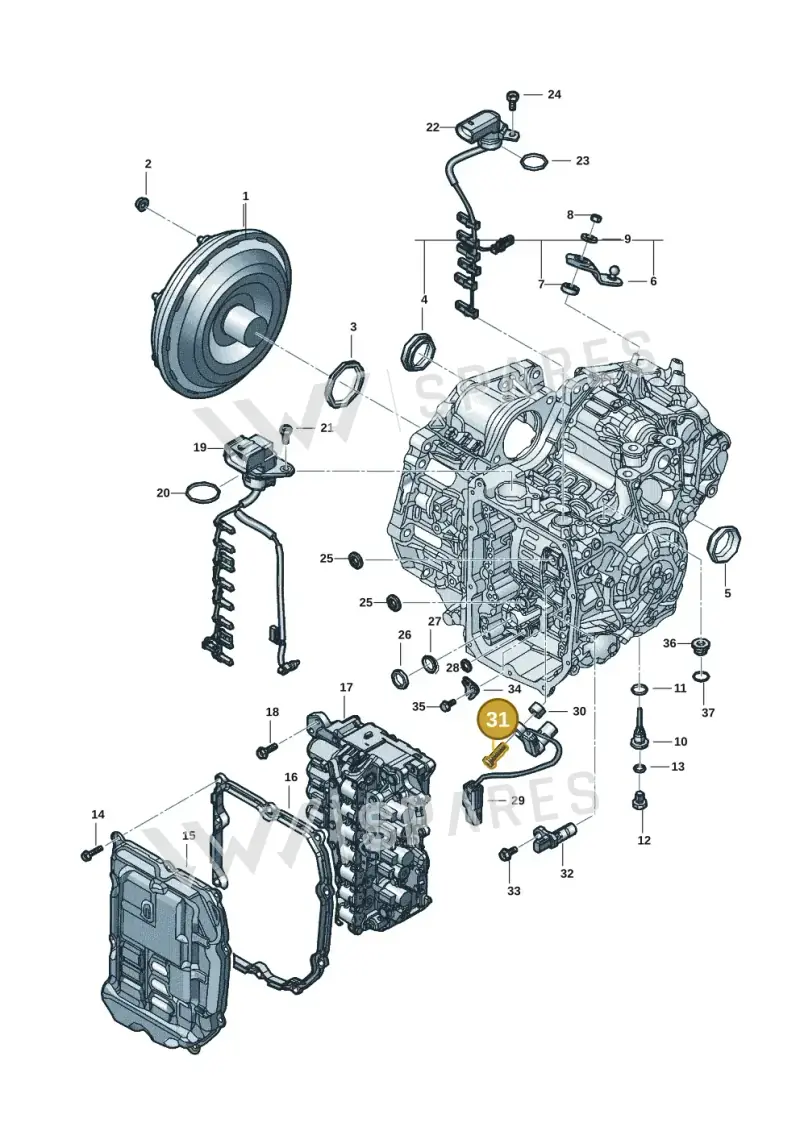

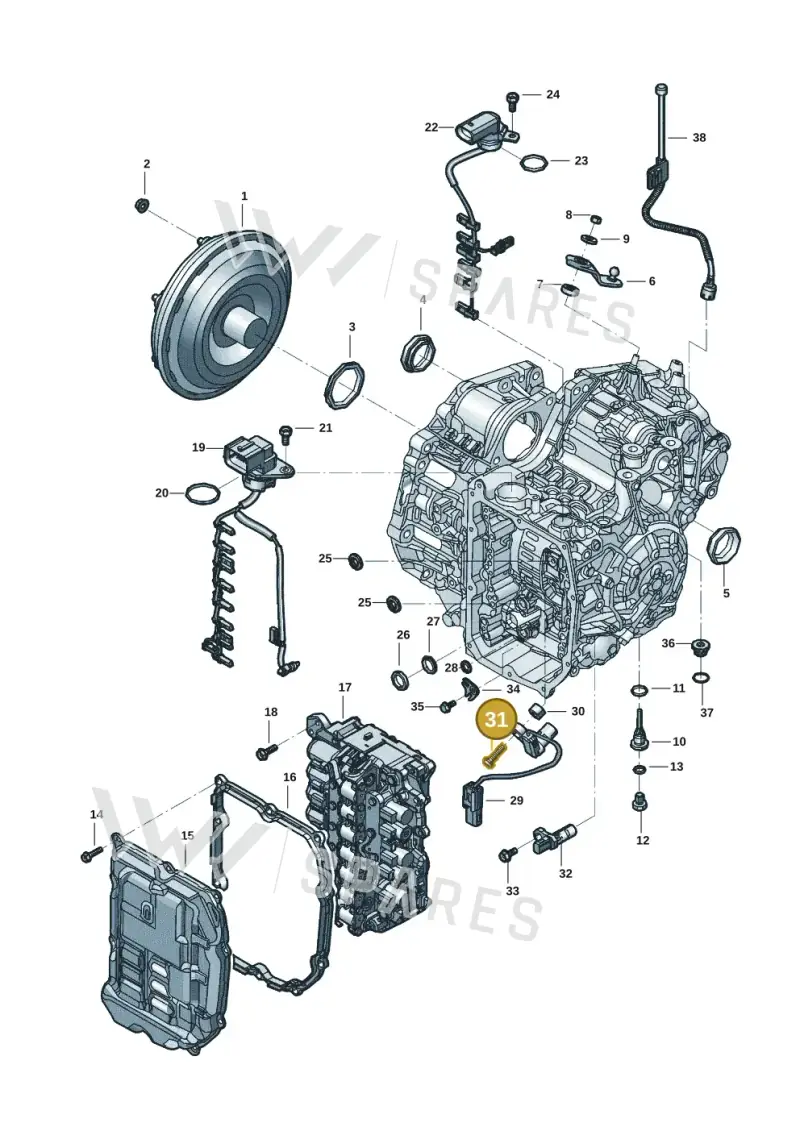

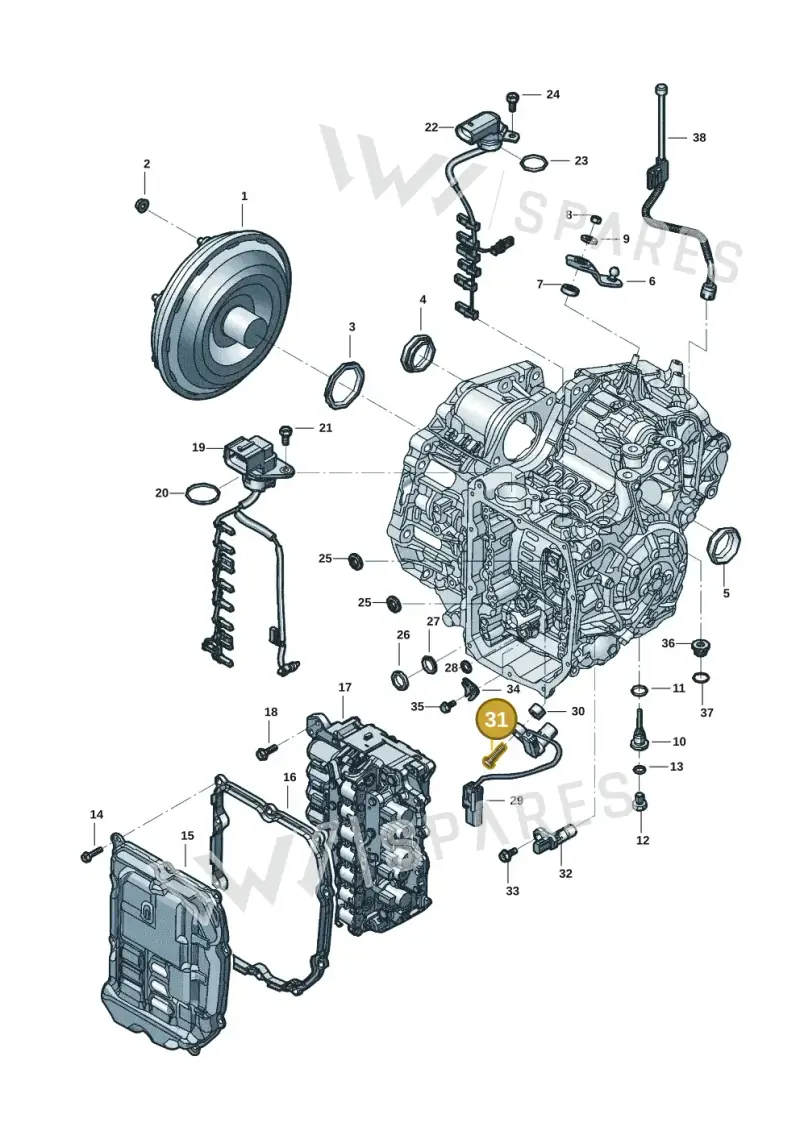

12 vehiclesHexagon Head Bolt (combi) — locate WHT009002 Volkswagen Hexagon Head Bolt | Transmission in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly34
- 1Converter 09S323571
- 2Part N10169201
- 3Seal Washer 09S321243
- 4Seal Washer 09S321243A
- 6Lever 09S321171
- 7Seal Washer 09D321199
- 8Part WHT000303
- 9Washer WHT000304
- 10Screw WHT009052
- 11Seal Ring WHT008960
- 12Bolt WHT008996
- 13Seal Ring WHT008961
- 14Bolt WHT009001
- 15Oil Sump 09S321361
- 16Seal 09S321370A
- 17Valve Body 09S325039
- 18Screw WHT008997
- 19Wir Harn 09S927363A
- 20Seal Ring WHT008967
- 21Bolt WHT000314
- 22Wir Harn 09S927363
- 23Seal Ring WHT008968
- 25Seal Ring 09S321381
- 26Seal Ring 09S321798
- 27Ring 09S321181A
- 28Seal Ring 09S321181
- 29Sensor 09S927321A
- 30Support Element 09S321795
- 32Sensor 09S927321
- 33Bolt WHT008568
- 34Clip 09S927421
- 35Screw WHT009000
- 36Screw WHT008998
- 37Seal Ring WHT008969
Vehicle fitment table12
Europe (8)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Leon style | 2019- | 31 | 1 |
| Golf 2.0 BlueMotion | 2019-2024 | 31 | 1 |
| Octavia | 2019-2024 | 31 | 1 |
| Audi A3 Sportback | 2019-2021 | 31 | 1 |
| T-Roc BlueMotion | 2017-2024 | 31 | 1 |
| Karoq | 2017-2022 | 31 | 1 |
| Ateca Style | 2016- | 31 | 1 |
| Audi Q2 2.0 TDI | 2016-2018 | 31 | 1 |
Other markets (4)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Taos 1.4 | 2021-2023 | 31 | 1 |
| Taos 1.4 | 2020-2024 | 31 | 1 |
| Jetta 1.4 | 2017-2024 | 31 | 1 |
| POLO HATCH "ZA"06> | 2005- | 31 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
WHT009002 Volkswagen Hexagon Head Bolt | Transmission is fitted on: Leon style 2019-; Golf 2.0 BlueMotion 2019-2024; Octavia 2019-2024; Audi A3 Sportback 2019-2021; T-Roc BlueMotion 2017-2024; Karoq 2017-2022; Ateca Style 2016-; Audi Q2 2.0 TDI 2016-2018; Taos 1.4 2021-2023; Taos 1.4 2020-2024; Jetta 1.4 2017-2024; POLO HATCH "ZA"06> 2005-.
