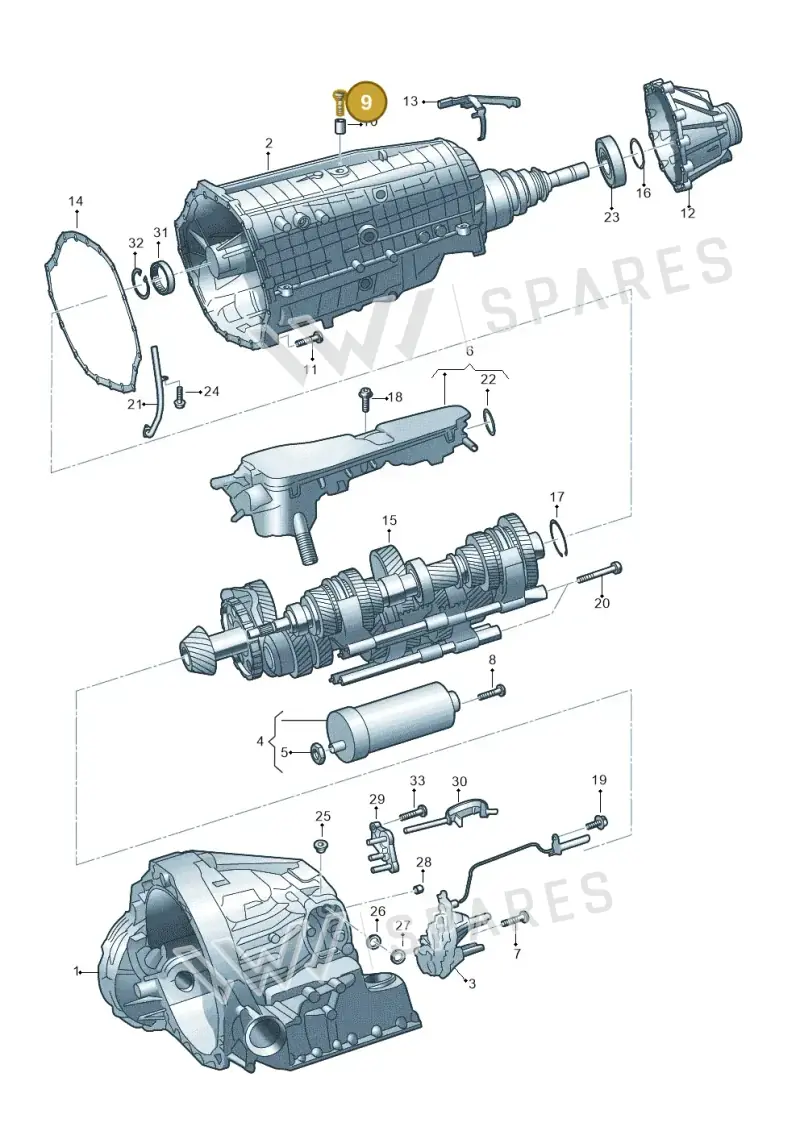

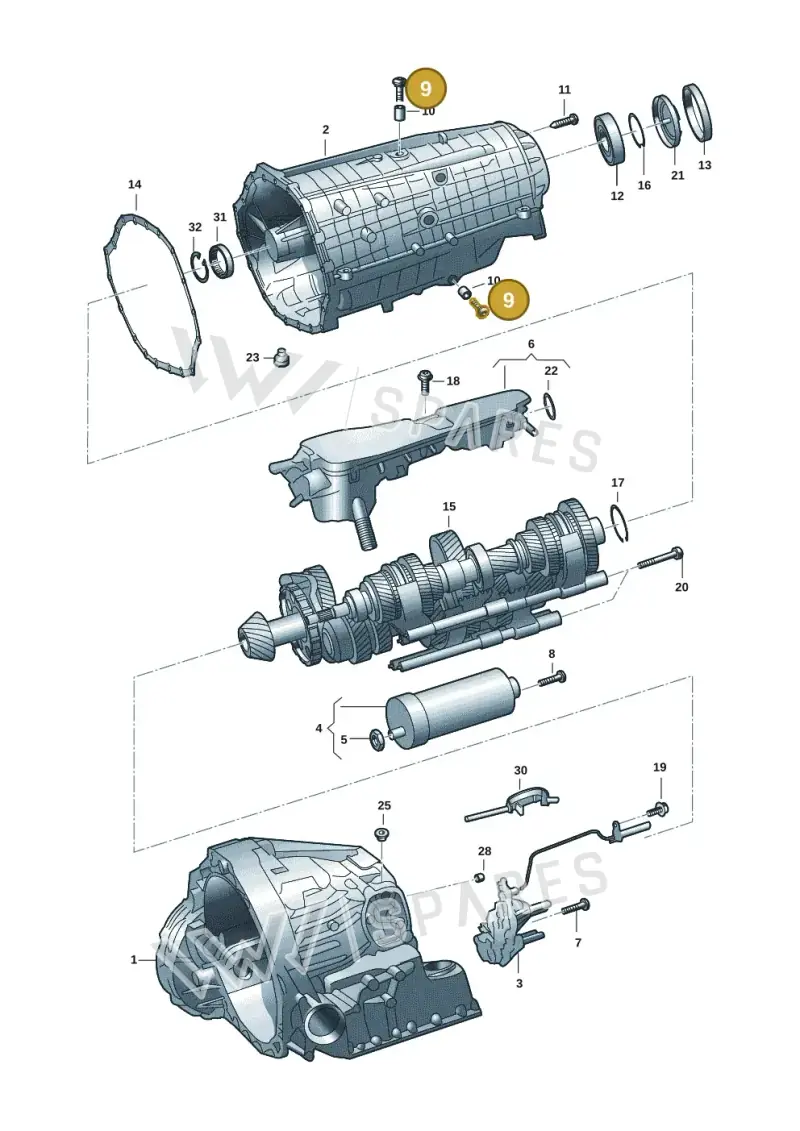

Number 9 marks the part’s position in this exploded view (Audi A5 Limousine (2024-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview

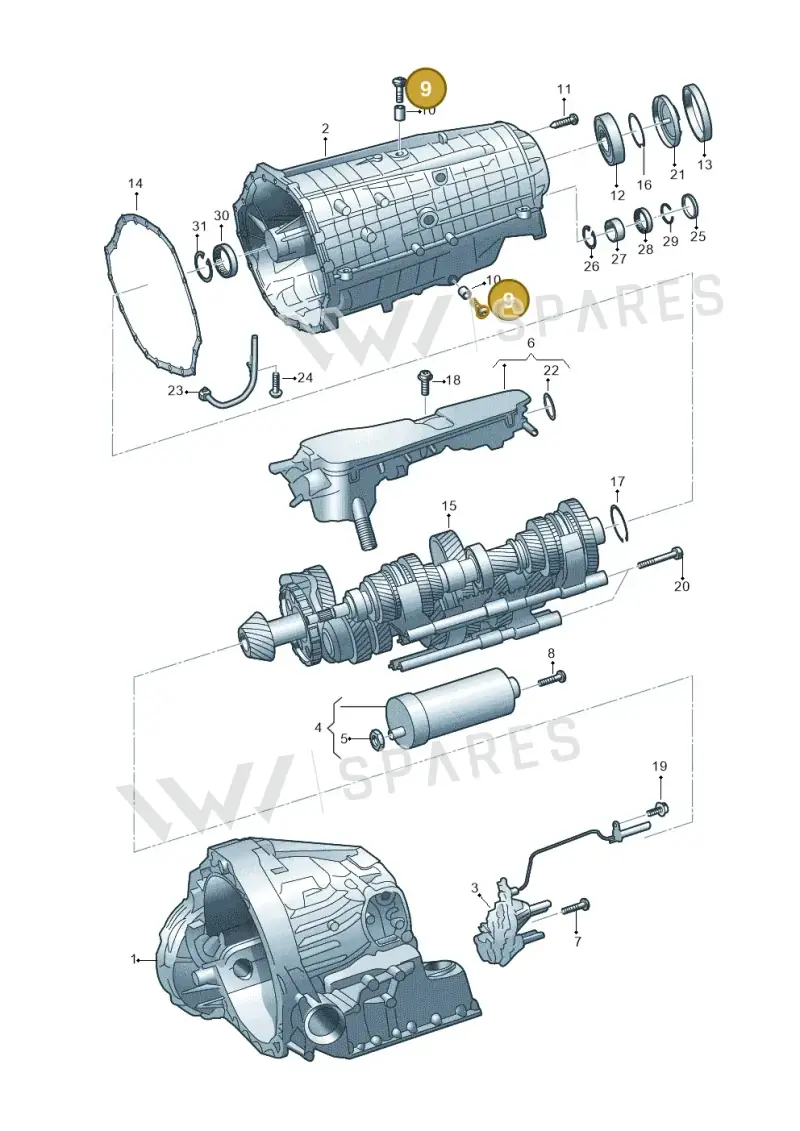

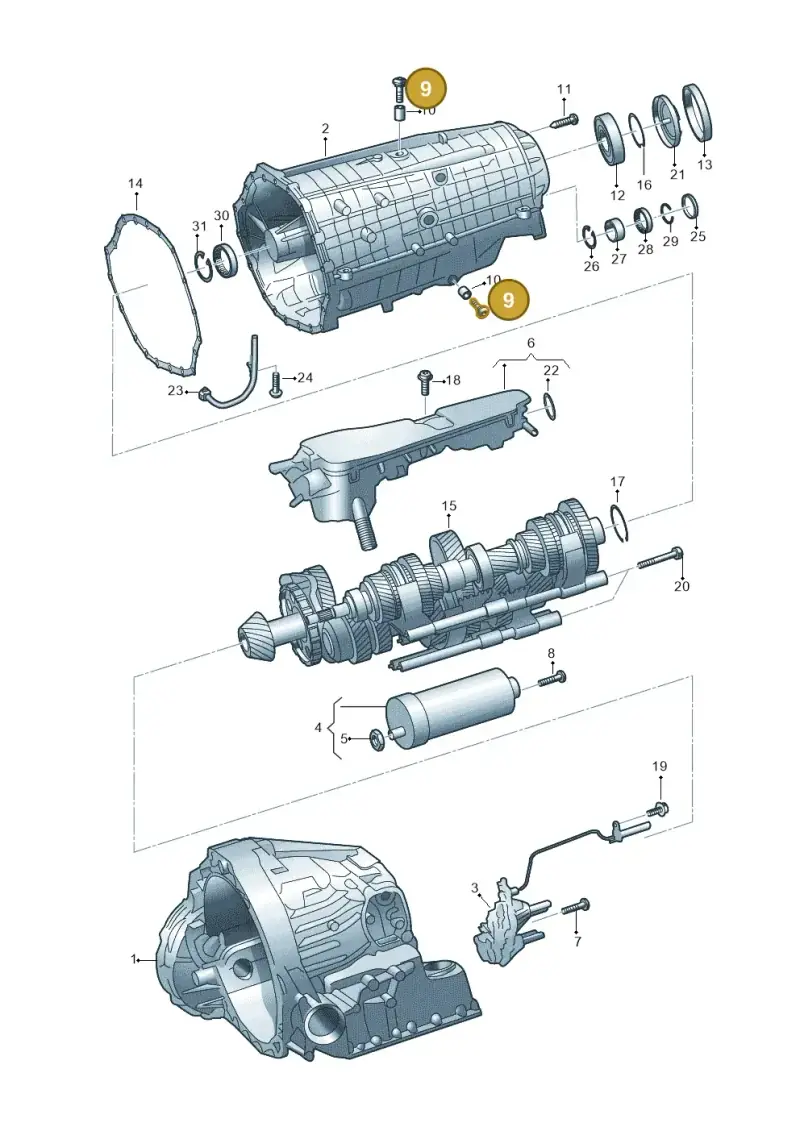

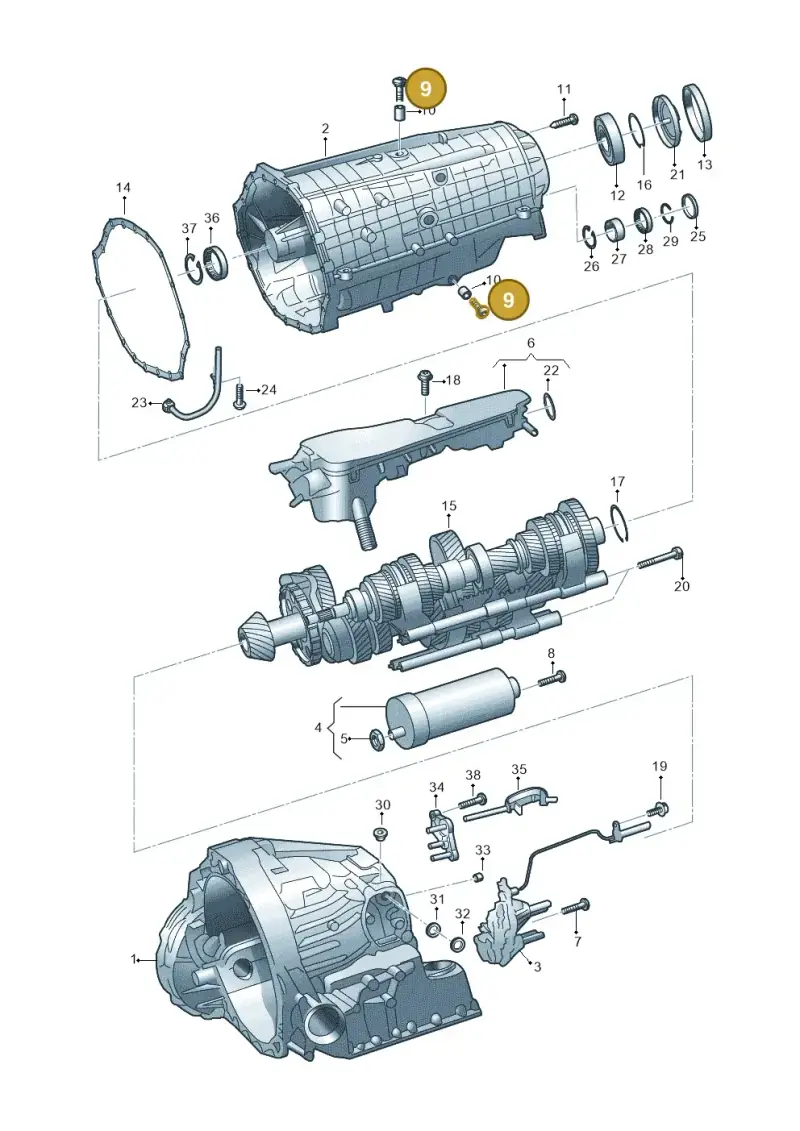

Genuine OEM Volkswagen Hexagon Socket Head Bolt, part number WHT009043. Fits Audi A5 Avant (2024-2025), Audi A5 Limousine (2024-2025), Audi A6 (2018-2025), Audi A7 Sportback (2018-2025), Audi A5 Cabriolet (2016-2025), Audi A5 Sportback (2016-2025) and 2 more. Shown as position 9 in the gearbox diagram 897325880.
Catalogue entry: BOLT M8X40 ×6; With seal.
Technical details
- Category
- Transmission & Drivetrain
- Diagram sheet

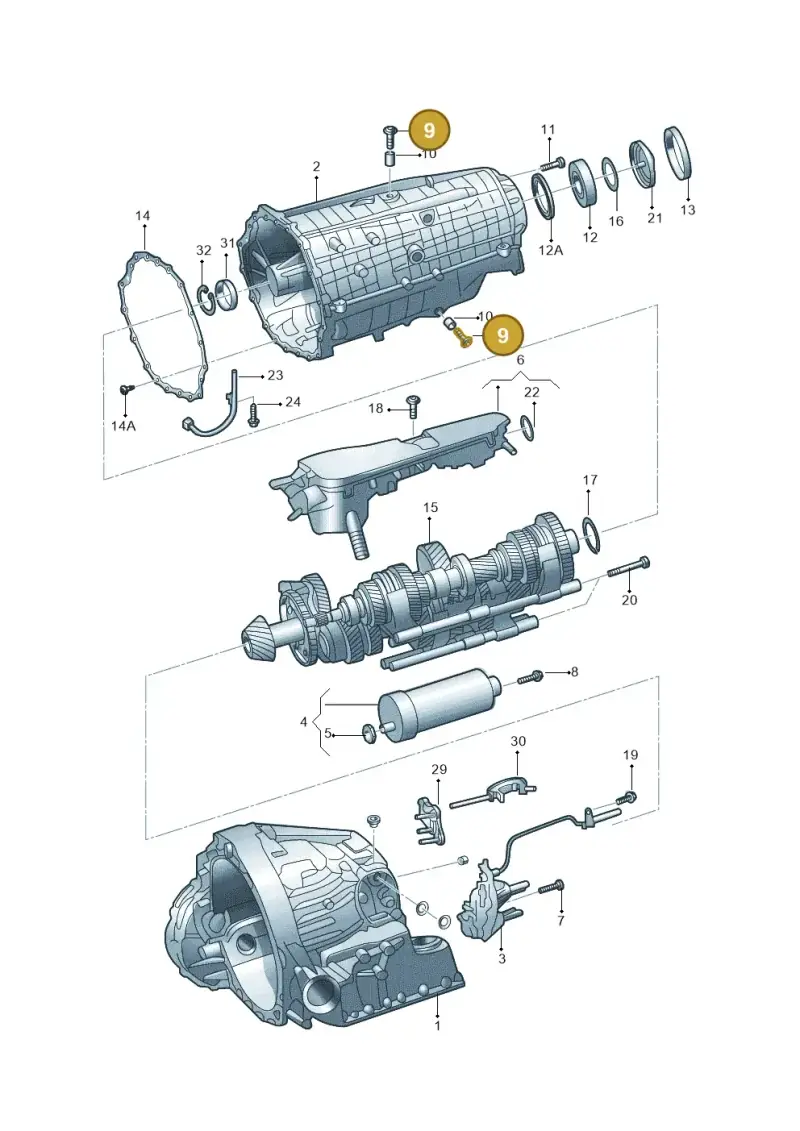

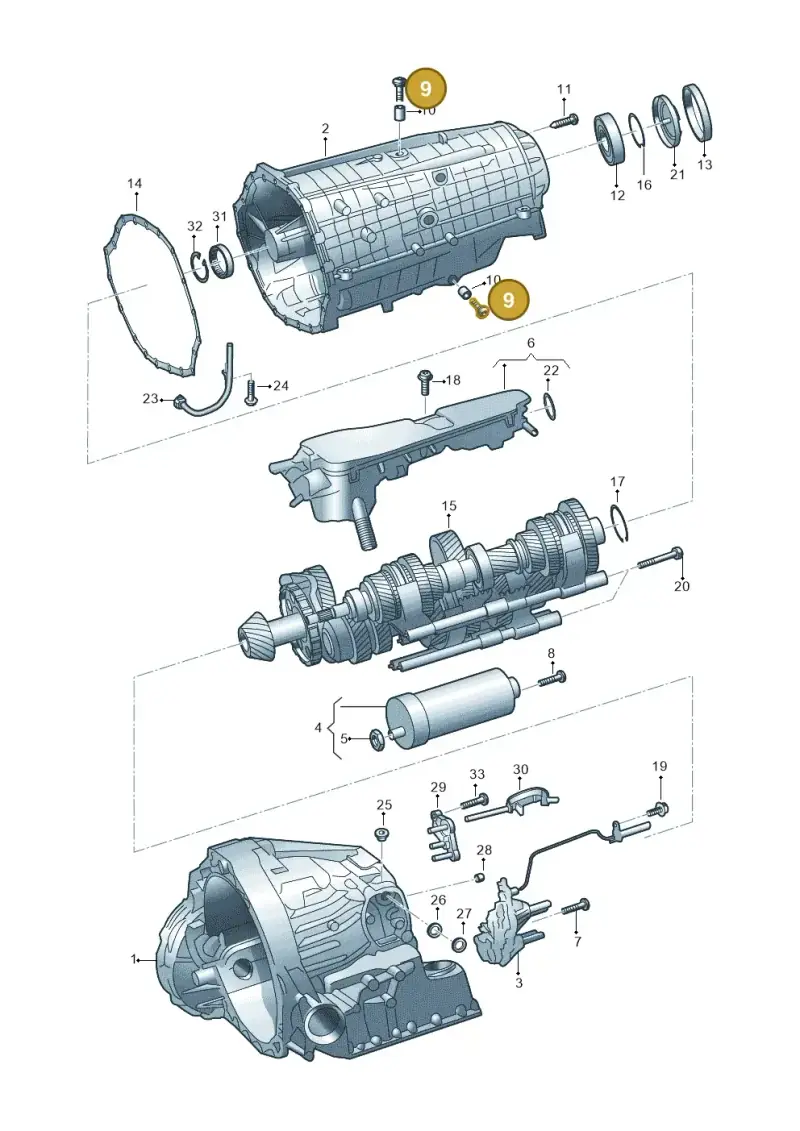

- Audi 798325810, position 9
- ETKA group
- 3 / 25 (325)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M8x40 mm
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
11 vehiclesHexagon Socket Head Bolt — locate WHT009043 Volkswagen Hexagon Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly31
- 1Housing 0CK301103S
- 2Housing 0CK301383J
- 3Gangstelle 0CK325110R
- 4Press Res 0CJ325585
- 6Oilingtray 0CK301378C
- 7Bolt N91043601
- 10Sleeve 0CK301153
- 11Bolt WHT002459
- 12Bearing 0CK311733F
- 13Cover 0CK301257A
- 14Gasket 0CK301463A
- 16Ring WHT006187A
- 16Ring WHT006187B
- 16Ring WHT006187C
- 16Ring WHT006187D
- 16Ring WHT006187E
- 16Ring WHT006187F
- 16Ring WHT006187G
- 16Ring WHT006187H
- 16Ring WHT006187J
- 16Ring WHT006187K
- 16Ring WHT006187L
- 16Ring WHT006187
- 17Ring N91214701
- 21Plate 0CK301134
- 23Cover 0CK325219
- 25Screw WHT008451
- 28Panel 0CK301413
- 30Oil Guide 0HL301130
- 31Sleeve 02B409371A
- 32Ring N10229802
Vehicle fitment table11
Europe (8)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A5 Limo 2.0 | 2024- | 9 | 6 |
| Audi A5 Avant 2.0 | 2024- | 9 | 6 |
| audi a6 2.0 | 2018- | 9 | |
| Audi A7 Sportback | 2018- | 9 | |
| Audi Q5 | 2016-2020 | 9 | |
| Audi A5 Sportback | 2016-2020 | 9 | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 9 | |
| audi a4 2.0 | 2015-2019 | 9 |
Other markets (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi A7 | 2021- | 9 | 6 |
| Audi A6 L 2.0 | 2018- | 9 | |
| Audi A4L 2.0 | 2016- | 9 |
Diagrams & fitment data powered by oemdiagrams.com
