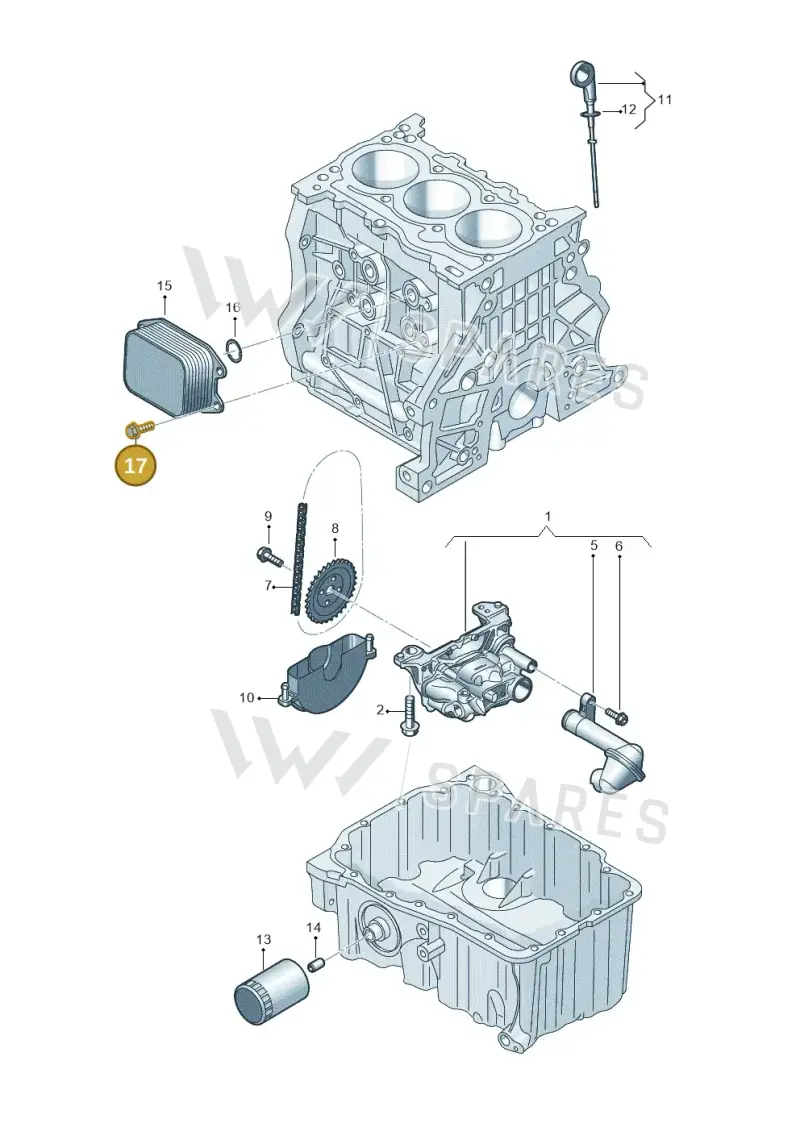

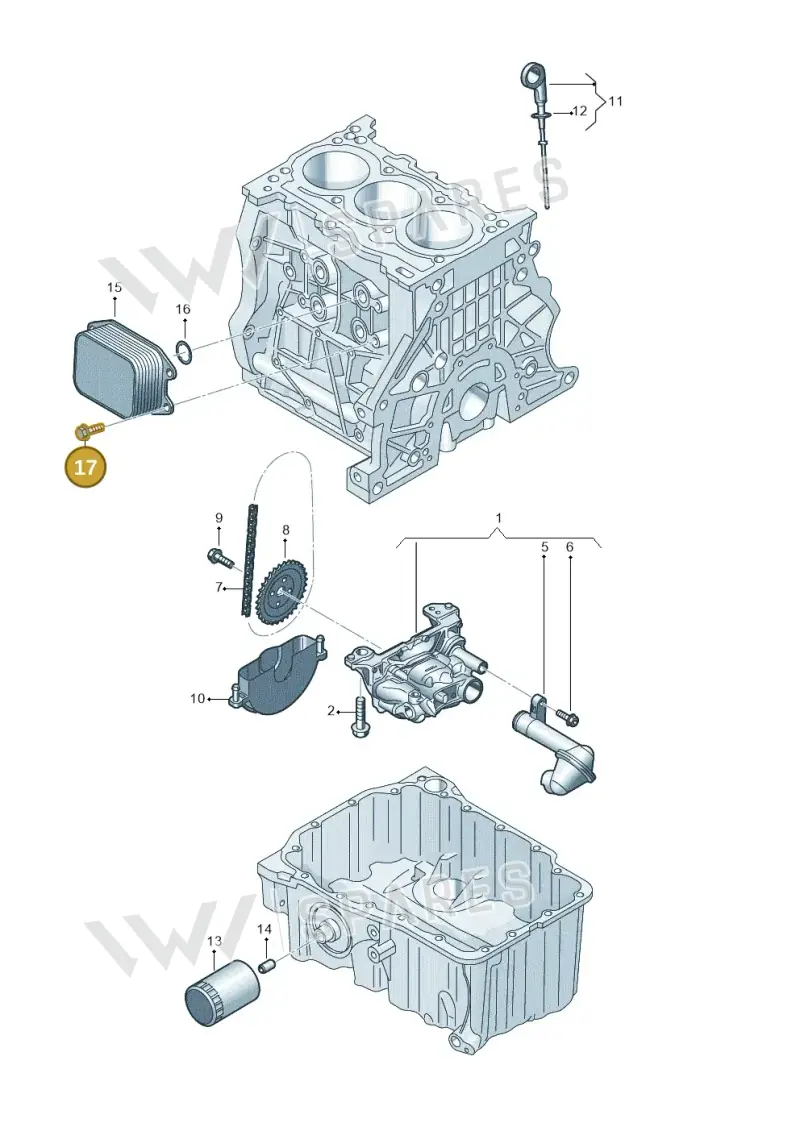

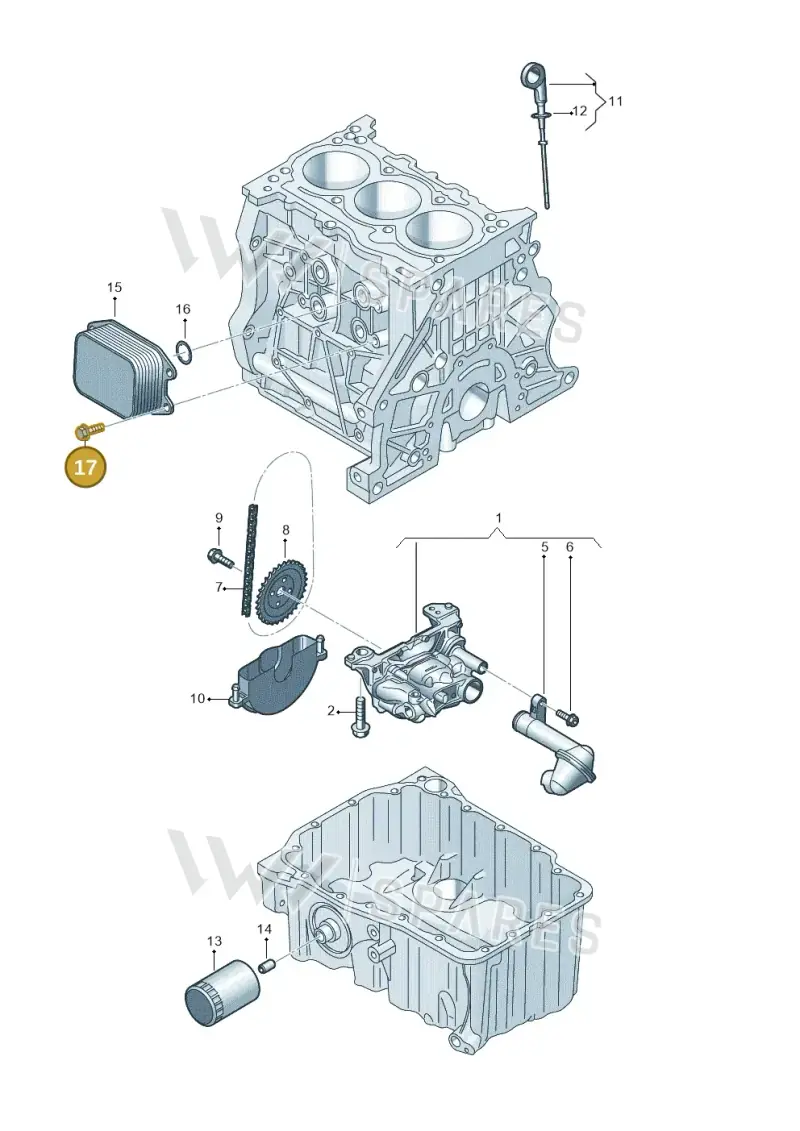

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hexagon Flange Screw, part number WHT009277. This specialized screw with a flange is used to fasten engine components, providing an increased bearing surface. It is located in the engine oil cooler assembly. Made from high-strength steel for secure fastening. Genuine OEM screws ensure correct thread pitch and material strength for critical engine applications.
Catalogue entry: SCREW M6X33 ×4.
Fitted with: 04E117021K OIL COOLER, 04E115111D seal ring, WHT007820 SCREW.
Technical details
- Category
- Fluids & Filters
- Customs (HS) code
- 73181588
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4 × 1.3 × 1.3 cm
- Shipping weight
- 0.01 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Thread
- M6x33 mm
Equipment codes
- 0K4
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
4 vehiclesHexagon Flange Screw (combi) — locate WHT009277 Volkswagen Hexagon Flange Screw | Genuine OEM in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly19
- 1Oil Pump 05C115103
- 2Bolt N91108701
- 5Pipe 05C115251
- 5Pipe 05C115251B
- 7Chain 04E115225F
- 8Chn Sprckt 05C115121A
- 9Screw N91231101
- 10Cover 05C103669C
- 10Cover 05C103669E
- 11Oil Dipsti 05C115611
- 11Oil Dipsti 05C115611G
- 12Seal Ring 04E115331
- 13Oil Filter 04E115561H
- 13Oil Filter 04E115561T
- 14Union 03C115721A
- 15Oil Cooler 04E117021K
- 15Oil Cooler 05C117013
- 16Seal Ring 04E115111D
- 17Screw WHT007820
Vehicle fitment table4
Europe (4)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Leon style | 2019- | 17 | 4 | 0K4 | |
| Golf 2.0 BlueMotion | 2019-2024 | 17 | 4 | 0K4 | |
| Octavia | 2019-2024 | 17 | 4 | 0K4 | |
| Audi A3 Sportback | 2019-2021 | 17 | 4 | 0K4 |
