Product overview
Genuine OEM Volkswagen Drive Flange, part number 01M409285A. This drive flange is a critical component that connects the differential output to the drive axle or shaft, enabling power transfer to the wheels. It is highlighted as part 17 in the diagram. This part weighs 0.806 kg. Genuine OEM drive flanges are manufactured to exact tolerances for proper spline fitment and load-bearing capacity, ensuring reliable drivetrain operation.
Technical details
- Category
- Suspension
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 12.2 × 11.1 × 5.8 cm
- Shipping weight
- 0.81 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

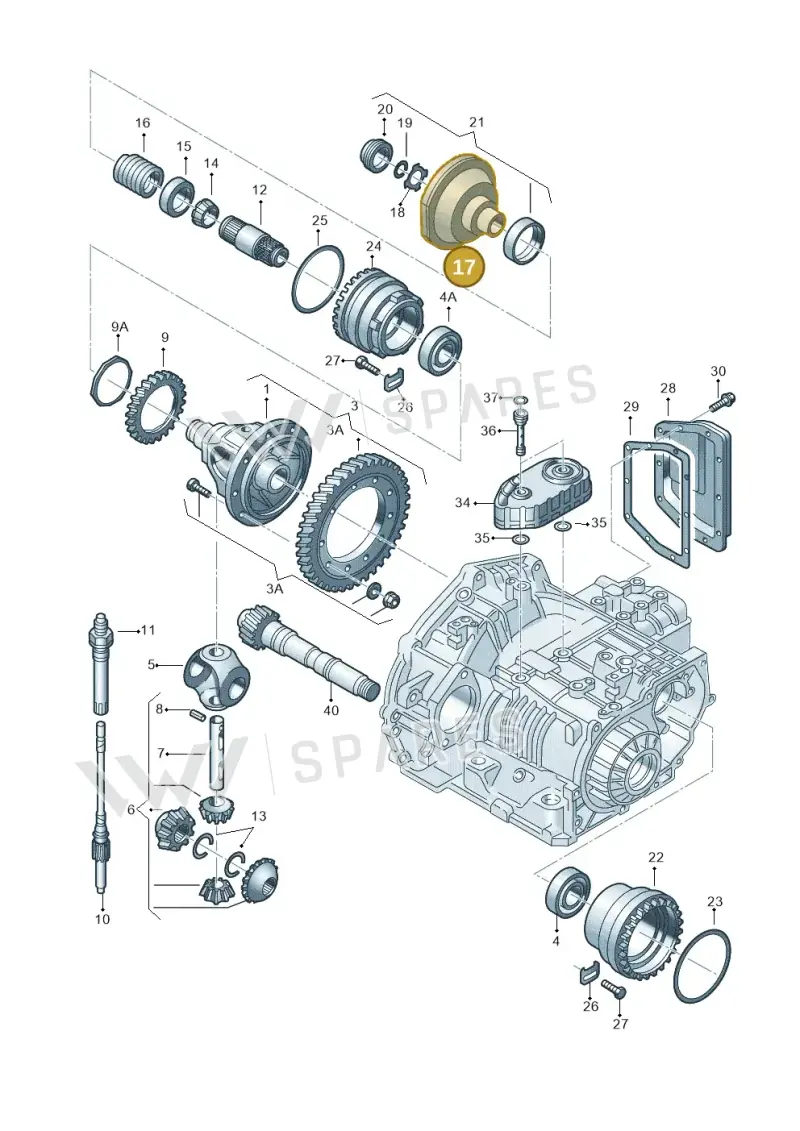

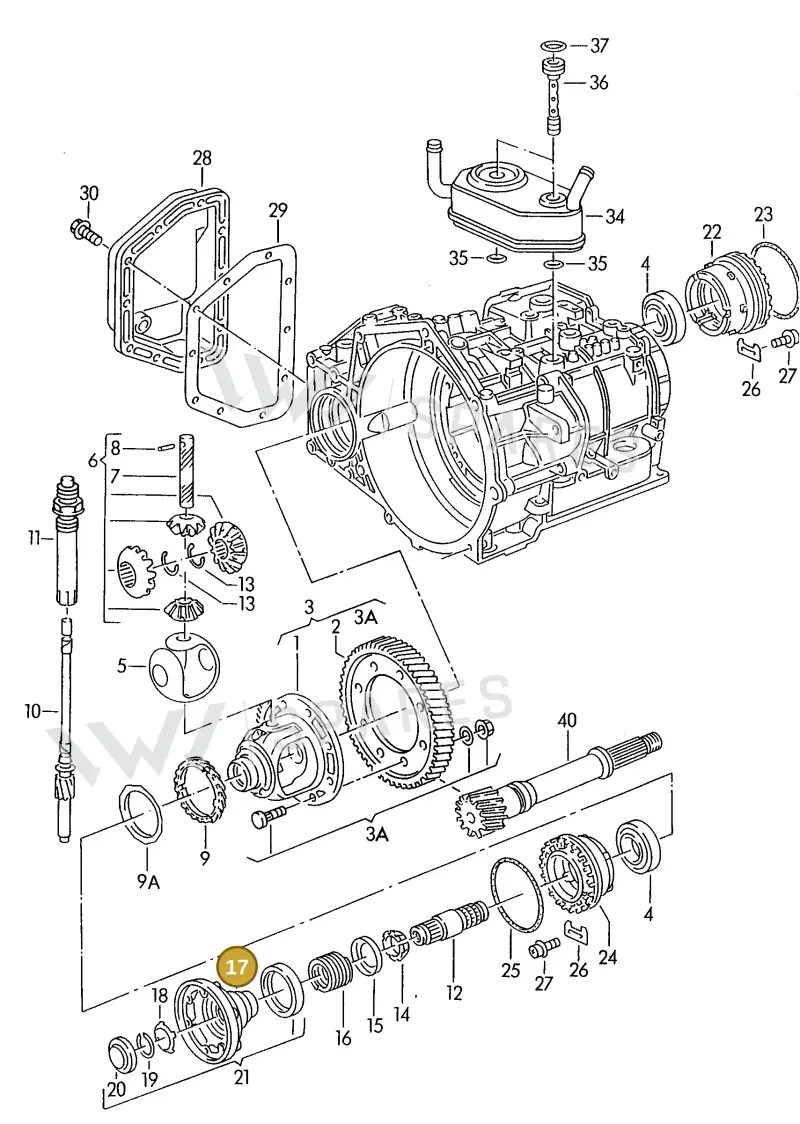

Parts diagram & fitment
23 vehiclesDrive Flange — locate 01M409285A Volkswagen Drive Flange | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 01M409285G — the later replacement part.
This part is marked discontinued by the manufacturer (since 2016-08-01); contact us to check current availability.
Parts in this assembly36
- 1Housing 096409121A
- 3Part 096409111AH
- 3Part 096409111AL
- 3Part 096409111AF
- 3AFixing Set 096498088A
- 4Mounting 113517185C
- 5Thr Washer 02J409170
- 6Diff Pinio 096498081B
- 7In Shaft - Differential Pinion Shaft - 095409177A
- 8Sleeve N90538701
- 9Drivewheel 095409187B
- 9ABush 095409190
- 10Pinion 095409197A
- 11Mounting 095409193B
- 12Shaft 020409291B
- 13Ring 020409299
- 14Ring 020409374
- 15Washer 020409378
- 16Press Spring 020409379B
- 17Flange 01M409285
- 18Spring 020409295
- 19Circlip 020409297
- 20Cover 020409289B
- 21Repair Kit 020498085G
- 22Housing 096409117C
- 23Seal Ring 095409528
- 24Bear Ring 01M409253
- 25Seal Ring 095409259
- 26Plate 095409669A
- 27Bolt N90440701
- 28Cover 095409581A
- 29Seal 095409597A
- 30Bolt N90328502
- 35Seal Ring 089409069
- 36Screw 096409067A
- 37Seal Ring 096409069A
Vehicle fitment table23
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| POLO CLASSIC/VARIANT | 1999-2001 | 17 | 2 | FDK |
| New Beetle | 1998-2001 | 17 | 2 | DMP,EPB |
| GOLF CABRIO | 1998-2001 | 17 | 2 | |
| Golf | 1998-2000 | 17 | 2 | DTH,DTB,DMN, |
| AUDI A3/S3/QUATTRO | 1996-2000 | 17 | 2 | DL |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 17 | 2 | DL |
| GOLF VAR./VENTO | 1996-1999 | 17 | 2 | CKX |
| POLO CLASSIC/VARIANT | 1996-1999 | 17 | 2 | DLV |
| Golf | 1996-1997 | 17 | 2 | CKX |
| Golf 96 | 1995-1996 | 17 | 2 | CKX,CKZ,CLK, |
| Golf Var./Vento 96 | 1995-1996 | 17 | 2 | CKX,CKZ,CLK, |
| Passat | 1994-1997 | 17 | 2 | CNK |
| Golf Cabrio | 1994-1996 | 17 | 2 | |
| Golf/Ecomatic 95 | 1994-1995 | 17 | 2 | CR |
| Golf Var./Vento 95 | 1994-1995 | 17 | 2 | CR |
| Jetta GLX 94 | 1993-1994 | 17 | 2 | CFF |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 17 | 2 | |
| GOLF/Ecomatic | 1991-1994 | 17 | 2 | CNK |
Other markets (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf Cabrio "USA","Mex"99>02 | 1998-2002 | 17 | 2 | |
| Jetta "USA"99>01 | 1998-2001 | 17 | 2 | DMN |
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 17 | 2 | CLK,DKS |
| Golf Cabrio "USA","MEX"96>99 | 1995-1998 | 17 | 2 | |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 17 | 2 | CNK,CLK,CKZ, |
Diagrams & fitment data powered by oemdiagrams.com
01M409285A Volkswagen Drive Flange | Genuine OEM is fitted on: POLO CLASSIC/VARIANT 1999-2001; New Beetle 1998-2001; GOLF CABRIO 1998-2001; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; OCTAVIA/COMBI/4X4 1996-2000; GOLF VAR./VENTO 1996-1999; POLO CLASSIC/VARIANT 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf Cabrio 1994-1996; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; GOLF/Ecomatic 1991-1994; Golf Cabrio "USA","Mex"99>02 1998-2002; Jetta "USA"99>01 1998-2001; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf Cabrio "USA","MEX"96>99 1995-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
