United States
096409067A Banjo Bolt
- 096498067Not stocked
Oct 1993 - 096409067AThis pageNot stocked
Jan 2004 - 01M409067CNot stocked
May 2007 - 01M409066Discontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

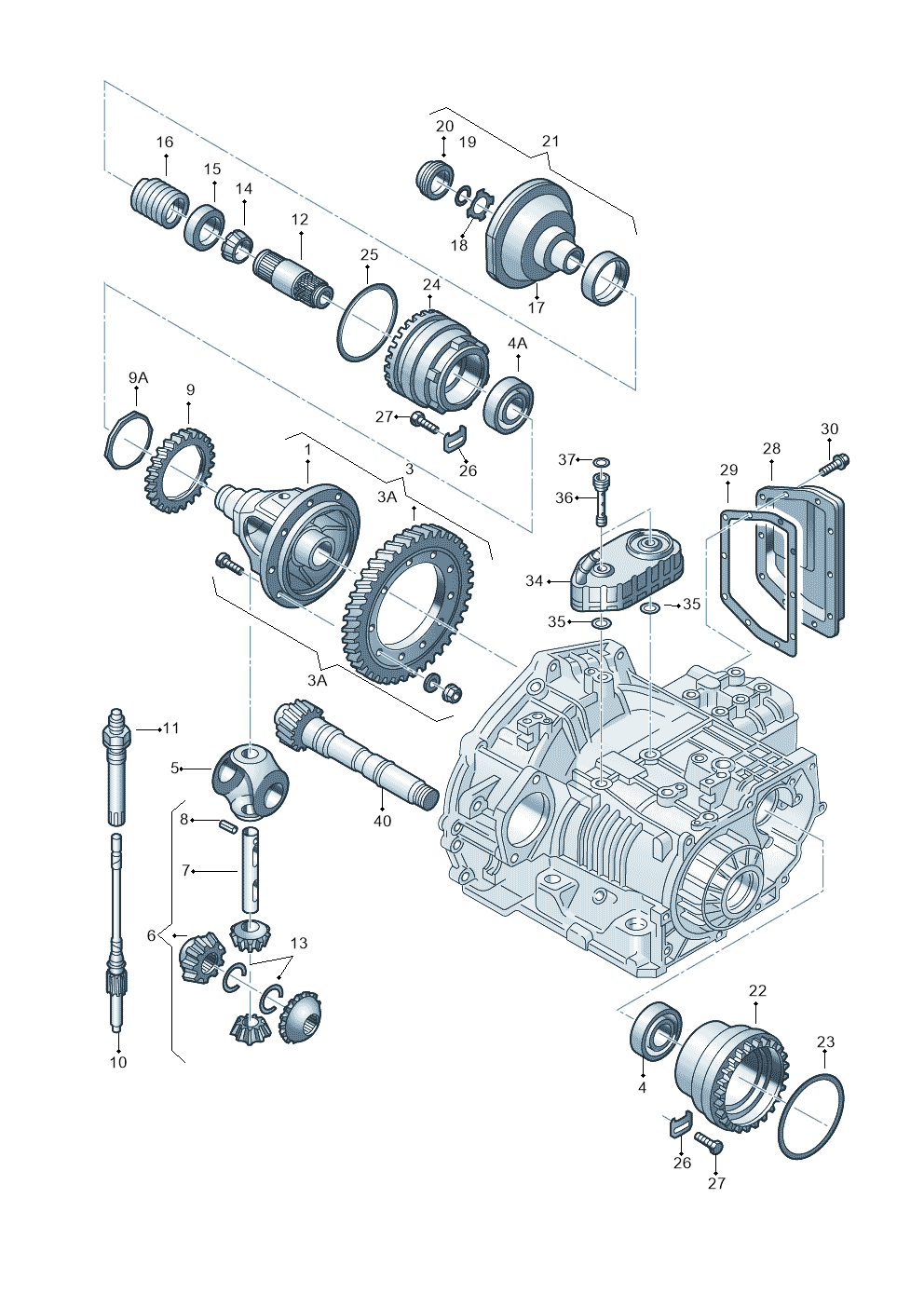

10 vehiclesBanjo Bolt — locate Banjo Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Housing 096409121A
- 3Part 096409111AH
- 3Part 096409111AL
- 3Part 096409111AF
- 3AFixing Set 096498088A
- 4Mounting 113517185C
- 5Thr Washer 02J409170
- 6Diff Pinio 096498081B
- 7In Shaft - Differential Pinion Shaft - 095409177A
- 8Sleeve N90538701
- 9Drivewheel 095409187B
- 9ABush 095409190
- 10Pinion 095409197A
- 11Mounting 095409193B
- 12Shaft 020409291B
- 13Ring 020409299
- 14Ring 020409374
- 15Washer 020409378
- 16Press Spring 020409379B
- 17Flange 01M409285A
- 17Flange 01M409285
- 18Spring 020409295
- 19Circlip 020409297
- 20Cover 020409289B
- 21Repair Kit 020498085G
- 22HousingLeft096409117C
- 23Seal Ring 095409528
- 24Bear RingRight01M409253
- 25Seal Ring 095409259
- 26Plate 095409669A
- 27Bolt N90440701
- 28Cover 095409581A
- 29Seal 095409597A
- 30Bolt N90328502
- 35Seal Ring 089409069
- 37Seal Ring 096409069A
Vehicle fitment table10
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A3/S3/QUATTRO | 2000-2003 | 36 | 2 | G0E | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 36 | 2 | ||
| GOLF VAR./VENTO | 1996-1999 | 36 | 2 | ||
| Golf Cabrio | 1994-1996 | 36 | 2 | ||
| GOLF/Ecomatic | 1991-1994 | 36 | 2 | ||
| Passat | 1991-1993 | 36 | 2 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Eurovan F>>70-T 96 | 1995-1995 | 31 | 2 | ||
| JETTA (FAW) 91> | 1991- | 36 | 2 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 6K0 platform | 36 | 2 | |||
| 6K0 platform | 36 | 2 | AKL+PR:G0E |
Diagrams & fitment data powered by oemdiagrams.com
Banjo Bolt is fitted on: AUDI A3/S3/QUATTRO 2000-2003; AUDI A3/S3/QUATTRO 1996-2000; GOLF VAR./VENTO 1996-1999; Golf Cabrio 1994-1996; GOLF/Ecomatic 1991-1994; Passat 1991-1993; Eurovan F>>70-T 96 1995-1995; JETTA (FAW) 91> 1991-; 6K0 platform.
