01V409524A Cover
- 01V409524Not stocked
Feb 2000 - 01V409524AThis pageNot stocked
Dec 2007
- Discontinued Jul 202101V409524BDiscontinued
Jul 2021 - Discontinued Apr 202201V409809ADiscontinued
Apr 2022
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

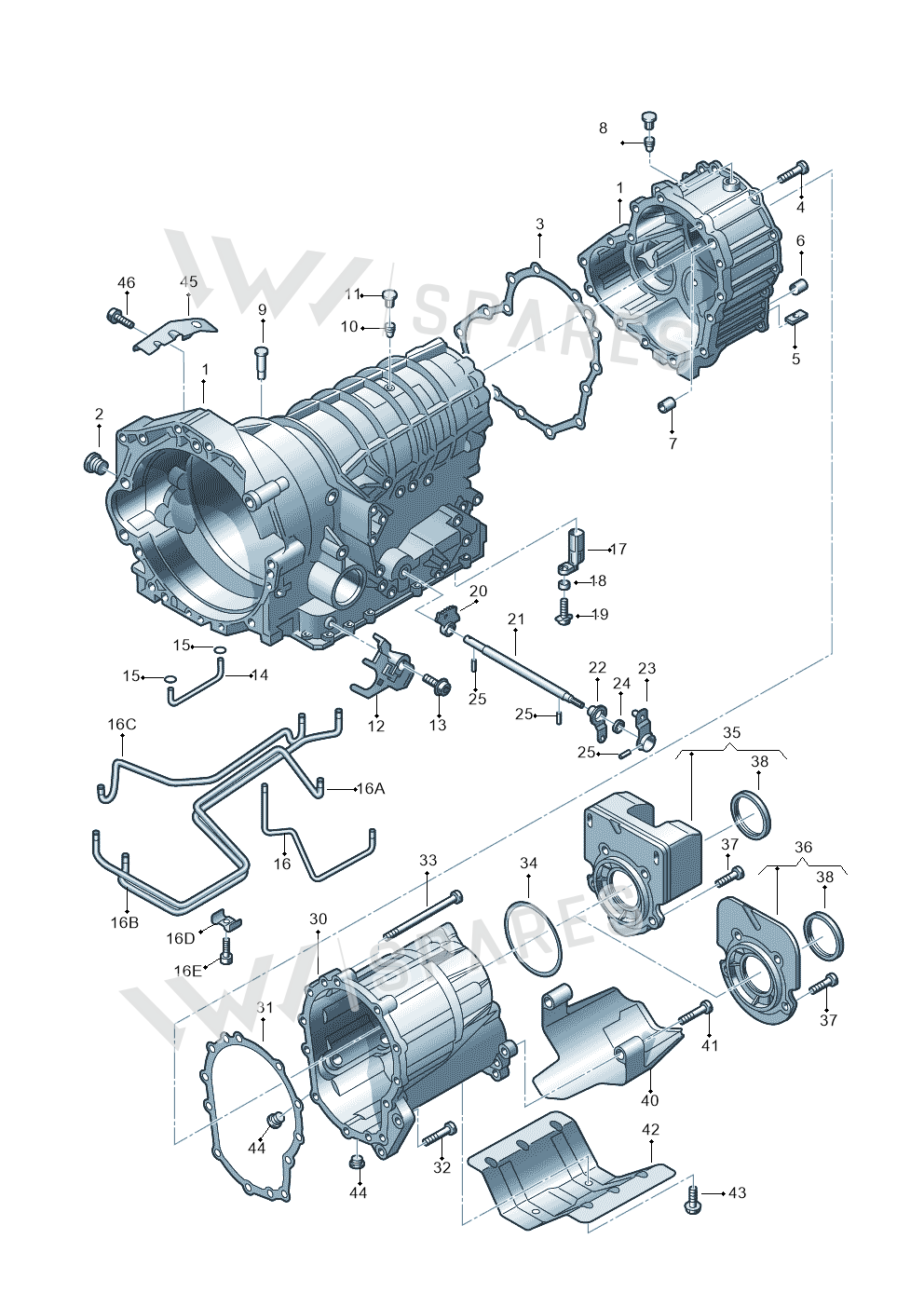

10 vehiclesCover — locate Cover in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 2Bolt 018321377B
- 3Seal 01V321381
- 3Seal 01L321381
- 4Screw 01V409135
- 5Magnet 018321367
- 6Part 018321505
- 6Retaining 01V321415
- 7Bush 01V409639
- 7Screw N90415403
- 8Breather 01L301469
- 9Breather 01V301469
- 10Breather 01V409845
- 11Pipe 01V409847
- 14Oil Pipe 01V321475
- 14Oil Pipe 01L321475C
- 15Part 01V321419
- 16Oil Pipe 01L321475
- 16AOil Pipe 01L321475A
- 16BOil Pipe 01L321475B
- 16COil Pipe 01L321475D
- 16EScrew 01V321373
- 23Lever 01V321171
- 23Lever 01L321171
- 24Seal 01F321835
- 24Seal Washer 09F409189
- 25Part 01V321546
- 30Housing 01V321247
- 31Seal 01V321381A
- 34Seal Ring 01V409133B
- 35Weight 01V301307D
- 35Weight 01V301307G
- 36Cover 01V409524B
- 37Screw 01V321375
- 38Seal 01V409399A
- 40Plate 4D0301325G
- 40Plate 4E0301325A
- 41Screw N10332202
- 41Bolt N10049303
- 42Plate 4D0301325E
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A4/S4/Av./qu. | 2001-2004 | 36 | 1 | FEP,EZB,GBF, | |
| Audi A6/Wagon/quattro | 2001-2004 | 36 | 1 | FAU,FAX | G0Q |
| Audi A6 Allroad qu. | 2000-2005 | 36 | 1 | ||
| Passat/4Motion/W8 | 2000-2002 | 36 | 1 | FAP,FNM,FVE, | |
| Audi A8 quattro | 1999-2002 | 36 | 1 | ||
| Audi A4/Av.qu. | 1999-2001 | 36 | 1 | DE | |
| Passat syncro/4Motion | 1998-2000 | 36 | 1 | DEY,EMM,ETU, | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 36 | 1 | ||
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 36 | 1 | DTV,DRK,FHD | |
| Audi A8 qu. | 1996-1998 | 36 | 1 | CJT |
Diagrams & fitment data powered by oemdiagrams.com
Cover is fitted on: Audi A4/S4/Av./qu. 2001-2004; Audi A6/Wagon/quattro 2001-2004; Audi A6 Allroad qu. 2000-2005; Passat/4Motion/W8 2000-2002; Audi A8 quattro 1999-2002; Audi A4/Av.qu. 1999-2001; Passat syncro/4Motion 1998-2000; Audi A6/Av.qu.F4B-W-> 1997-2001; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A8 qu. 1996-1998.
