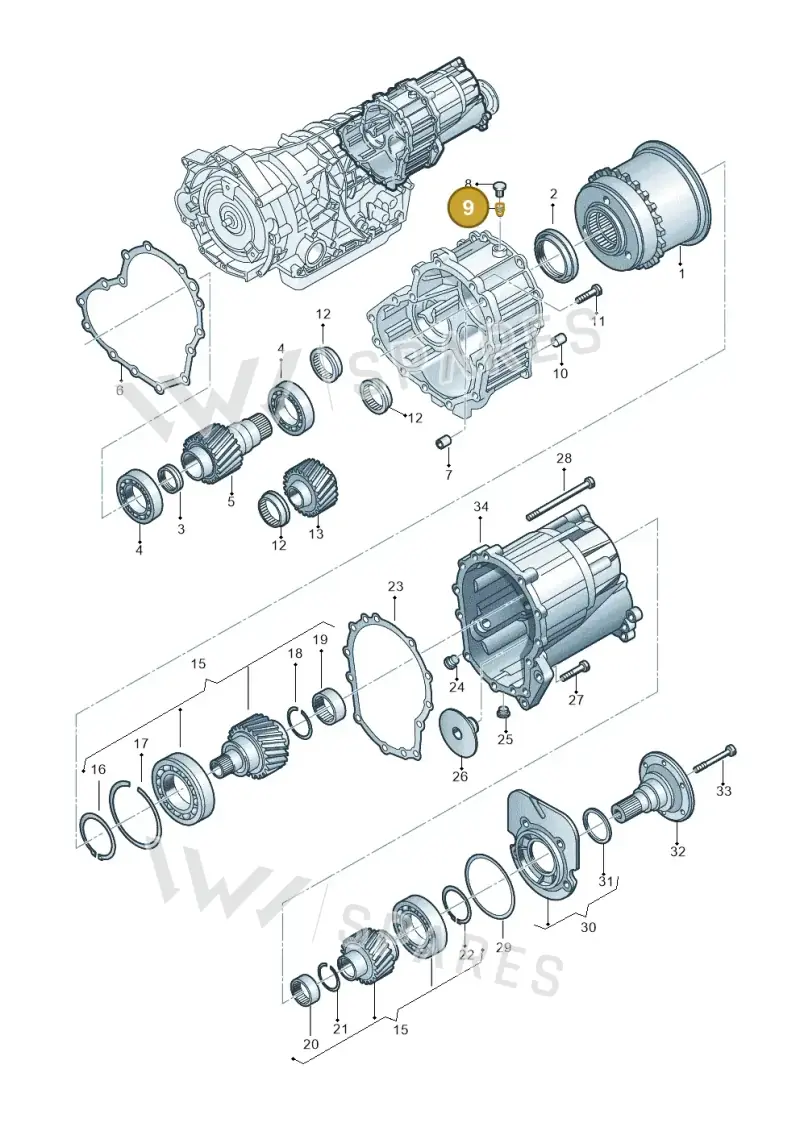

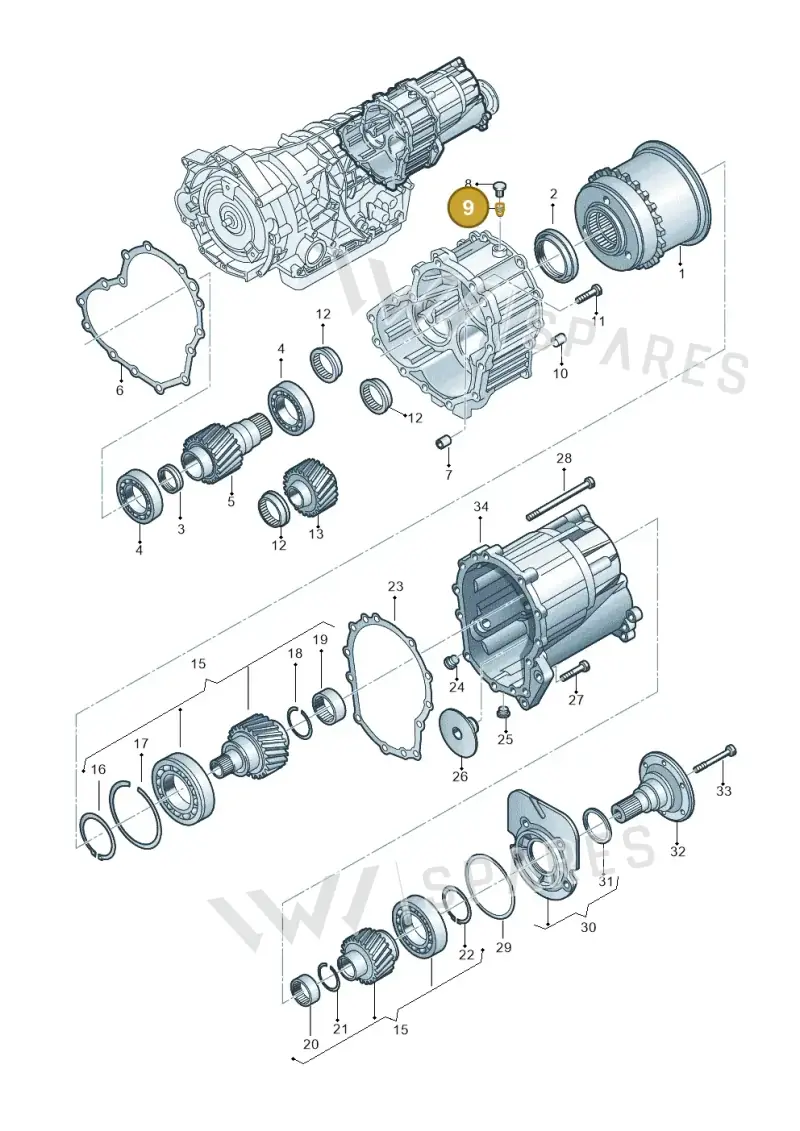

Number 9 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Breather Line, part number 01V409847. This line allows air to escape from the gearbox to prevent pressure buildup. It is located at position 9 in the transmission assembly. This part has dimensions of 0.018m x 0.017m x 0.017m and weighs 0.0054 kg. Genuine OEM breather lines are designed with specific internal diameters and material properties to ensure proper ventilation without compromising fluid integrity.
Technical details
- Category
- Transmission & Drivetrain
- Country of origin
- Germany
- Customs (HS) code
- 87085099
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 1.8 × 1.7 × 1.7 cm
- Shipping weight
- 0.01 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
35 vehiclesBreather Line — locate 01V409847 Volkswagen Breather Line | Transmission in the official exploded view and explore the surrounding assembly.
Superseded by 01V409845 — the current replacement part.
Parts in this assembly29
- 1Cent Diff 01L409751
- 1Cent Diff 01V409751
- 2Seal 01V409400A
- 3Seal 01V409400B
- 7Bush 01V409639
- 8Breather 01V409845
- 11Screw 01V409135
- 12Sleeve 01V311429
- 15Repair Kit 01V498171AX
- 15Repair Kit 01V498171
- 16Ring 01V409297A
- 17Circlip 01V409419
- 18Circlip 01V409419A
- 19Bearing 01V409767
- 20Bearing 01V409767A
- 21Circlip 01V409419B
- 22Ring 01V409297B
- 23Seal 01V321381A
- 24Bolt 01V409057
- 25Bolt 01V409057A
- 26Part 01V409373
- 28Screw 01L409135
- 28Screw 01V409135A
- 29Seal Ring 01V409133B
- 30Cover 01V409524B
- 31Seal 018409399B
- 31Seal 01V409399A
- 32Flanshaft 01V409809A
- 33Screw 01F409359
Compatible / alternative parts(1)
Vehicle fitment table38
Europe (30)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| phaeton 4motion | 2010-2016 | 9 | X | G0Q |
| Audi A6 2.7 TDI | 2008-2011 | 29 | 1 | |
| phaeton 4motion | 2008-2010 | 9 | X | G0Q |
| Audi A8/S8/qu. lang 08> | 2007- | 29 | 1 | |
| PHAETON 08> | 2007- | 9 | X | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 29 | 1 | |
| AUDI A6 QU.ALLROAD 07> | 2006- | 29 | 1 | |
| Audi A4/S4/Av./qu. 05> | 2005- | 10, 29 | 1 | G0Q |
| Audi A6/S6/Avant/qu. 05> | 2004- | 29 | 1 | |
| Audi A8/S8/qu. lang | 2003-2007 | 29 | 1 | |
| Phaeton (lang) | 2003-2006 | 21, 9 | 1 | G0F |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 10, 29 | 1 | G0Q |
| PASSAT/4MOTION/W8 | 2002-2005 | 21, 10 | 1 | |
| SUPERB 02> | 2001- | 21 | 1 | |
| Audi A4/S4/Av./qu. | 2001-2004 | 10, 29 | 1 | G0Q |
| Audi A6/Wagon/quattro | 2001-2004 | 11 | 1 | G0Q |
| PASSAT 00> | 2000- | 21 | 1 | G0F |
| Audi A6 Allroad qu. | 2000-2005 | 11, 9 | 1 | G0Q |
| Passat/4Motion/W8 | 2000-2002 | 21, 10 | 1 | |
| Audi A8 quattro | 1999-2002 | 11, 9 | 1 | |
| Audi A4/Avant | 1999-2001 | 21 | 1 | |
| Audi A4/Av.qu. | 1999-2001 | 10, 9 | 1 | |
| Passat syncro/4Motion | 1998-2000 | 10, 9 | 1 | |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 11, 9 | 1 | |
| Passat | 1997-2000 | 21 | 1 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 21 | 1 | |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 10, 9 | 1 | |
| Audi A8 qu. | 1996-1998 | 11, 8 | 1 | |
| Audi A4 F>8D-W-.. | 1995-1997 | 21 | 1 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 11, 9 | 1 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 10, 9 | 1 | |
| PASSAT LINGYU "CN."06> | 2005- | 21 | 1 | G0F |
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 10, 9 | 1 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 3B0 platform | 21 | |||
| 3B0 platform | 10 | 1 |
Listed without a diagram position (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A8 | 1998-2002 | 1 | ||
| Audi A6/Avant | 1997-2001 | 1 | ||
| Audi A8 | 1996-1998 | 1 |
