026103101E Cylinder Block With Pistons
- 026103101LCurrent · not stocked
- Current number
- Current number
- Current number
- 026103101EThis pageNot stocked
Nov 1992
- 026103101LCurrent · not stocked026103101LCurrent · not stocked
- Current number053115417ACurrent number
- Current number028115441CCurrent number
- Current number077103175BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

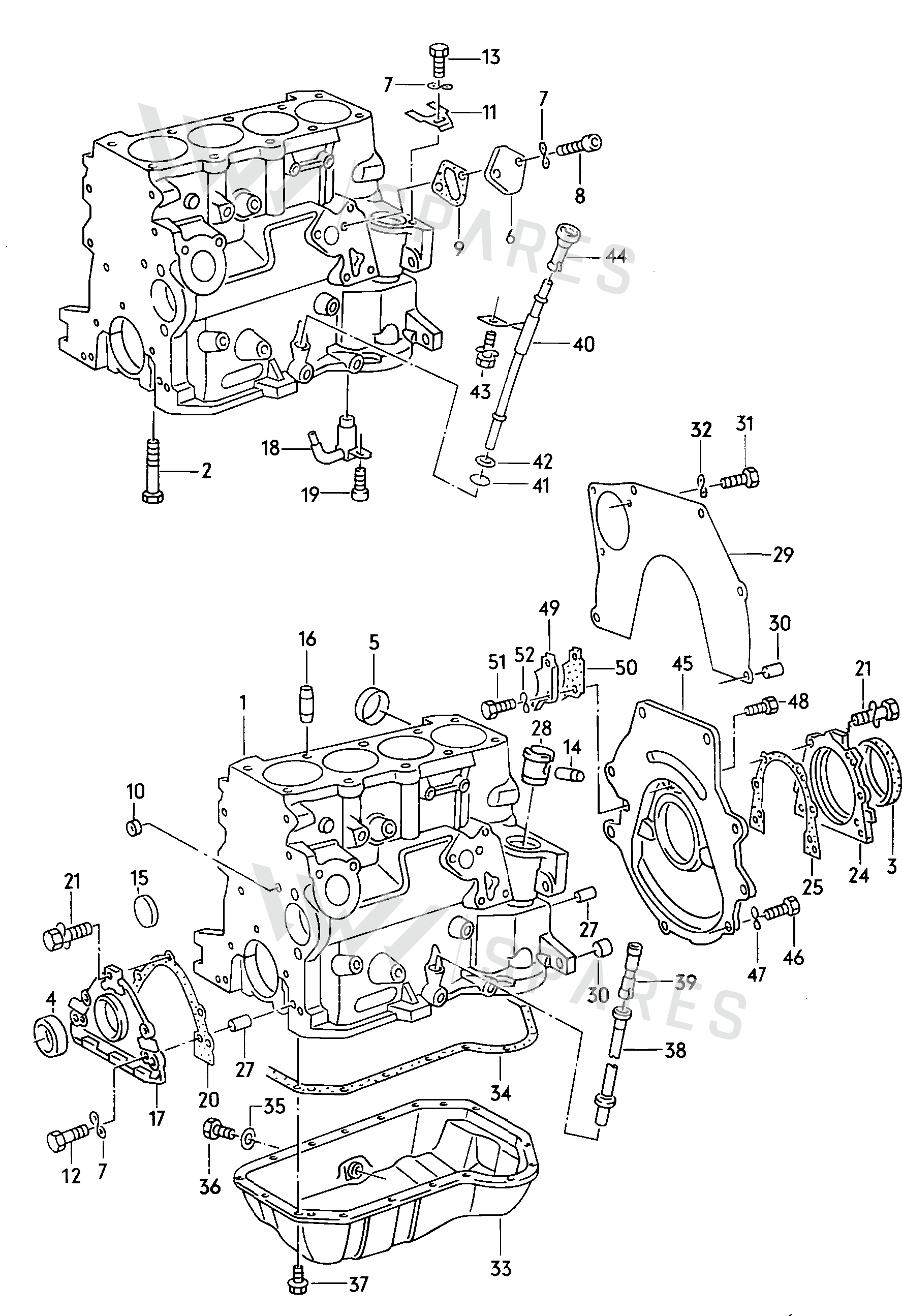

5 vehiclesCylinder Block With Pistons — locate Cylinder Block With Pistons in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Cylinder Block 027103101C
- 1Cylinder Block 049103101B
- 1Cylinder Block 049103101E
- 1Cylinder Block 049103101N
- 1Cylinder Block 068103101D
- 1Cylinder Block 068103101E
- 1Cylinder Block 026103101L
- 1Cylinder Block 049103101H
- 2Bolt N10263801
- 4Seal 068103085E
- 5Cover 059103113
- 6Cover 068103111
- 7Washer N01224110
- 8Screw N0147123
- 9Seal 028127311A
- 10Cover N0119074
- 11Bracket 028905256
- 12Bolt N01024016
- 13Bolt N01024222
- 14Rivet N0162011
- 14Bungs 056103117
- 18Vent 068103157D
- 19Screw N90241501
- 20Seal 026103161B
- 21Bolt N01021612
- 24Flange 068103171F
- 25Seal 026103181B
- 27Part N0432072
- 28Bush 056103541
- 30Sleeve 014301153
- 31Bolt N0102276
- 32Washer N0122345
- 33Oil Sump 051103601
- 33Oil Sump 068103601D
- 33Oil Sump 055103601
- 34Seal 044103609D
- 35Seal Ring N0138492
- 36Plug N90288901
- 37Bolt N90008401
- 38Tube 049103634
- 38Tube 049103635
- 39Funnel 053103663
- 40Tube 068115629
- 41Seal Ring N90032203
- 43Bolt N01021226
- 44Guide 036115636
- 45Part 068103621E
- 48Bolt N90529301
Vehicle fitment table5
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta 86 | 1985-1986 | 1 | 1 | EV,GZ,RD,GU, |
| Scirocco | 1983-1989 | 1 | 1 | DX,KT,EX |
| Jetta | 1981-1984 | 1 | 1 | DX,JJ |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Quantum syncro | 1985-1988 | 1 | 1 | DS |
| Quantum 85 | 1984-1985 | 1 | 1 | DS,JV |
Diagrams & fitment data powered by oemdiagrams.com
Cylinder Block With Pistons is fitted on: Jetta 86 1985-1986; Scirocco 1983-1989; Jetta 1981-1984; Quantum syncro 1985-1988; Quantum 85 1984-1985.
