United States
027145531 Bracket For Vane Pump
- 027145531This pageNot stocked
Dec 1992 - 027145531ADiscontinued
Mar 2013
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

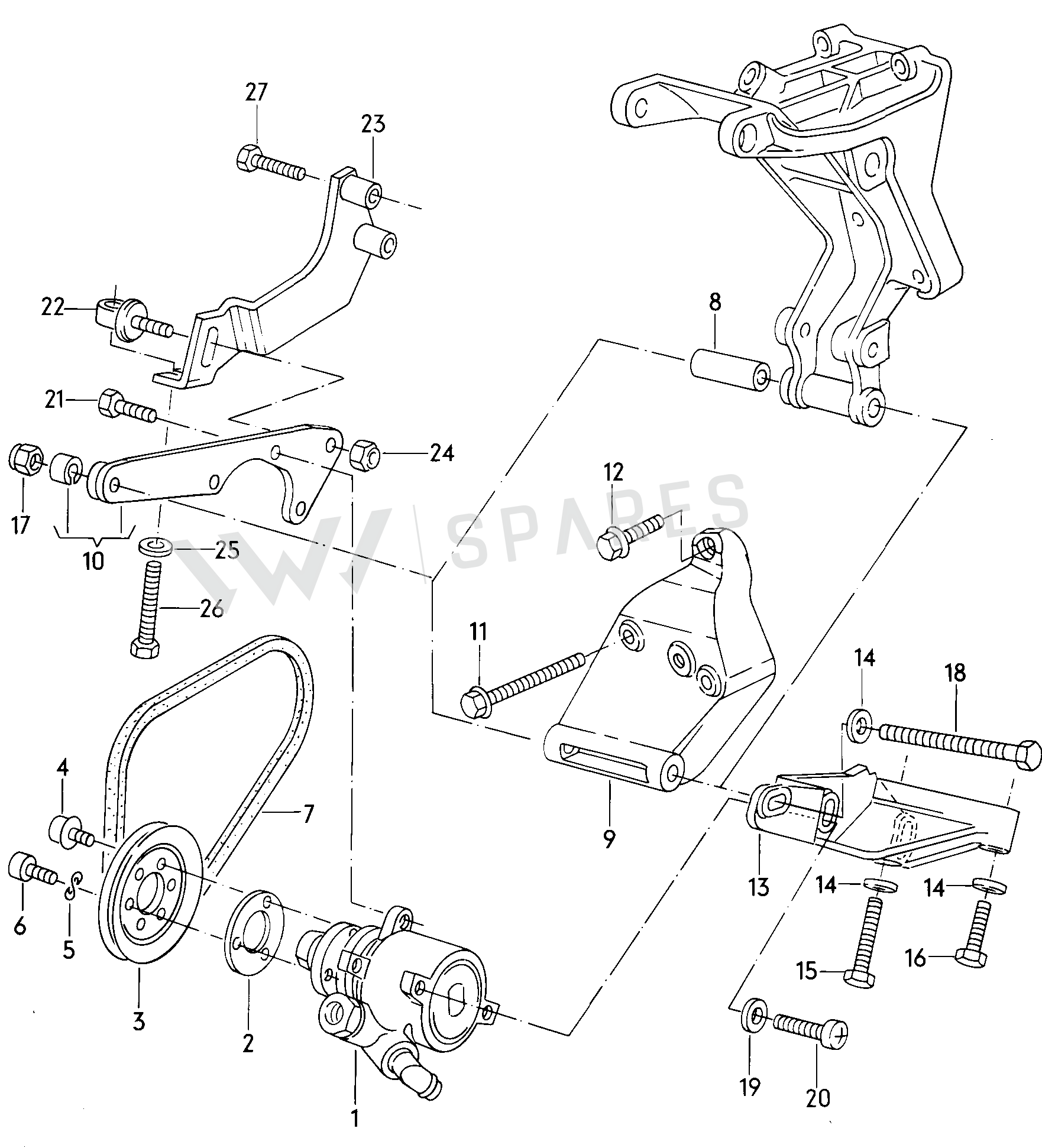

2 vehiclesBracket For Vane Pump — locate Bracket For Vane Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly18
- 1Pump 027145157
- 4Part N0147067
- 5Washer N0122283
- 6Screw N0147074
- 7V-belt 026145271
- 8Bush 068145287E
- 9Retainer 053145515
- 10Part 027145521
- 12Bolt N0102478
- 14Washer N90033301
- 17Ut Hexagon Nut Self-locking Hexagon Nut N0221464
- 18Bolt N0104202
- 19Washer N0154013
- 20Bolt N01024222
- 21Bolt N01023911
- 25Washer N01152527
- 26Bolt N0402371
- 27Bolt N0103404
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Jetta 86 | 1985-1986 | 13, 16 | 1 |
| Scirocco | 1983-1989 | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bracket For Vane Pump is fitted on: Jetta 86 1985-1986; Scirocco 1983-1989.
