Genuine OEM Volkswagen Air Hose, part number 028103493Q. This air hose connects to the crankcase ventilation system, facilitating the removal of blow-by gases from the engine. It is positioned on the engine's cylinder head cover. The hose is constructed from flexible rubber. Genuine OEM parts ensure exact fit and factory-quality materials for reliable performance.
Technical details
- Category
- Engine
- Country of origin
- Spain
- Customs (HS) code
- 40094200
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 24.5 × 4.8 × 4.5 cm
- Shipping weight
- 0.12 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
20 vehiclesAir Hose — locate 028103493Q Volkswagen Air Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2018-09-01); contact us to check current availability.
Parts in this assembly30
- 1Flange 028103111A
- 1Flange 028103111B
- 2Seal 028127311A
- 2ASeal Ring N90466301
- 3Washer N01155811
- 4Screw N90415403
- 4Screw N0147091
- 7Pipe 028103491J
- 8Clamp N0245077
- 10Valve 028129101D
- 11Seal 028103500
- 12Clamp N10258101
- 13Hose 028103493T
- 14Spring 037121142A
- 14Spring 032121142
- 15Seal Ring N90467301
- 15Seal Ring N90316802
- 16Pipe 037103213B
- 16AHose 037103493AB
- 17Valve 037129101N
- 18Screw 037103531A
- 19Adapter 037129644
- 20Pipe 051103211A
- 21Bolt N01021226
- 22Washer N0152761
- 24Clamp N90561801
- 25Hose 048103493A
- 27Pipe 037103491C
- 27Pipe 037103491B
- 29Clamp N0245065
Vehicle fitment table20
Europe (18)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| GOLF VAR./VENTO | 1996-1999 | 13 | 1 | AAZ |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 13 | 1 | AAZ |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 13 | 1 | AAZ |
| Golf | 1996-1997 | 13 | 1 | AAZ |
| Golf 96 | 1995-1996 | 13 | 1 | AAZ |
| Golf Var./Vento 96 | 1995-1996 | 13 | 1 | AAZ |
| Passat | 1994-1997 | 13 | 1 | AAZ |
| Golf/Ecomatic 95 | 1994-1995 | 13 | 1 | AAZ |
| Golf Var./Vento 95 | 1994-1995 | 13 | 1 | AAZ |

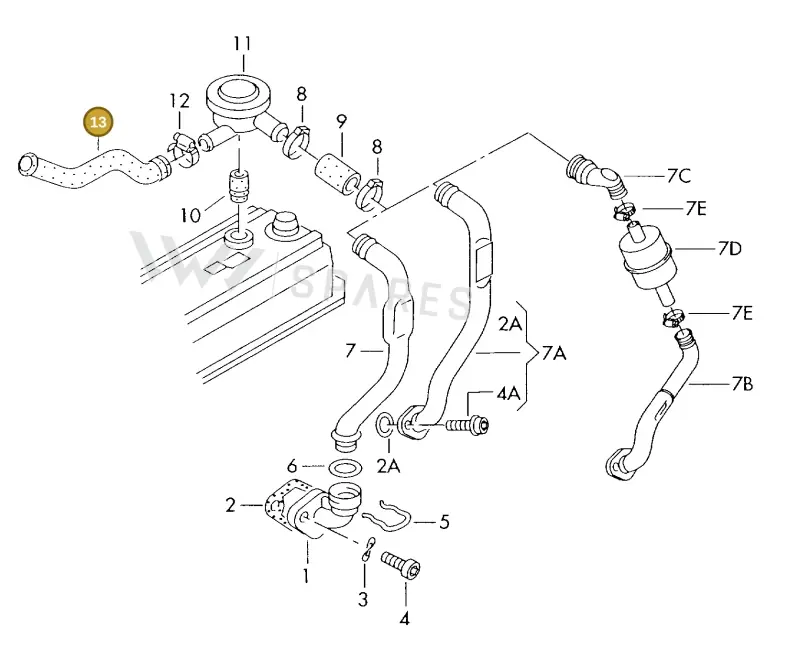

| Audi 90 | 1993-1995 | 13 | 1 | |
| Jetta GLX 94 | 1993-1994 | 13 | 1 | AAZ |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 13 | 1 | AAZ |
| Audi 90 93 | 1992-1993 | 13 | 1 | |

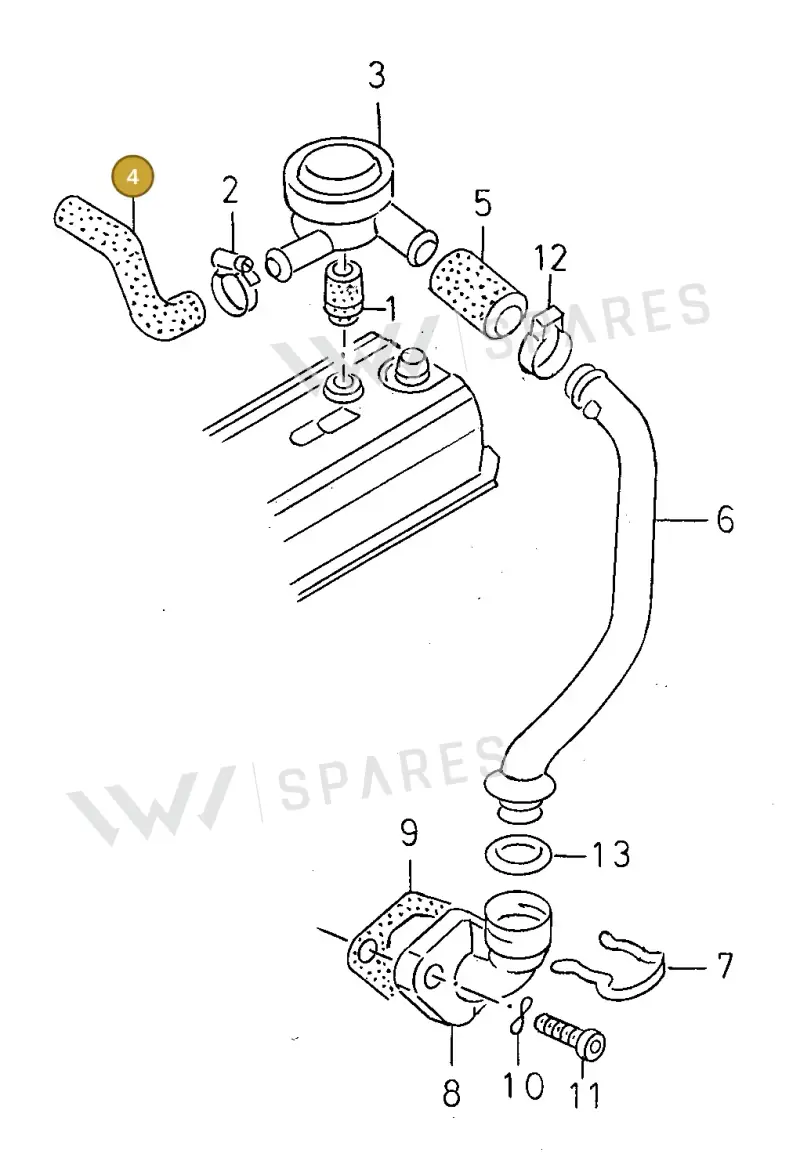

| TOLEDO SEAT | 1991-1996 | 4 | 1 | AAZ |
| GOLF/Ecomatic | 1991-1994 | 13 | 1 | AAZ |

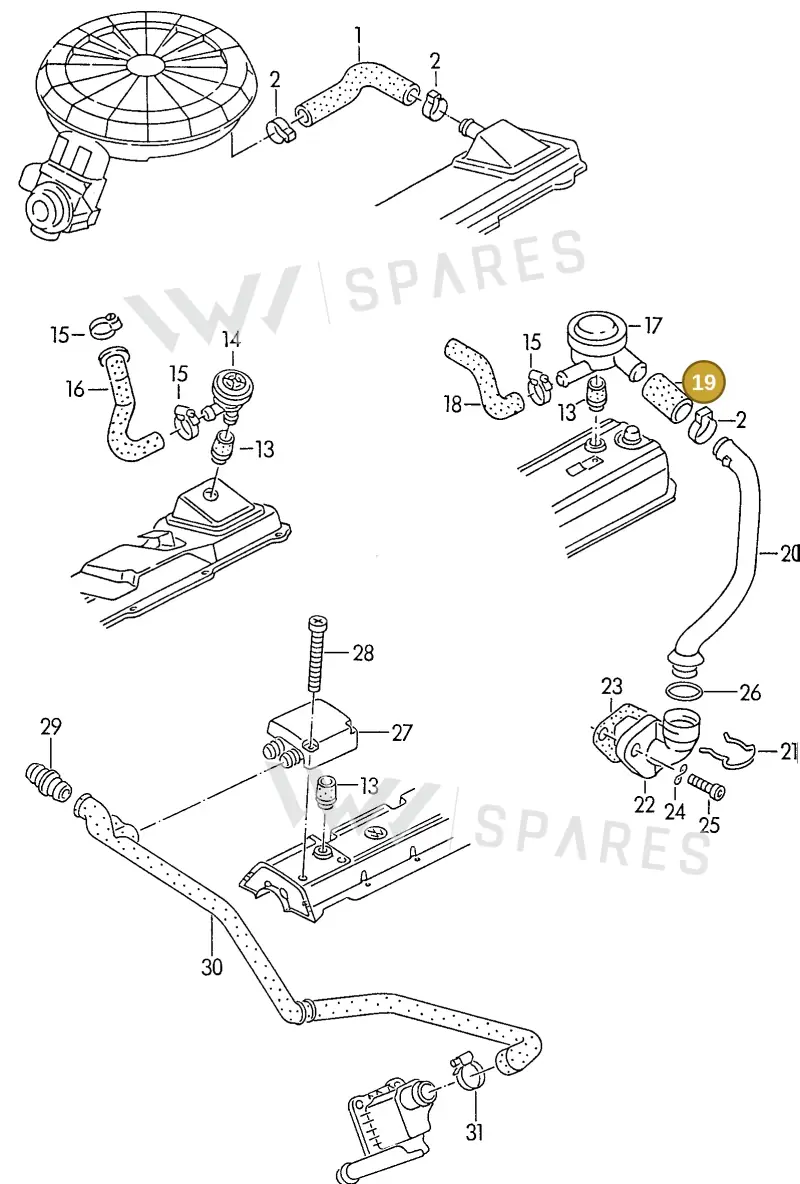

| Passat | 1991-1993 | 19 | ||
| DIES.-IND.-MOT.1,9>2,0 | 1990-2007 | 12 | 1 | ADE |
| Passat | 1989-1991 | 18 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf/Jetta "USA","Mex"97>99 | 1996-1998 | 13 | 1 | AAZ |
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 13 | 1 | AAZ |
Diagrams & fitment data powered by oemdiagrams.com
028103493Q Volkswagen Air Hose | Genuine OEM is fitted on: GOLF VAR./VENTO 1996-1999; TOLEDO SEAT MOD.97>99 1996-1999; IBIZA/CORDOBA/VARIO 1996-1999; Golf 1996-1997; Golf 96 1995-1996; Golf Var./Vento 96 1995-1996; Passat 1994-1997; Golf/Ecomatic 95 1994-1995; Golf Var./Vento 95 1994-1995; Audi 90 1993-1995; Jetta GLX 94 1993-1994; Ibiza/Cordoba (SEAT) 1992-1996; Audi 90 93 1992-1993; TOLEDO SEAT 1991-1996; GOLF/Ecomatic 1991-1994; Passat 1991-1993; DIES.-IND.-MOT.1,9>2,0 1990-2007; Passat 1989-1991; Golf/Jetta "USA","Mex"97>99 1996-1998; Golf/Jetta "USA","MEX"93>96 1992-1996.
