02D409355 Flanged Shaft
- 02D409355This pageNot stocked
Aug 2000 - 02D409355ASuperseded
Apr 2007 - 02D409355CDiscontinued
Jul 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

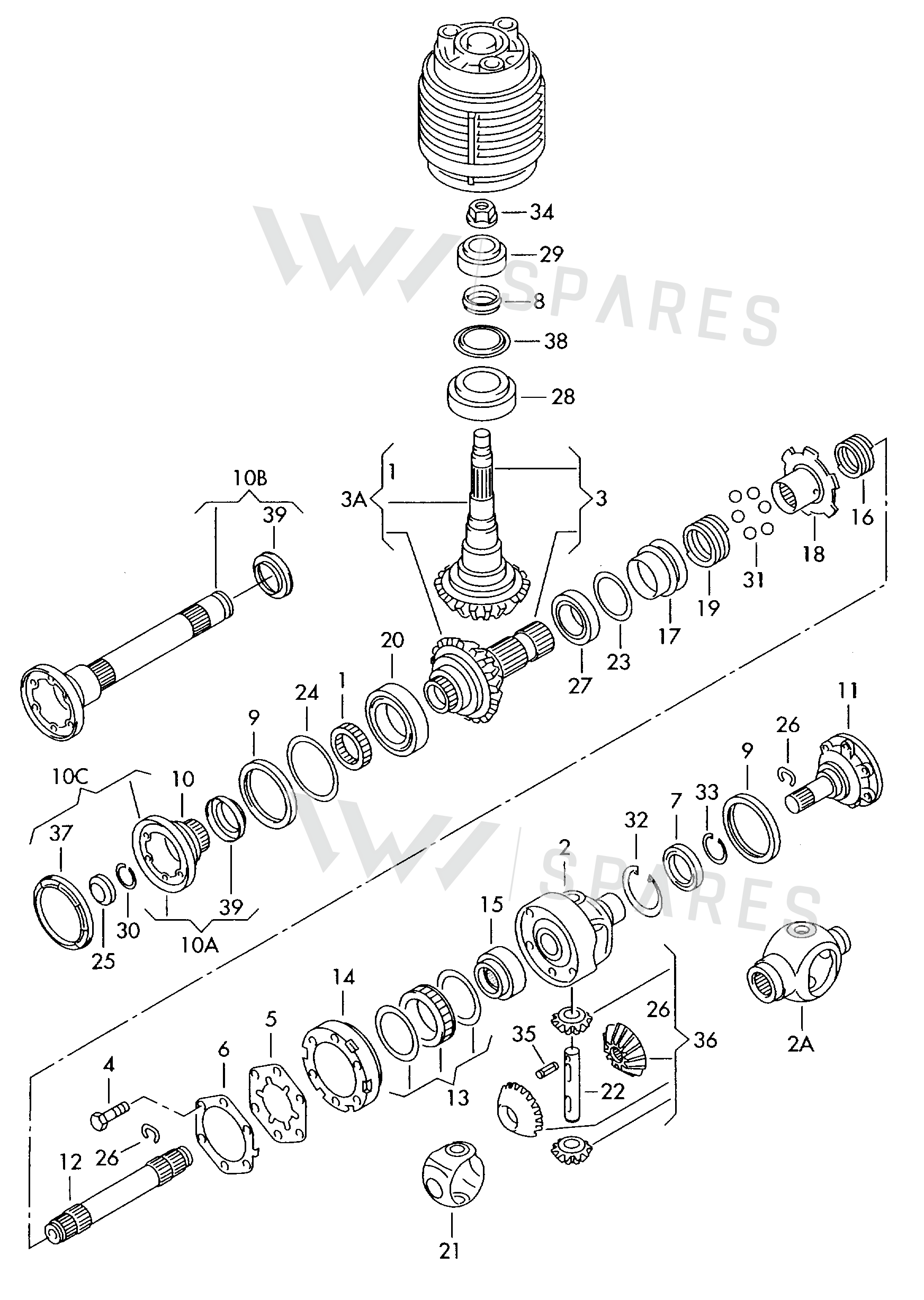

3 vehiclesFlanged Shaft — locate Flanged Shaft in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly43
- 2Housing 02D525121A
- 4Bolt 02D525181A
- 5Washer 02D525183
- 6Plate 02D525186
- 7Bearing 02D525193
- 8Sleeve 02D525267
- 9Seal 02D409399
- 10FlangeLeft02D525283B
- 11FlanshaftRight02D409355C
- 12Shaft 02D525355
- 14Outer Race 02D525607A
- 15Inner Race 02D525609A
- 16Press Spring 02D525620
- 17Sleeve 02D525621
- 18Sleeve 02D525623
- 19Press Spring 02D525626
- 21Thr Washer 02M409170A
- 22In Shaft - Differential Pinion Shaft - 005409177
- 23Shims 02B498210
- 24Washer 02D409247A
- 24Washer 02D409247B
- 24Washer 02D409247C
- 24Washer 02D409247D
- 24Washer 02D409247E
- 24Washer 02D409247F
- 24Washer 02D409247G
- 24Washer 02D409247H
- 24Washer 02D409247J
- 24Washer 02D409247K
- 24Washer 02D409247L
- 24Washer 02D409247M
- 24Washer 02D409247
- 25Cover 020409289B
- 26Circlip 012409413
- 27Mounting 002517185
- 28Mounting 091517185D
- 29Mounting 003519185A
- 30Ring 020311381F
- 31Ball N0256571
- 32Ring N0122981
- 33Ring N0123722
- 35Sleeve N90538701
- 36Diff Pinio 012498081C
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TRANSPORTER SYNCRO | 1996-2003 | 11 | 1 |
| SHARAN/SYNCRO | 1995-2000 | 11 | 1 |
| TRANSPORTER SYNCRO | 1995-1995 | 11 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Flanged Shaft is fitted on: TRANSPORTER SYNCRO 1996-2003; SHARAN/SYNCRO 1995-2000; TRANSPORTER SYNCRO 1995-1995.
