Product overview
Genuine OEM Volkswagen Flanged Shaft, part number 02D409355A. This flanged shaft is a critical component within the drivetrain, typically found in the differential or transfer case assembly. It transmits rotational power from the gears to other drivetrain components. The shaft features a flange at one end for connection and splines at the other for engagement. Precision manufacturing and high-strength materials are essential for its function. Genuine OEM flanged shafts are manufactured to exact tolerances and material specifications to ensure durability and reliable power transfer under demanding conditions.
Technical details
- Category
- Suspension
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 11.2 × 10.6 × 10.6 cm
- Shipping weight
- 0.95 kg

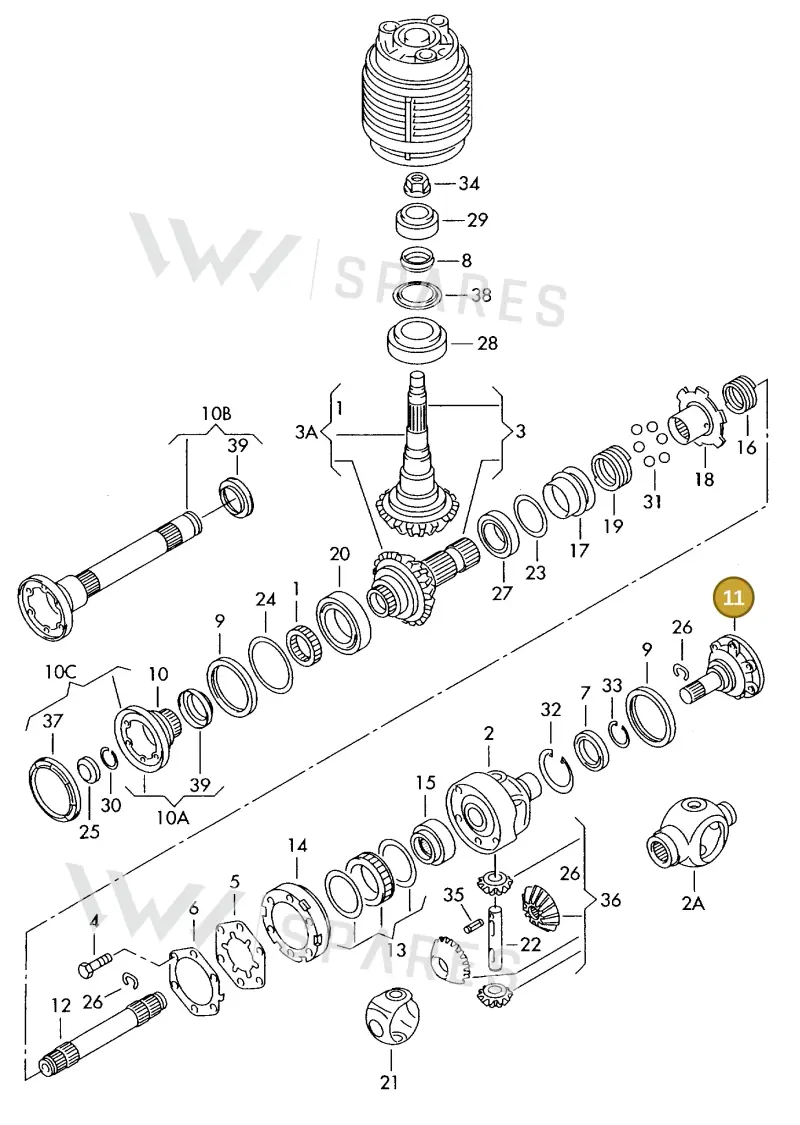

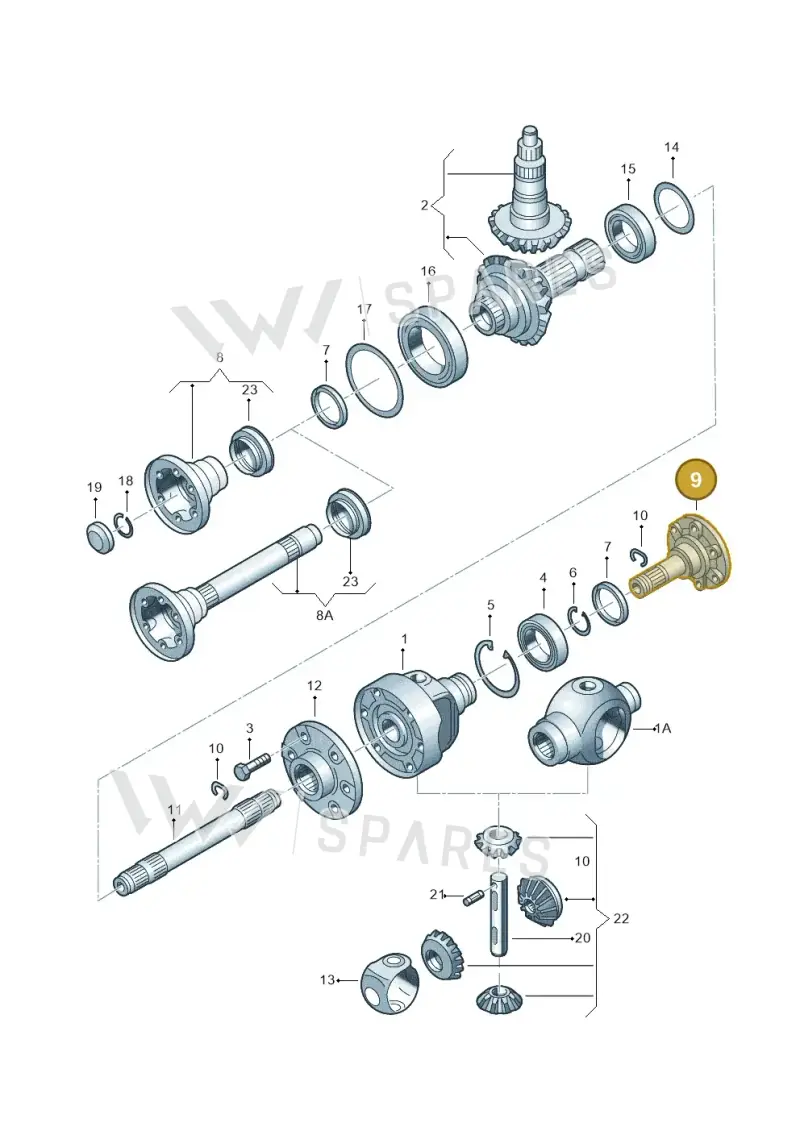

Parts diagram & fitment
11 vehiclesFlanged Shaft — locate 02D409355A Volkswagen Flanged Shaft | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 02D409355C — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(48)
- 1Clutchbody 02D525111
- 2Housing 02D525121A
- 4Bolt 02D525181A
- 5Washer 02D525183
- 6Plate 02D525186
- 7Bearing 02D525193A
- 8Sleeve 02D525267
- 9Seal 02D409399
- 9Part 02D525275A
- 9Part 02D525275
- 10Flange 02B409283B
- 10Flange 02D525283B
- 10Part 02D525283C
- 11Flanshaft 02B409355B
- 12Shaft 02D525355
- 14Outer Race 02D525607A
- 15Inner Race 02D525609A
- 16Press Spring 02D525620
- 17Sleeve 02D525621
- 18Sleeve 02D525623
- 19Press Spring 02D525626
- 21Thr Washer 012409170A
- 22In Shaft - Differential Pinion Shaft - 005409177
- 23Shims 02B498210
- 24Washer 02D409247A
- 24Washer 02D409247B
- 24Washer 02D409247C
- 24Washer 02D409247D
- 24Washer 02D409247E
- 24Washer 02D409247F
- 24Washer 02D409247G
- 24Washer 02D409247H
- 24Washer 02D409247J
- 24Washer 02D409247K
- 24Washer 02D409247L
- 24Washer 02D409247M
- 24Washer 02D409247
- 25Part 020409289B
- 26Circlip 012409413
- 27Mounting 002517185
- 28Mounting 091517185B
- 29Mounting 003519185B
- 30Ring 020311381F
- 31Ball N0256571
- 32Ring N0122981
- 33Ring N0123722
- 35Sleeve N90538701
- 36Diff Pinio 012498081C
Diagrams & fitment data powered by oemdiagrams.com
02D409355A Volkswagen Flanged Shaft | Genuine OEM is fitted on: TRANSPORTER SYNCRO 1995-1995; TRANSPORTER SYNCRO 1996-2003; Golf 1998-2000; New Beetle 1998-2001; Jetta Wagon 2001-2001; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; AUDI A3/S3/QUATTRO 1996-2000; AUDI A3/S3/QUATTRO 2000-2003; Audi TT Coupe/Roadster 1999-2002; 1J0 platform.
