02E321371D Seal
- 02E321371DThis pageNot stocked
Sep 2003 - 02E321371ECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

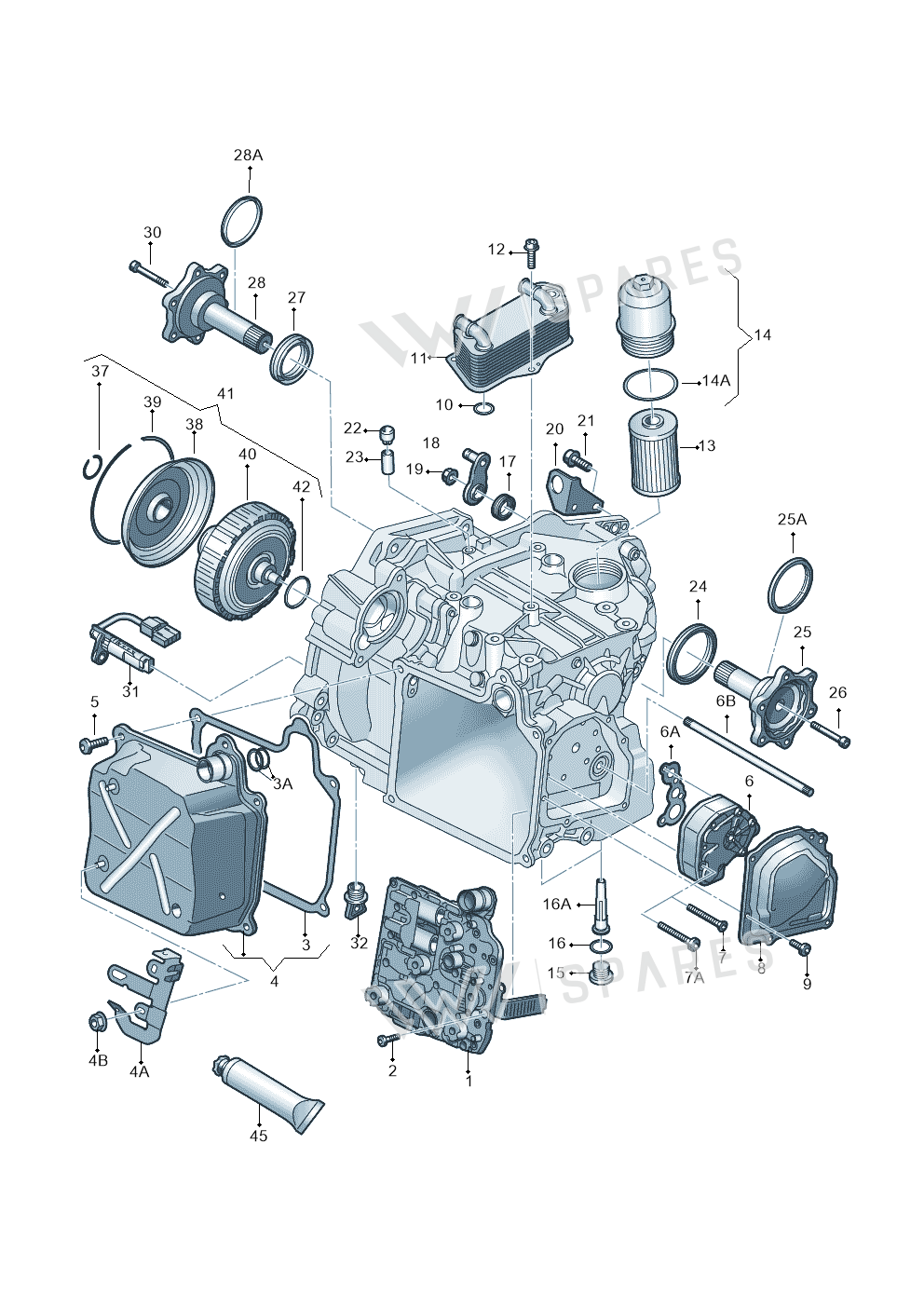

4 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Mechatron 02E325025AD
- 1Mechatron 02E325025AM
- 2Screw N10554002
- 3Seal 02E321371E
- 3ASeal Ring WHT001403
- 4Part 02E325201D
- 4AR Bracket 1K0971858AS
- 4BCollar Nut N01508210
- 5Screw N91032702
- 6Oil Pump 02E315105B
- 6ASeal 02E321385A
- 6BShaft 02E323561C
- 7Screw N10562602
- 7ABolt N91109001
- 8Cover 02E315141A
- 9Bolt N10451405
- 10Seal Ring N91027901
- 11Oil Cooler 02E409061B
- 12Screw N90986102
- 13Filterelem 02E305051C
- 14Housing 02E305045
- 14ASeal Ring N91084501
- 15Screw N90215404
- 16Seal Ring N0438092
- 16AOil Pipe 02E321363C
- 16AOil Pipe 02E321363B
- 17Seal 02A301227M
- 18Lever 02E321171D
- 19Collar Nut N90761102
- 20Abutment 02E321397D
- 22Ap Cap For Venting The Gearbox Cap For Venting 095409841
- 23Pipe 0AM409847
- 24Seal Ring 02M301189G
- 25FlanshaftLeft02E409343D
- 25FlanshaftLeft02E409343C
- 25ARingLeft02E409375B
- 26Screw 02E409359
- 27Seal Washer 02Q409189
- 27Seal 02T409189K
- 28FlanshaftRight02E409344C
- 28FlanshaftRight02E409344A
- 31Sensor 02E927321A
- 32Bungs 02M301115B
- 37Ring 02E398321
- 38Cover 02E301205C
- 39Ring 02E301859A
- 41Rep Set 02E398029B
- 42Seal Ring 02E323557B
Vehicle fitment table4
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| TOURAN | 2006- | 3 | 1 |
| TOURAN | 2005-2006 | 3 | 1 |
| GOLF | 2003-2005 | 3 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: TOURAN 2006-; TOURAN 2005-2006; GOLF 2003-2005; Golf/Rabbit 2005-2007.
