032103601RA Engine Oil Sump
- 036103601JANot stocked
Apr 2002 - 032103601RAThis pageNot stocked
Jan 2010
- Discontinued Jul 2023032103603NDiscontinued
Jul 2023 - Current number03G103707Current number
- Current number038103196Current number
- Current numberN91065201Current number
- Current numberN90813202Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

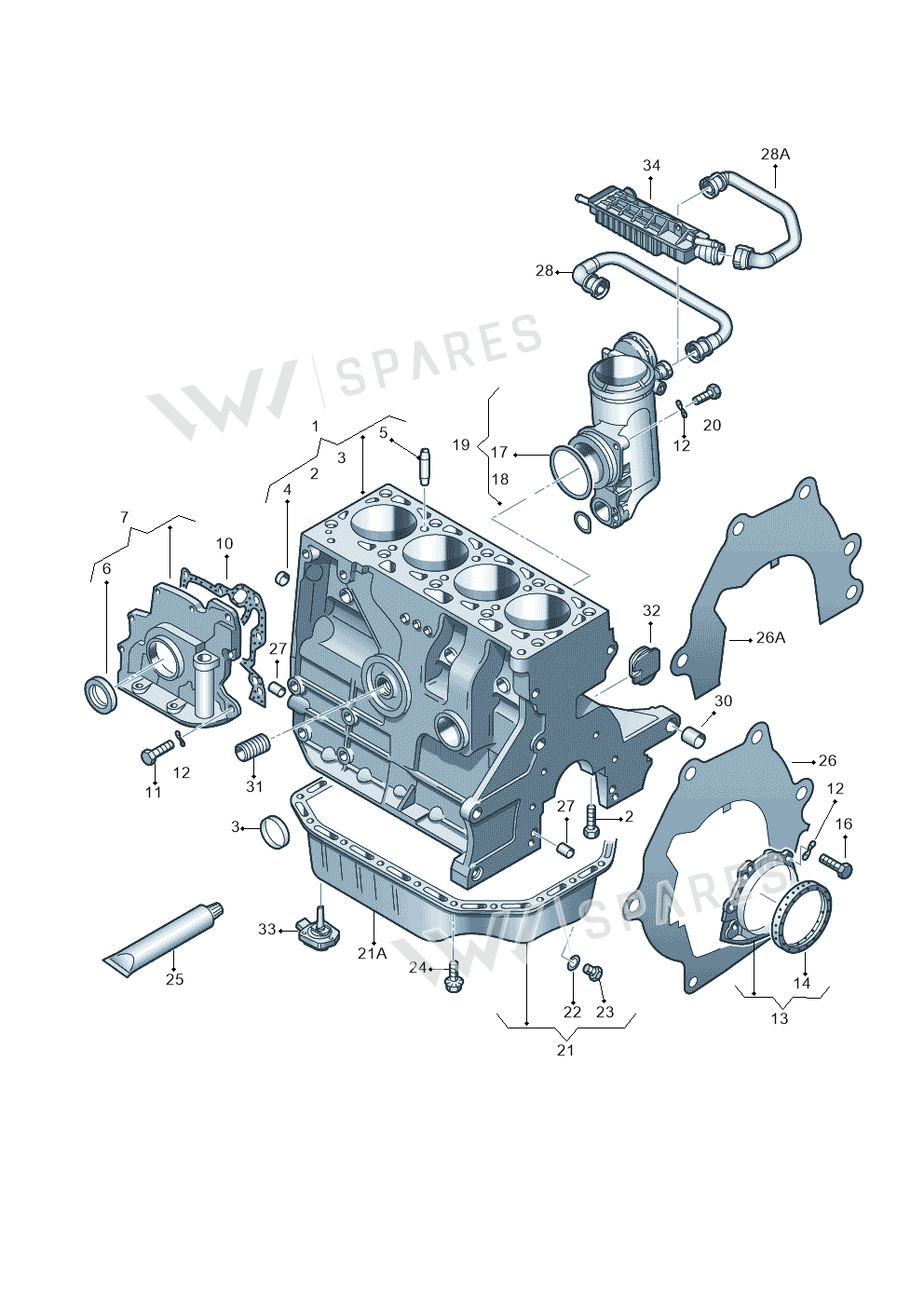

13 vehiclesEngine Oil Sump — locate Engine Oil Sump in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Cylinder Block 036103101BA
- 1Cylinder Block 036103101BG
- 1Cylinder Block 036103101BH
- 1Cylinder Block 036103101BJ
- 1Cylinder Block 036103101BF
- 3Cover 034103113B
- 3Cover 036103113A
- 3Cover 036103113
- 4Cover N0119096
- 4Cover 03C103113
- 5Part 026103139
- 6Seal 036103085H
- 10Seal 032103161K
- 13Flange 030103171L
- 13Flange 030103171T
- 13Flange 036103171B
- 16Bolt N90842402
- 17Seal Ring N90617501
- 18Seal Ring 036103677
- 19Separator 036103464AJ
- 19Separator 036103464AH
- 20Screw N10432603
- 21Oil Sump 032103601AK
- 21Oil Sump 036103601AC
- 21AOil Sump 032103603AB
- 21AOil Sump 032103603N
- 21AOil Sump 036103601AM
- 23Bolt N90813202
- 24Screw N10248003
- 24Screw N90500605
- 25Seal D176404A2
- 26Spacer Pl 036103551S
- 26ASpacer Pl 036103551K
- 27Part N0432072
- 28Hose 036103493CP
- 28AHose 036103493EC
- 30Sleeve 022103139B
- 32Bungs 030103037D
- 32Bungs 030103037E
Vehicle fitment table13
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO | 2005- | 21 | 1 | BKY | |
| IBIZA 06> | 2005- | 21 | 1 | BKY | |
| CORDOBA 06> | 2005- | 21 | 1 | BKY | |
| LUPO/3L TDI | 2003-2005 | 21 | 1 | AUB | MP0 |
| AROSA | 2003-2004 | 21 | 1 | AUB | G0C |
| POLO | 2001-2005 | 21 | 1 | BKY | |
| CORDOBA/VARIO | 1999-2002 | 21 | 1 | ||
| POLO | 1999-2001 | 21 | 1 | AFK,AUB,AQQ | MP0 |
| POLO CLASSIC/VARIANT | 1999-2001 | 21 | 1 | ||
| LUPO/3L TDI | 1998-2003 | 21 | 1 | ||
| AROSA | 1997-2003 | 21 | 1 | AUB,AFK,AQQ |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| POLO CLASSIC "CN"03>06 | 2003-2006 | 21 | 1 | PR:7GF:BCC | |
| POLO "CN"02>06 | 2002-2006 | 21 | 1 | PR:7GF:BCC |
Diagrams & fitment data powered by oemdiagrams.com
Engine Oil Sump is fitted on: POLO 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; LUPO/3L TDI 2003-2005; AROSA 2003-2004; POLO 2001-2005; CORDOBA/VARIO 1999-2002; POLO 1999-2001; POLO CLASSIC/VARIANT 1999-2001; LUPO/3L TDI 1998-2003; AROSA 1997-2003; POLO CLASSIC "CN"03>06 2003-2006; POLO "CN"02>06 2002-2006.
