03C107065BF Piston Complete
- 03C107065AHNot stocked
Mar 2008 - 03C107065AQNot stocked
Oct 2009 - 03C107065BFThis pageNot stocked
Mar 2014 - 03C107065CKCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

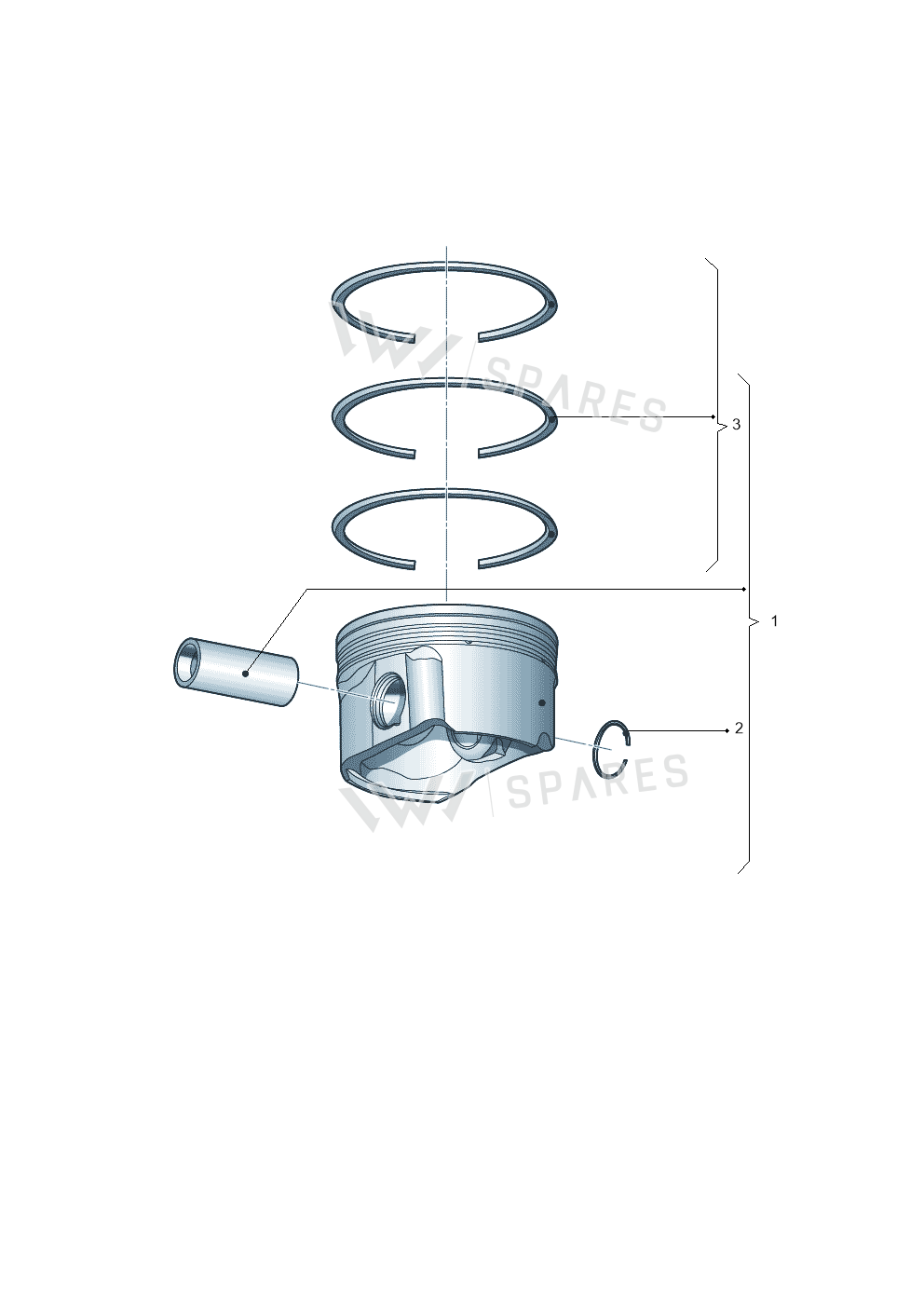

12 vehiclesPiston Complete — locate Piston Complete in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Piston 036107065DB
- 1Piston 036107065EJ
- 1Piston 036107065EM
- 1Piston 03C107065BL
- 1Piston 03F107065A
- 1Piston 045107065AN
- 1Piston 045107065AP
- 1Piston 06A107065BT
- 1Piston 06B107065Q
- 1Piston 036107065DP
- 1Piston 03L107065J
- 1Piston 03L107065S
- 1Piston 038107065LC
- 1Piston 038107065LD
- 1Piston 038107065LE
- 1Piston 038107065LF
- 1Piston 038107065LG
- 1Piston 038107065LH
- 2Circlip N10133301
- 2Circlip N90454001
- 2Circlip 06A107441
- 3Piston Ring 038198151
- 3Piston Ring 03C198151E
- 3Piston Ring 03C198151M
- 3Piston Ring 03F198151
- 3Piston Ring 036198151K
- 3Piston Ring 03C198151F
- 3Piston Ring 06A198151D
- 3Piston Ring 038198151A
- 3Piston Ring 03L198151A
- 3Piston Ring 03L198151B
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Fabia Scout | 2010-2014 | 1 | 4 | CAVE | TF0 |
| Golf Plus 1.6 | 2009-2011 | 1 | 4 | CAVD,CNWA | D4L |
| golf 2.0 | 2008-2011 | 1 | 4 | CAVD,CNWA | D4L |
| Ibiza Reference | 2008-2011 | 1 | 4 | CAVE,CAVF | D31 |
| EOS 2.0 | 2008-2010 | 1 | 4 | CAVD | TF0 |
| Touran 1.9 | 2008-2010 | 1 | 4 | D4P,D4R | |
| GOLF VARIANT 07> | 2007- | 1 | 4 | CAVD | D4L |
| TIGUAN 08> | 2007- | 1 | 4 | BWK,CAVA | TF0 |
| GOLF PLUS 08> | 2007- | 1 | 4 | CAVD | D4L |
| JETTA 06> | 2006- | 1 | 4 | CAVD | D4L |
| GOLF PLUS 05> | 2005- | 1 | 4 | BLG,BMY | D4P |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 1 | 4 | BMY | D4R |
Diagrams & fitment data powered by oemdiagrams.com
Piston Complete is fitted on: Fabia Scout 2010-2014; Golf Plus 1.6 2009-2011; golf 2.0 2008-2011; Ibiza Reference 2008-2011; EOS 2.0 2008-2010; Touran 1.9 2008-2010; GOLF VARIANT 07> 2007-; TIGUAN 08> 2007-; GOLF PLUS 08> 2007-; JETTA 06> 2006-; GOLF PLUS 05> 2005-; Golf/Rabbit 2005-2007.
