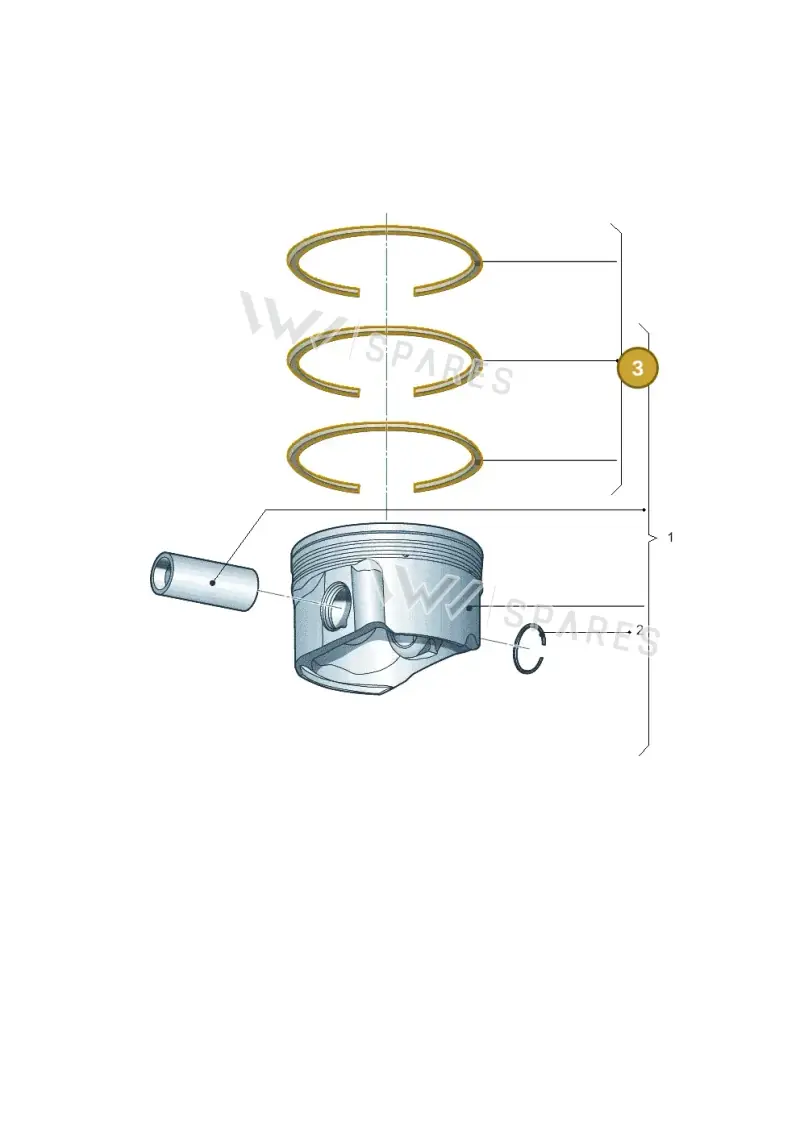

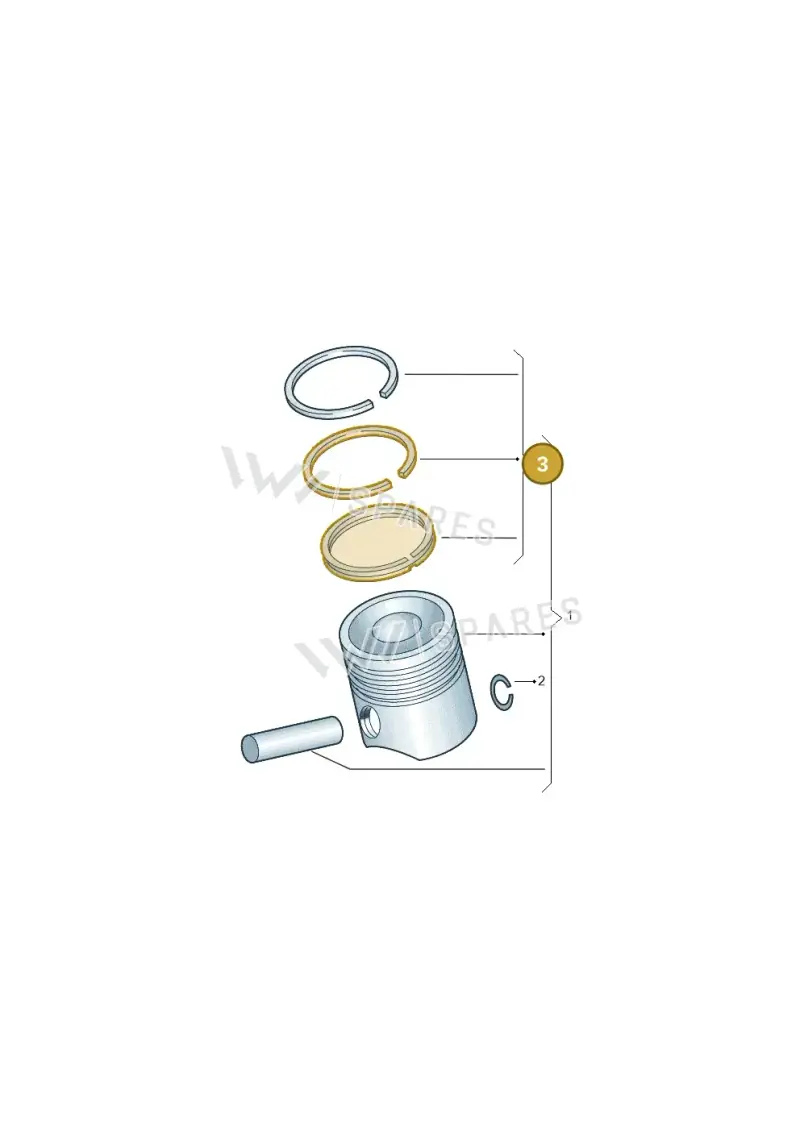

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM SEAT Engine Piston Rings, part number 03C198151F. These rings are crucial for sealing the combustion chamber, preventing gas leakage, and regulating oil consumption within the engine cylinder. They are positioned around the piston to maintain a seal against the cylinder wall. Made from durable materials to withstand high temperatures and pressures, ensuring proper engine function and longevity.
Technical details
- Category
- Engine
- Customs (HS) code
- 84099100
- Manufacturer
- SEAT
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 8 × 8 × 0.5 cm
- Shipping weight
- 0.03 kg
Parts diagram & fitment
12 vehicles1 Set: Piston Rings — locate 03C198151F SEAT Engine Piston Rings | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 03C103383AE — the later replacement part.
Parts in this assembly(30)
- 1Piston 038107065KJ
- 1Piston 038107065KK
- 1Piston 038107065KL
- 1Piston 038107065KM
- 1Piston 038107065LC
- 1Piston 038107065LD
- 1Piston 038107065LE
- 1Piston 038107065LF
- 1Piston 038107065LG
- 1Piston 038107065LH
- 1Piston 03C107065AM
- 1Piston 03C107065AN
- 1Piston 03C107065AP
- 1Piston 03G107065C
- 1Piston 03G107065J
- 1Piston 050107065K
- 1Piston 06D107065K
- 1Piston 06D107065R
- 2Circlip 06A107441
- 2Circlip N10133301
- 2Circlip N90454001
- 4Piston Ring 038198151A
- 4Part 03C198151
- 4Part 03C198151A
- 4Piston Ring 03C198151B
- 4Piston Ring 03G198151
- 4Piston Ring 03G198151D
- 4Piston Ring 06A198151E
- 4Piston Ring 06B198151C
- 4Piston Ring 06D198151A
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
03C198151F SEAT Engine Piston Rings | Genuine OEM is fitted on: GOLF PLUS 08> 2007-; TIGUAN 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; EOS 2.0 2008-2010; golf estate 2009-2013; jetta 2010-2014; Touran 2.0 2010-2015; jetta 2013-2014; Jetta 1.4 2013-2015; Ibiza Reference 2008-2011; Alhambra Stylance 2010-2013.
