03C109210AS Timing Case
- 03C109210ASThis pageNot stocked
Jun 2018 - 03C109210CNCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 3.68 kg
- Shipping size (L × W × H)
- 51 × 34 × 12 cm
- Customs (HS) code
- 84099100
Parts diagram & fitment

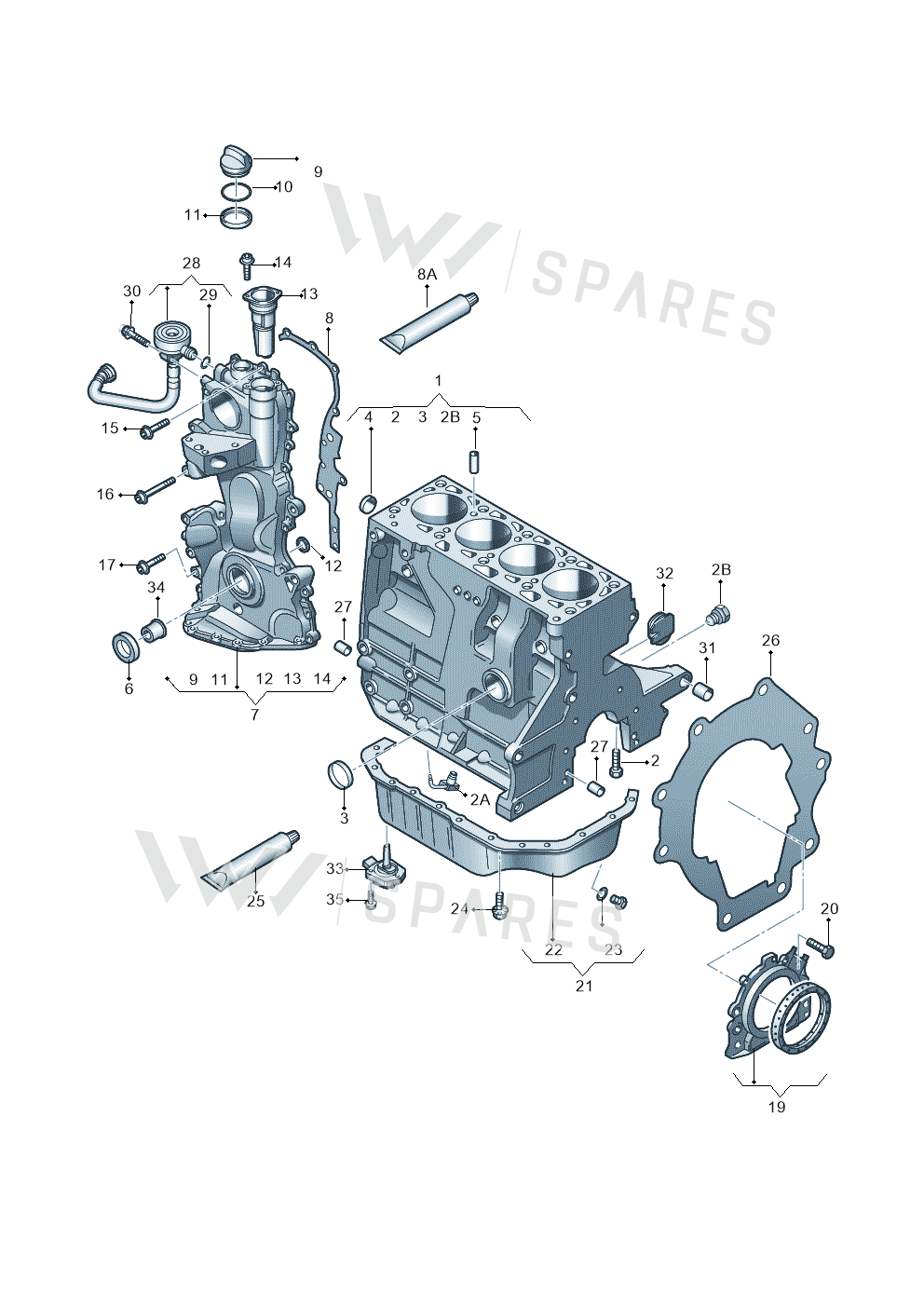

2 vehiclesTiming Case — locate Timing Case in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Crankcase 03C103011AS
- 1Crankcase 03C103011AR
- 2Bolt N91107801
- 2AVent 03C103157A
- 2BScrew N90856005
- 2BBolt N90813202
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 7Case 03C109210CL
- 7Case 03C109210CN
- 7Case 03C109210T
- 7Case 03C109210AR
- 8Seal 03C109287G
- 8APart D176501A1
- 9Cover 06B103485C
- 9Cover 03C103485B
- 10Seal 06A103483D
- 11Seal Ring 03C133287D
- 12Seal 03C109293
- 14Bolt N90440706
- 15Screw N90500605
- 16Bolt N90712403
- 16Bolt N10655802
- 17Screw N10300804
- 19Flange 036103171B
- 20Bolt N0902619
- 21Oil Sump 03C103603T
- 23Plug N90288901
- 25Seal D176600M1
- 26Spacer Pl 036103551R
- 26Spacer Pl 03C103551H
- 27Part N0432072
- 31Sleeve 022103139B
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Toledo Reference | 2012-2015 | 7 | 1 | D4X |
| Audi A1 Sportback | 2010-2015 | 7 | 1 | D4X |
Diagrams & fitment data powered by oemdiagrams.com
Timing Case is fitted on: Toledo Reference 2012-2015; Audi A1 Sportback 2010-2015.
