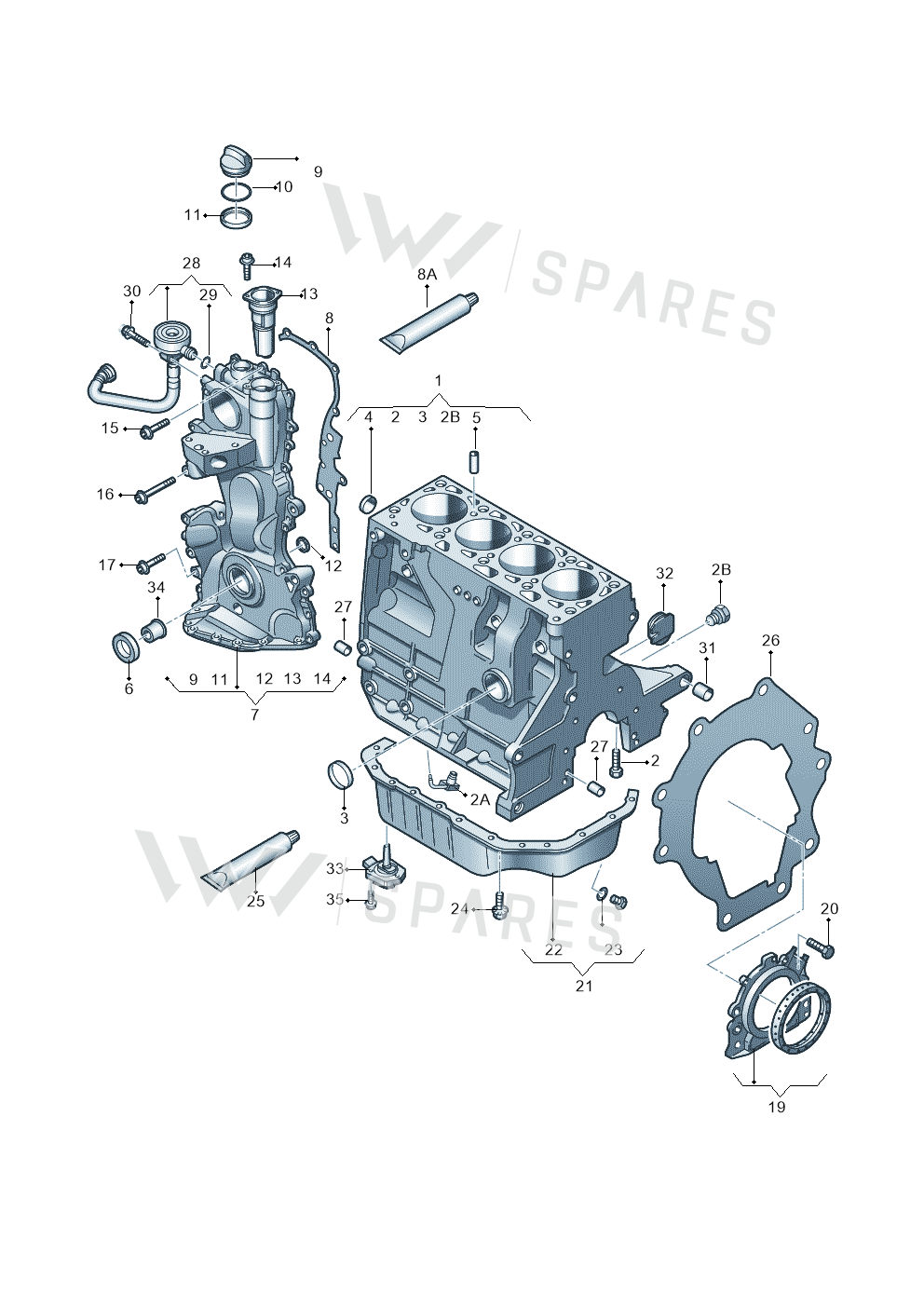

Timing Case exploded parts diagram — Audi A1 Sportback · 2010-2015, position 7 — Audi A1 Sportback · 2010-2015 · position 7Full diagram ↓

03C109210T

03C109210T Timing Case

Name: 03C109210T Timing Case
Brand: Volkswagen
SKU: 03C109210T
Price: 600.79 GBP
Availability: Discontinued

£600.79

£496.52 excl. VAT

Supersession roadoldest to newest

03C109210T
Not stocked Jul 2014
You are here
03C109210CL
Current number

03C109210TThis pageNot stocked
Jul 2014
03C109210CLCurrent number

Current part number03C109210CLWhat the manufacturer supplies todayOrder

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

2 vehicles

Timing Case — locate Timing Case in the official exploded view and explore the surrounding assembly.

Parts in this assembly27

Vehicle fitment table2

Europe (1)

Vehicle	Years	Pos.	Qty	PR
Audi A1 Sportback	2010-2015	7	1	D4X

Other markets (1)

Vehicle	Years	Pos.	Qty	PR
Lavida	2008-2013	7
