03C109293A Seal
- 03C109293AThis pageNot stocked
Nov 2010 - 03C109293Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

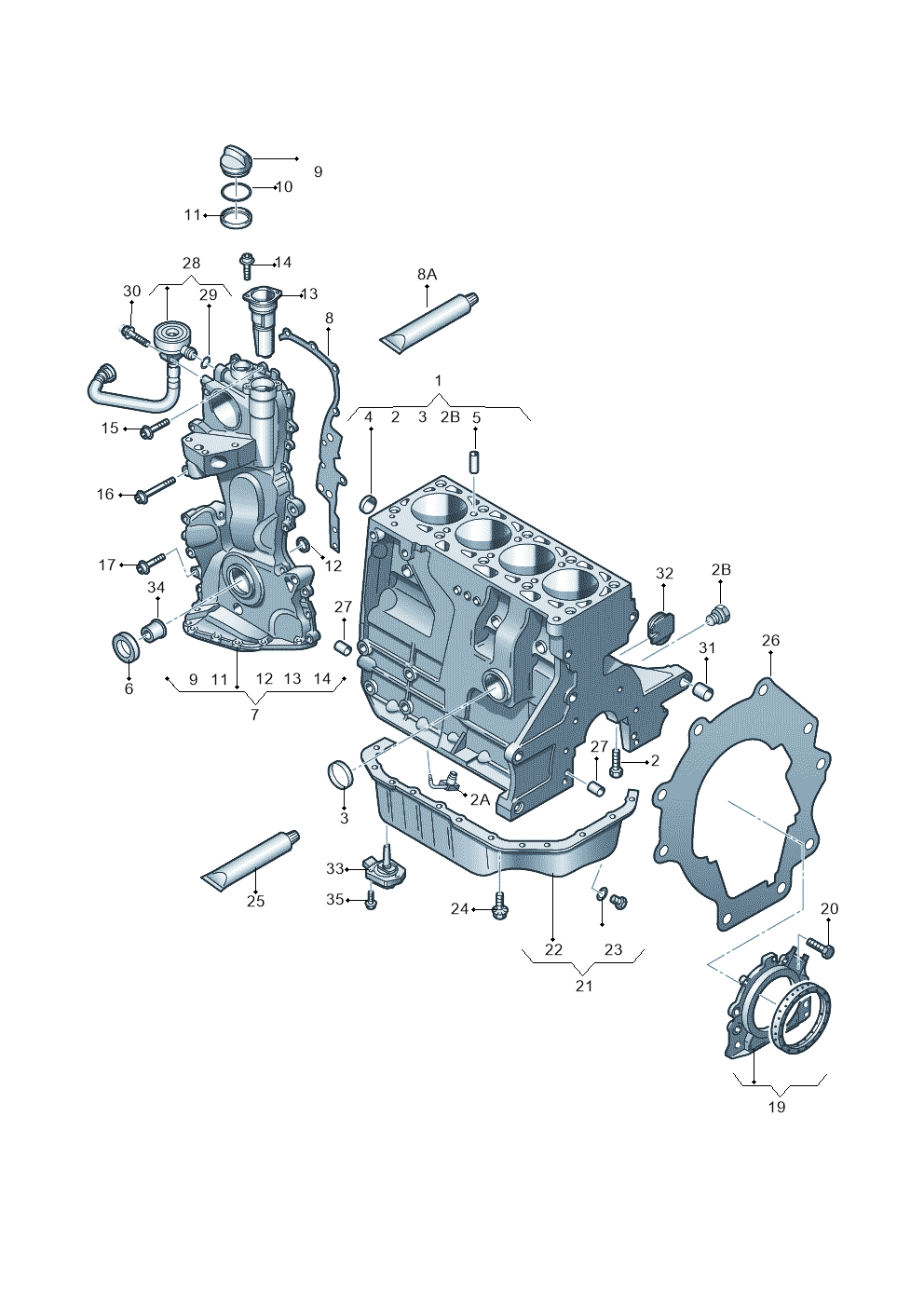

20 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Crankcase 03C103011BB
- 2Bolt N91107801
- 2AVent 03C103157A
- 3Bolt N90813202
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085Q
- 7Part 03C109210CB
- 7Part 03C109210T
- 8Seal 03C109287H
- 8ASeal DCN176600Z1
- 9Cover 03C103485D
- 10Seal 06A103483D
- 11Seal Ring 03C133287E
- 13Separator 03C103464E
- 14Bolt N90440701
- 15Screw N90500601
- 16Bolt N90712401
- 17Screw N90338204
- 19Flange 03C103171B
- 19Flange 03C103171
- 20Screw N91099101
- 21Oil Sump 03C103601AP
- 24Screw N10248003
- 26Spacer Pl 03C103551J
- 27Part N0432072
- 31Sleeve 022103139B
Vehicle fitment table20
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A1 Sportback | 2010-2015 | 12 | 1 | DP4 | |
| Fabia Scout | 2010-2014 | 12 | 1 | D32 | |
| Superb Ambition | 2009-2015 | 12 | 2 | ||
| Golf | 2009-2014 | 12 | 2 | TT3 | |
| Fabia Jingrui | 2008-2014 | 12 | 2 | ||
| Ibiza Reference | 2008-2011 | 12 | 2 |
Other markets (14)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Lavida | 2012-2021 | 12 | 2 | ||
| Sagitar | 2011- | 12 | 2 | CFBA | TT3 |
| New Passat | 2011-2019 | 12 | 2 | ||
| Magotan 1.4 | 2011-2012 | 12 | 2 | TT3 | |
| New Polo (SVW) | 2010-2019 | 12 | 2 | ||
| Tiguan | 2009-2019 | 12 | 2 | ||
| bora | 2008-2016 | 12 | 2 | TT3 | |
| Lavida | 2008-2013 | 12 | 2 | ||
| MAGOTAN (PASSAT) 07> | 2007- | 12 | 2 | ||
| OCTAVIA "CN."07> | 2007- | 12 | 2 | ||
| POLO JIN QIN "CN"06> | 2006- | 12 | 2 | ||
| POLO JIN QV "CN"06> | 2006- | 12 | 2 | ||
| BORA-FAW "CN" 06> | 2005- | 12 | 2 | ||
| TOURAN (SVW) "CN"04> | 2004- | 12 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: Audi A1 Sportback 2010-2015; Fabia Scout 2010-2014; Superb Ambition 2009-2015; Golf 2009-2014; Fabia Jingrui 2008-2014; Ibiza Reference 2008-2011; Lavida 2012-2021; Sagitar 2011-; New Passat 2011-2019; Magotan 1.4 2011-2012; New Polo (SVW) 2010-2019; Tiguan 2009-2019; bora 2008-2016; Lavida 2008-2013; MAGOTAN (PASSAT) 07> 2007-; OCTAVIA "CN."07> 2007-; POLO JIN QIN "CN"06> 2006-; POLO JIN QV "CN"06> 2006-; BORA-FAW "CN" 06> 2005-; TOURAN (SVW) "CN"04> 2004-.
