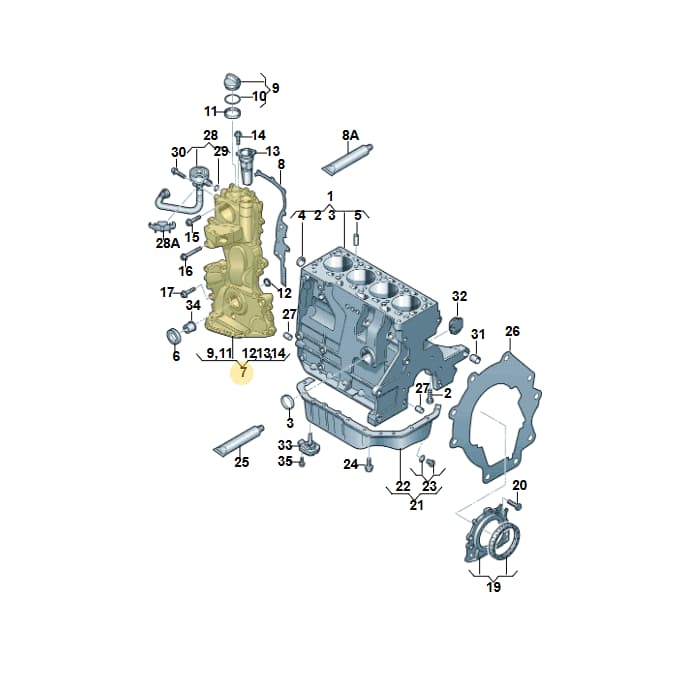

Number 7 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Timing Case, part number 03C109210BP. This housing encloses and protects the timing chain and related components, ensuring proper lubrication and timing. It is a critical part of the engine's timing system. Precision-engineered for a perfect seal and optimal engine timing, maintaining factory-level protection and performance.
Catalogue entry: CASE.
Fitted with: 038103085E SEAL, 03C109287G SEAL, D176501A1 SEAL, N90500605 SCREW, N10655802 BOLT, N10300804 SCREW, N90813202 BOLT, D176600M1 SEAL, N0432072 Cylinder pin, N90613201 SEAL. RING.
Technical details
- Category
- Belts, Chains & Tensioners
- Customs (HS) code
- 84099100
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 55 × 25 × 15 cm
- Shipping weight
- 3.57 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
7 vehiclesTiming Case — locate 03C109210BP Volkswagen Timing Case | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Crankcase 03C103011BP
- 2Bolt N91107801
- 3Cover 03C103113
- 4Cover N01190710
- 5Sleeve 03C103143
- 6Seal 038103085E
- 8Seal 03C109287G
- 8ASeal D176501A1
- 9Cover 04E103485A
- 9Cover 03C103485B
- 10Seal 06A103483D
- 12Seal 03C109293
- 13Separator 03C103464D
- 14Bolt N90440706
- 15Bolt N10700201
- 16Bolt N90712403
- 17Screw N90338204
- 19Flange 03C103171
- 20Screw N91099101
- 21Oil Sump 03C103601AK
- 23Bolt N90813202
- 24Screw N10248003
- 25Seal D176600A1
- 26Spacer Pl 03C103551A
- 26Spacer Pl 03C103551L
- 27Part N0432072
- 28Valve 03C103201K
- 28ABracket 03C103733A
- 29Seal Ring N90613201
- 30Bolt N91089601
- 31Sleeve 022103139B
Vehicle fitment table7
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Jetta 1.6 | 2014-2018 | 7 | 1 | |
| jetta | 2014-2017 | 7 | 1 | |
| jetta | 2013-2014 | 7 | 1 | |
| jetta | 2010-2014 | 7 | ||
| Golf | 2009-2014 | 7 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Sagitar | 2011- | 7 | 1 | |
| OCTAVIA "CN."07> | 2007- | 7 | 1 | CLRA |
Diagrams & fitment data powered by oemdiagrams.com
03C109210BP Volkswagen Timing Case | Genuine OEM is fitted on: Jetta 1.6 2014-2018; jetta 2014-2017; jetta 2013-2014; jetta 2010-2014; Golf 2009-2014; Sagitar 2011-; OCTAVIA "CN."07> 2007-.
