03C115121C Chain Sprocket
- 03C115121CThis pageNot stocked
Jun 2007 - 03C115121NCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

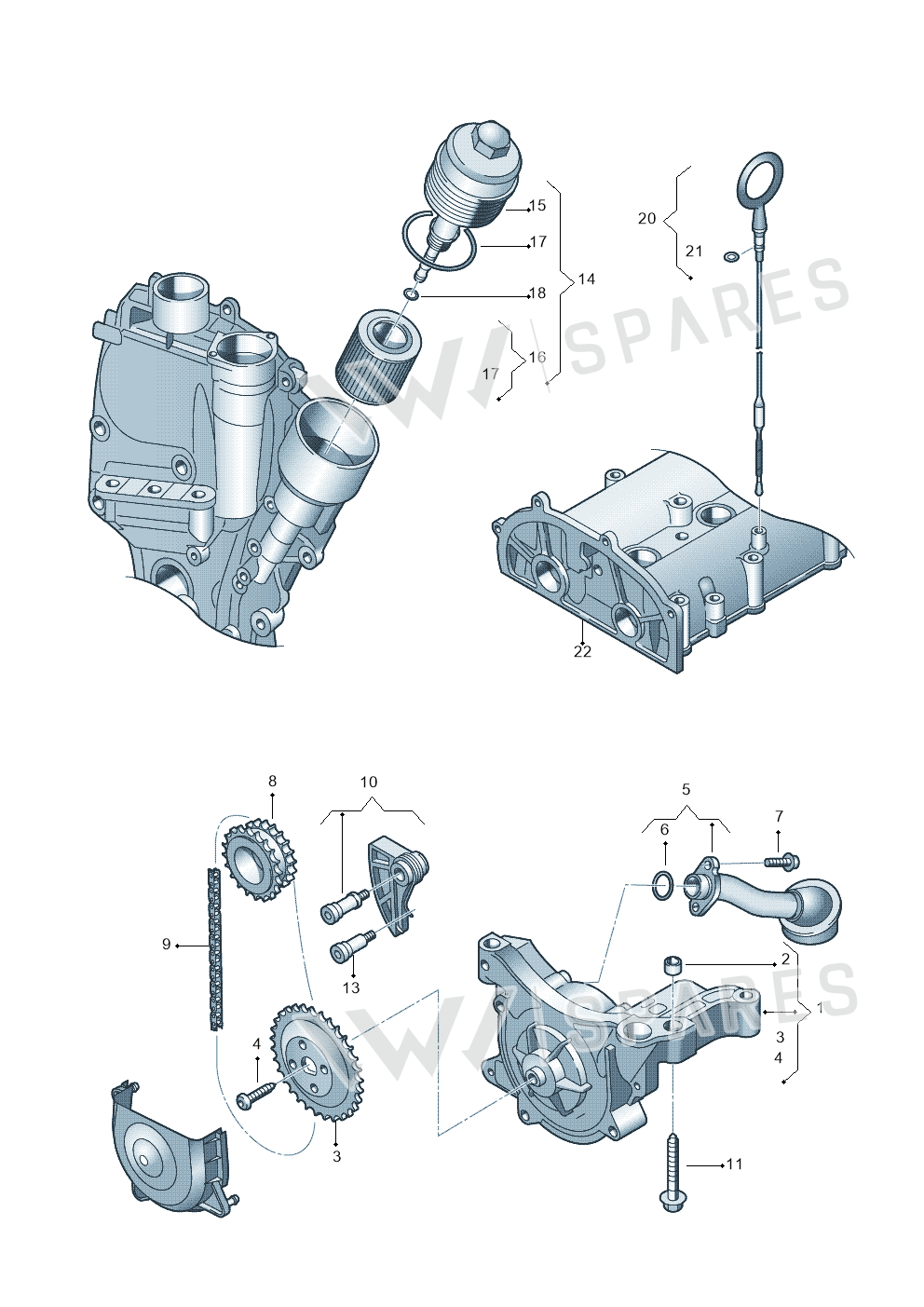

23 vehiclesChain Sprocket — locate Chain Sprocket in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Oil Pump 03C115105N
- 2Sleeve 03C115143
- 3Chn Sprckt 03C115121N
- 4Bolt N90365901
- 5Pipe 03C115251H
- 6Seal Ring N0282222
- 7Bolt N10124408
- 9Chain 03C115230C
- 10Tensioner 03C109507AE
- 11Bolt N90704007
- 12Cover 03C103669E
- 13Screw 03C103714B
- 14Oil Filter 03C115403F
- 15Cover 03C115433B
- 16Filterelem 03C115562
- 17Seal Ring 03C115441
- 18Seal Ring 03C115441A
- 20Oil Dipsti 03C115611AA
- 21Seal Ring 03C115331A
- 21Seal Ring 03C115331
Vehicle fitment table23
Europe (20)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Polo | 2008-2009 | 3 | 1 | D3H | |
| GOLF PLUS 08> | 2007- | 3 | 1 | BLF | D4K |
| Passat/4Motion 08 | 2007- | 3 | 1 | BLF | D4K |
| Audi A3/S3/Sportb./qu. 08 | 2007- | 3 | 1 | T72 | |
| EOS-Cabriolet-Coupe | 2006- | 3 | 1 | D4K,D4X | |
| TOURAN | 2006- | 3 | 1 | BLF | D4K |
| ALTEA 07> | 2006- | 3 | 1 | D33 | |
| GOLF PLUS 05> | 2005- | 3 | 1 | BLN,BLF | D4M,D4K |
| POLO | 2005- | 3 | 1 | T74,TT0 | |
| JETTA 06> | 2005- | 3 | 1 | D4K,T72 | |
| LEON 06> | 2005- | 3 | 1 | D33 | |
| IBIZA 06> | 2005- | 3 | 1 | TT0 | |
| CORDOBA 06> | 2005- | 3 | 1 | TT0 | |
| Passat/4Motion | 2005-2007 | 3 | 1 | D4K | |
| Audi A3/S3/quattro | 2005-2007 | 3 | 1 | T72 | |
| TOURAN | 2005-2006 | 3 | 1 | BLF | D4K |
| TOLEDO 05> | 2004- | 3 | 1 | D33 | |
| TOURAN | 2003-2005 | 3 | 1 | MM8,D4K | |
| GOLF | 2003-2005 | 3 | 1 | MM8,D4M,D4K | |
| POLO | 2001-2005 | 3 | 1 | T74 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Golf/Rabbit 08> | 2007- | 3 | 1 | BLF | D4K |
| POLO CLASSIC "ZA"05> | 2005- | 3 | 1 | T74,TT0 | |
| Golf/Rabbit | 2005-2007 | 3 | 1 | BLN,BLF | D4K,D4M |
Diagrams & fitment data powered by oemdiagrams.com
Chain Sprocket is fitted on: Polo 2008-2009; GOLF PLUS 08> 2007-; Passat/4Motion 08 2007-; Audi A3/S3/Sportb./qu. 08 2007-; EOS-Cabriolet-Coupe 2006-; TOURAN 2006-; ALTEA 07> 2006-; GOLF PLUS 05> 2005-; POLO 2005-; JETTA 06> 2005-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; Passat/4Motion 2005-2007; Audi A3/S3/quattro 2005-2007; TOURAN 2005-2006; TOLEDO 05> 2004-; TOURAN 2003-2005; GOLF 2003-2005; POLO 2001-2005; Golf/Rabbit 08> 2007-; POLO CLASSIC "ZA"05> 2005-; Golf/Rabbit 2005-2007.
