03C115251H Suction Line
- 03C115251HThis pageNot stocked
Mar 2011 - 03C115251NNot stocked
Apr 2012 - 03C115251AECurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

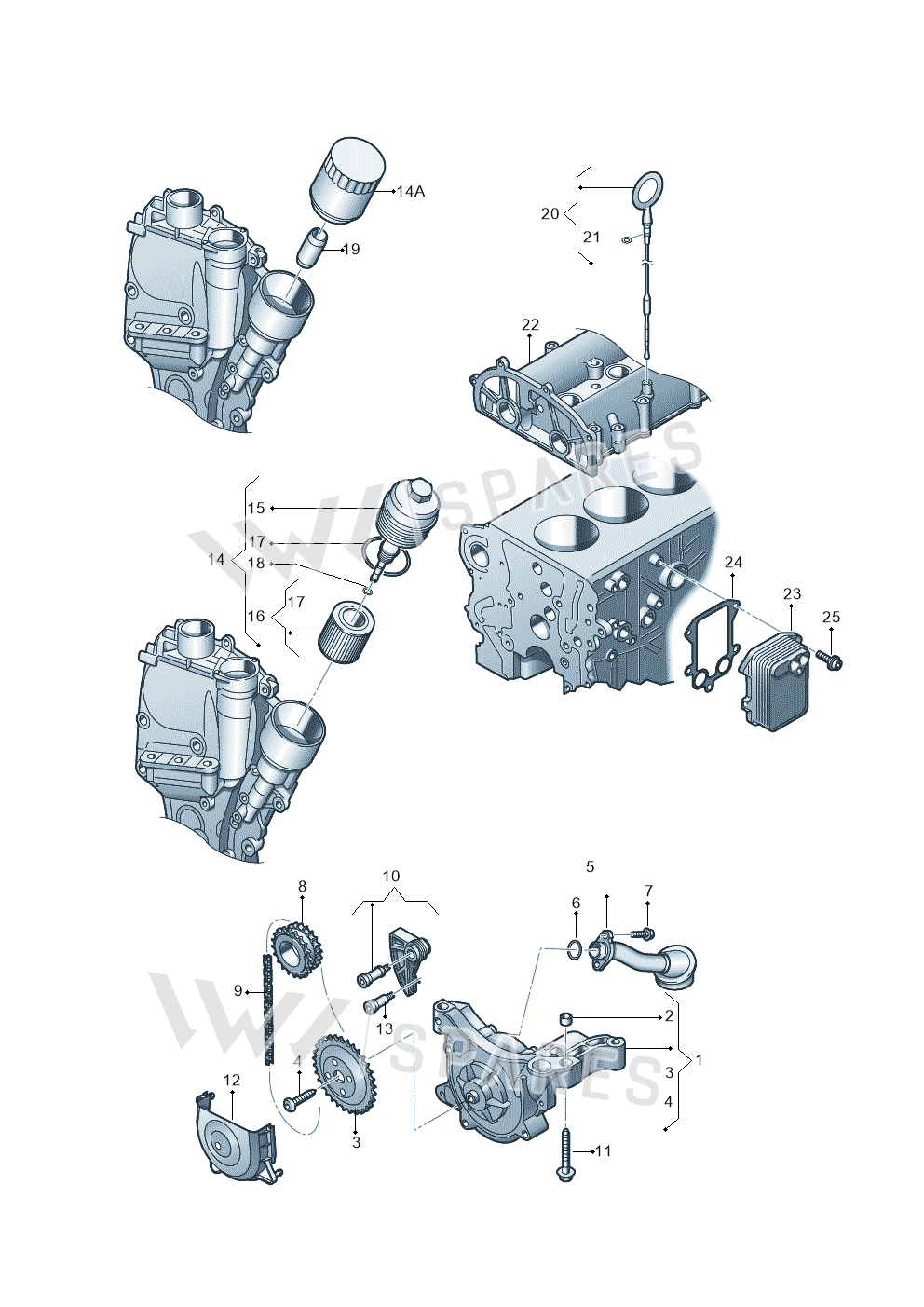

7 vehiclesSuction Line — locate Suction Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Oil Pump 03C115105AG
- 1Oil Pump 03C115105T
- 2Sleeve 03C115143
- 3Chn Sprckt 03C115121M
- 3Chn Sprckt 03C115121N
- 4Bolt N90365901
- 4Screw N90366303
- 6Seal Ring N0282222
- 7Bolt N10124408
- 9Chain 03C115225
- 9Chain 03C115230C
- 10Tensioner 03C109507AE
- 10Tensioner 03C109507AF
- 11Bolt N90704007
- 11Screw N90853902
- 12Cover 03C103669E
- 13Screw 03C103714B
- 14Oil Filter 03C115403F
- 14AOil Filter 03C115561D
- 14AOil Filter 03C115561B
- 15Cover 03C115433B
- 16Filterelem 03C115562
- 17Seal Ring 03C115441
- 18Seal Ring 03C115441A
- 19Union 03C115721A
- 20Oil Dipsti 03C115611AJ
- 20Oil Dipsti 03C115611AA
- 21Seal Ring 03C115331A
- 23Oil Cooler 03C117021J
- 24Seal 03C115111D
- 25Bolt N10451405
Vehicle fitment table7
Europe (7)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi A1 Sportback | 2010-2015 | 5 | 1 | TU0 |
| Ibiza Reference | 2008-2011 | 5 | 1 | TF0 |
| Polo | 2008-2009 | 5 | 1 | D3H |
| POLO | 2005- | 5 | 1 | T74 |
| IBIZA 06> | 2005- | 5 | 1 | TT0 |
| CORDOBA 06> | 2005- | 5 | 1 | TT0 |
| POLO | 2001-2005 | 5 | 1 | T74 |
Diagrams & fitment data powered by oemdiagrams.com
Suction Line is fitted on: Audi A1 Sportback 2010-2015; Ibiza Reference 2008-2011; Polo 2008-2009; POLO 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; POLO 2001-2005.
