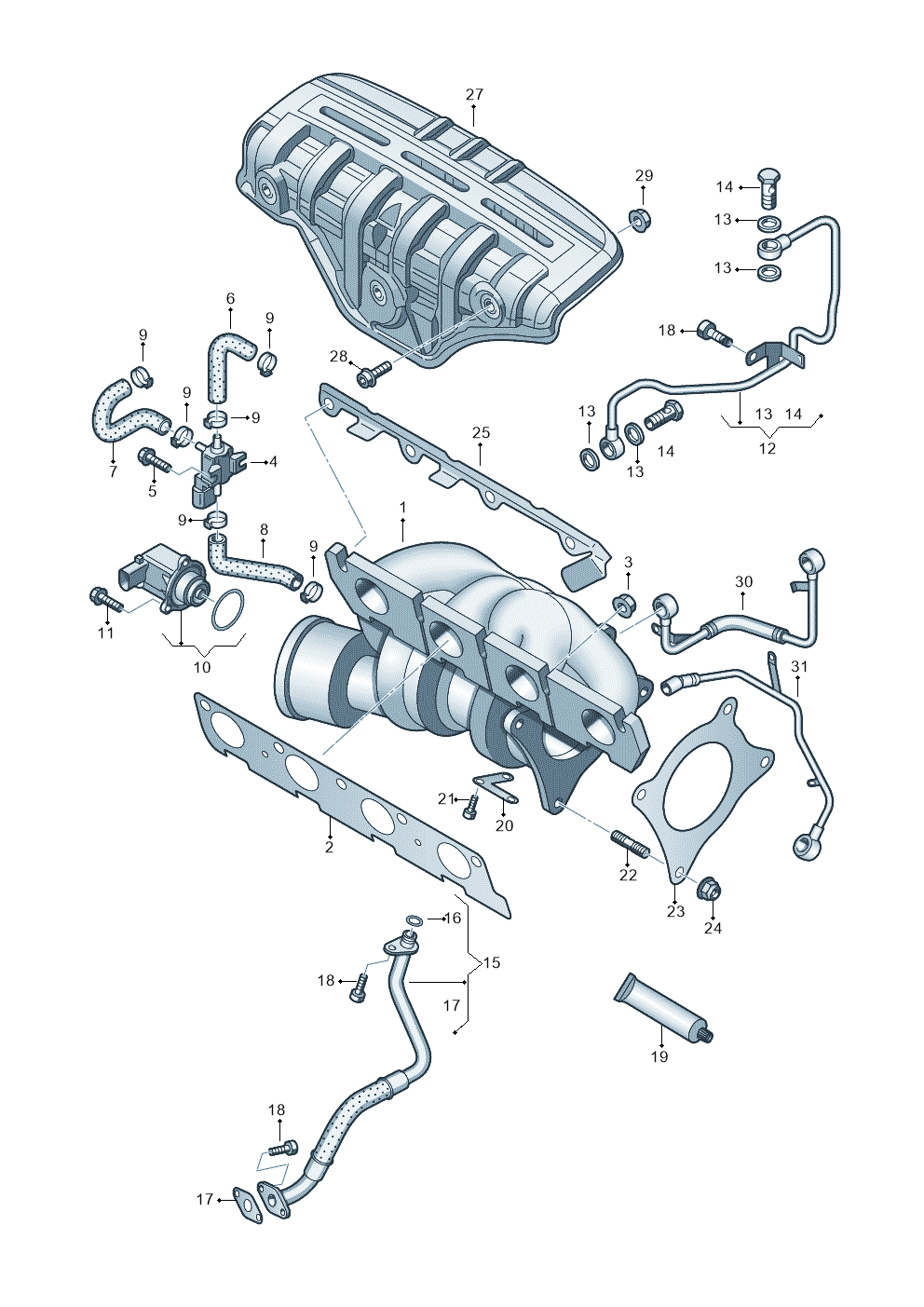

Exhaust Manifold With Turbocharger exploded parts diagram — Alhambra Stylance · 2010-2013, position 1
Exploded view
Alhambra Stylance · 2010-2013 · position 1Full diagram ↓
03C145701TX

03C145701TX Exhaust Manifold With Turbocharger

£1,248.59
£1,031.89 excl. VAT
Supersession road6 numbers since 2007
  1. 03C145701BXNot stocked
    Jul 2007
  2. 03C145701KXNot stocked
    Jan 2009
  3. 03C145701TXThis pageNot stocked
    Feb 2012
  4. 03C145702PXNot stocked
    Apr 2015
  5. 03C145703AXSuperseded
    Aug 2024
  6. 03C145703ACurrent number
Current part number03C145703AWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

4 vehicles

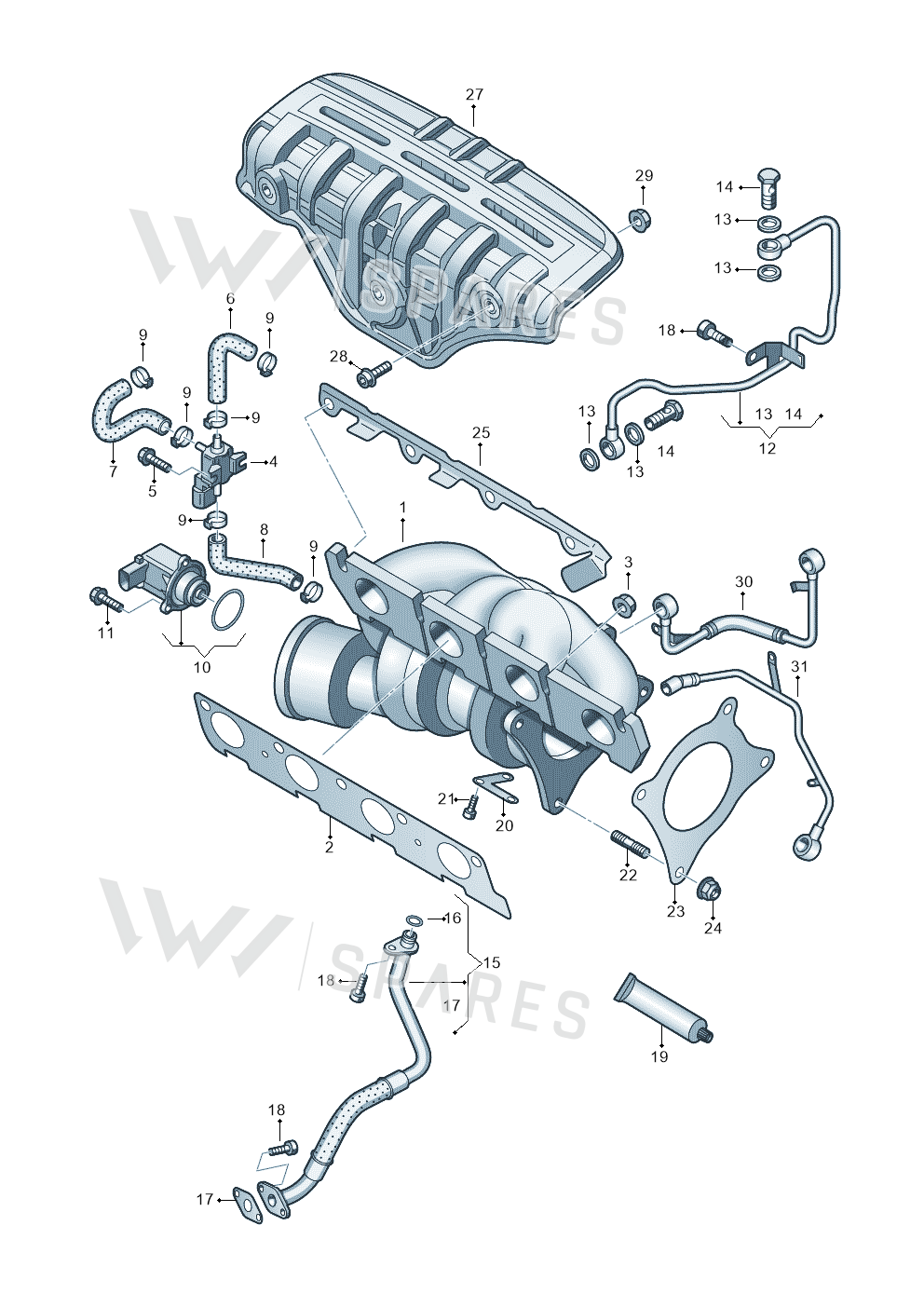

Exhaust Manifold With Turbocharger — locate Exhaust Manifold With Turbocharger in the official exploded view and explore the surrounding assembly.

Parts in this assembly26
Vehicle fitment table4

Europe (4)

VehicleYearsPos.Qty
Alhambra Stylance2010-201311
jetta2008-201111
GOLF VARIANT 07>2007-11
JETTA 06>2005-11

Diagrams & fitment data powered by oemdiagrams.com

Exhaust Manifold With Turbocharger is fitted on: Alhambra Stylance 2010-2013; jetta 2008-2011; GOLF VARIANT 07> 2007-; JETTA 06> 2005-.
