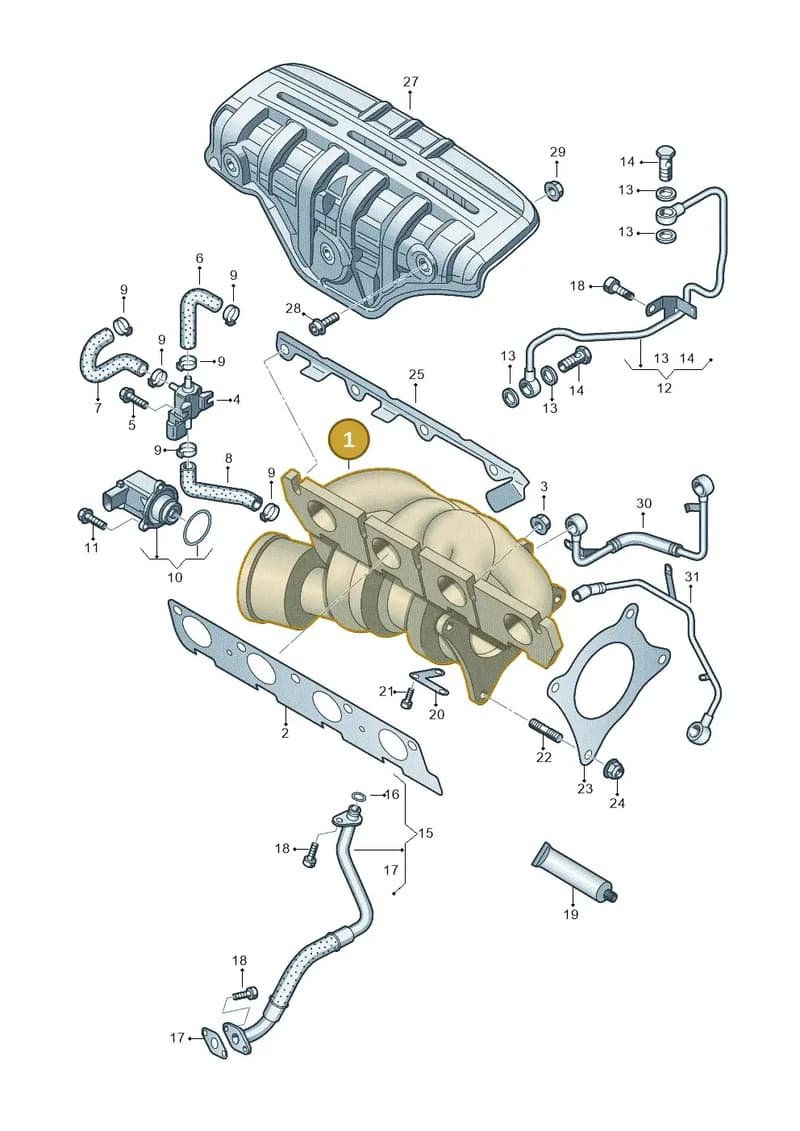

Number 1 marks the part’s position in the exploded view (SEAT Ibiza (2012-)).
Product overview
Genuine OEM Volkswagen Exhaust Manifold with Turbocharger, part number 03C145703AX. Fits SEAT Ibiza (2012). Shown as position 1 in the engine diagram 634145500. Equipment code: D31.
Catalogue entry: TURBO BORGWARNER.
Fitted with: 03C145702P TURBO, 03C253039F SEAL, N90894601 hexagon nut, self-locking, N0138133 seal ring, WHT003367 seal ring, N01021020 BOLT, G052112A3 PASTE, WHT001264 BOLT, 1K0253115L SEAL, N91130801 COLLAR NUT.
Technical details
- Category
- Intake & Turbo
- Diagram sheet
- SEAT 634145500, position 1
- ETKA group
- 1 / 45 (145)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- D31
- D32
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
33 vehiclesExhaust Manifold With Turbocharger — locate 03C145703AX Volkswagen Exhaust Manifold with Turbocharger in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2024-08-01); contact us to check current availability.
Parts in this assembly30
- 1Turbo 03C145702PX
- 1Turbo 03C145703A
- 1Turbo 03C145702P
- 2Seal 03C253039F
- 3Ut Hexagon Nut Self-locking Hexagon Nut N90894601
- 4Bolt WHT004984
- 5Oil Pipe 03C145735C
- 6Seal Ring WHT003367
- 7Seal 03C145757A
- 8Bolt WHT005227
- 9Oil Pipe 03C145140M
- 10Screw N0210717
- 11Seal Ring N0138133
- 12Bolt WHT001264
- 13Seal 5N0253115
- 14Valve 03C145710E
- 15Bolt N10196103
- 16Valve 03C906283B
- 17Screw N10453502
- 18Washer N01152322
- 19Hose 03C145718Q
- 20Hose 03C145718R
- 22Clamp 3C0131483
- 23Part 03C253197AB
- 24Bolt N01029319
- 25Collar Nut N01508210
- 26Stud N91160101
- 27Defl Plate 03C253041AM
- 28Bolt N10632003
- 29Paste G052112A3
Vehicle fitment table33
Europe (32)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Beetle | 2016-2019 | 1 | 1 | |
| new beetle cabriolet | 2016-2019 | 1 | 1 | |
| Jetta 1.6 | 2014-2018 | 1 | 1 | |
| Scirocco 2.0 | 2014-2017 | 1 | 1 | |
| jetta | 2014-2017 | 1 | 1 | |
| Polo | 2012-2014 | 1 | 1 | |
| Ibiza Reference | 2012-2012 | 1 | 1 | D31 |
| Tiguan 4Motion | 2011-2018 | 1 | 1 | |
| new beetle | 2011-2016 | 1 | 1 | |
| new beetle cabriolet | 2011-2016 | 1 | 1 | |
| Golf Cabriolet | 2011-2016 | 1 | 1 | |
| Passat CC | 2011-2016 | 1 | 1 | |
| Golf Plus | 2011-2014 | 1 | 1 | |
| Golf | 2011-2013 | 1 | 1 | |
| Ibiza Reference | 2011-2012 | 1 | 1 | D31 |
| Sharan Blue Motion | 2010-2015 | 1 | 1 | |
| Touran 2.0 | 2010-2015 | 1 | 1 | |
| Passat saloon | 2010-2015 | 1 | 1 | |
| Eos BlueMotion | 2010-2015 | 1 | 1 | |
| Audi A1 Sportback | 2010-2015 | 1 | ||
| Fabia Scout | 2010-2014 | 1 | 1 | |
| Alhambra Stylance | 2010-2013 | 1 | ||
| Polo | 2009-2012 | 1 | 1 | |
| Golf Plus 1.6 | 2009-2011 | 1 | ||
| Scirocco 2.0 | 2008-2014 | 1 | ||
| Passat CC | 2008-2012 | 1 | ||
| golf 2.0 | 2008-2011 | 1 | ||
| Ibiza Reference | 2008-2011 | 1 | 1 | D31 |
| EOS 2.0 | 2008-2010 | 1 | ||
| TIGUAN 08> | 2007- | 1 | ||
| JETTA 06> | 2006- | 1 | 1 | |
| TOURAN | 2005-2006 | 1 | 1 | D4P |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Golf/Rabbit | 2005-2007 | 1 | 1 | D4P |
Diagrams & fitment data powered by oemdiagrams.com
